Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 14 PNC and OE references.

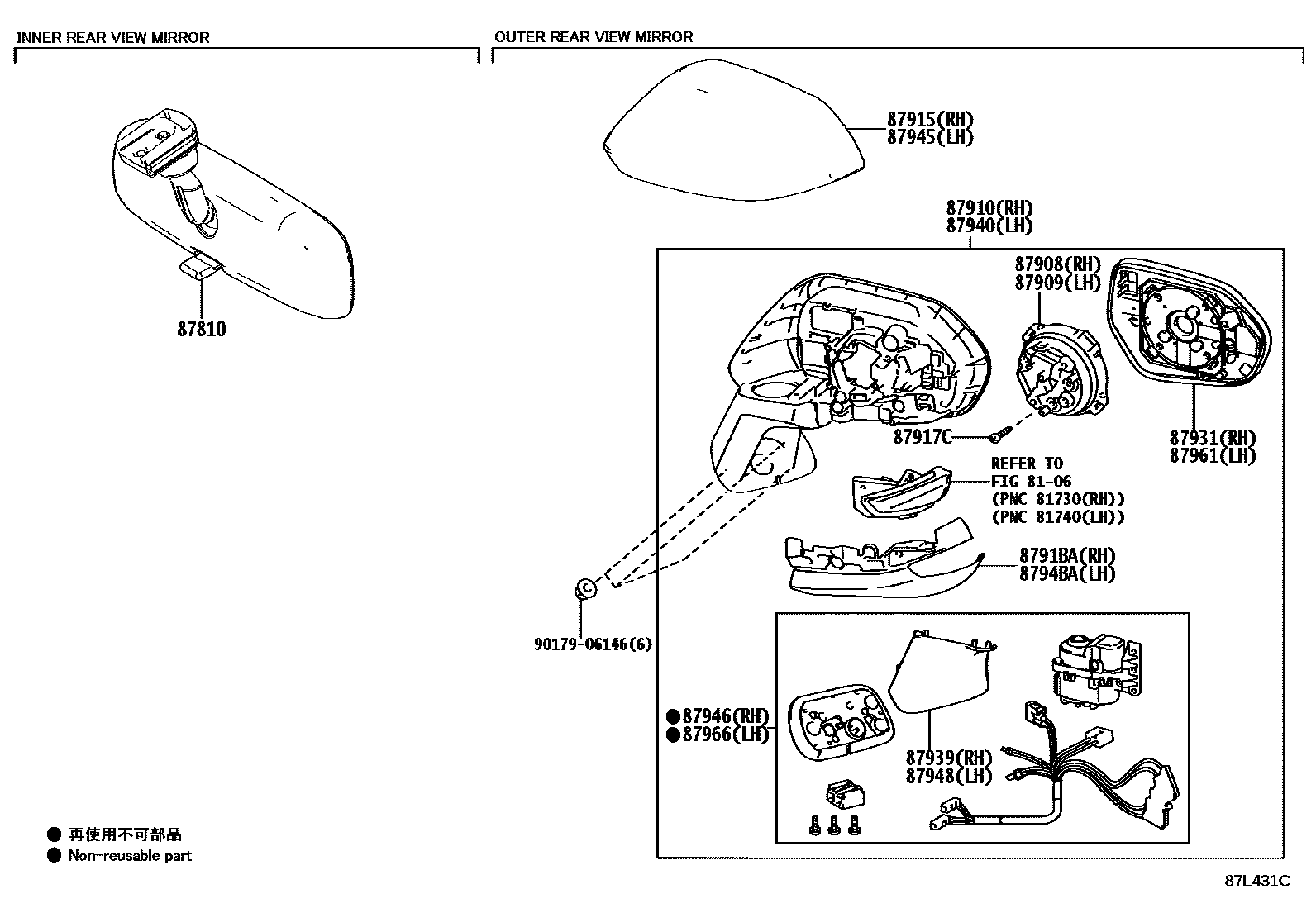

Toyota COROLLA 后视镜 EPC diagram — 87L431C
后视镜 — 87L431C (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-28140
87908Right exterior rearview mirror actuator assembly87908-42E71
87909Left exterior rearview mirror actuator assembly87908-42E71
87910Right exterior rearview mirror assembly87910-12G20 · 87910-12G40 · 87910-12L20 · 87910-12L30 · 87910-12L40
87917CExterior rearview mirror screws87917-15010
8791BANo. 3 right exterior mirror cover8791B-12G30
87931Right exterior rearview mirror87902-12010 · 87902-12030 · 87902-12090 · 87902-33190 · 87902-33360
87939Right exterior rearview mirror hole cover87939-12G20 · 87939-12G30
87940Left exterior rearview mirror assembly87940-12G40 · 87940-12K30 · 87940-12L40 · 87940-12L50 · 87940-12L60
87946Right exterior rearview mirror retractor87946-12G20 · 87946-12G40
87948Left exterior rearview mirror hole cover87948-12G40 · 87948-12G50
8794BANo. 3 left exterior rearview mirror cap8794B-12G50
87961Left exterior rearview mirror87907-12020 · 87907-12070 · 87907-12080 · 87907-12090 · 87907-33170
87966Left exterior rearview mirror retractor87966-12G40 · 87966-12K30
