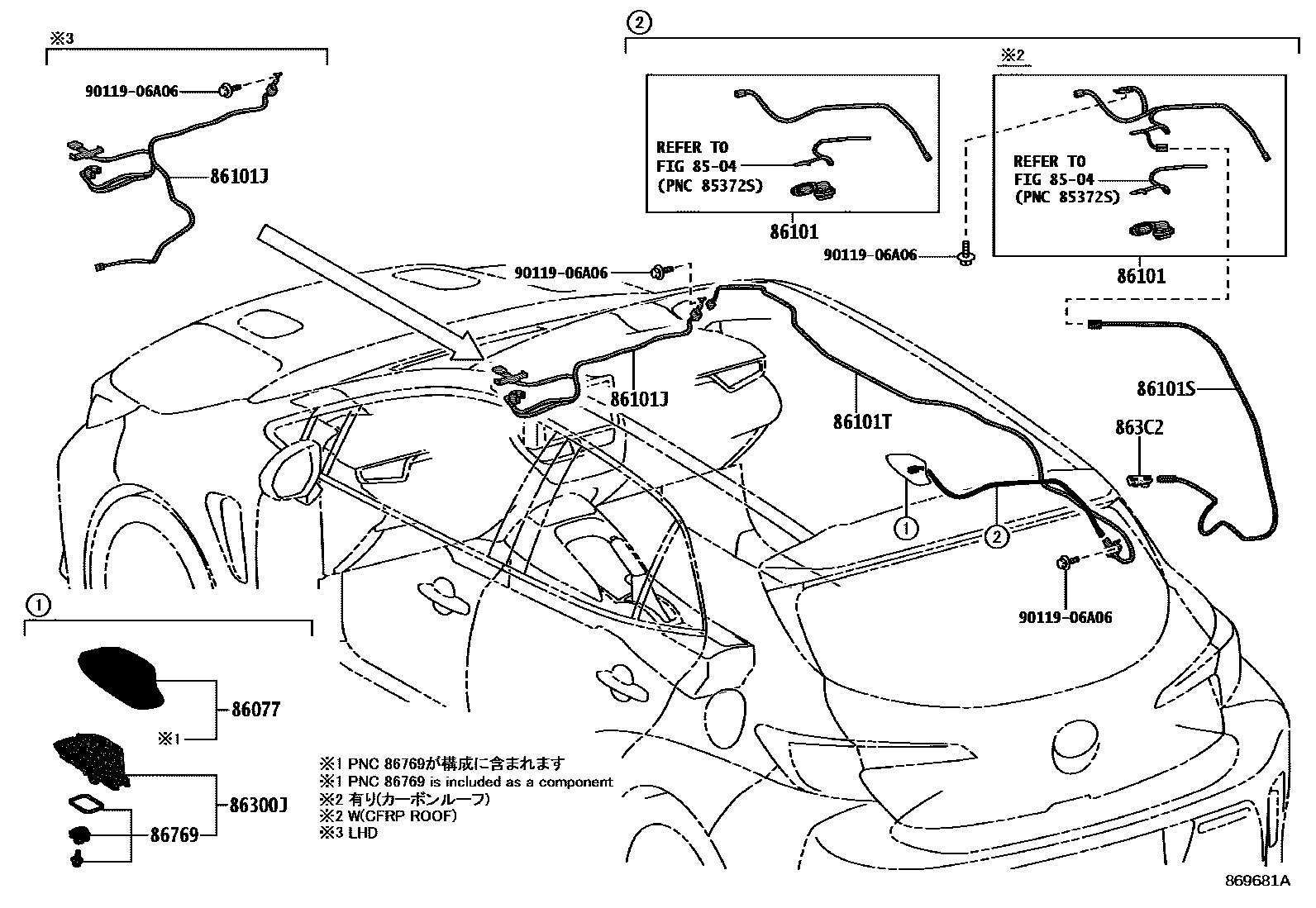

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-12M70 · 86101-12M80 · 86101-12R10 · 86101-12R20 · 86101-12R50 · 86101-12T50 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-12N80 · 86101-12P00 · 86101-12P10 · 86101-12P20 · 86101-12P30 · 86101-12S30 · 86101-12S50 · 86101-12T70 |
| 86101S | Antenna wire sub-assembly | 86101-12B70 |
| 86101T | Antenna wire sub-assembly | 86101-12R70 · 86101-12R80 · 86101-12R90 |
| 86300J | Roof antenna assembly | 86300-42250 · 86760-42050 |
| 863C2 | Digital audio broadcasting receiver antenna base | 863C2-60010 |
| 86769 | roof radome | 86769-K0010 |
