Toyota COROLLA 扬声器 — Figure 8602

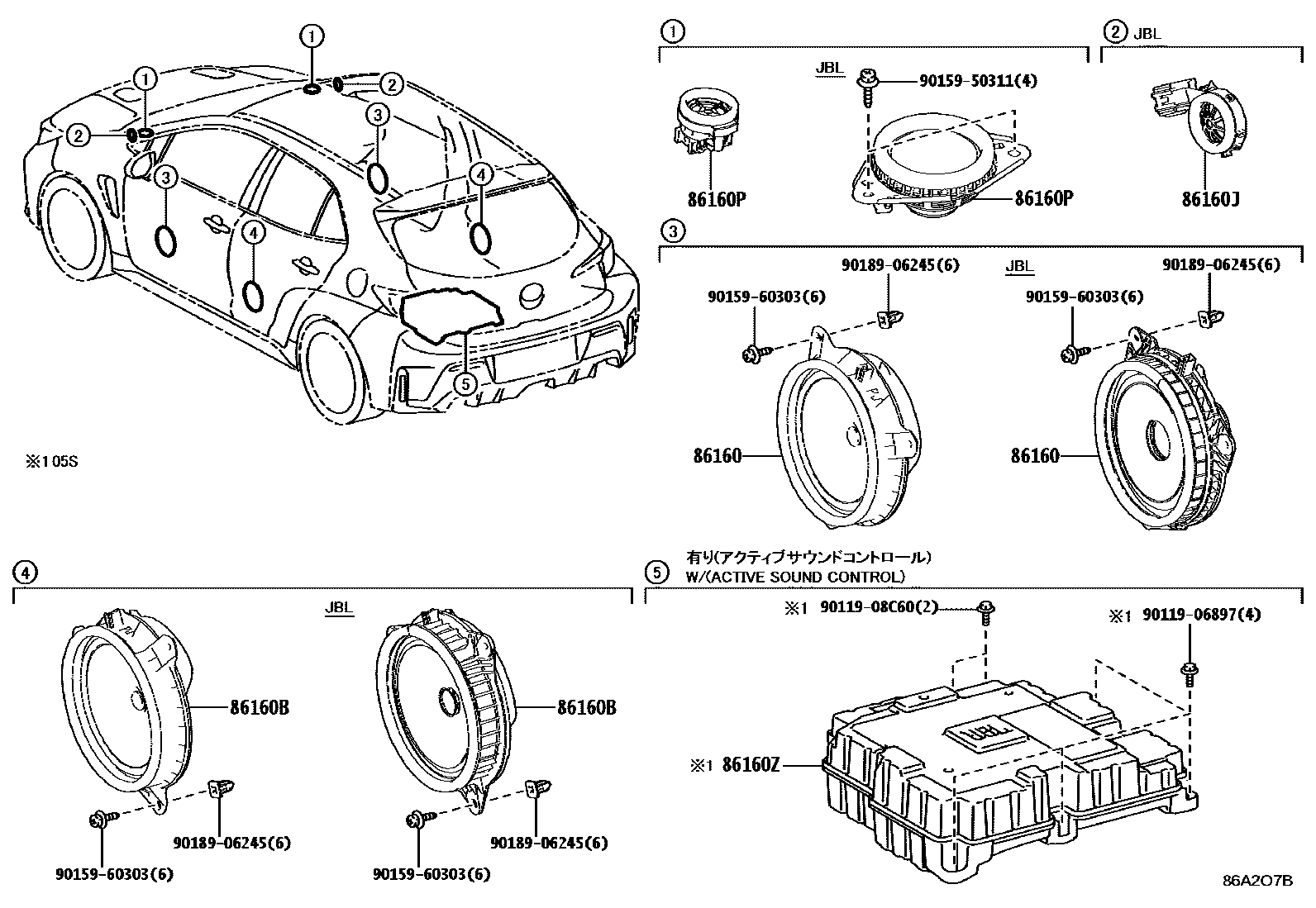

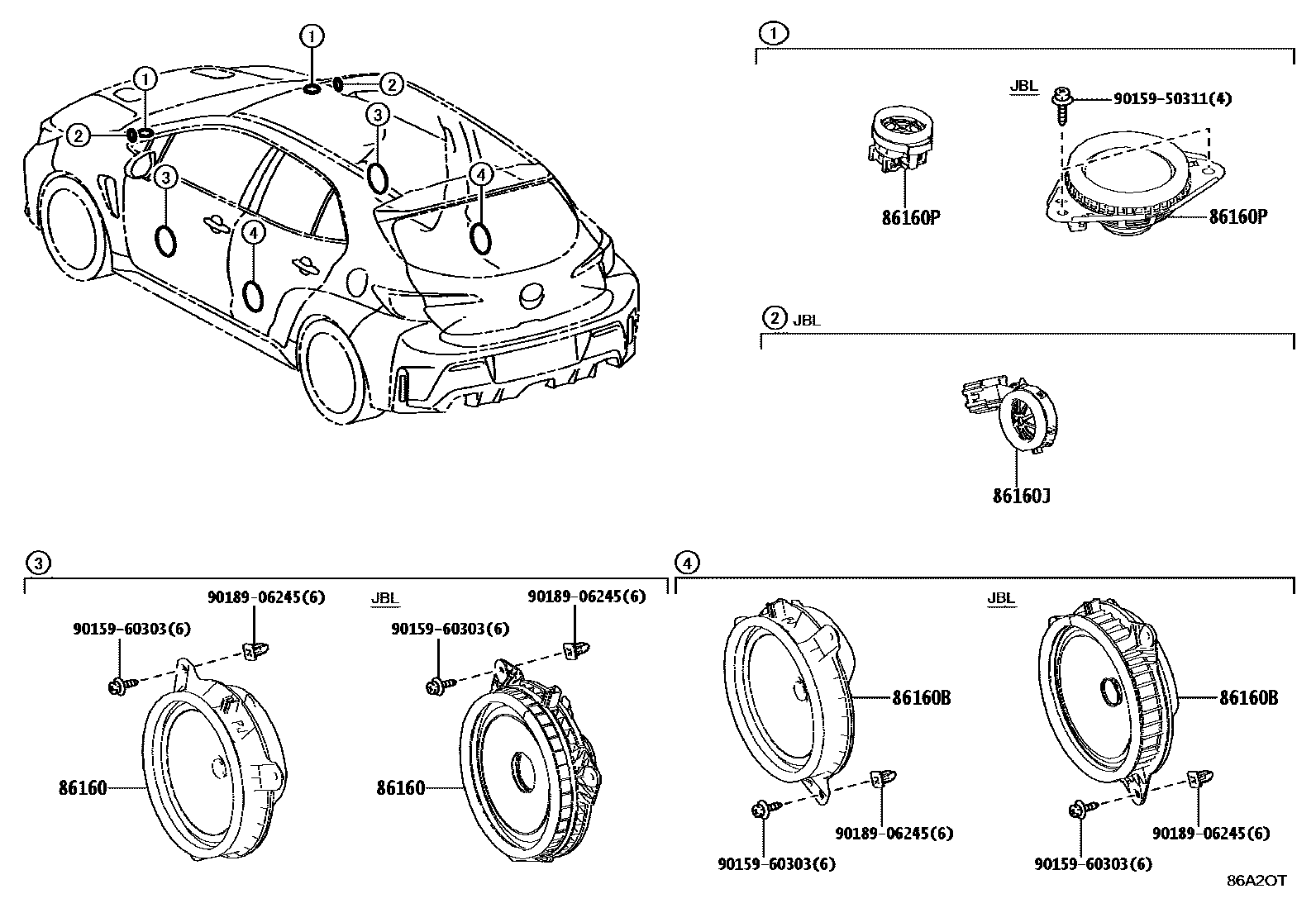

Toyota COROLLA EPC diagram 8602, 扬声器, with 6 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-12A00 · 86160-1A210 · 86160-42160 |
| 86160B | Rear speaker assembly | 86160-1A210 · 86160-42170 |
| 86160J | No. 3 front speaker assembly | 86150-12240 · 86150-12250 · 86150-16130 |
| 86160P | No. 2 front speaker assembly | 86150-12230 · 86160-52340 |
| 86160Z | No. 3 rear speaker assembly | 86150-12290 |
| 86183K | COUV, AMPLI AUDIO | 86183-12020 · F1712-12090 |
| 86240A | Stereo component equalizer assembly | 86240-12090 · 86240-12100 · 86240-12120 · 86240-12130 · 86240-60031 |
| 86240B | ENS EGALISEUR, ELEMENT STEREO, NO.2 | 86240-30140 |
| 86240C | ENS EGALISEUR, ELEMENT STEREO, NO.3 | 86240-12110 |
| 86244A | Stereo component bracket No. 1 | 86244-12020 |
| 86244B | Stereo component bracket No. 2 | 86244-12010 |
| 86734D | Active Noise Control Amplifier | 86734-11030 |
