Toyota COROLLA 后清洗器 — Figure 8504

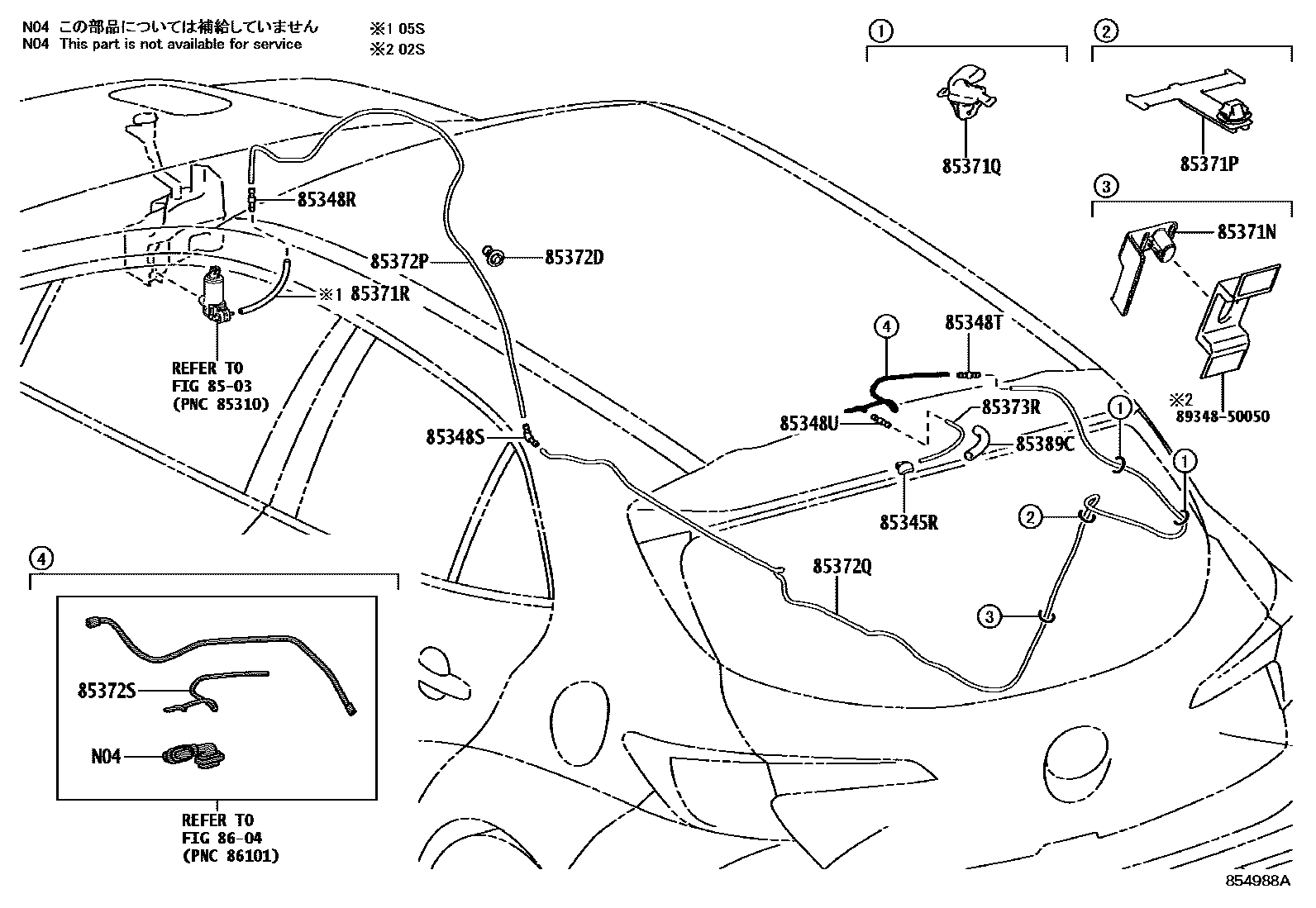

Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85345R | Rear washer nozzle | 85391-12100 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-20200 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 |
| 85348U | No. 3 rear washer hose connector | 85349-89122 |
| 85371N | Rear washer hose clamp | 85371-12050 |
| 85371P | No. 2 rear washer hose clamp | 82711-48220 |
| 85371Q | No. 3 rear washer hose clamp | 85371-12040 |
| 85371R | Rear washer hose (from motor to connector) | 90069-46210 |
| 85372D | Rear washer hose seal | 85379-12850 |
| 85372Q | No. 3 rear washer hose (from connector to connector) | 90099-62203 |
| 85389C | Cleaner protection device | 85389-12080 |
