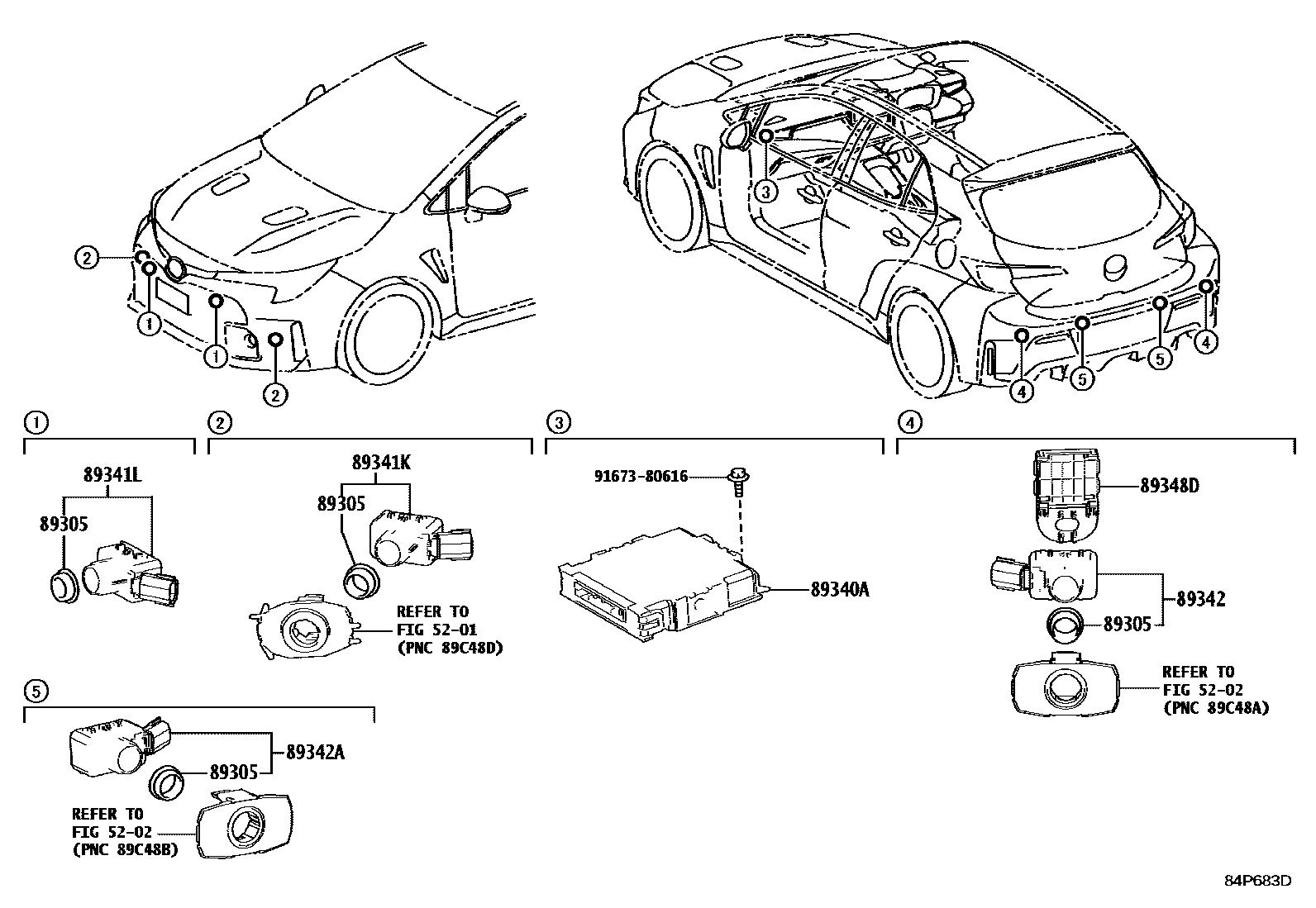

Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417
Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89305 | Ultrasonic sensor pad assembly | 89305-52010 |
| 89340A | Distance warning ECU assembly | 89340-12480 · 89340-12501 · 89340-12610 · 89340-12620 · 89340-12630 · 89340-12850 |
| 89348D | Ultrasonic sensor clip | 89348-50220 |
