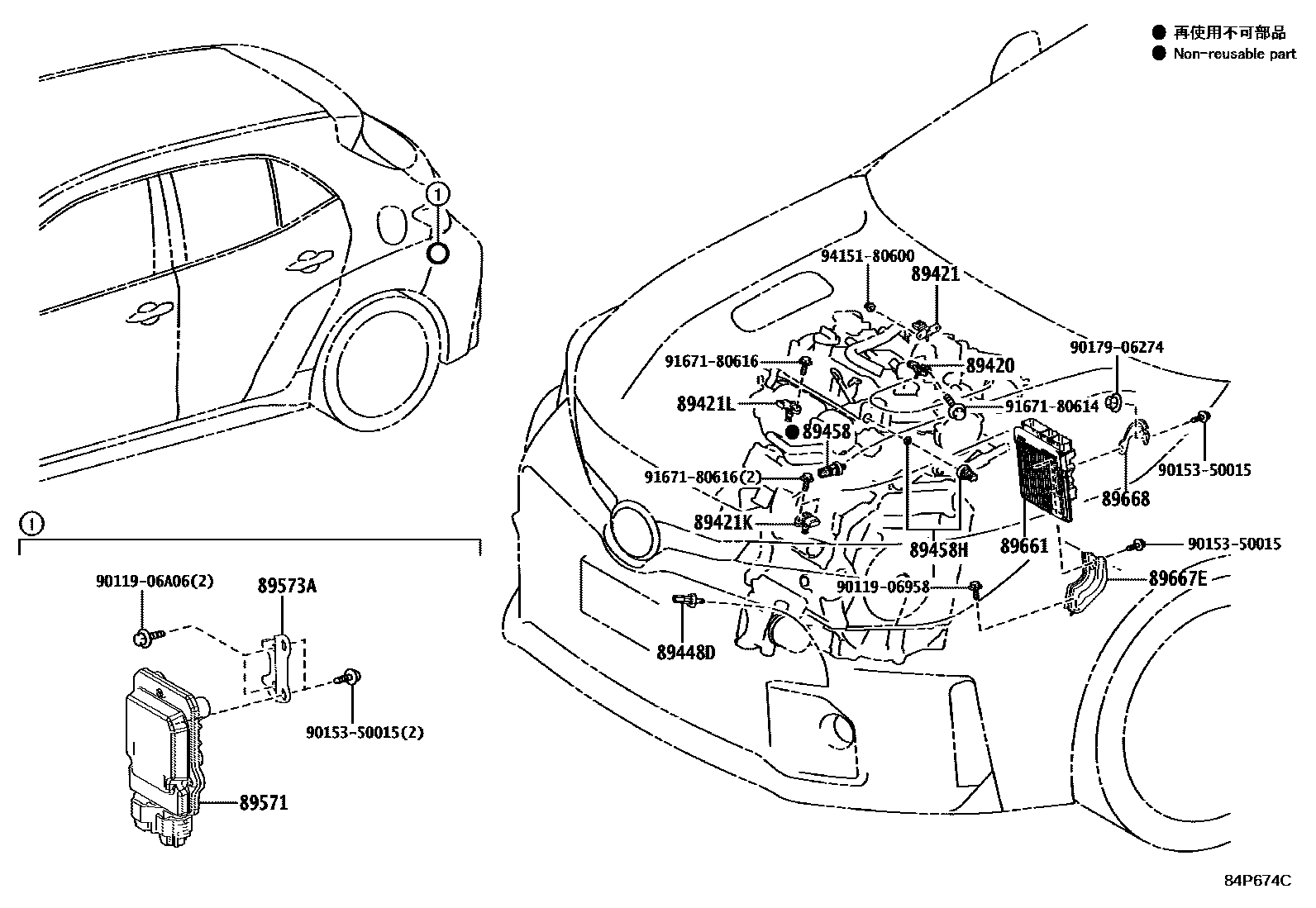

Toyota COROLLA 电子燃油喷射系统 — Figure 8404
Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89420 | Vacuum sensor assembly | 89421-60050 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-33010 |
| 89421K | Turbo pressure sensor No. 1 | 89421-12170 |
| 89421L | Turbocharger No. 2 pressure sensor | 89421-12170 |
| 89448D | Oil pressure and sensors | 89448-33010 |
| 89458 | fuel pressure sensor | 89458-78030 |
| 89458H | No. 2 fuel pressure sensor | 89458-33042 |
| 89571 | Fuel pump control ECU | 89571-58020 |
| 89573A | Fuel pump control ECU No. 2 bracket | 89573-12160 |
| 89661 | Engine control ECU | 89661-1AE10 · 89661-1AE20 · 89661-1AE30 · 89661-1AL10 · 89661-1AL20 |
| 89667E | No. 1 engine control ECU bracket | 89667-52400 |
| 89668 | No. 2 engine control ECU bracket | 89668-12330 |
