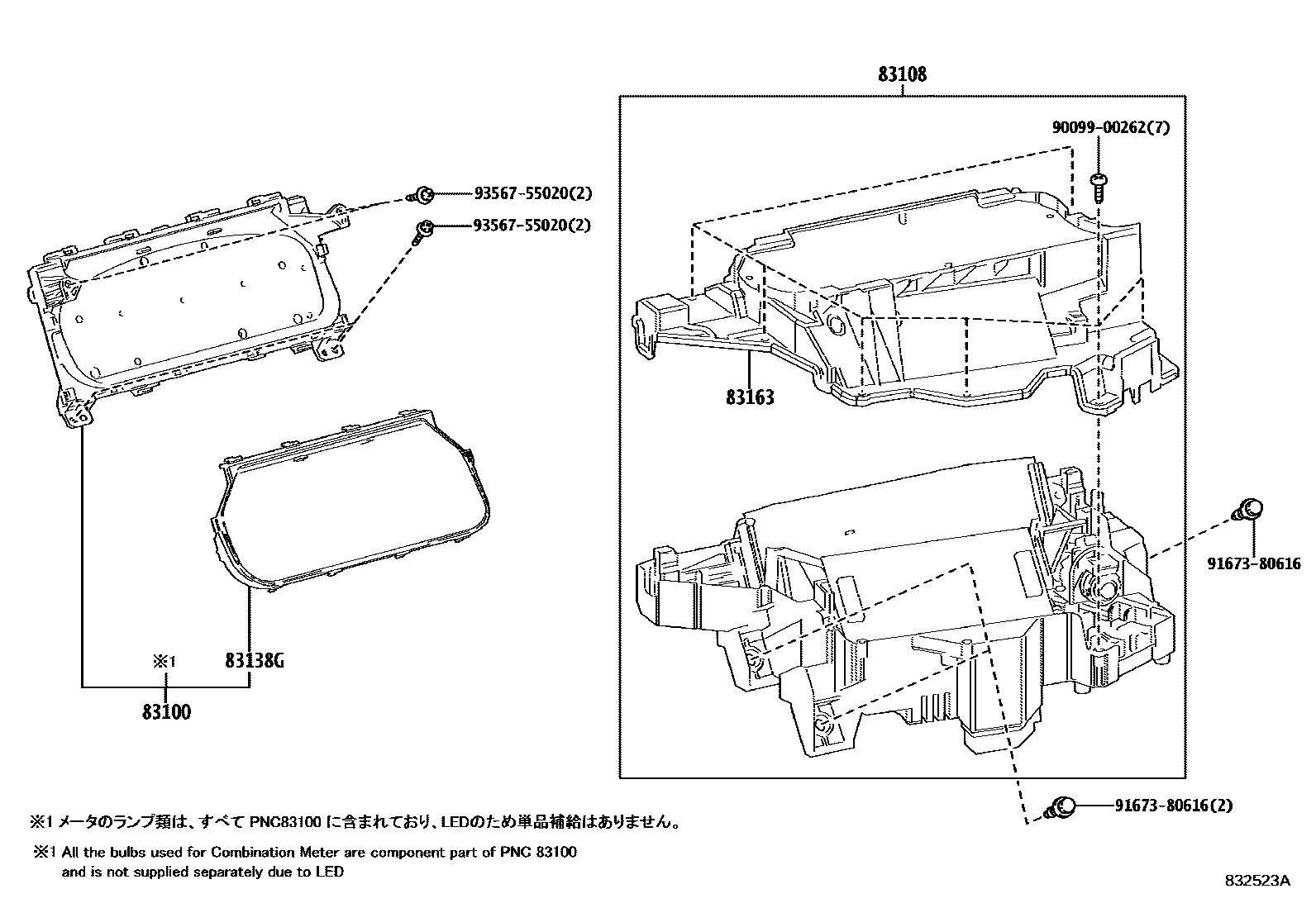

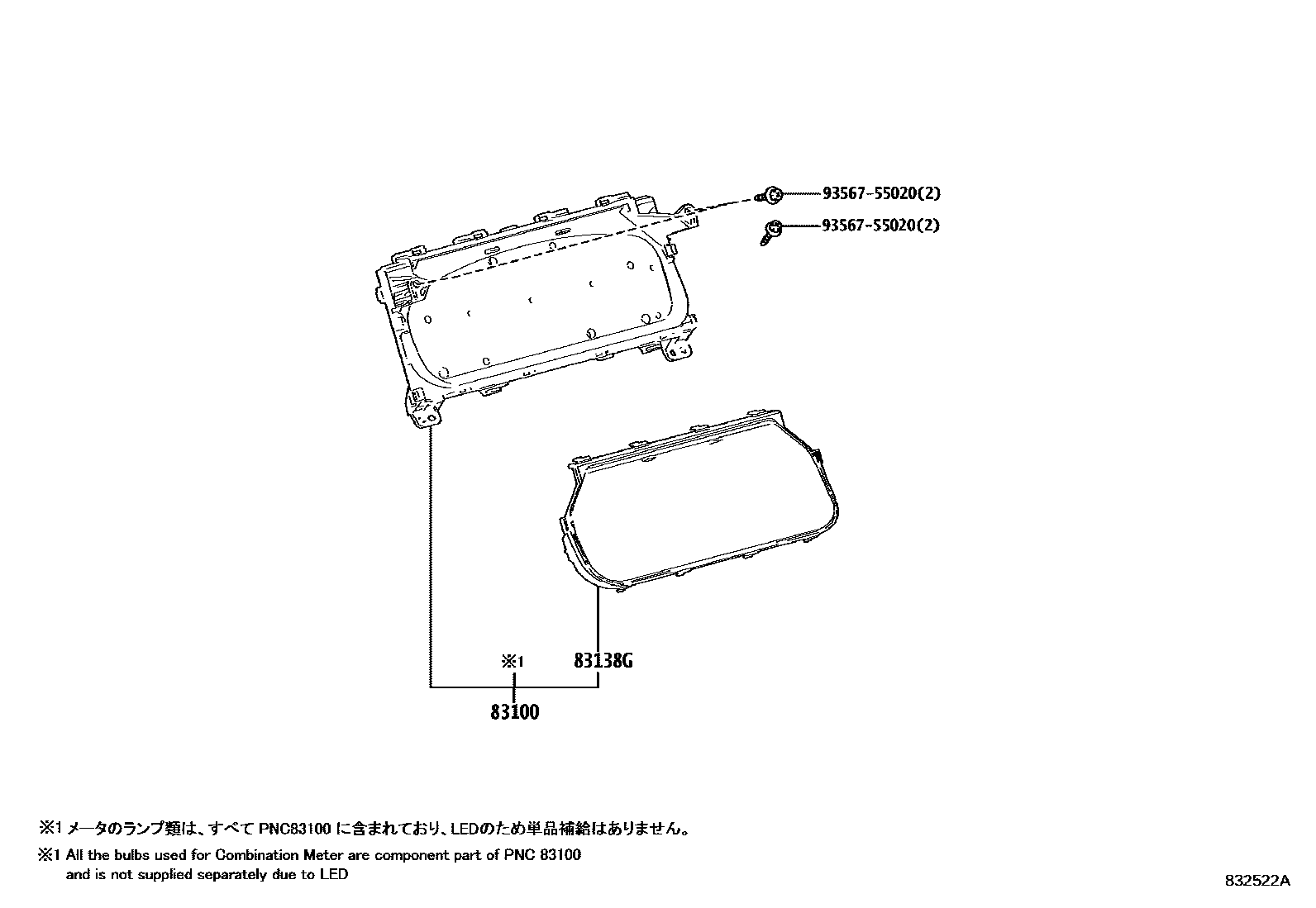

Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-1AS80 · 83800-1AV60 · 83800-1AV70 · 83800-1ED90 · 83800-1ED91 · 83800-1ED92 · 83800-1ED93 · 83800-1EE00 · 83800-1EE01 · 83800-1EE02 · 83800-1EE03 · 83800-1EE90 · 83800-1EE91 · 83800-1EE92 · 83800-1EE93 · 83800-1EZ20 · 83800-1EZ30 · 83800-1EZ40 |
| 83108 | Instrument rearview mirror sub-assembly | 83108-1E260 · 83108-1E261 · 83108-1E270 · 83108-1E271 |
| 83138G | Instrument cluster glass | 83852-16760 |
| 83163 | No. 1 instrument cluster rearview mirror panel | 83163-1E240 · 83163-1E250 |
