Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 14 images and 99 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

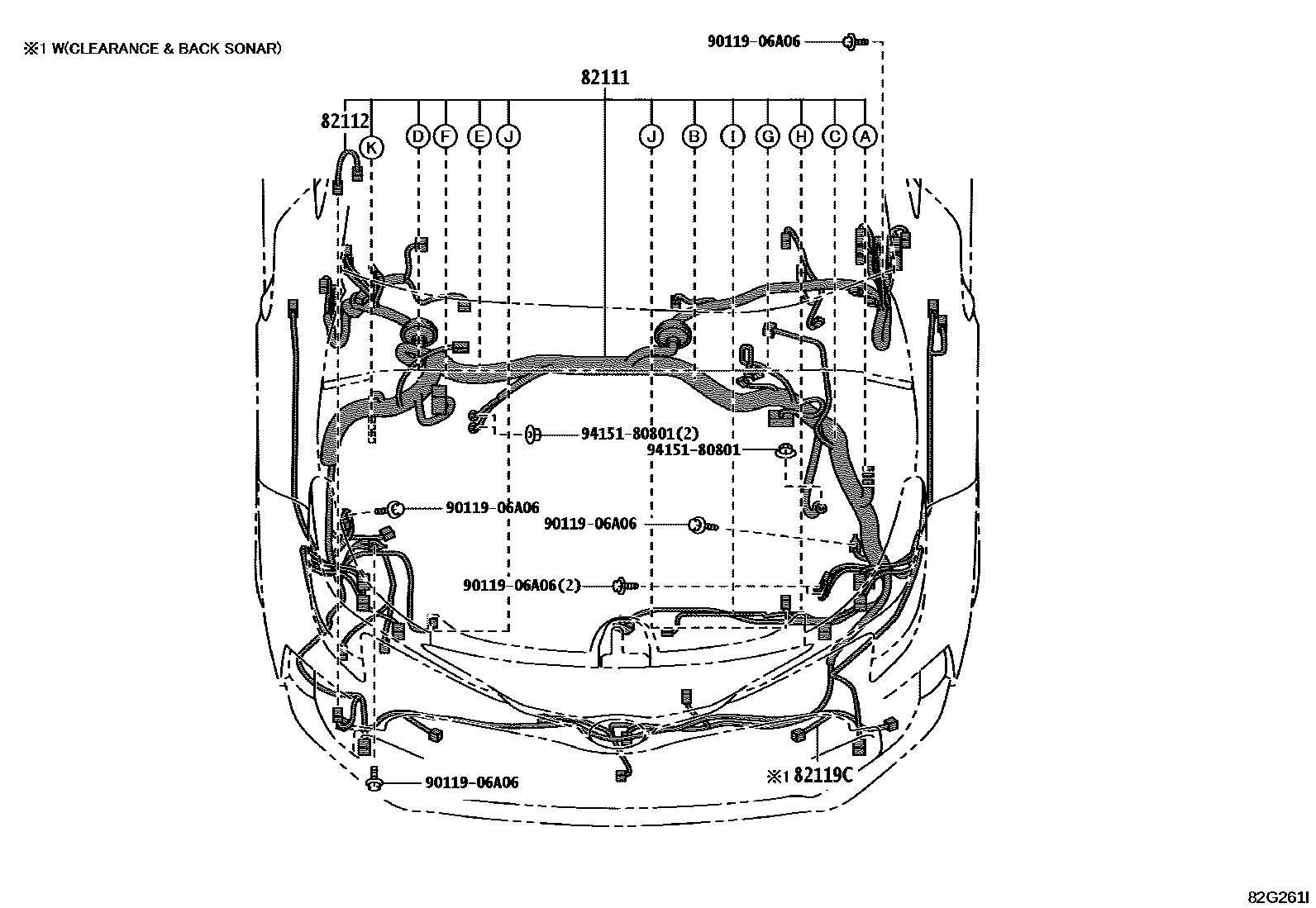

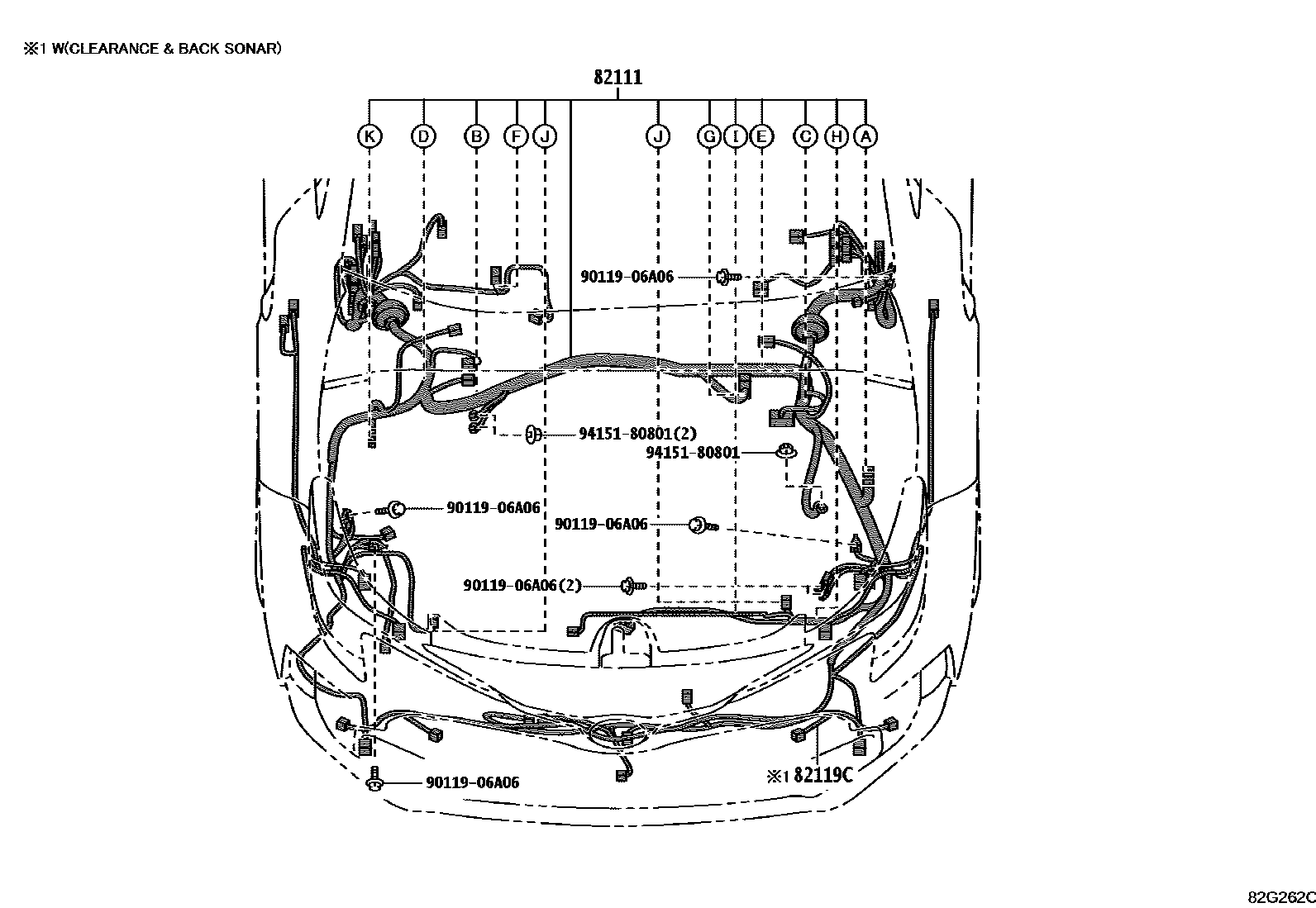

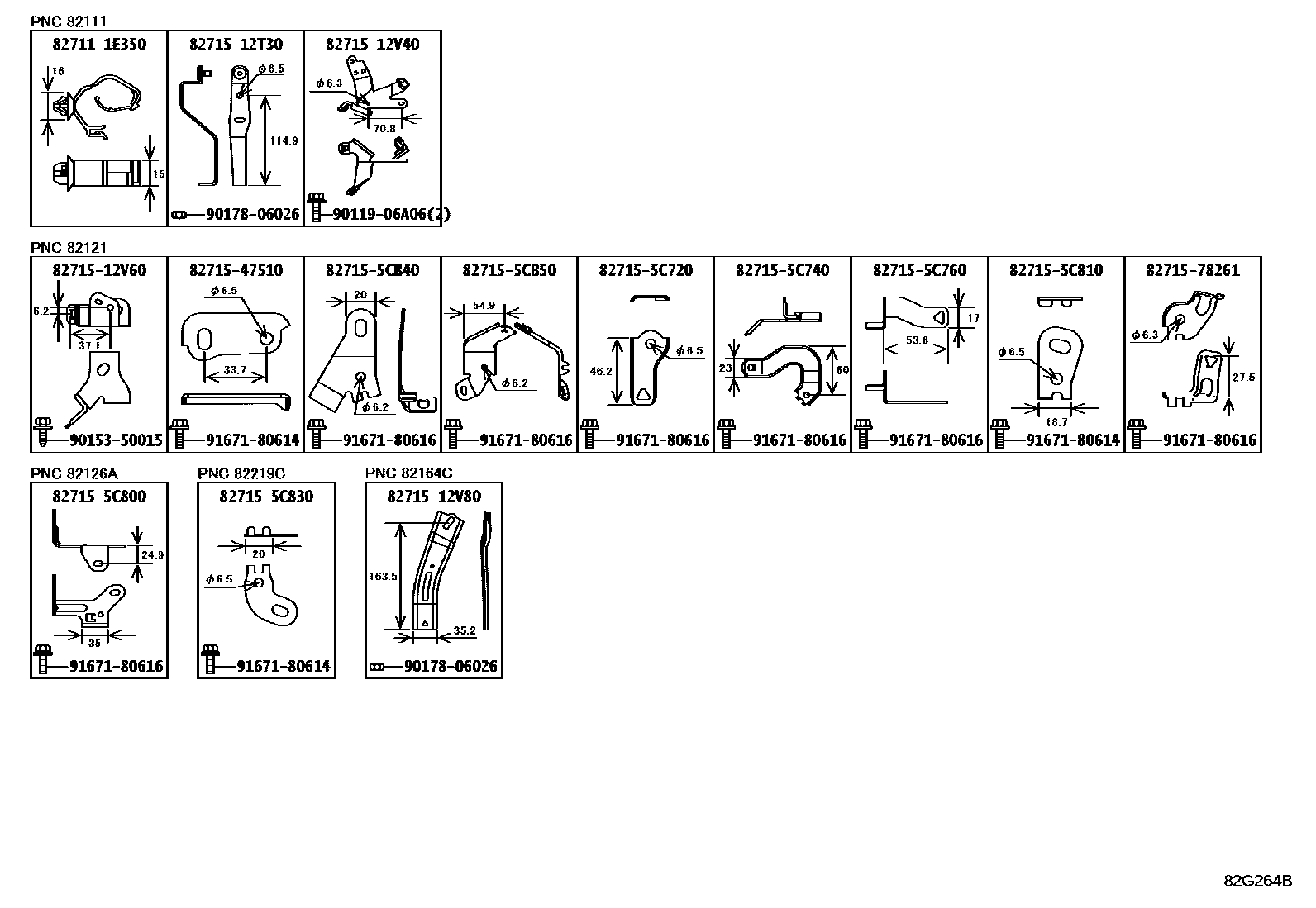

| 82111 | Engine room main wiring harness | 82111-1HP90 · 82111-1HP91 · 82111-1HP92 · 82111-1HQ00 · 82111-1KR80 · 82111-1KW10 · 82111-1KW30 · 82111-1L760 · 82111-1LB30 · 82111-1LC00 · 82111-1LC40 · 82111-1LC60 · 82111-1LC61 · 82111-1LC70 · 82111-1LC71 · 82111-1LC90 · 82111-1LC91 |
| 82112 | Engine room wiring harness No. 2 | 82112-12240 |
| 82119C | Engine room wiring harness No. 5 | 82119-12100 · 82119-12110 |

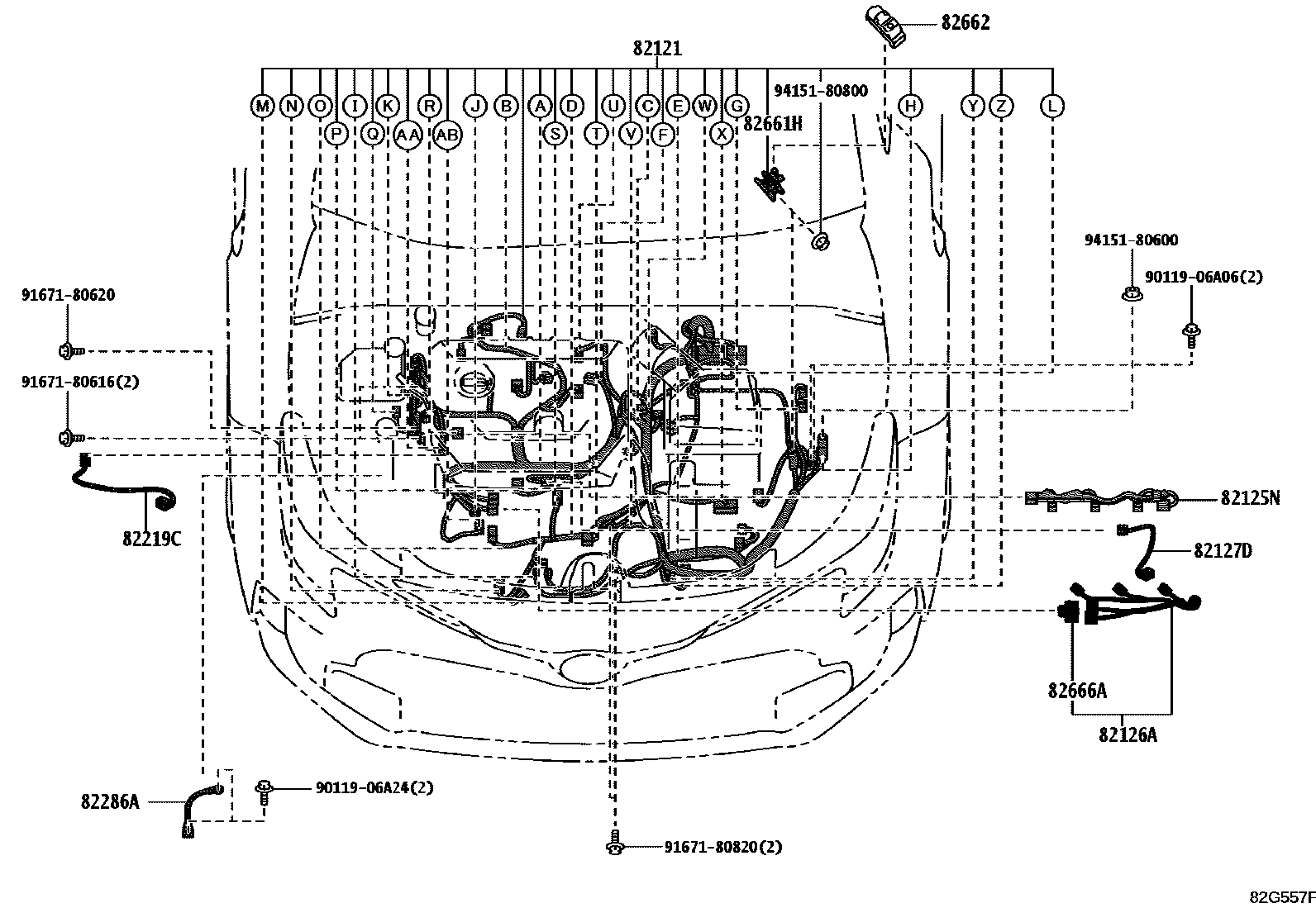

| 82121 | Engine wiring harness | 82121-12R21 · 82121-12U90 · 82121-12U91 · 82121-12W40 |
| 82125N | Engine No. 5 wiring harness | 82125-52150 |
| 82126A | No. 6 engine wiring harness | 82126-52020 |
| 82127D | Engine No. 7 wiring harness | 82127-12010 |

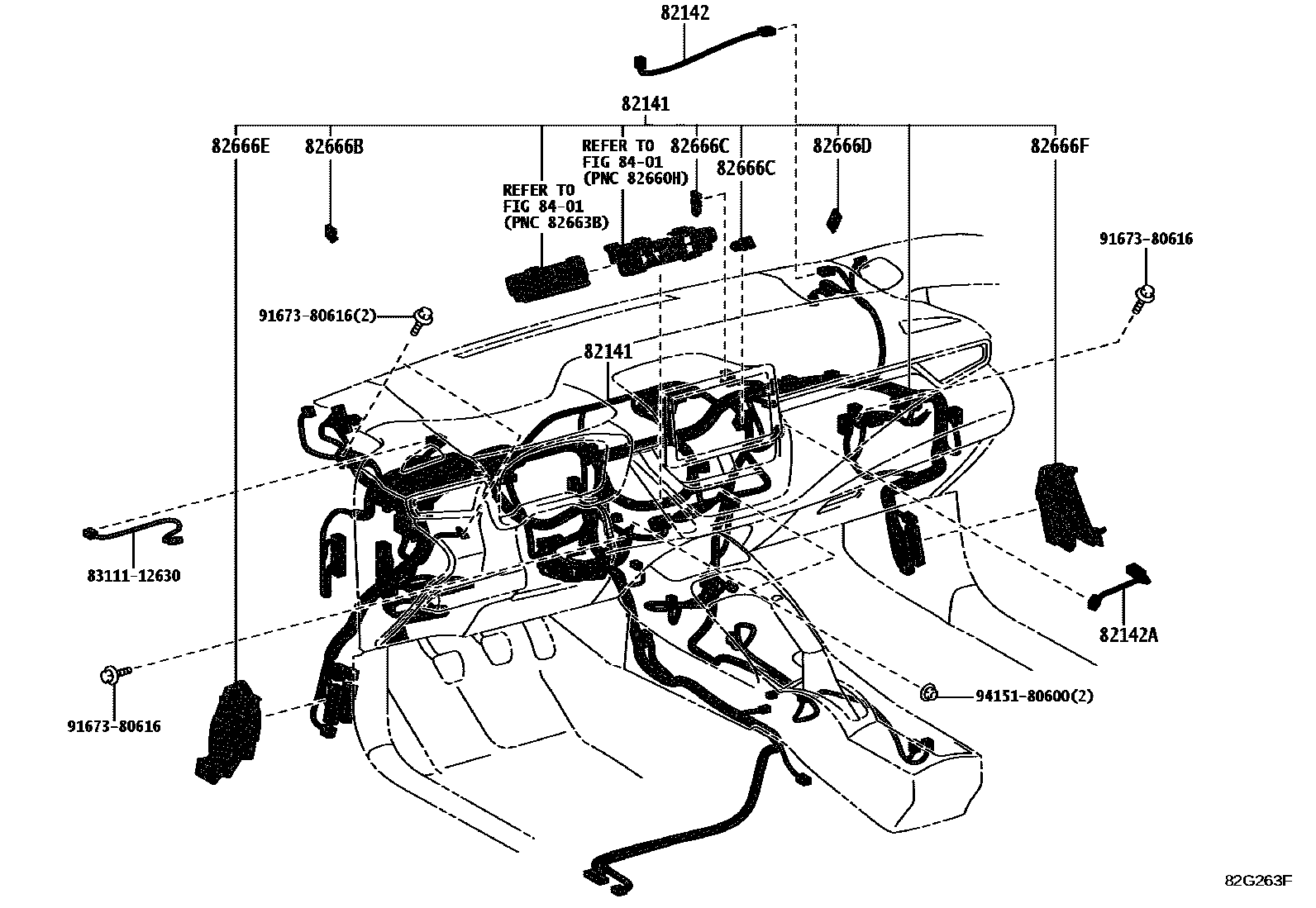

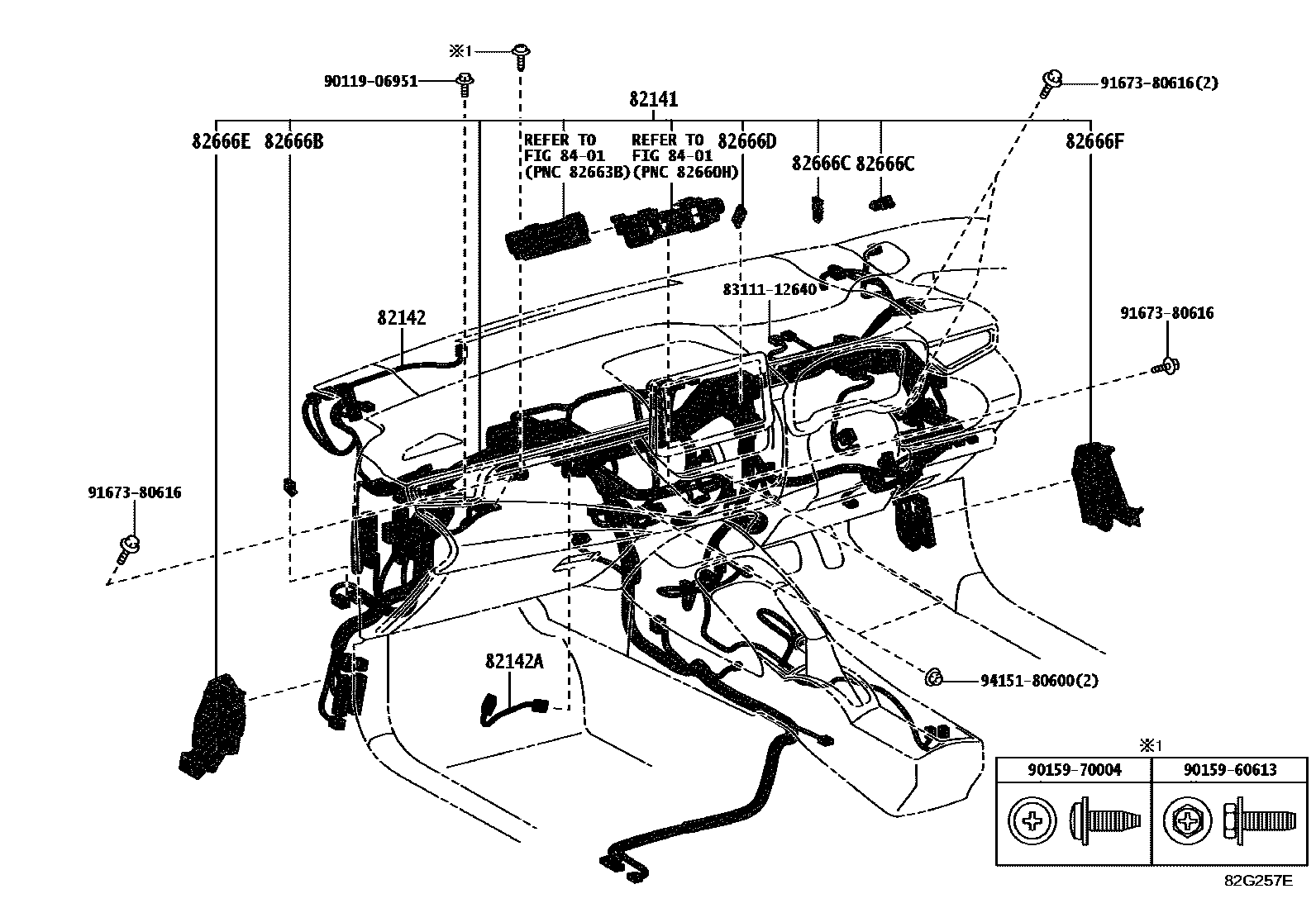

| 82141 | Dashboard wiring harness | 82141-1XE10 · 82141-1XE11 · 82141-1XE20 · 82141-1XE21 · 82141-1XE40 · 82141-1XP70 · 82141-1XP90 · 82141-1XQ80 · 82145-12E10 · 82145-12E30 · 82145-12E40 · 82145-12E50 · 82145-12E90 · 82145-12E91 · 82145-12F10 · 82145-12F60 · 82145-12F61 · 82145-12F70 · 82145-12F71 · 82145-12G10 · 82145-12G11 · 82145-12G40 · 82145-12G41 · 82145-12G50 · 82145-12G51 · 82145-12G60 · 82145-12G61 · 82145-12G90 · 82145-12G91 · 82145-12J00 · 82145-12J01 · 82145-12M20 · 82145-12M30 · 82145-12M50 · 82145-12M60 · 82145-12M70 · 82145-12M80 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-12670 · 82142-12680 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-12B80 |

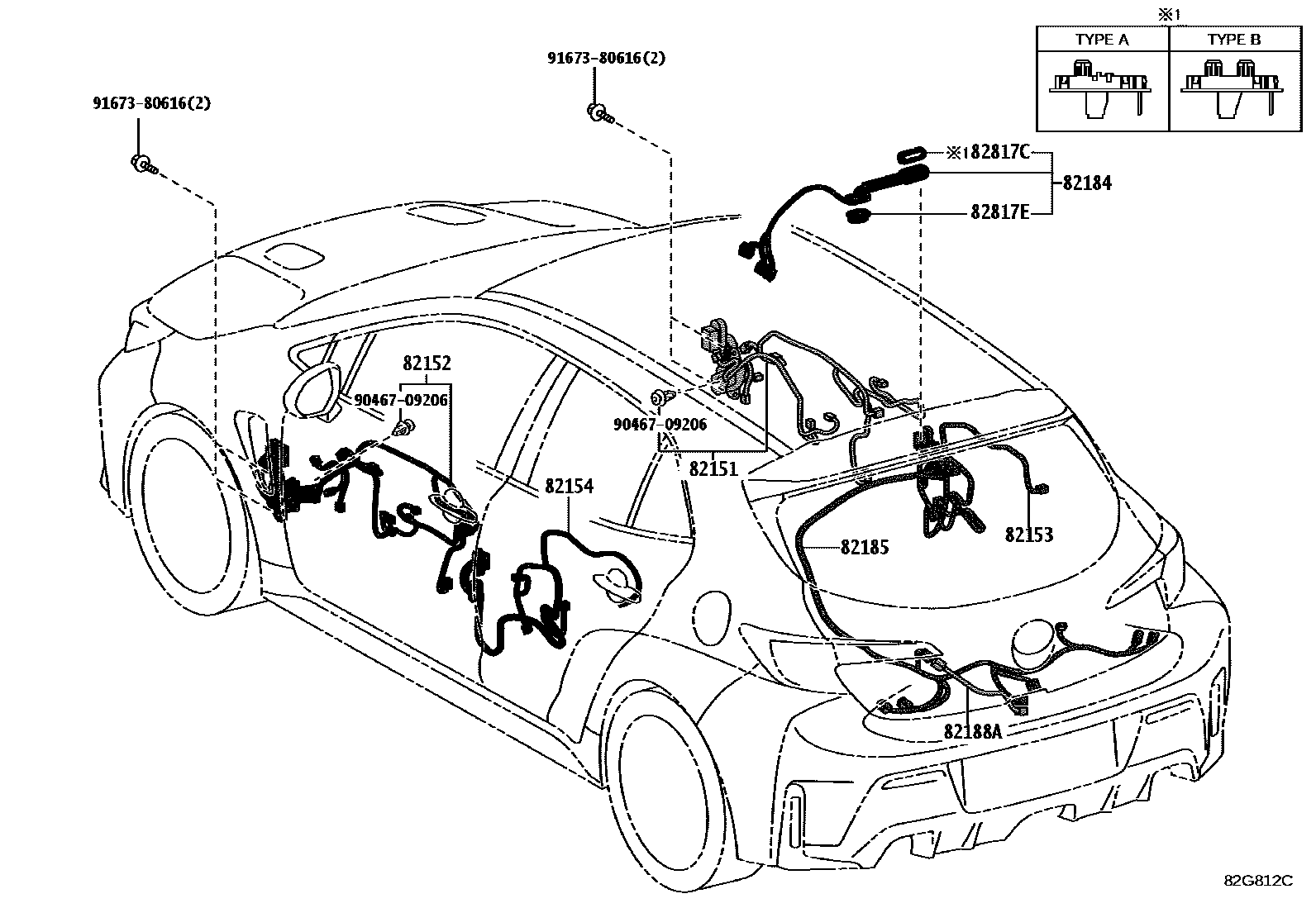

| 82151 | Right front door wiring harness | 82151-1AB00 · 82151-1AJ10 |
| 82152 | Left front door wiring harness | 82152-1AE10 · 82152-1AF30 |
| 82153 | Rear door wiring harness No. 1 | 82153-12D40 · 82153-12D70 |
| 82154 | Rear door wiring harness No. 2 | 82154-12C90 · 82154-12D20 |

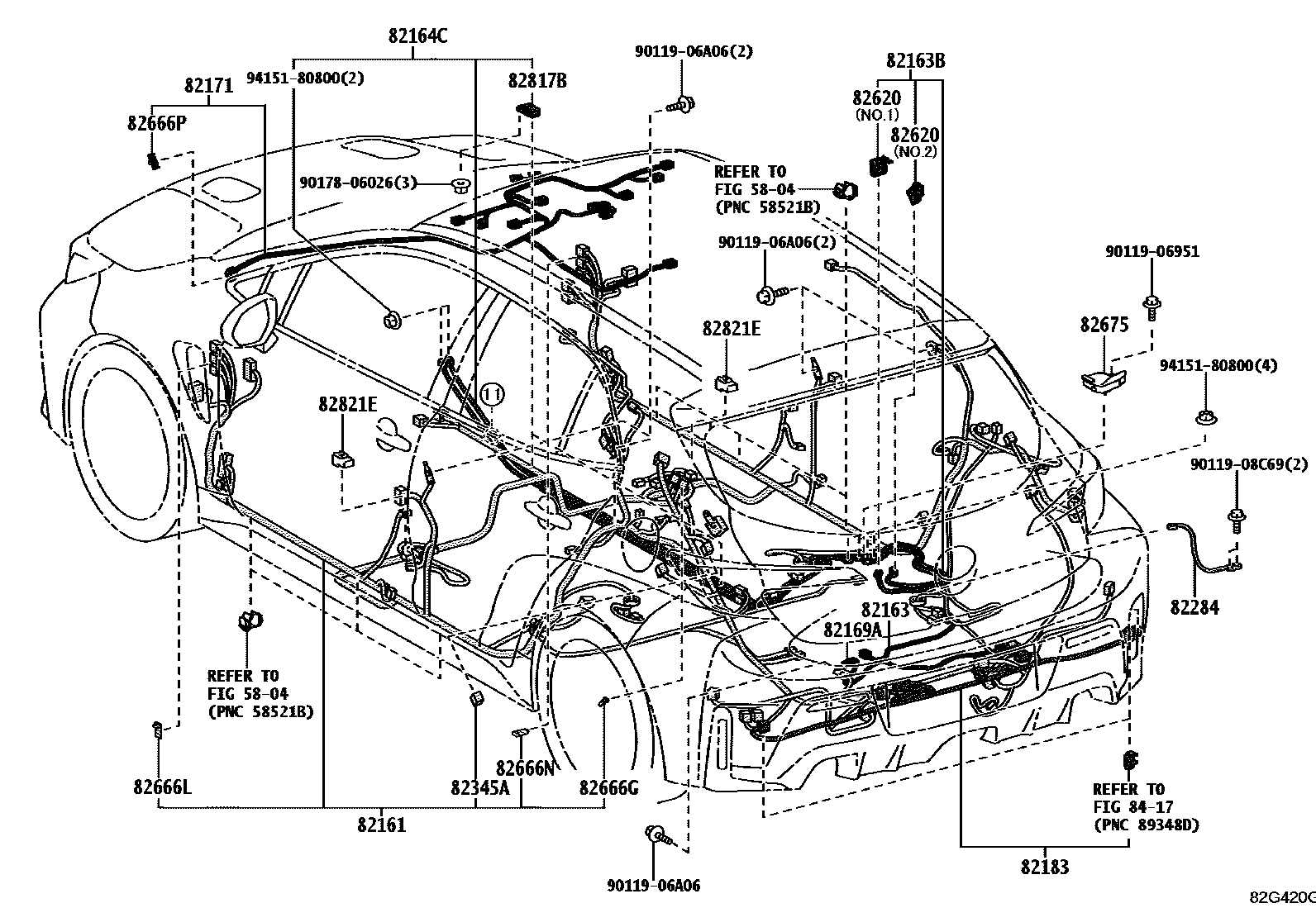

| 82161 | floor wiring harness | 82161-1EJ80 · 82161-1EJ90 · 82161-1HC30 · 82161-1HC70 · 82161-1HE60 · 82161-1HE70 · 82161-1HJ70 · 82161-1HJ71 · 82161-1HJ80 · 82161-1HJ81 · 82161-1HK10 · 82161-1HK11 · 82161-1HP40 · 82161-1HQ20 |
| 82163 | Floor wiring harness No. 3 | 82163-12430 |
| 82163B | No. 5 floor wiring harness | 82165-12060 |
| 82164C | No. 4 floor wiring harness | 82164-12190 |
| 82169A | No. 6 floor wiring harness | 82169-12140 · 82169-52030 |
| 82171 | Roof No. 1 wiring harness | 82171-12W80 · 82171-1A680 · 82171-1A700 · 82171-1A720 · 82171-1A730 · 82171-1A740 |
| 82183 | Luggage No. 3 wiring harness | 82169-12040 · 82183-12100 |
| 82184 | Rear door No. 1 wiring harness | 82184-12C00 · 82184-12C10 · 82184-12C60 · 82184-12C90 |
| 82185 | Rear door wiring harness No. 2 | 82185-12A40 · 82185-12A80 |
| 82188A | Rear door No. 3 wiring harness | 82184-12A90 |
| 82219C | sensor harness | 82219-52100 |
| 82284 | Ground wire | 82284-12030 |
| 82286A | Line 2 | 82286-12050 |
| 82345A | diode | 82345-22051 |
| 82620 | Fuse box assembly | 82620-50230 · 82620-50260 |
| 82661H | Relay box cover | 82661-12360 |
| 82661L | No. 2 relay box cover | 82661-76010 |
| 82661M | No. 3 relay box cover | 82661-76030 |
| 82662 | Relay box upper cover | 82662-12J10 |
| 82666A | Connector holder No. 2 | 82666-48130 |
| 82666B | No. 3 connector holder | 82666-12590 |
| 82666C | No. 4 connector holder | 82666-26180 |
| 82666D | No. 5 connector holder | 82666-60220 |
| 82666E | No. 6 connector holder | 82666-12670 |
| 82666F | No. 7 connector holder | 82666-12680 |
| 82666G | No. 8 connector holder | 82666-12590 |
| 82666L | No. 9 connector holder | 82666-22070 |
| 82666N | No. 10 connector holder | 82666-26180 |
| 82666P | No. 11 Connector Block | 82666-60220 |
| 82675 | Terminal block | 82675-12360 |

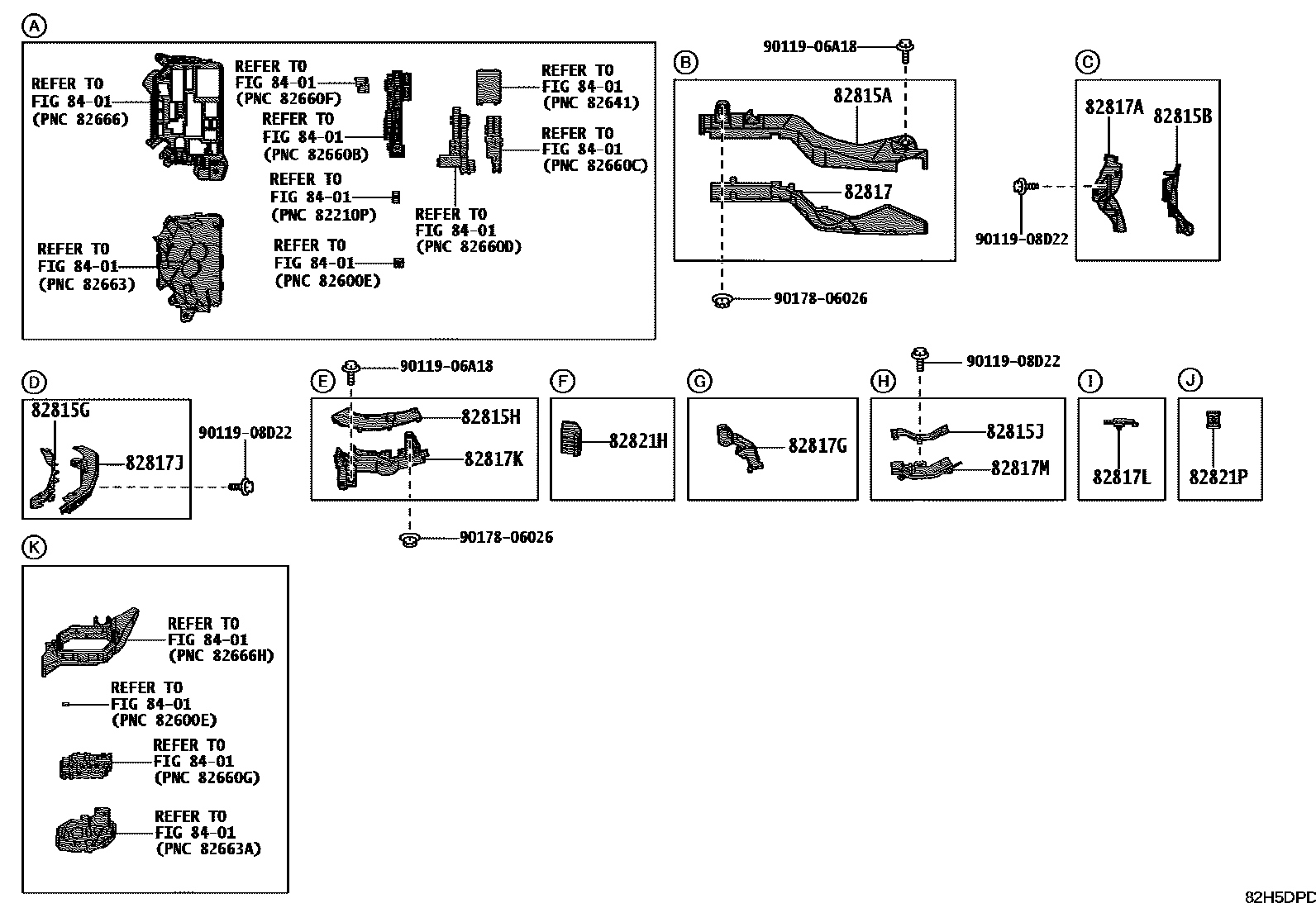

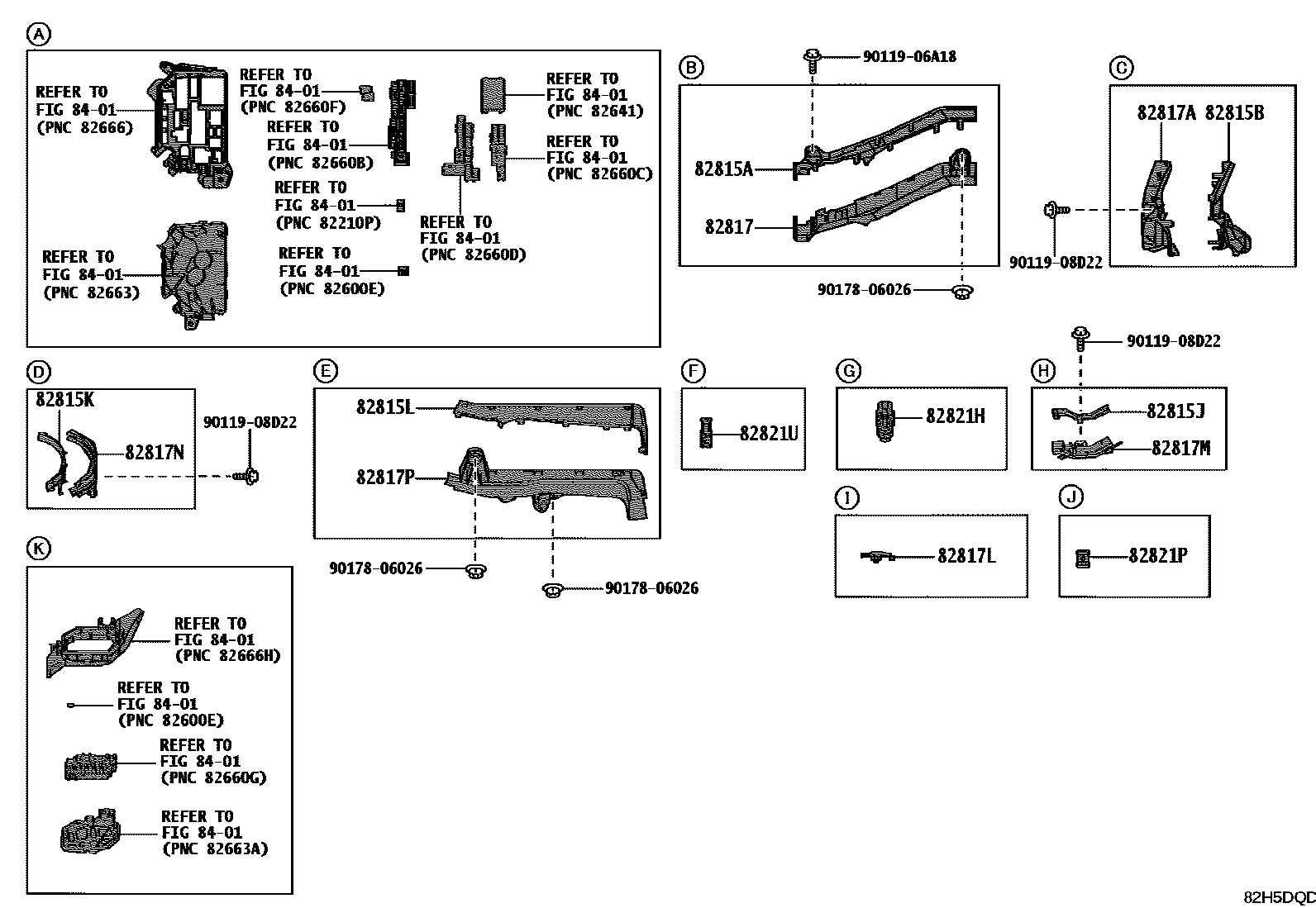

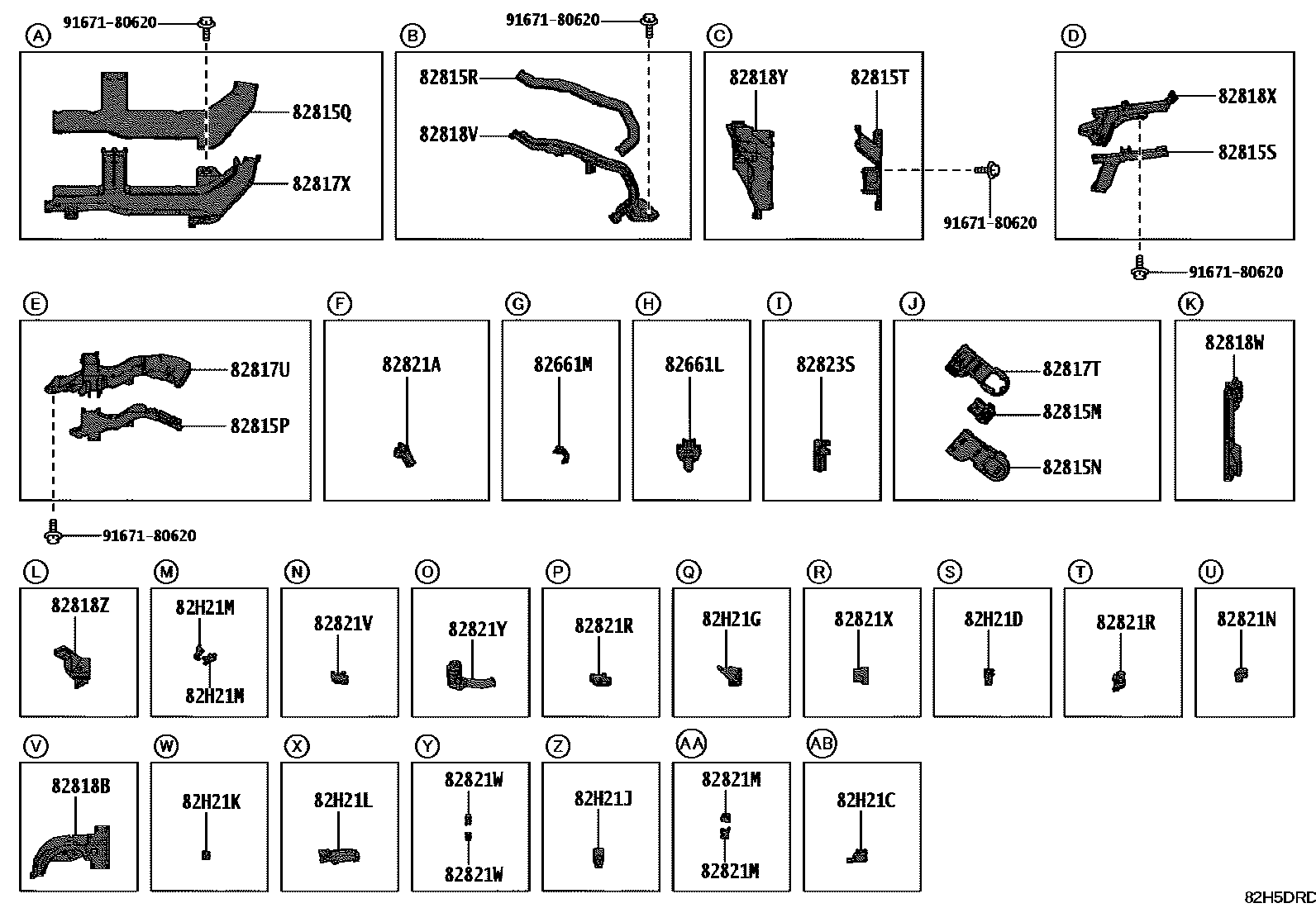

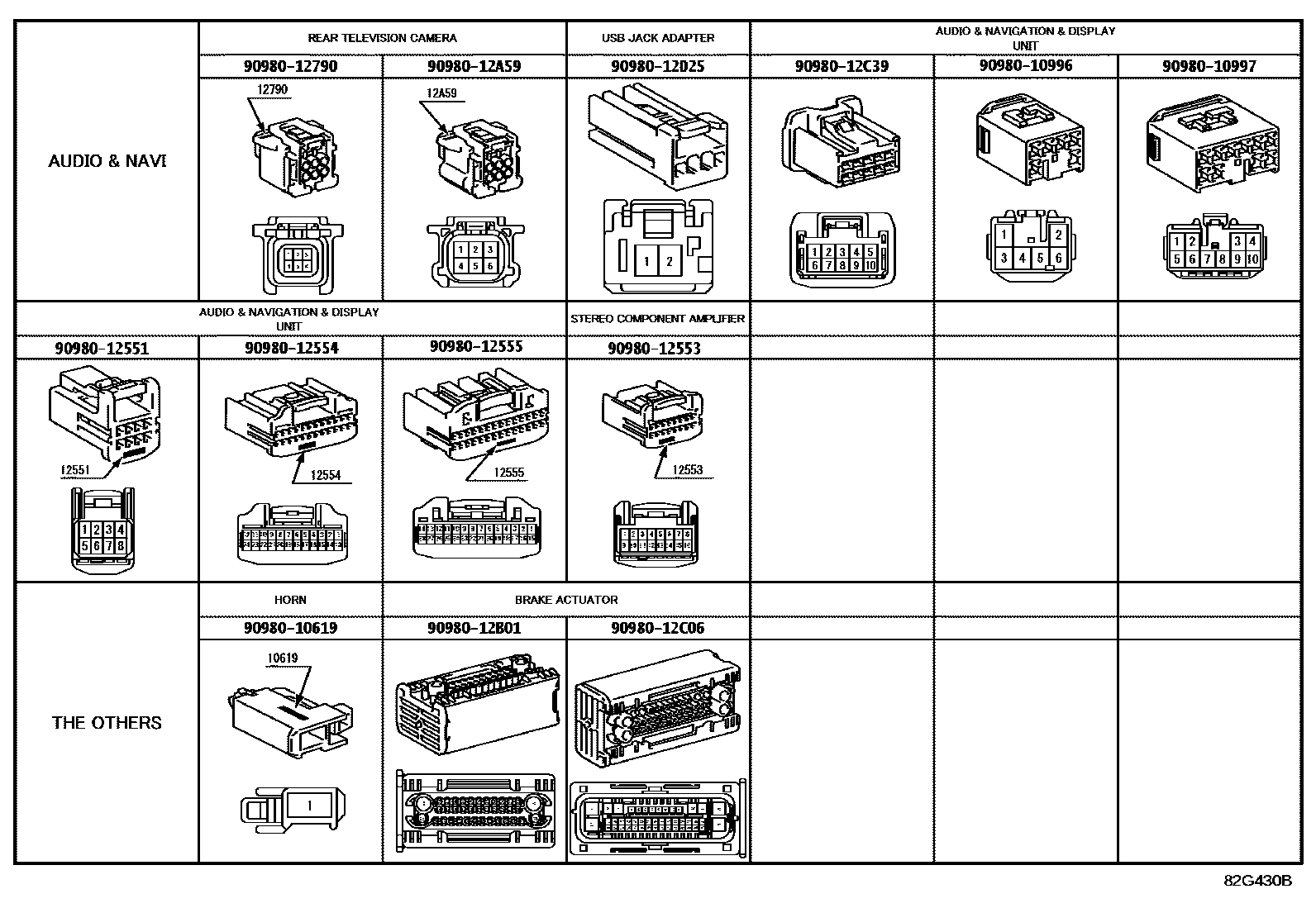

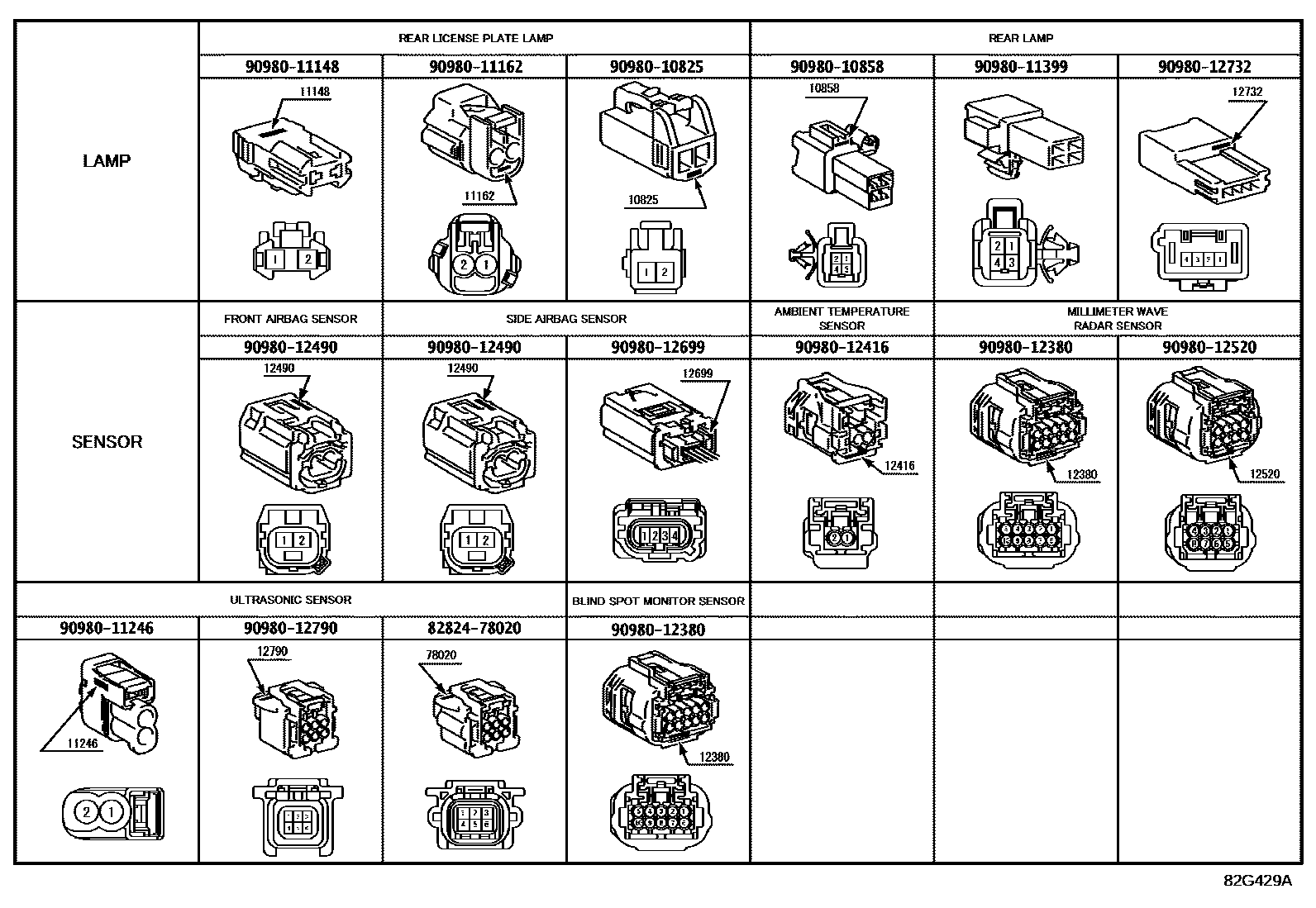

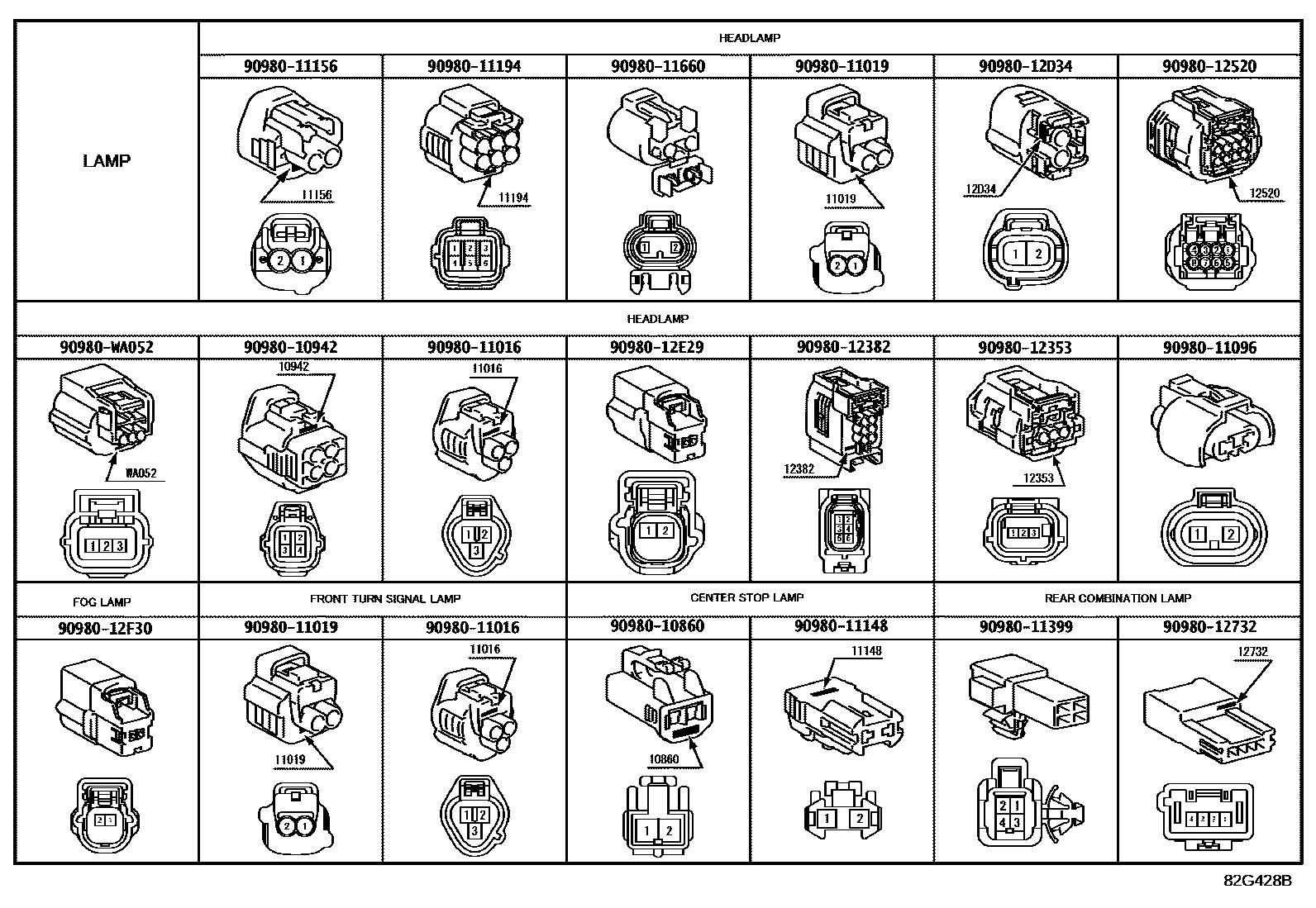

| 82815A | Wiring harness protector cover | 82815-12600 · 82815-12610 |
| 82815B | Wiring harness protector cover | 82815-12630 · 82815-12640 |
| 82815G | No. 5 wire harness protector cover | 82815-12L00 |
| 82815H | No. 6 wire harness protector cover | 82815-12L10 |
| 82815J | No. 7 wire harness protector cover | 82815-12L40 |
| 82815K | No. 8 wire harness protector cover | 82815-12J00 |
| 82815L | No. 9 wire harness protector cover | 82815-12L80 |
| 82815M | No. 10 wire harness protector cover | 82815-33J10 |
| 82815N | No. 11 wire harness protector cover | 82815-33L00 |
| 82815P | No. 12 wire harness protector cover | 82815-52600 |
| 82815Q | No. 13 wire harness protector cover | 82815-52620 |
| 82815R | No. 14 wire harness protector cover | 82815-52630 |
| 82815S | No. 15 wire harness protector cover | 82815-52650 |
| 82815T | No. 16 wire harness protector cover | 82815-52660 · 82815-52B60 |
| 82817 | No. 1 wire harness protection device | 82817-12N20 · 82817-12N30 |
| 82817A | No. 2 wire harness protection device | 82817-12N60 · 82817-12N70 |
| 82817B | No. 3 wire harness protection device | 82817-52N50 |
| 82817C | No. 4 wire harness protection device | 82817-12Q00 · 82817-1AA90 |
| 82817E | No. 6 wire harness protection device | 82817-47L50 |
| 82817G | No. 8 wire harness protection device | 82817-12W30 |
| 82817J | No. 9 wire harness protection device | 82817-12Y70 |
| 82817K | No. 10 wire harness protection device | 82817-12Y80 |
| 82817L | No. 11 wire harness protection device | 82817-12Z10 |
| 82817M | No. 12 wire harness protection device | 82817-12Z20 |
| 82817N | No. 13 wire harness protection device | 82817-12W50 |
| 82817P | No. 14 wire harness protection device | 82817-12Z70 |
| 82817T | No. 15 wire harness protection device | 82817-33S70 |
| 82817U | No. 16 wire harness protection device | 82817-52L90 |
| 82817X | No. 17 wire harness protection device | 82817-52M10 |
| 82818B | No. 3 wire harness protection device | 82817-52T40 |
| 82818V | No. 18 wire harness protection device | 82817-52M20 |
| 82818W | No. 19 wire harness protection device | 82817-52M30 |
| 82818X | No. 20 wire harness protection device | 82817-52M40 |
| 82818Y | No. 21 wire harness protection device | 82817-52M50 · 82817-52T50 |
| 82818Z | No. 22 wire harness protection device | 82817-52M60 |
| 82821A | Connector cover | 82821-12780 |
| 82821E | Connector cover | 90980-12373 |
| 82821H | Connector cover | 82821-48270 |
| 82821M | Connector cover | 82821-30600 |
| 82821N | Connector cover | 82821-33420 |
| 82821P | Connector cover | 82821-30650 |
| 82821R | Connector cover | 82821-33690 |
| 82821U | Connector cover | 82821-50500 |
| 82821V | Connector cover | 82821-33770 |
| 82821W | Connector cover | 82821-33780 |
| 82821X | Connector cover | 82821-33870 |
| 82821Y | Connector cover | 82821-48100 |
| 82823S | starter terminal cover | 82823-20080 |
| 82H21C | Connector cover | 82821-02110 |
| 82H21D | Connector cover | 82821-50860 |
| 82H21G | Connector cover | 82821-52290 |
| 82H21J | Connector cover | 82821-33410 |
| 82H21K | Connector cover | 82821-33810 |
| 82H21L | Connector cover | 82821-33680 |
| 82H21M | Connector cover | 82821-33700 |
