Toyota COROLLA accelerator pedal connecting rod — Figure 7801

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 1 PNC and OE references.

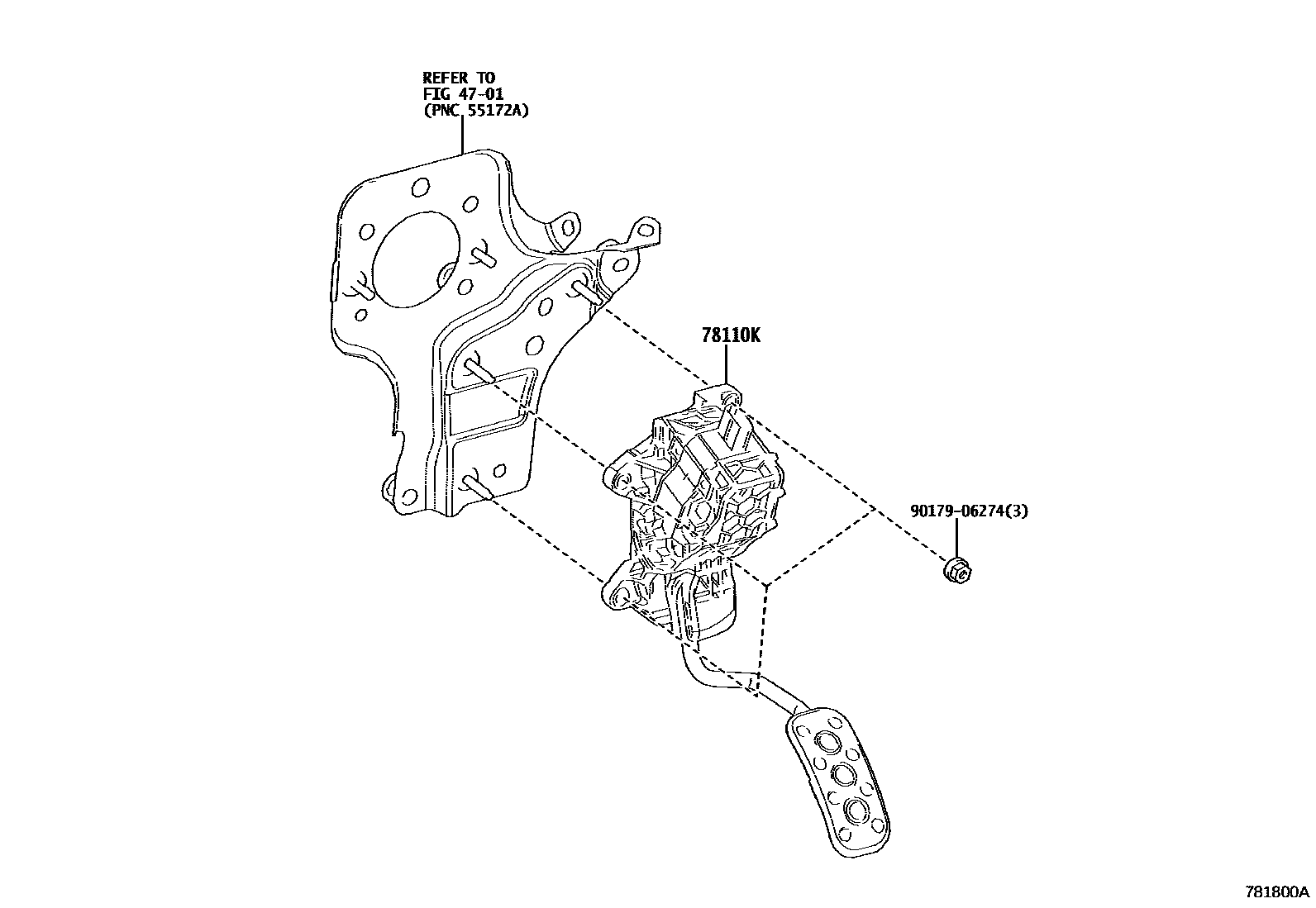

Toyota COROLLA accelerator pedal connecting rod EPC diagram — 781800A
accelerator pedal connecting rod — 781800A (202210 – 999999)

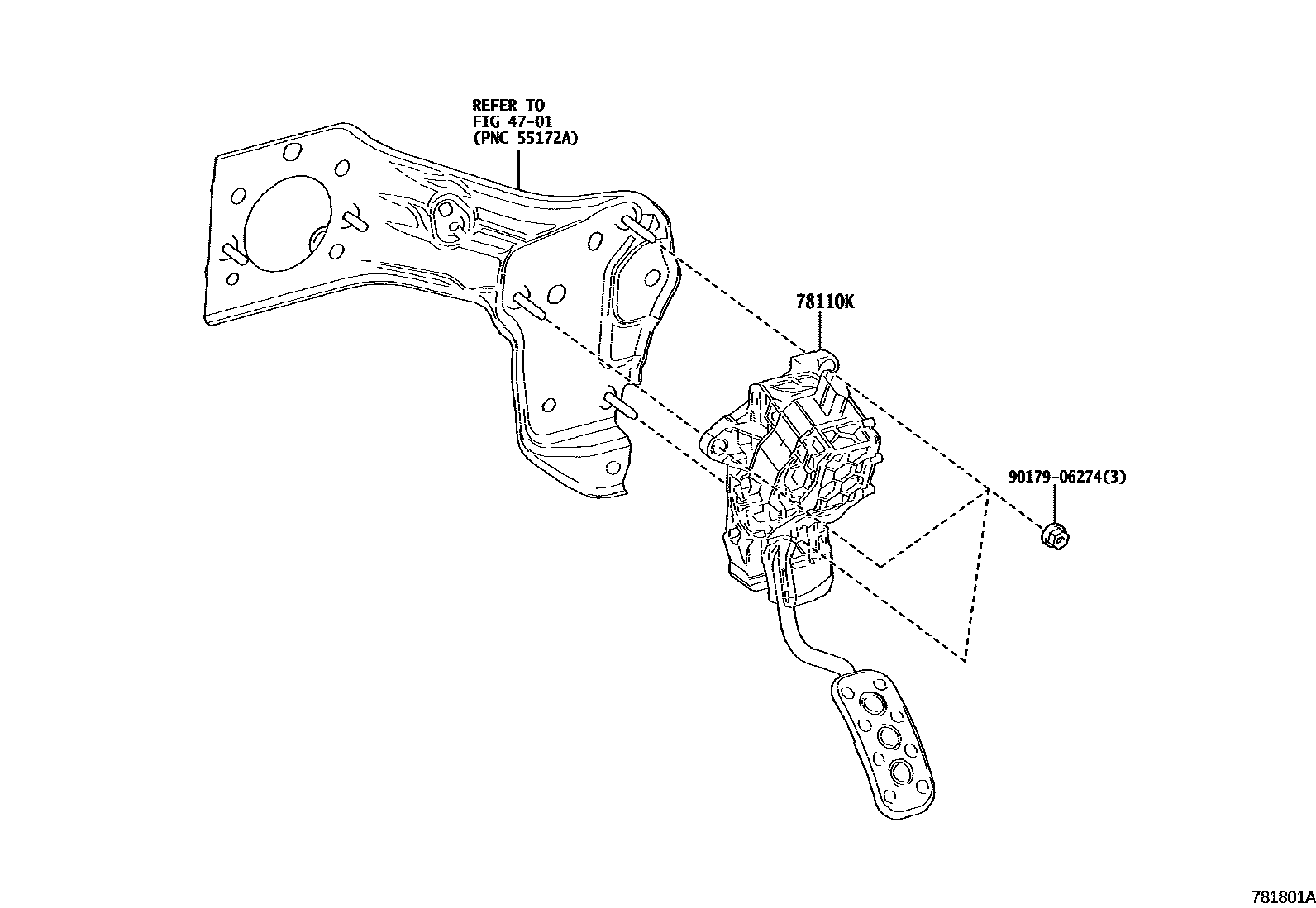

Toyota COROLLA accelerator pedal connecting rod EPC diagram — 781801A
accelerator pedal connecting rod — 781801A (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
78110KAccelerator pedal connecting rod assembly with sensor78110-12130 · 78110-12140 · 78110-12150 · 78110-47071
