Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

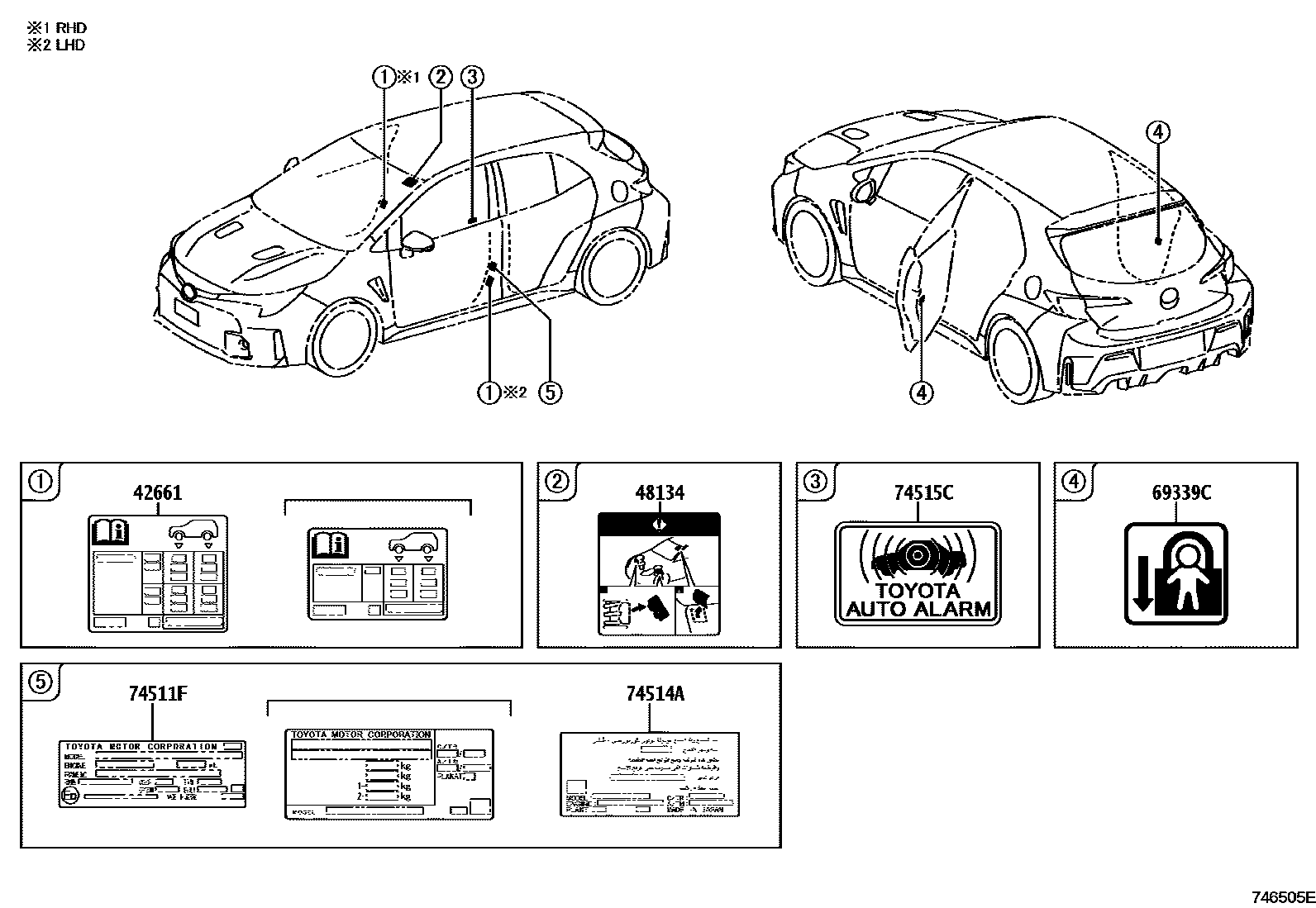

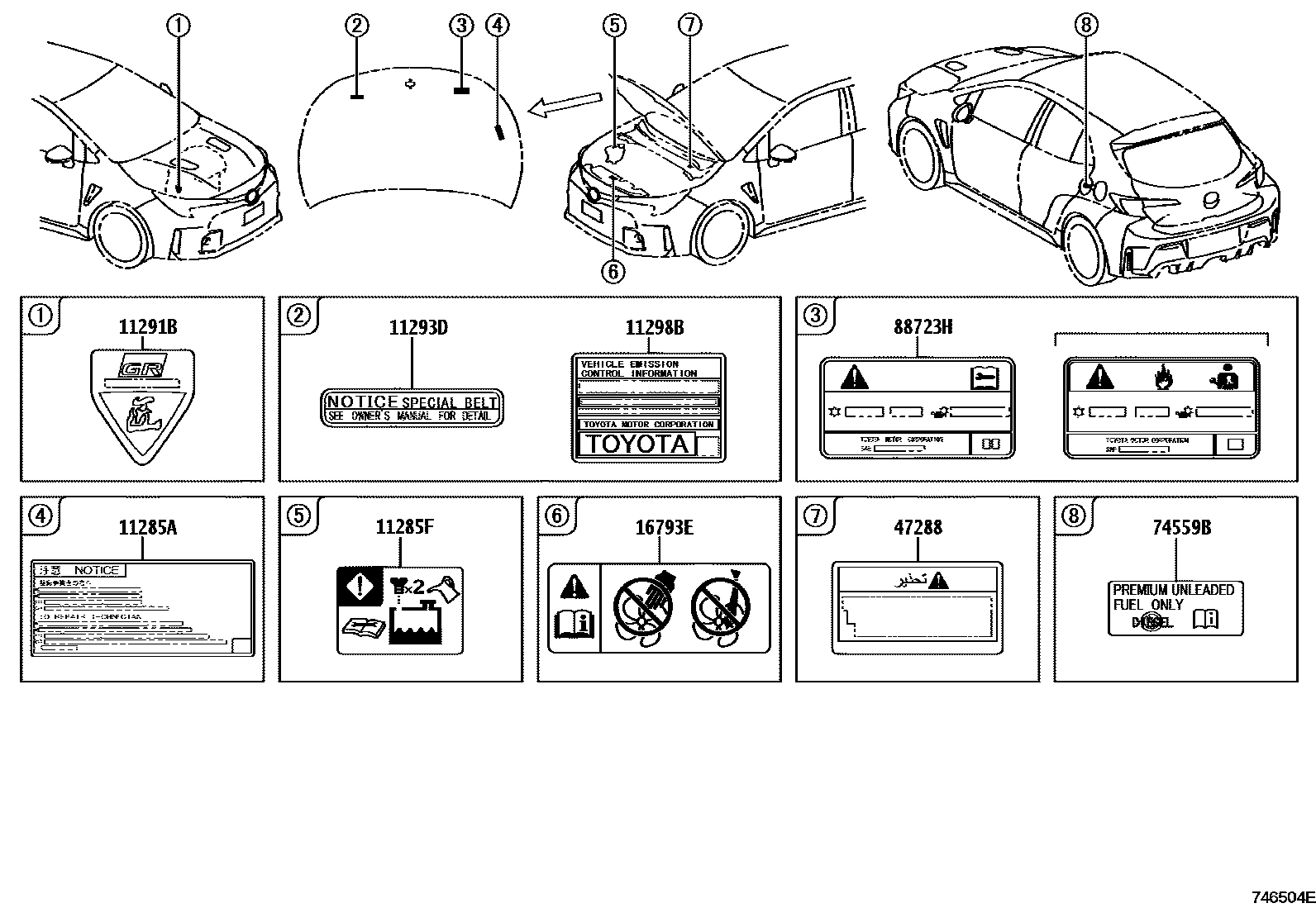

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-47010 |
| 11285F | Coolant System Warning Label | 11285-11030 |
| 11291B | Engine name plate | 11291-18030 · 11291-18050 |
| 11293D | engine warning label | 11295-33010 |
| 11298B | Emission Control Information Label | 11298-18010 |
| 16793E | Cooling fan warning label | 16793-36030 |
| 42661 | tire pressure information label | 42661-12T00 · 42661-12T90 · 42661-12V10 |
| 47288 | Brake Fluid Caution Label | 47288-71010 |
| 48134 | ETIQUETTE, AVIS ENTRETOISE RESSORT HELICOIDAL AVANT | 48134-12010 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74511-30A80 · 74511-48020 |
| 74514A | Regulatory Certification Information Label | 74514-47020 |
| 74515C | Anti-theft warning information label | 74515-33020 |
| 74559B | fuel information label | 74559-60030 |
| 88723H | Cooler maintenance warning label | 88723-12350 · 88723-12360 |
