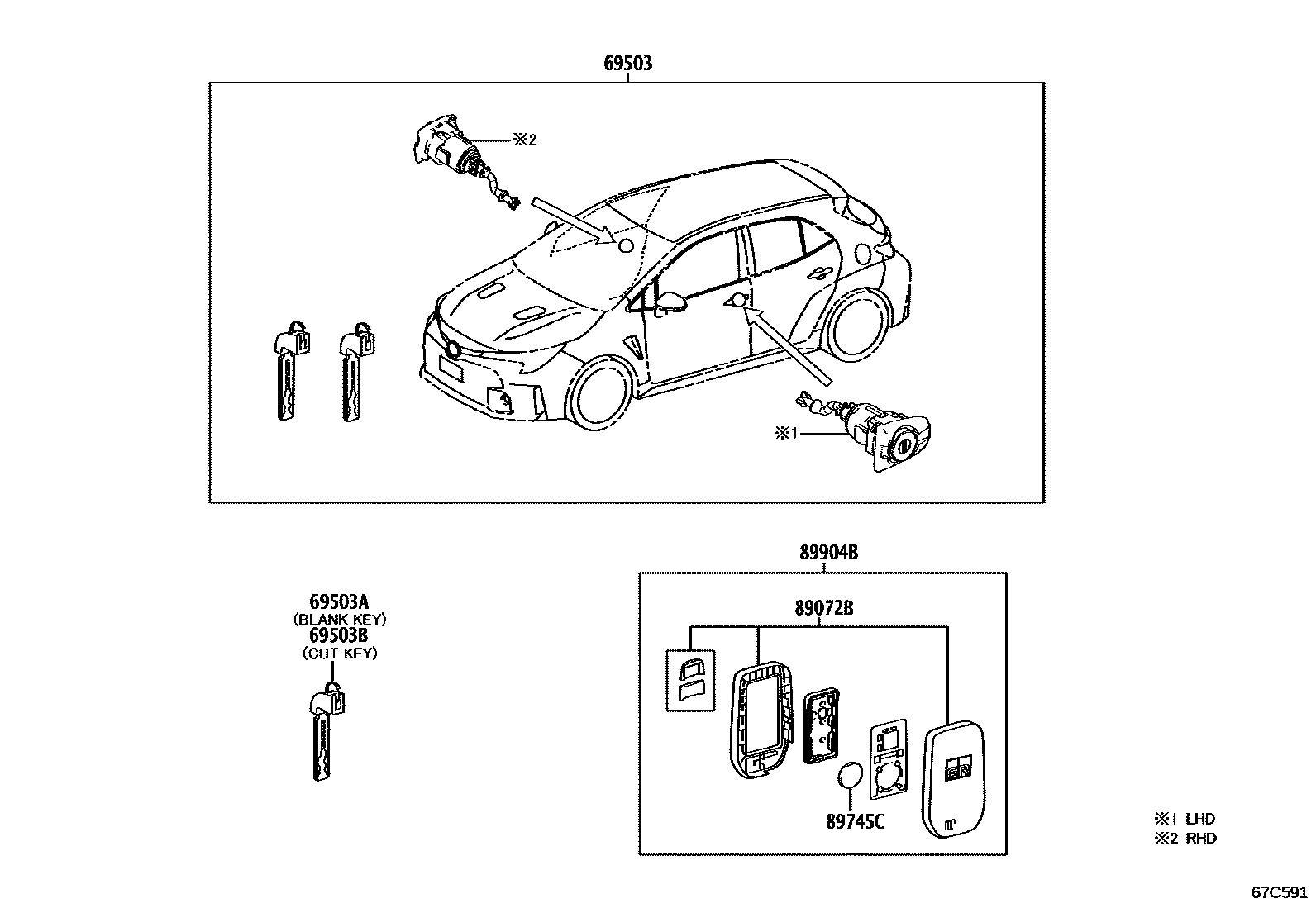

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-12J41 · 69005-12K51 |
| 69503A | external tooth key | 69515-K0020 |
| 69503B | internal tooth key | 69515-K0010 |
| 89072B | Remote key shell assembly (for smart key) | 89072-12770 · 89072-12B40 · 89072-12C80 · 89072-52B30 · 89072-52B40 · 89072-52B41 |
| 89745C | Transmitter battery | 89745-K0010 · 89745-K0020 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-12480 · 8990H-12481 · 8990H-12490 · 8990H-12491 · 8990H-12680 · 8990H-12700 · 8990H-12710 · 8990H-12720 · 8990H-52090 · 8990H-52091 · 8990H-52110 · 8990H-52112 |
