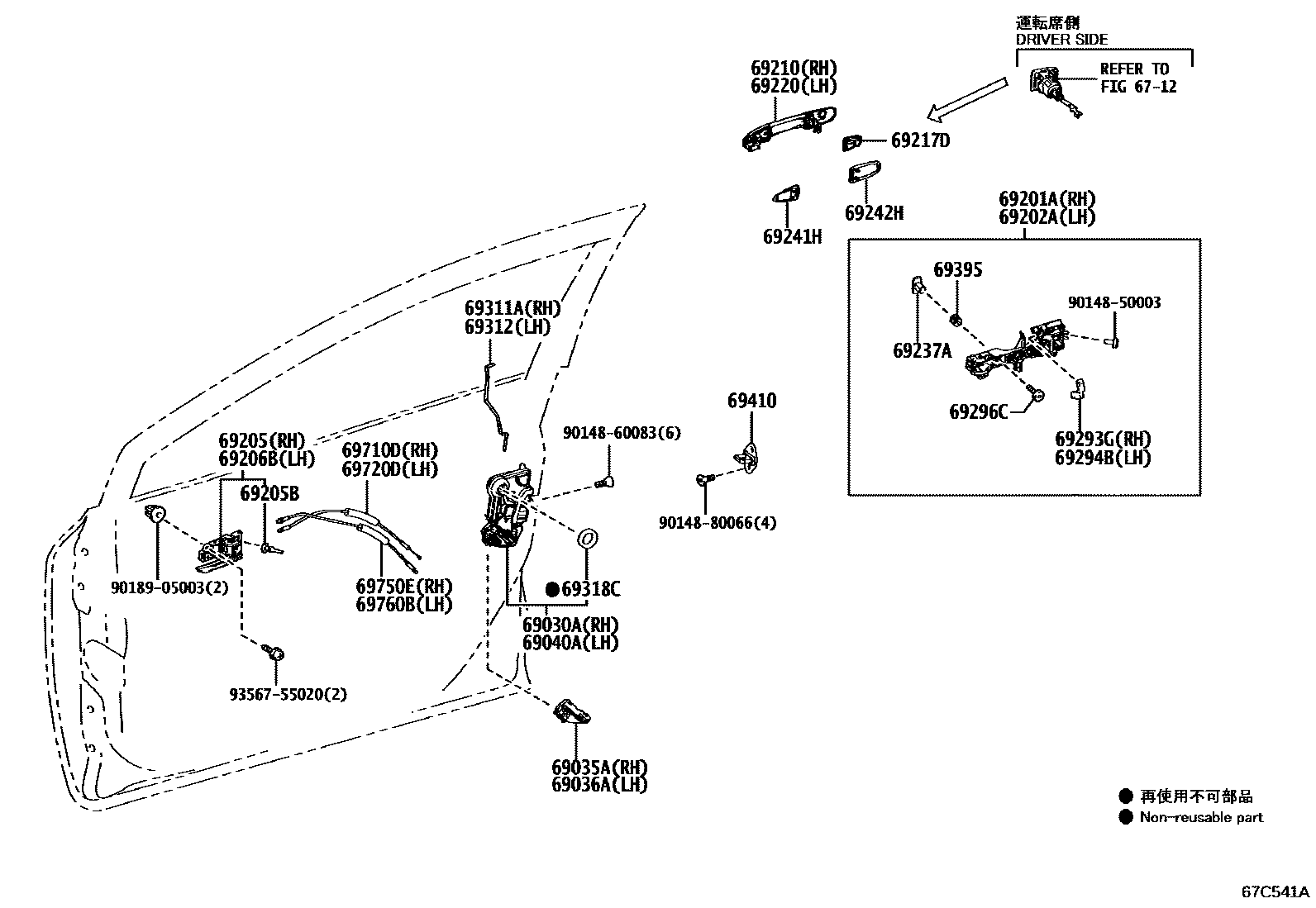

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-12570 · 69030-12580 |
| 69035A | Right front door lock cover sub-assembly | 69035-28010 |
| 69036A | Left front door lock cover sub-assembly | 69036-28010 |
| 69040A | Left front door door lock assembly with motor | 69040-12590 · 69040-12600 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-47070 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-47040 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69217D | Front door outer handle cover | 69217-47020 |
| 69237A | Front door handle nut | 69237-62010 |
| 69241H | Front door exterior handle pad | 69241-47020 |
| 69242H | Front door rear outer handle pad | 69242-47030 |
| 69293G | Right front door outer handle buckle | 69293-12030 |
| 69294B | Left front door outer handle buckle | 69293-12040 |
| 69296C | Car door inner handle screws | 90148-50006 |
| 69311A | Right front door lock opening lever | 69311-12220 |
| 69312 | Left front door lock opening lever | 69312-12220 |
| 69318C | door lock harness seal | 69318-51010 |
| 69395 | Bushing (for outer door handle) | 69239-47010 |
| 69410 | Front door lock plate assembly | 69410-20110 |
| 69710D | Right front door lock remote control cable (for opening lever) | 69710-12191 |
| 69720D | Left front door lock remote control cable (for opening lever) | 69710-12191 |
| 69750E | Right front door inner locking cable (for locking/unlocking handle) | 69750-12221 |
| 69760B | Left front door inner locking cable (for locking/unlocking handle) | 69750-12221 |
