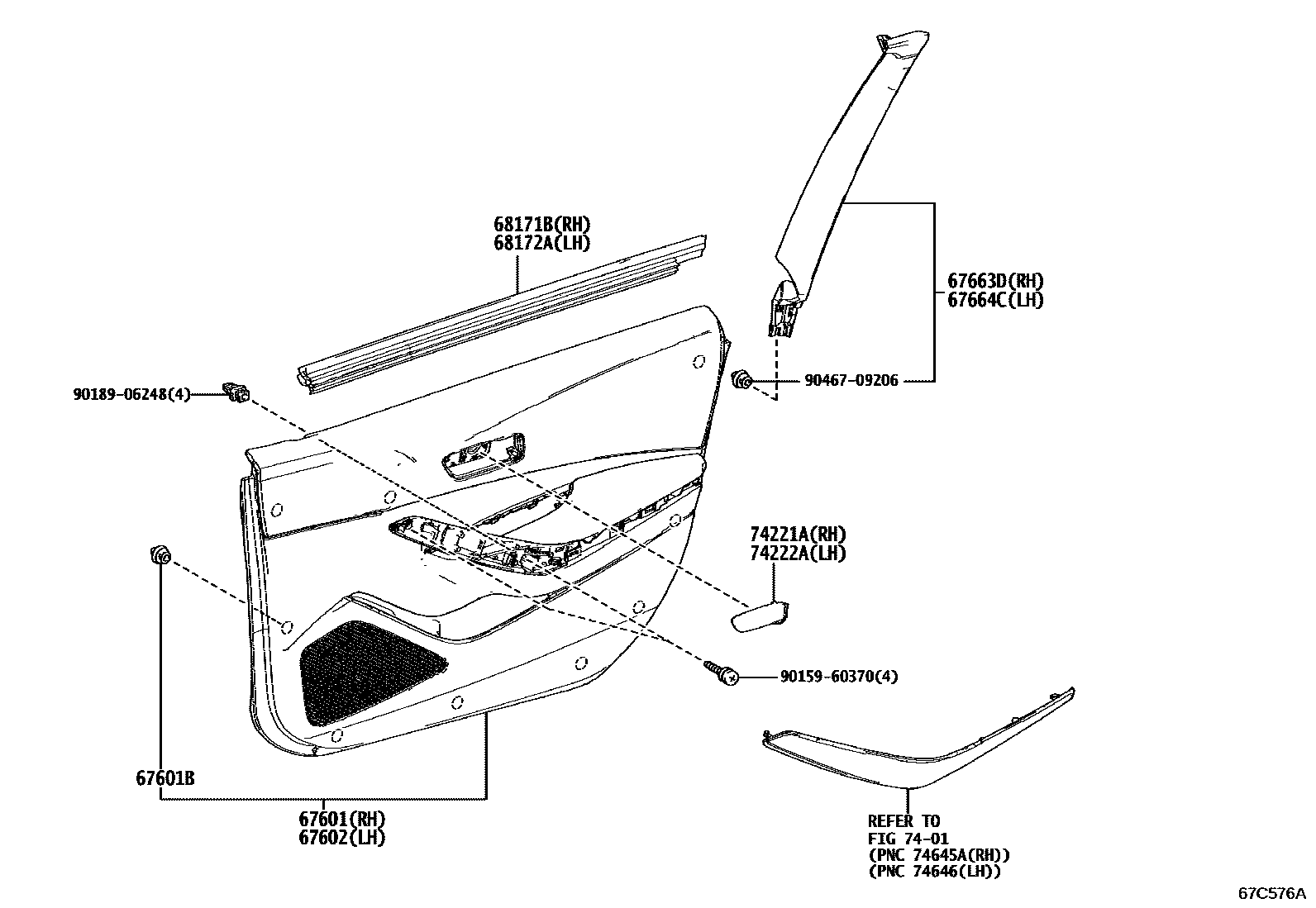

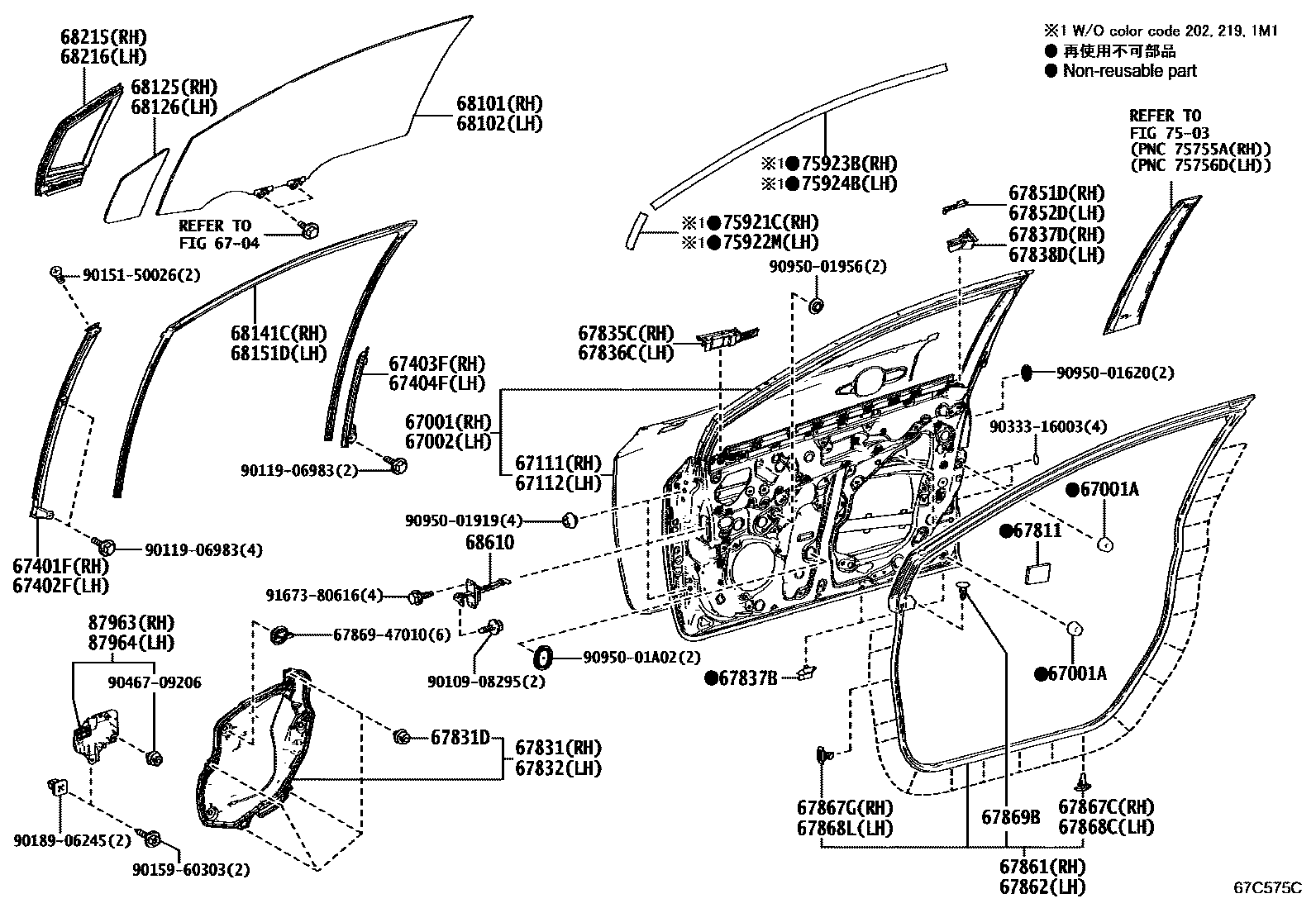

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-12C50 |
| 67001A | Front door panel cushion | 90541-09124 |
| 67002 | Left front door panel sub-assembly | 67002-12C50 |
| 67111 | Outer right front door panel | 67111-12750 |
| 67112 | Outer left front door panel | 67112-12740 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-12380 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-12400 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12330 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12310 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67663D | Right door frame decorative strip | 67663-12031 |
| 67664C | Left door frame decorative strip | 67664-12031 |
| 67811 | Front door silencer pad | 67811-12180 |
| 67831 | Right front door access hole cover | 67831-12750 |
| 67831D | Catch (for front door access hole cover) | 90467-09206 |
| 67832 | Left front door access hole cover | 67832-12530 |
| 67835C | Right front door No. 3 inspection hole cover | 67835-12030 |
| 67836C | Left front door No. 3 access hole cover | 67836-12050 |
| 67837B | Front door dust seal retainer | 67837-47060 |
| 67837D | Right front door ventilator seal | 67837-12090 |
| 67838D | Left front door ventilator seal | 67838-12040 |
| 67851D | Right front door rear outer seal | 67851-12010 |
| 67852D | Left front door rear outer seal | 67852-12010 |
| 67861 | Right front door seal | 67861-12B20 |
| 67862 | Left front door seal | 67862-12B20 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67867G | Right door sealing strip fixing | 67867-52030 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67868L | Left door seal strip fixing | 67867-52030 |
| 67869B | Front door seal strip clip | 67868-30030 |
| 68101 | Right front door glass sub-assembly | 68101-12D90 · 68101-12E00 |
| 68102 | Left front door glass sub-assembly | 68102-12D70 · 68102-12D80 |
| 68125 | Right front door fixed window glass | 68125-12020 · 68125-12030 |
| 68126 | Left front door fixed window glass | 68126-12020 · 68126-12030 |
| 68141C | Right front door glass lift channel | 68141-12622 |
| 68151D | Left front door glass lift channel | 68151-12322 |
| 68171B | Right front door glass inner sealing strip | 68171-12400 |
| 68172A | Left front door glass inner sealing strip | 68172-12320 |
| 68215 | Right front door fixed window seal | 68215-12010 |
| 68216 | Left front door fixed window seal | 68216-12010 |
| 68610 | Front door opening limiter assembly | 68610-12300 |
| 75921C | No. 1 right side light-shielding film | 75975-12080 |
| 75922M | No. 1 left shading film | 75976-12060 |
| 75923B | No. 2 right side light-shielding film | 75985-12800 |
| 75924B | No. 2 left shading film | 75986-12480 |
| 87963 | Right exterior rearview mirror mounting hole cover | 87963-12020 |
| 87964 | Left exterior rearview mirror mounting hole cover | 87964-12020 |
