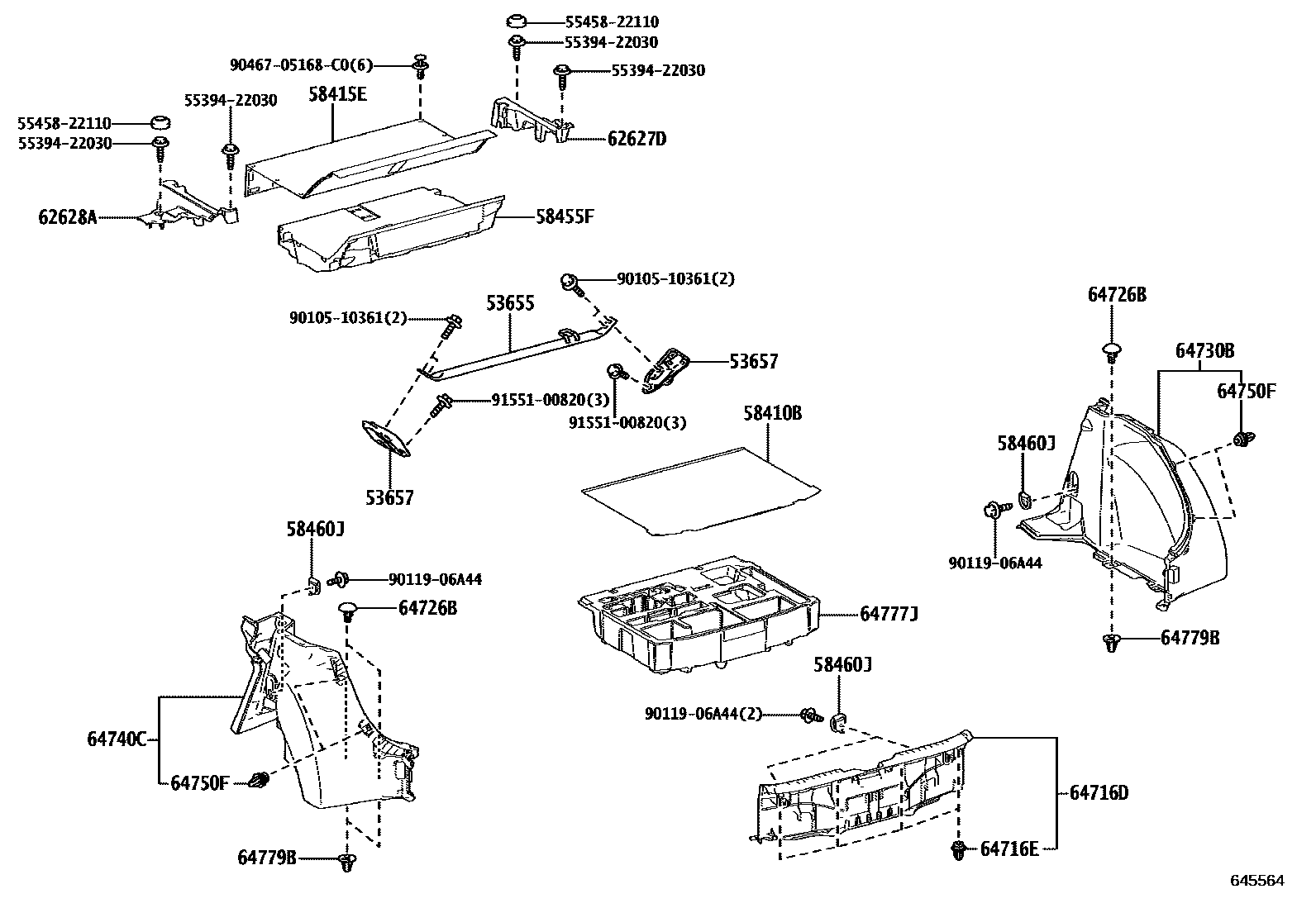

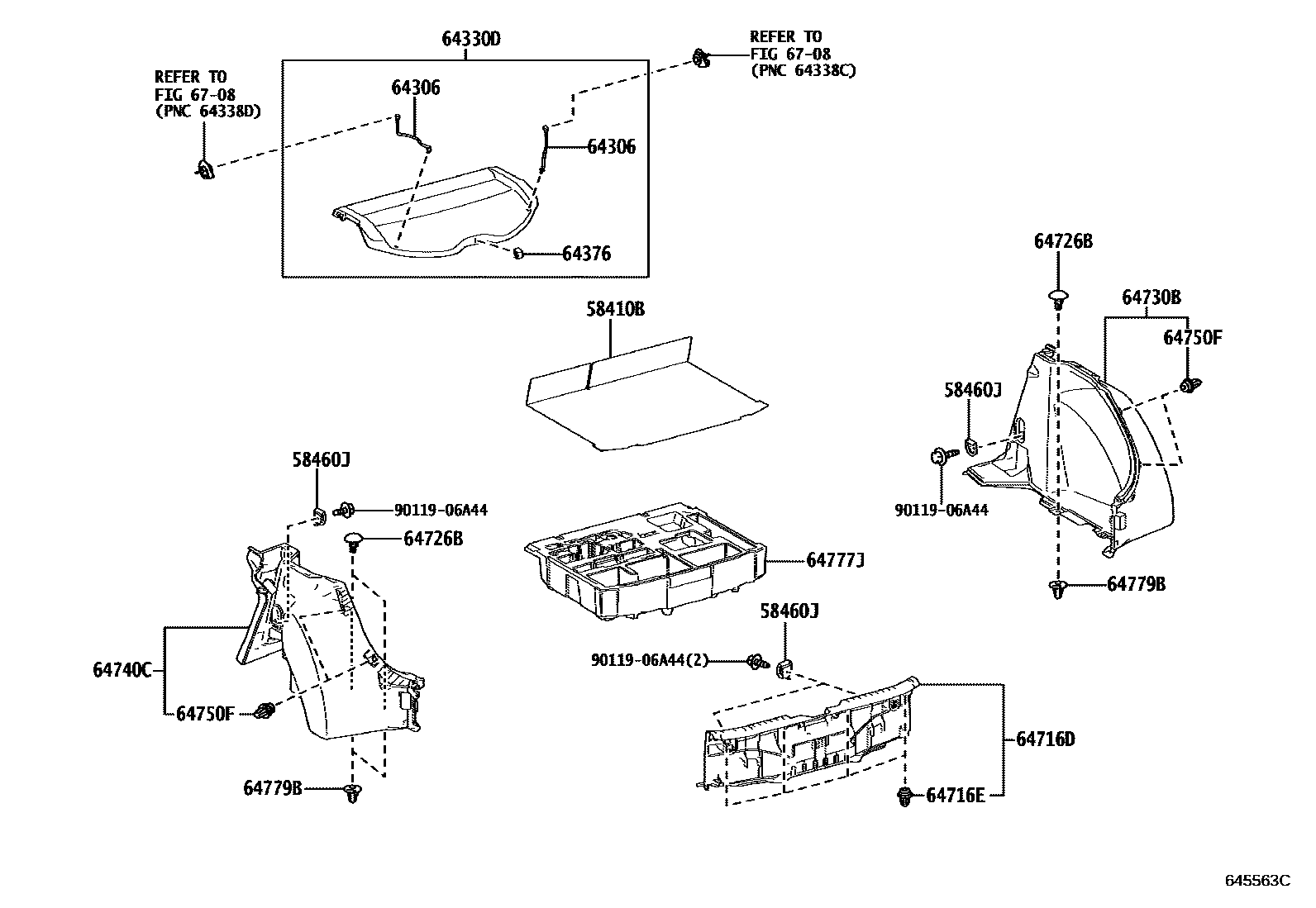

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53655 | Rear suspension center upper bracket | 53655-12030 |
| 53657 | No. 1 rear suspension bracket seat | 53657-12030 · 53658-12020 |
| 58455F | Rear floor panel No. 1 | 58575-12020 |
| 58460J | Luggage fixing belt lock assembly | 58460-33020 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-12131 |
| 64376 | No. 2 glove box decorative panel spacer | 64376-12040 |
| 64716E | Clip (for rear floor decorative cover) | 90467-10167 |
| 64750F | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64777J | Spare tire cushion | 64777-12280 · 64777-12350 · 64777-12380 |
| 64779B | Spare tire cover stop | 64779-26010 |
