Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 24 PNC and OE references.

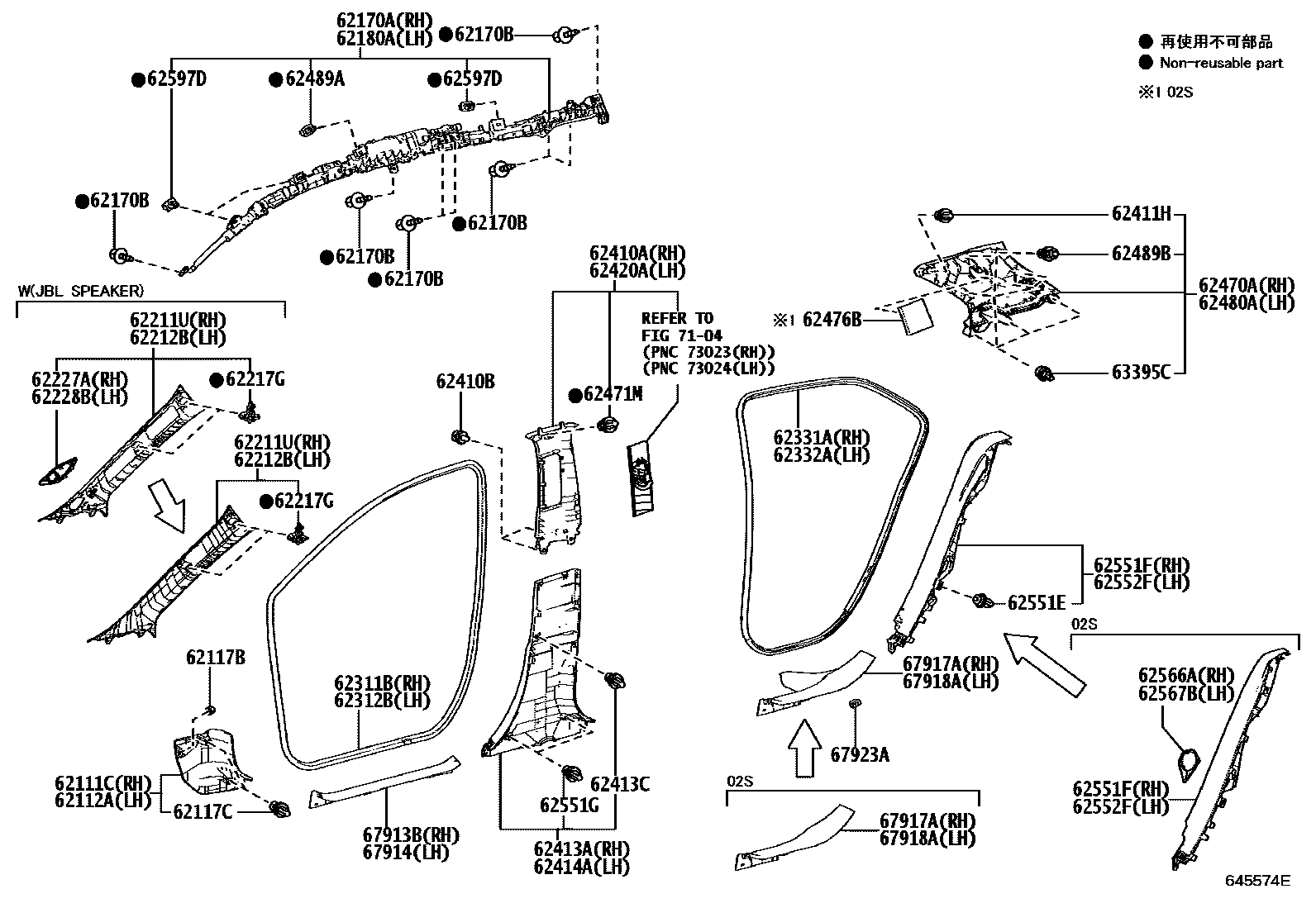

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 645574E
内饰板和车门防水胶条 — 645574E (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
62117BNo. 1 clip (for cowl side trim panel)90467-06147
62117CNo. 2 clip (for cowl side trim panel)90467-10167
62170ARight curtain air bag assembly62170-12150 · 62170-12162
62170BBolts with washers91673-80616
62180ALeft curtain air bag assembly62180-12150 · 62180-12162
62217GFront pillar decorative plate clip62217-42050
62227ARight front pillar speaker decorative grille62227-12010
62228BLeft front pillar speaker decorative grille62228-12010
62311BRight front door opening waterproof tape62311-12290
62312BLeft front door opening waterproof tape62312-12300
62331ARight rear door opening waterproof tape62331-12300
62332ALeft rear door opening waterproof tape62332-12300
62410Bclip90467-10216
62411Hclip90467-10188
62413CClip (for the decorative panel under the center pillar)90467-10161
62471Mclip90467-10167
62476BNo. 1 roof side interior panel cover62476-12040
62489ARoof side interior panel clips62489-28010
62489BRoof side interior panel clips90467-09236
62551EClips (for rear seat side trim panels)62217-13010
62551Gclip90467-10161
62597Dclip90467-18017
63395CClips (for roof side interior panels)90467-09240
67923ACar door No. 1 wear plate clip67923-20090
