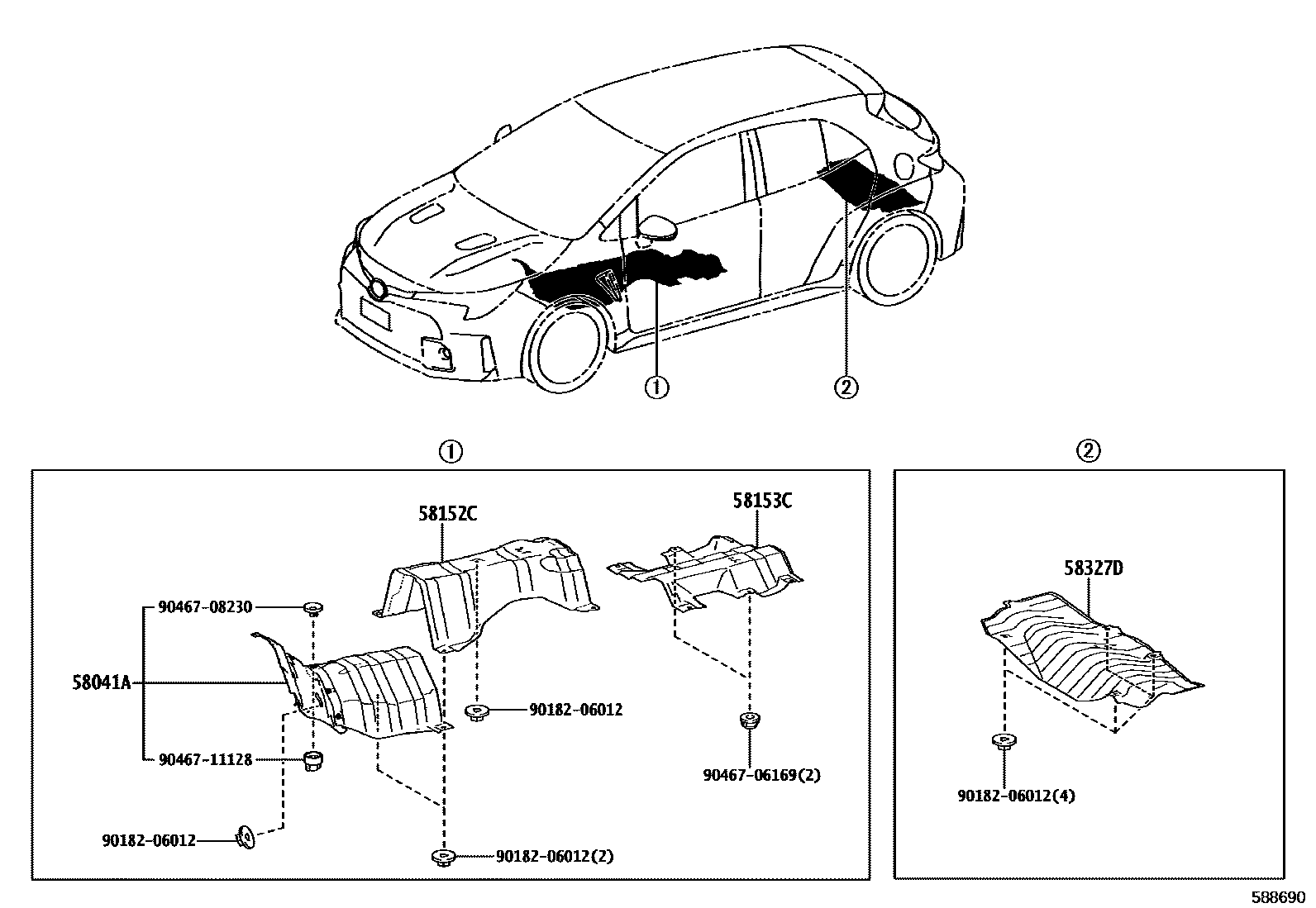

Toyota COROLLA 地板隔热垫 — Figure 5802
Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58041A | Front floor insulation pad sub-assembly No. 1 | 58041-12160 · 5804A-12010 |
| 58152C | Floor insulation mat No. 2 | 5814B-12010 · 58152-12120 |
| 58153C | Floor insulation mat No. 3 | 58153-10040 |
| 58327D | Heat insulation pad on main muffler | 58327-12290 |
