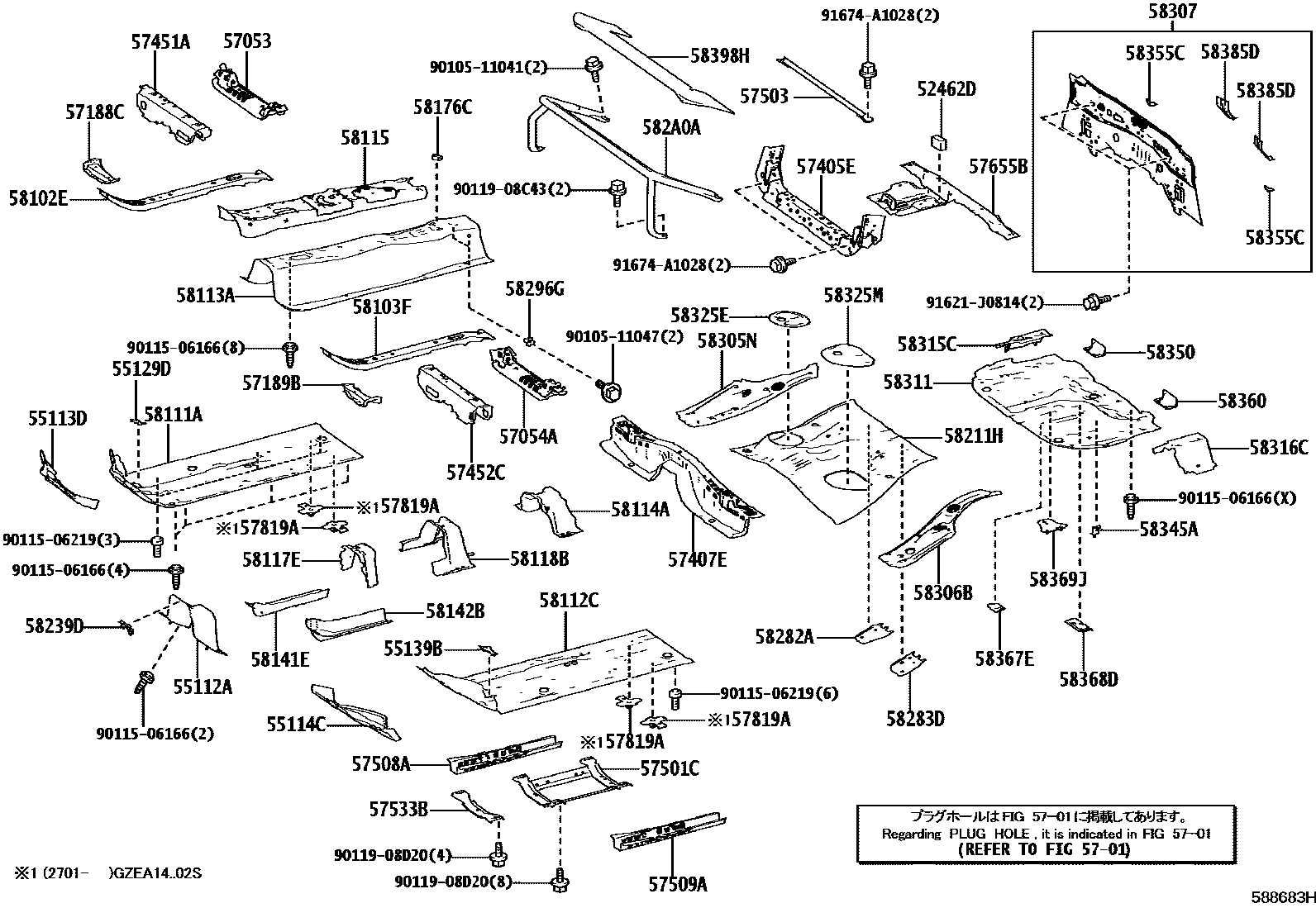

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52462D | BUTEE, BATTERIE | 52462-30130 |
| 55112A | No. 2 front panel | 55112-47040 |
| 55113D | lower right cowl | 55113-47021 |
| 55114C | Lower left cowl | 55114-47050 |
| 55129D | Right front panel hole cover | 55129-47021 |
| 55139B | Left front panel hole cover | 55139-47021 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-12041 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-12061 |
| 57188C | Right front longitudinal beam extension reinforcement | 57188-47030 |
| 57189B | Left front longitudinal beam extension reinforcement | 57189-47020 |
| 57405E | Center floor No. 2 beam sub-assembly | 57405-12070 |
| 57407E | Center floor beam sub-assembly | 57407-10080 |
| 57451A | Front floor right cross member | 57451-47040 |
| 57452C | Front floor left cross member | 57452-47010 |
| 57501C | Front floor center bracket sub-assembly | 57501-12030 |
| 57503 | Center floor beam bracket sub-assembly | 57503-12010 |
| 57508A | Front floor right reinforcement sub-assembly | 57508-F4021 |
| 57509A | Front floor left reinforcement sub-assembly | 57508-F4021 |
| 57533B | Front floor center bracket | 57533-12090 |
| 57655B | Rear floor beam No. 4 | 74403-12030 |
| 58102E | Front floor right reinforcement sub-assembly | 58102-47020 |
| 58103F | Front floor left reinforcement sub-assembly | 58102-47020 |
| 58111A | Front floor right bottom panel | 58111-10210 |
| 58112C | Front floor left bottom panel | 58112-10050 |
| 58113A | front floor center panel | 58113-12100 · 58113-12110 |
| 58114A | front floor reinforcement | 58114-10050 |
| 58115 | Front floor reinforcement | 58015-12120 · 58015-12130 |
| 58117E | Front floor sub-cover | 58117-47040 |
| 58118B | Front floor reinforcement No. 2 | 58118-47030 |
| 58141E | Right front longitudinal beam to floor panel reinforcement | 58141-02120 |
| 58142B | Left front longitudinal beam to floor panel reinforcement | 58142-02130 |
| 58176C | Parking brake base No. 2 reinforcement | 58176-12020 |
| 58211H | central floor base | 58211-12790 |
| 58239D | Cable clip bracket | 58239-10020 |
| 58282A | Right No. 3 seat belt anchor to floor base | 58282-12110 |
| 58283D | Left No. 3 seat belt anchor to floor base | 58283-12090 |
| 58296G | Front floor bracket mounting bracket | 58296-12060 |
| 582A0A | ENS. ENTRETOISE, PLANCHER CENTRAL | 582A0-12010 |
| 58305N | Rear floor to right side wall extension sub-assembly | 58305-47051 |
| 58306B | Rear floor to left side wall extension sub-assembly | 58306-47051 |
| 58307 | Body lower back panel sub-assembly | 58307-12C50 |
| 58311 | rear floor pan | 58311-12440 |
| 58315C | Rear floor right side panel extension | 58315-12100 · 58315-12101 |
| 58316C | Rear floor left side panel extension | 58316-12090 |
| 58325E | Rear floor access hole cover | 58325-10051 |
| 58325M | Rear floor manhole cover No. 1 | 58325-12170 |
| 58345A | Rear floor insulation pad bracket No. 1 | 58345-12070 |
| 58350 | Rear floor right reinforcement assembly | 58350-47010 |
| 58355C | Rear bumper arm bracket | 58355-53030 |
| 58360 | Rear floor left reinforcement assembly | 58350-47010 |
| 58367E | No. 1 fuel pipe bracket | 58367-47020 |
| 58368D | No. 2 inflatable tube bracket | 58368-12020 |
| 58369J | rear floor bracket | 58369-12030 |
| 58385D | Rear bumper cover bracket | 58385-12210 |
| 58398H | No. 1 floor under cover | 57381-12010 |
