Toyota COROLLA 仪表板和手套箱 — Figure 5501

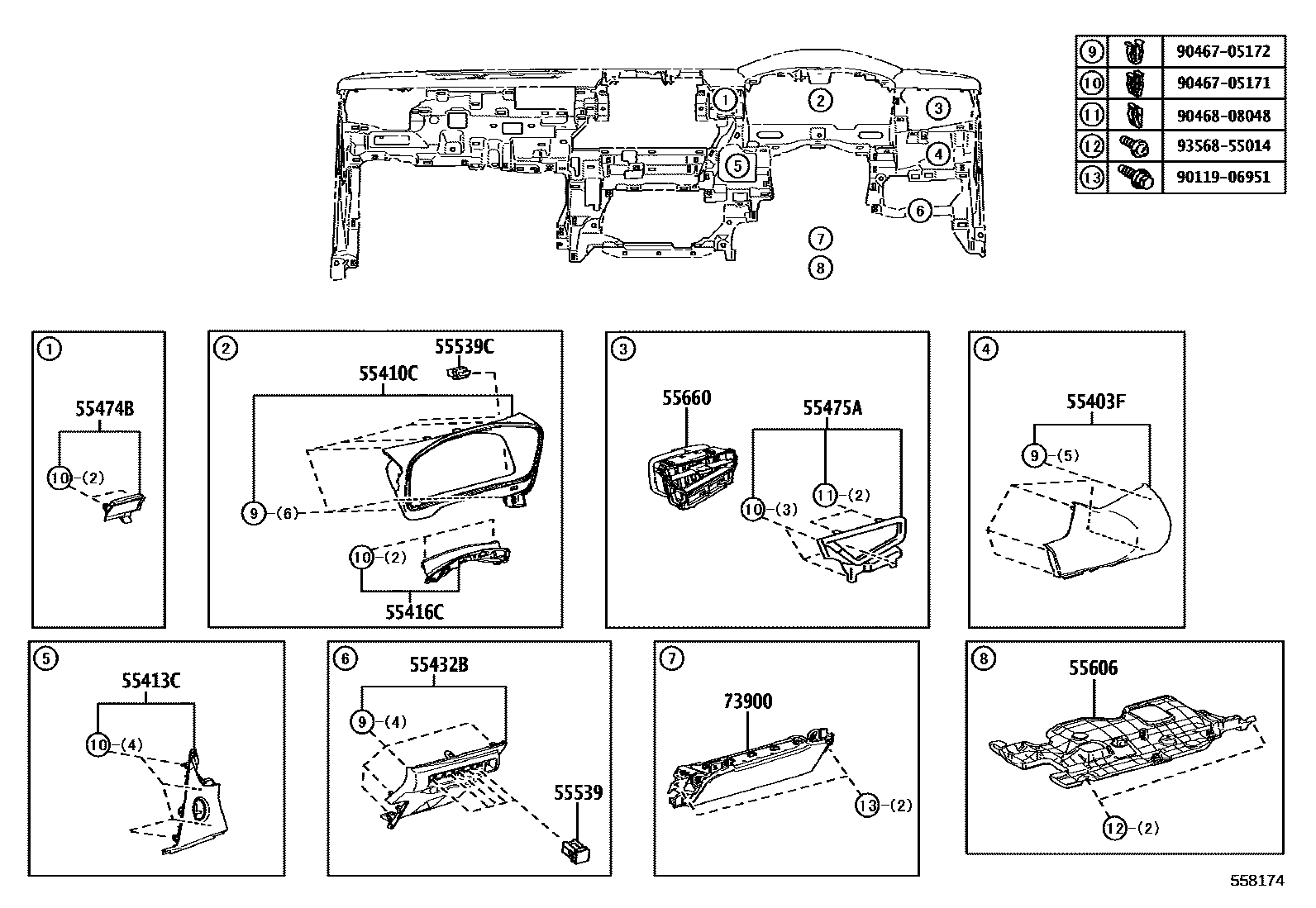

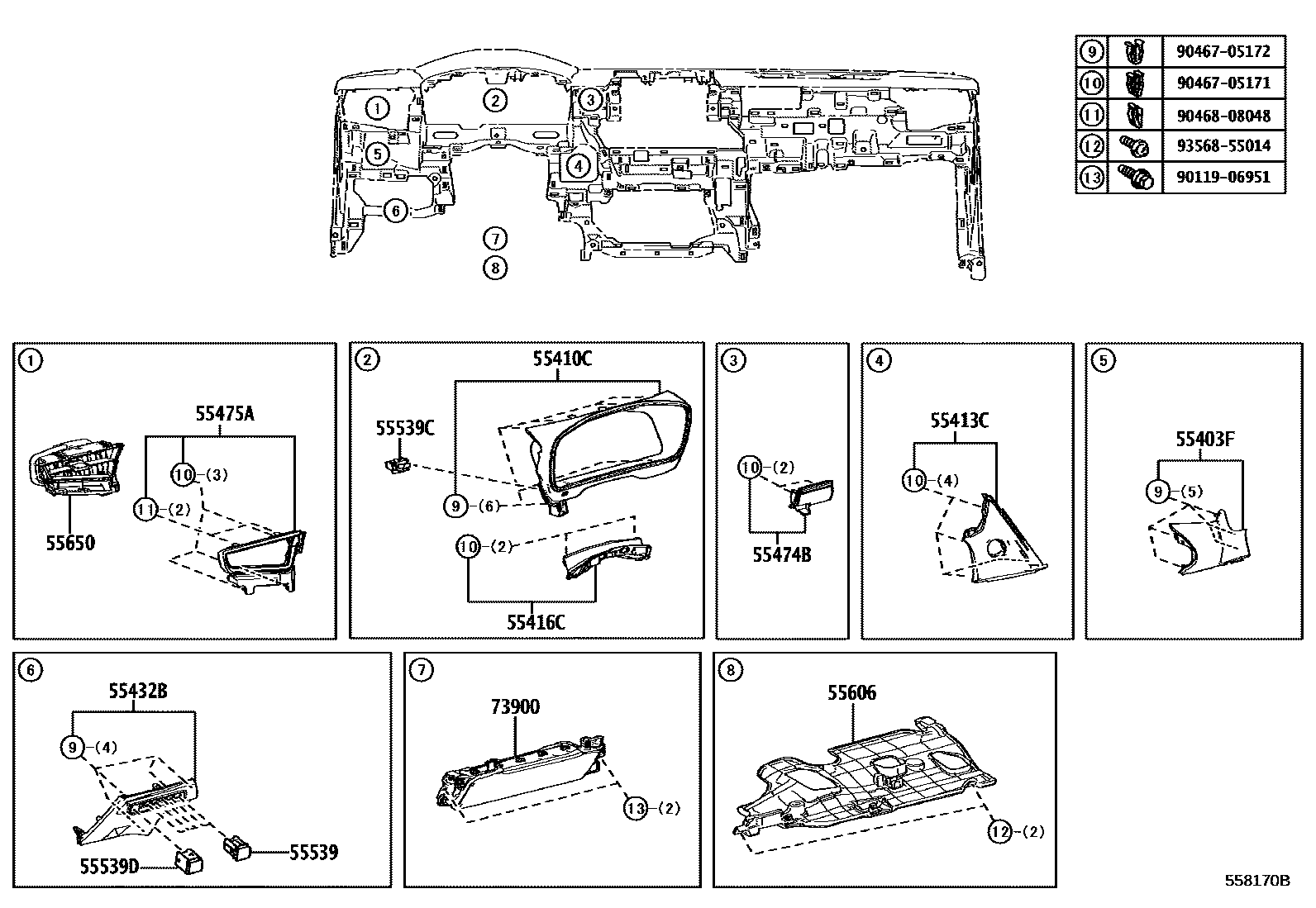

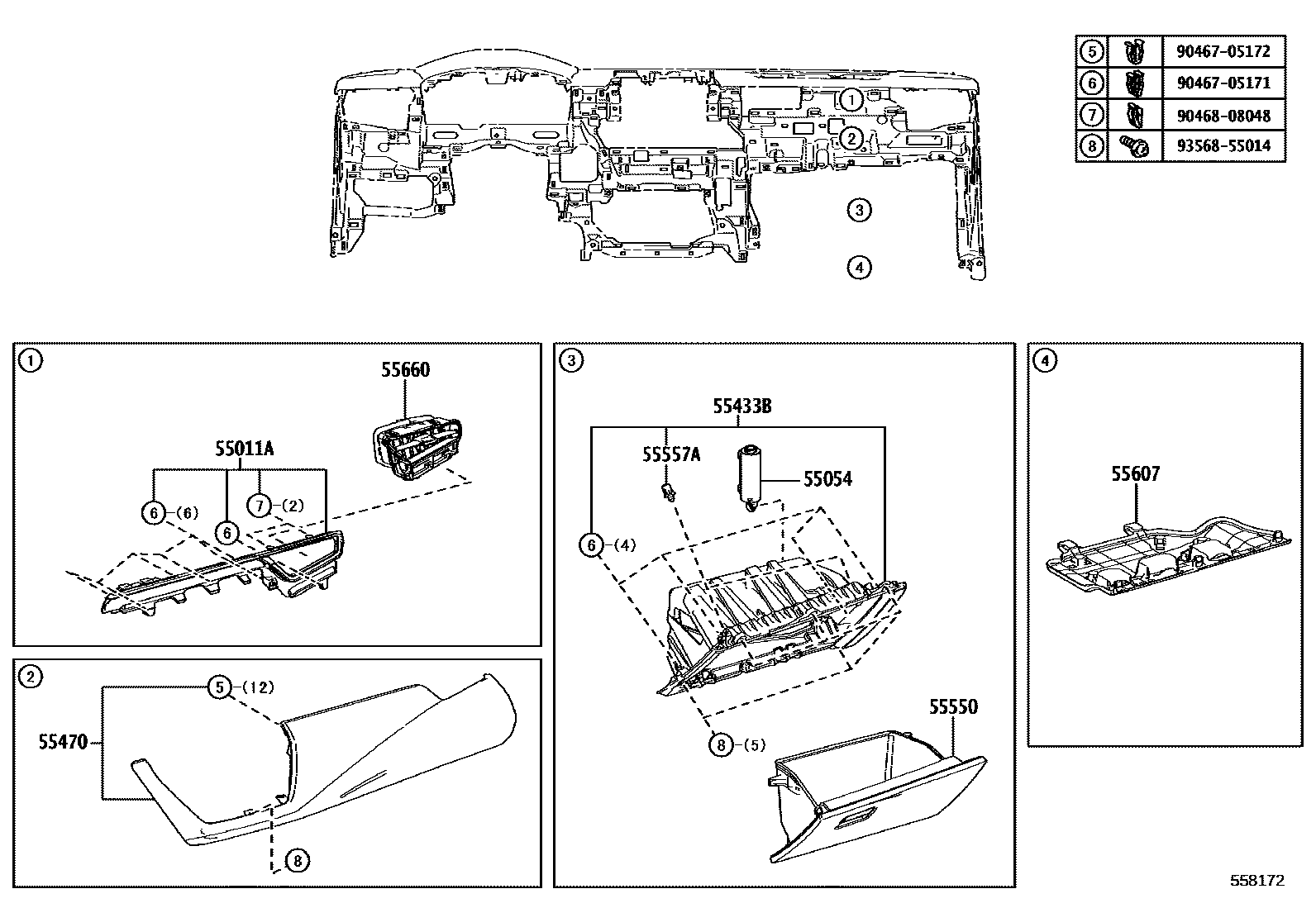

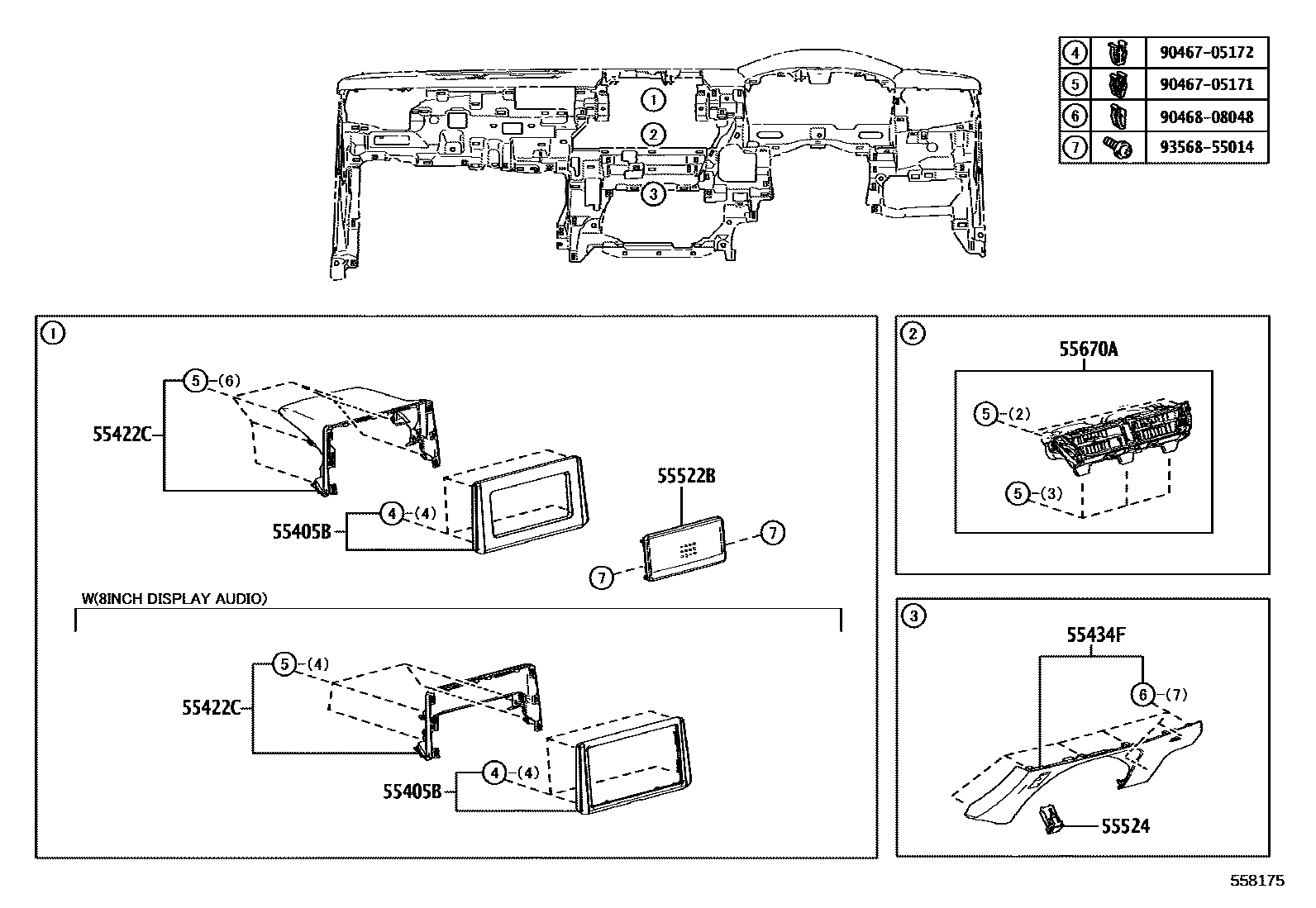

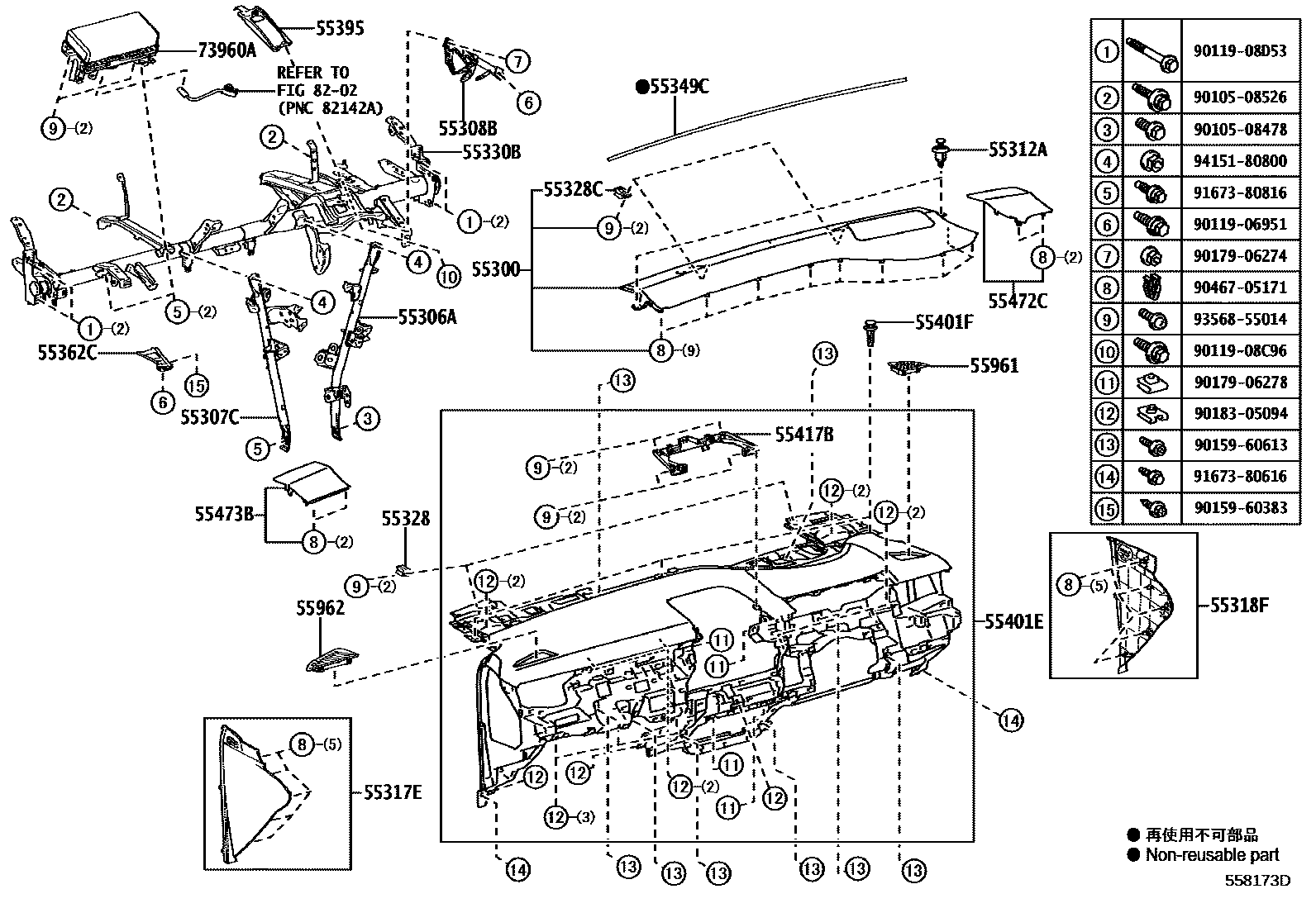

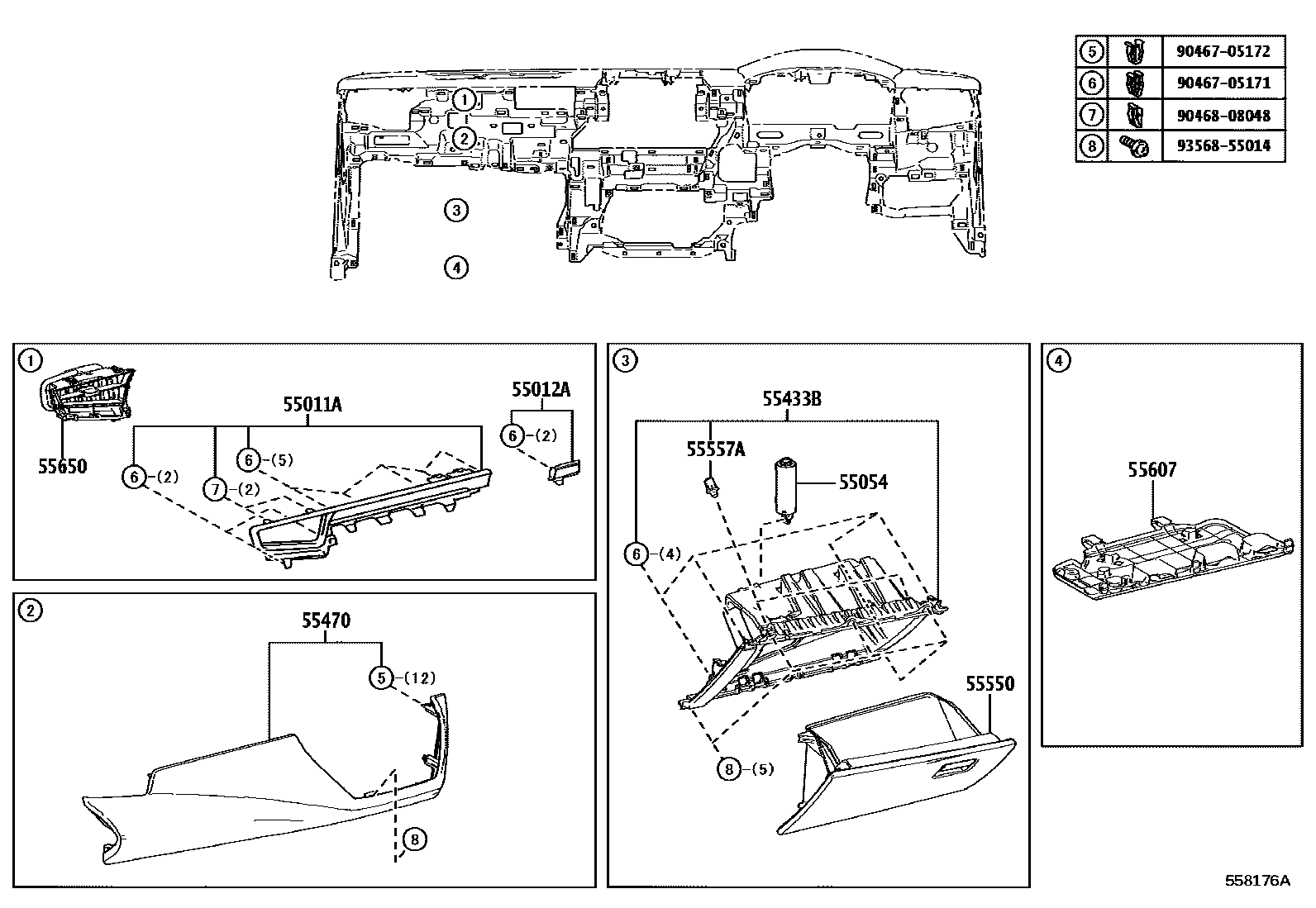

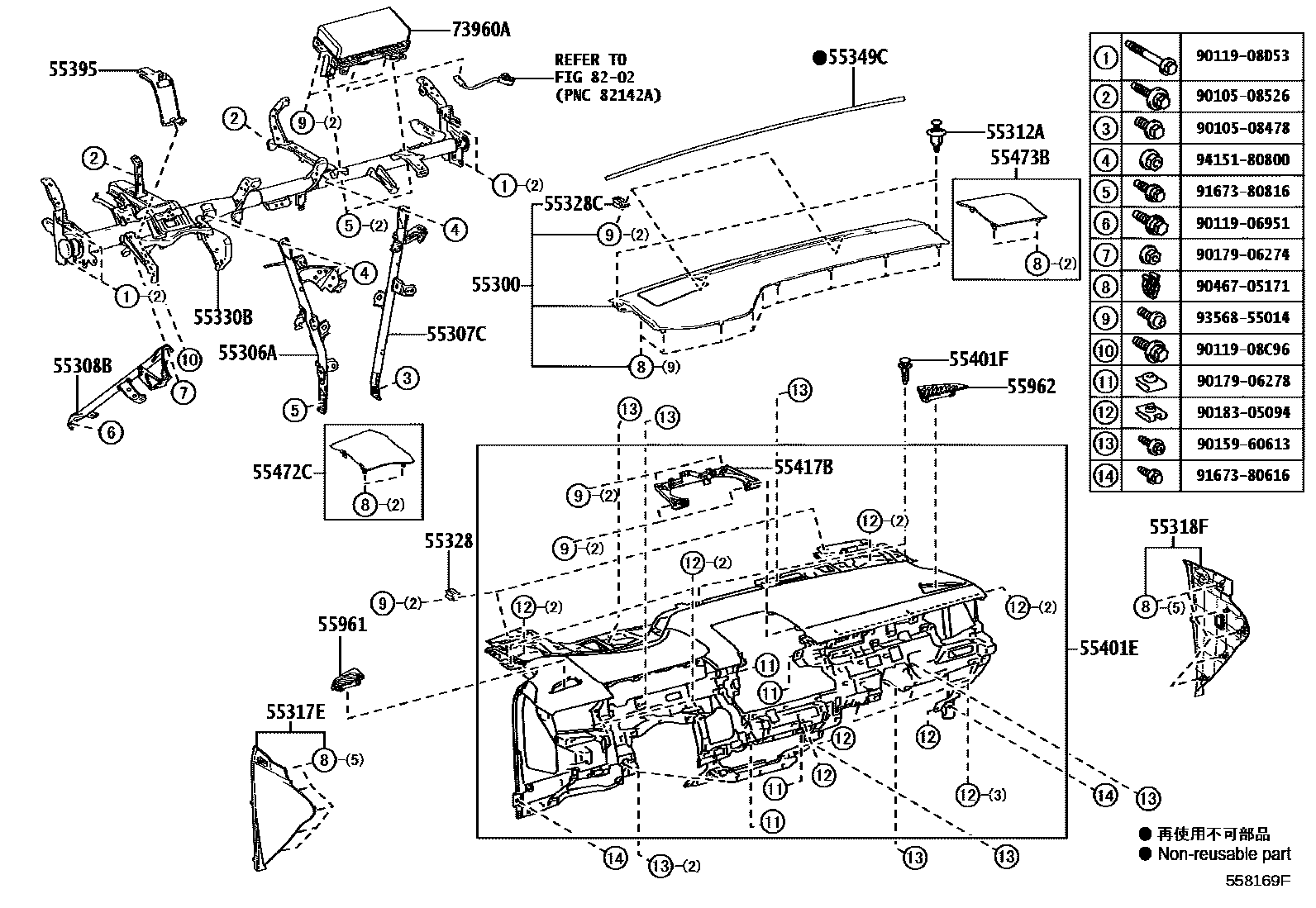

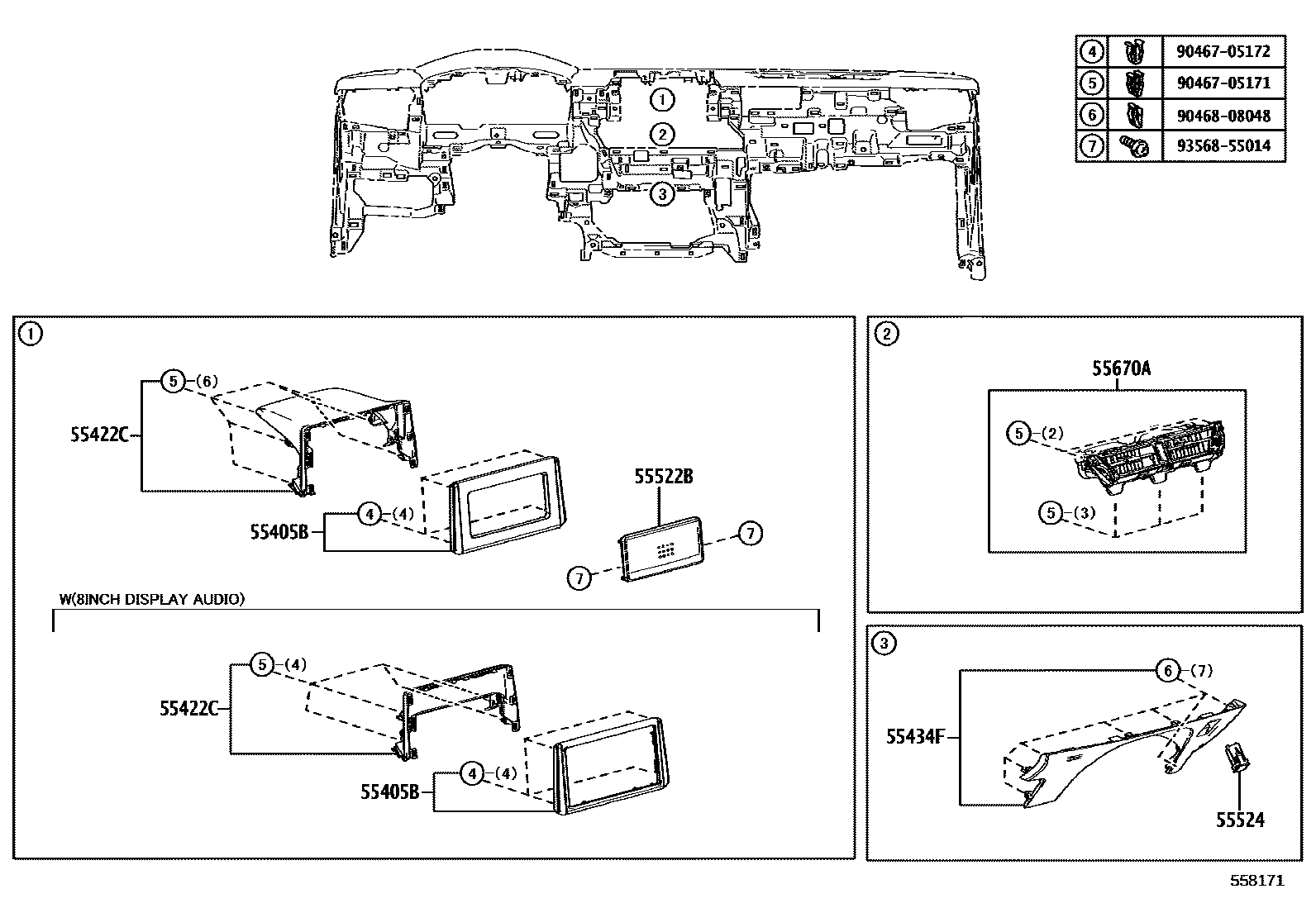

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 8 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-12510 · 55306-12530 · 55306-12550 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-12410 · 55307-12460 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-12320 · 55308-12340 |
| 55312A | Dashboard clip | 90467-07217 |
| 55328 | Instrument panel pin 1 | 55328-12430 |
| 55328C | Instrument panel pin 2 | 55328-12440 |
| 55330B | Instrument panel reinforcement assembly | 55330-12621 · 55330-12631 · 55330-12641 · 55330-12841 · 55330-12851 · 55330-12861 |
| 55349C | Dashboard cushion | 55349-12190 |
| 55362C | Parking brake mounting bracket | 55362-12100 |
| 55395 | Dashboard to pedal bracket | 55395-12020 · 55395-12040 |
| 55401F | Clip (for safety mat) | 52161-16010 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-12E80 · 55405-12F00 |
| 55416C | Instrument cluster decorative panel fixings | 55416-12210 |
| 55417B | Radio tuner trim panel fixing | 55417-12060 |
| 55422C | Center instrument cluster upper decorative panel | 55422-12340 · 55422-12350 |
| 55474B | Instrument cluster decorative panel trim parts | 55474-12320 · 55474-12330 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55557A | Glove box cover limit pad | 55557-52030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-12130 · 55606-12160 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-12110 · 55607-12120 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-12460 · 55650-12500 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-12450 · 55660-12530 |
| 55670A | Instrument panel central air register assembly | 55670-12740 · 55670-12760 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-12320 |
