Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

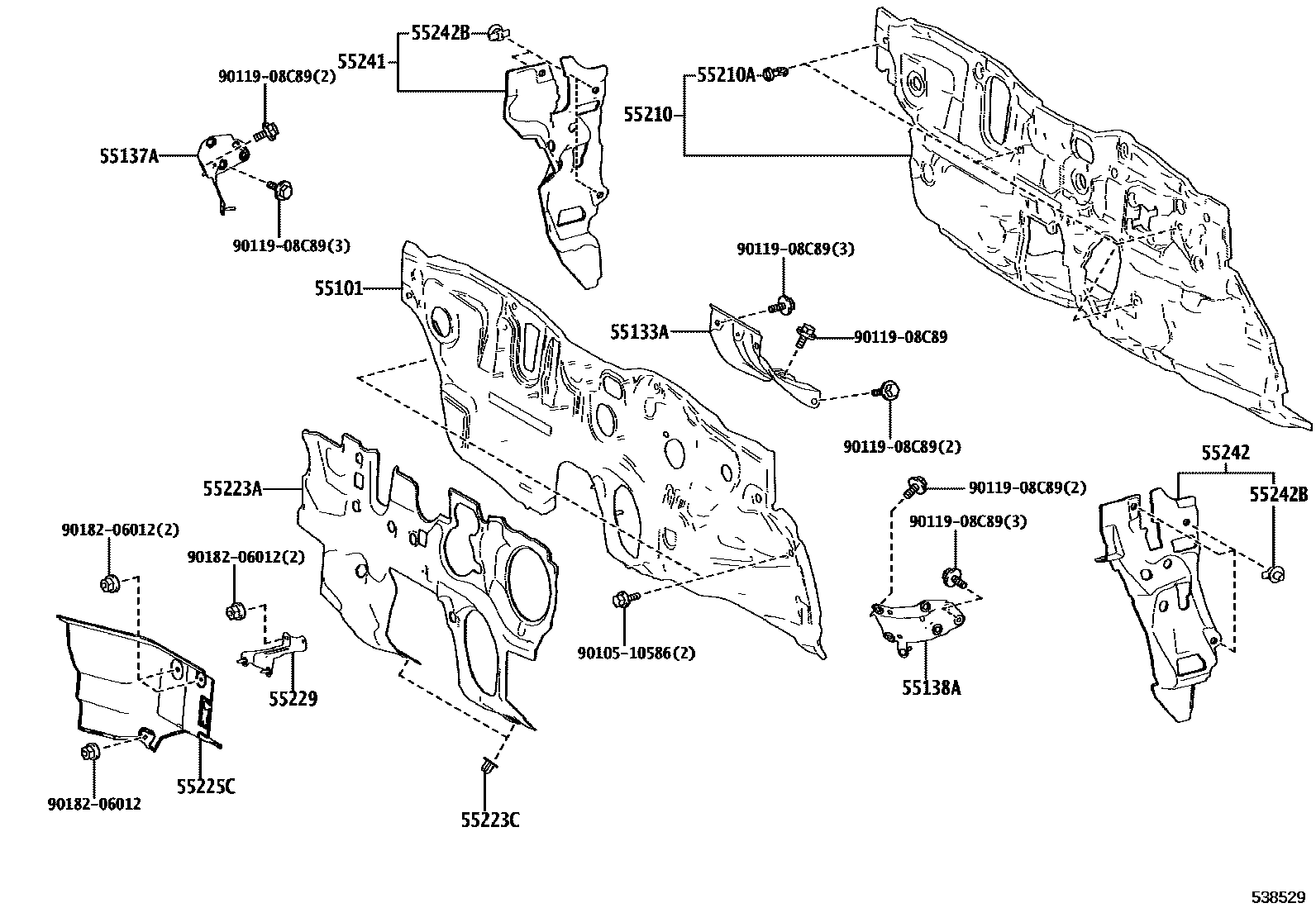

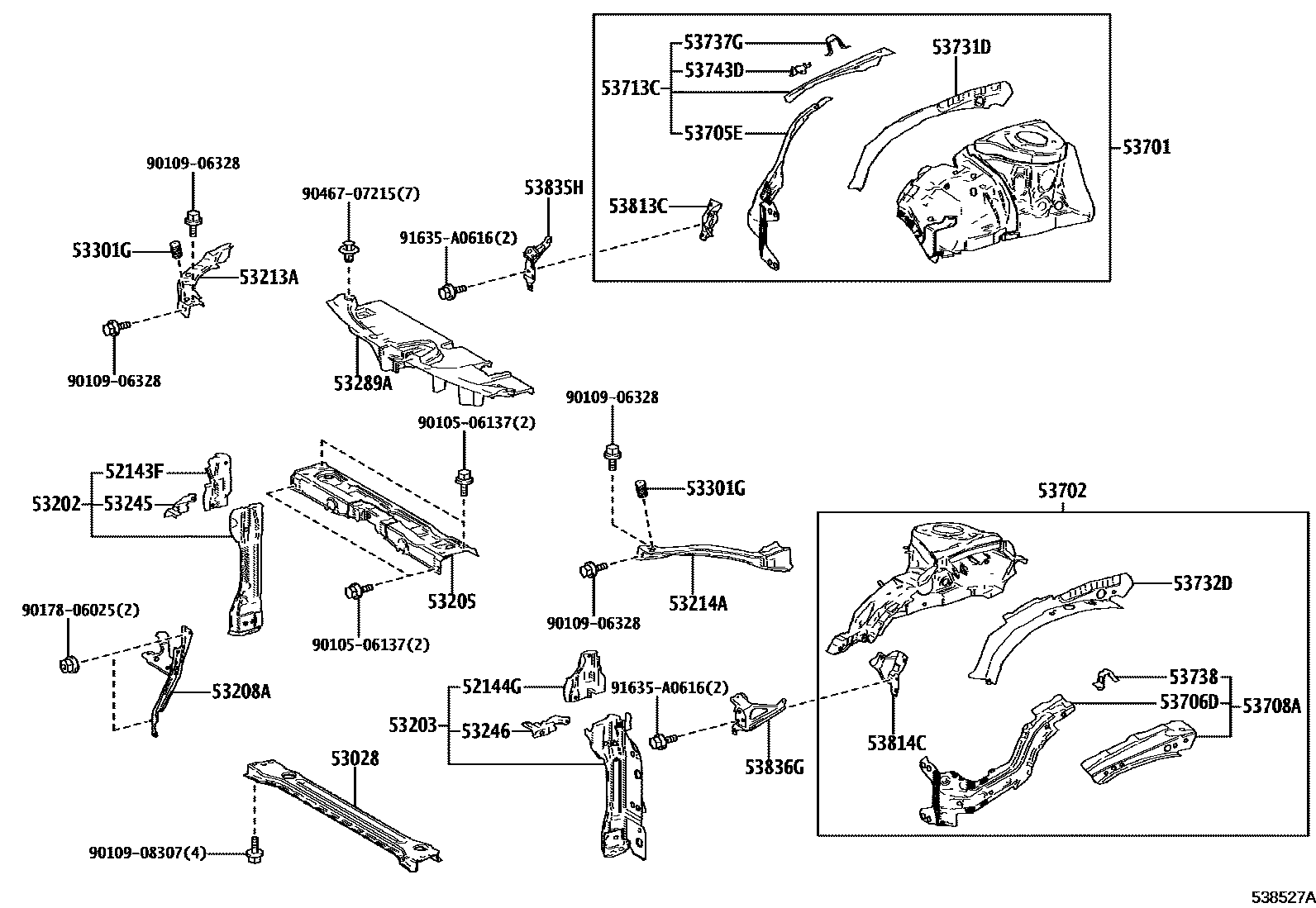

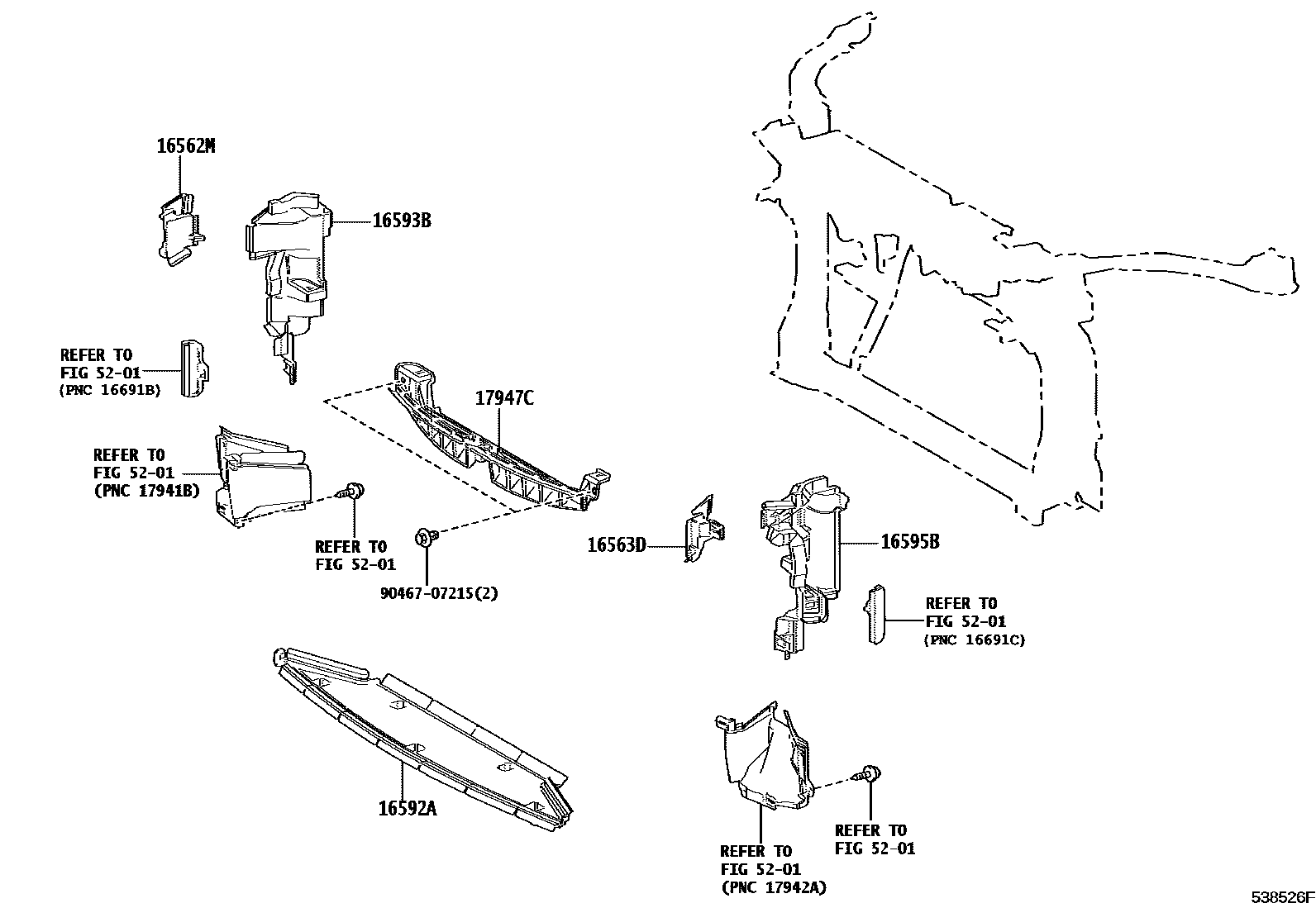

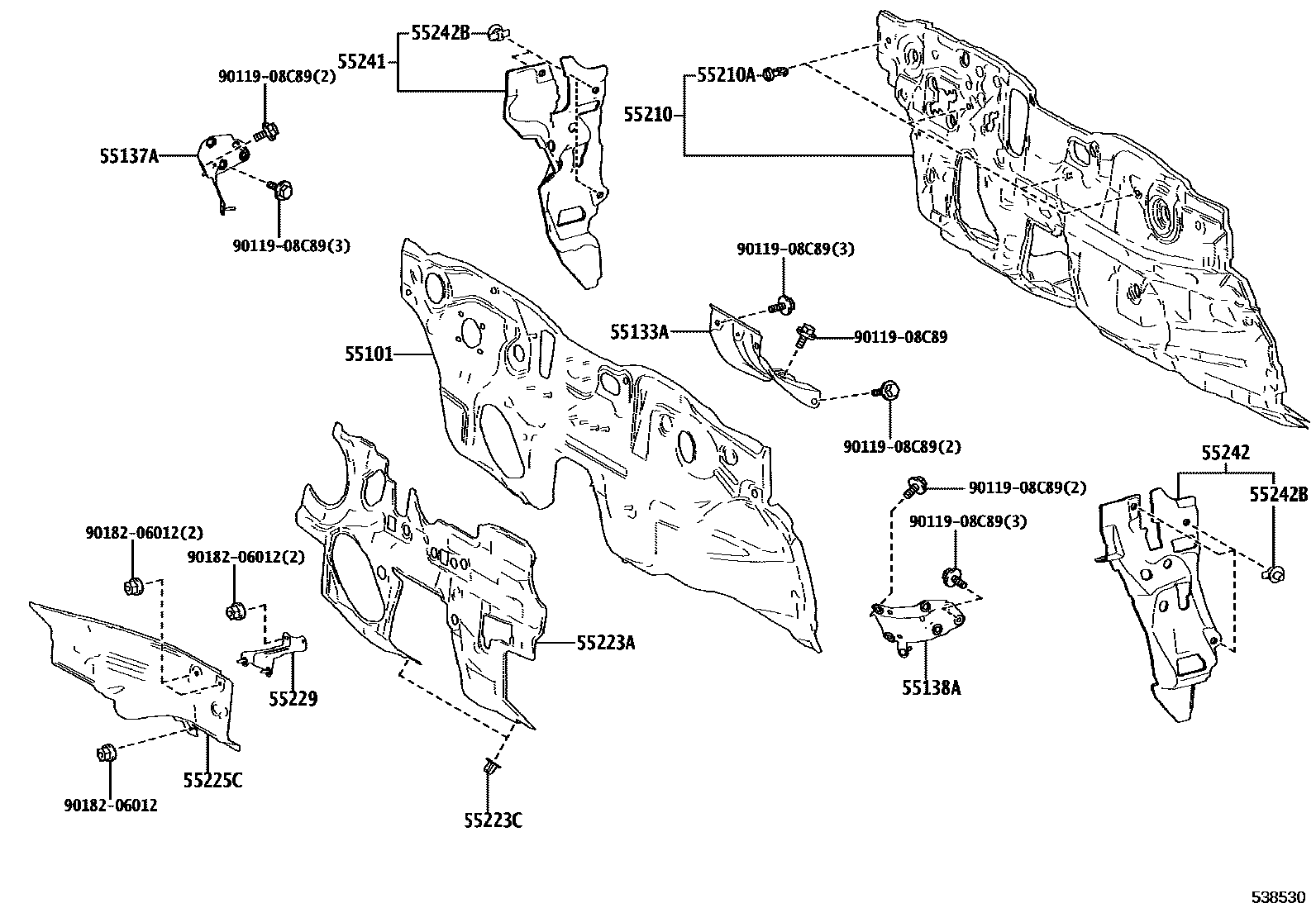

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 4 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16562M | Seal No. 2 (radiator to bracket) | 16562-18030 · 16562-18060 |
| 16563D | Seal No. 3 (radiator to bracket) | 16563-18010 · 16563-18030 |
| 16592A | Radiator deflector No. 3 | 16592-18030 · 16592-18040 |
| 16593B | No. 1 radiator right deflector | 16593-18030 |
| 16595B | No. 1 radiator left deflector | 16595-18030 |
| 17947C | PLAQUE DE RADIATEUR INTERMEDIAIRE | 17947-18010 |
| 52143F | Front bumper right side bracket | 52143-47030 |
| 52144G | Front bumper left bracket | 52144-47050 |
| 53028 | Radiator lower bracket sub-assembly | 53028-12060 |
| 53202 | Radiator right side bracket sub-assembly | 53202-12900 |
| 53203 | Radiator left bracket sub-assembly | 53203-12900 |
| 53205 | Radiator upper bracket sub-assembly | 53205-12360 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-12600 |
| 53213A | Radiator upper right bracket | 53213-12190 |
| 53214A | Radiator upper left bracket | 53214-12150 |
| 53245 | Right headlight bracket | 53245-12150 |
| 53246 | Left headlight bracket | 53246-12090 |
| 53289A | Radiator bracket opening cover | 53289-12110 · 53289-12150 |
| 53301G | engine cover cushion | 90541-15037 |
| 53701 | Right front fender fender sub-assembly | 53701-12A80 · 53701-12A90 |
| 53702 | Left front fender fender sub-assembly | 53702-12A90 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-02130 · 53705-0W020 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-02130 |
| 53708A | Left front fender, fender front extension sub-assembly | 53708-12100 |
| 53713C | Right front fender fender front extension | 53707-12100 · 53707-12110 |
| 53731D | Right front fender to cowl side upper beam | 53731-02170 |
| 53732D | Left front fender to cowl side upper beam | 53732-02170 |
| 53737G | Right front fender to front wall side sill | 53737-12140 |
| 53738 | Left front fender to front wall side sill | 53738-12100 |
| 53743D | Right front fender fender front extension reinforcement | 53743-47020 |
| 53813C | Right front fender extension | 53813-47050 |
| 53814C | Left front fender extension | 53814-47030 |
| 53835H | Right front fender to extension stay | 53835-12140 · 53835-12150 · 53835-12160 |
| 53836G | Left front fender to extension stay | 53836-12090 · 53836-12100 · 53836-12110 |
| 55101 | Front apron sub-assembly | 55101-10A01 · 55101-10A11 · 55101-12E00 · 55101-12E10 |
| 55133A | Right reinforcement (front wall to floor) | 55133-47010 |
| 55137A | Right side bracket (front wall to frame) | 55137-47040 |
| 55138A | Left side bracket (front wall to frame) | 55138-47070 |
| 55210 | Front wall insulation pad assembly | 55210-12730 · 55210-12740 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-12200 · 55223-47100 |
| 55223C | clip | 90467-06197 |
| 55225C | Front wall insulation pad | 55225-12020 · 55225-12040 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-10020 |
| 55241 | Front panel No. 1 right side silencer | 55241-12030 |
| 55242 | Front panel No. 1 left side silencer | 55242-12010 |
| 55242B | Front panel side muffler clip | 90467-13079 |
