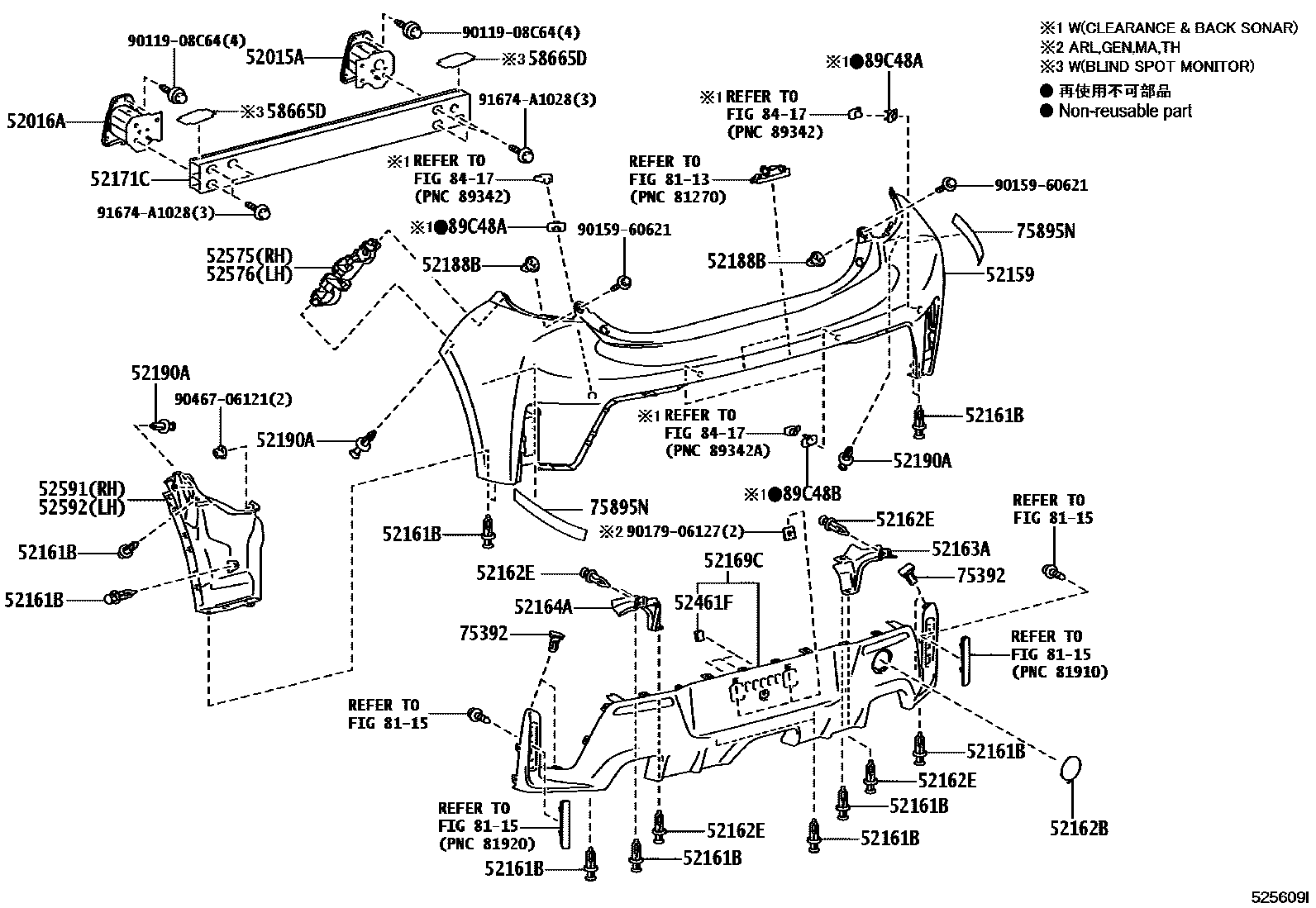

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-12440 |
| 52016A | Rear bumper left arm sub-assembly | 52016-12390 |
| 52159 | rear bumper cover | 52159-12975 · 52159-12976 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52162B | Rear bumper No. 1 fender | 52162-12080 |
| 52162E | Rear bumper insert | 52161-16010 |
| 52163A | Rear bumper right side fender | 52163-12120 |
| 52164A | Rear bumper left fender | 52164-12110 |
| 52169C | Rear bumper lower cover | 52169-12250 · 52169-12260 |
| 52171C | Rear bumper reinforcement | 52171-12320 |
| 52188B | Rear bumper installation spacer | 52188-33040 |
| 52461F | rear bumper lining | 52461-12080 |
| 52575 | Rear bumper right side fixing bracket | 52575-12270 |
| 52576 | Rear bumper left side fixing bracket | 52576-12260 |
| 52591 | Rear bumper right seal | 52591-12360 |
| 52592 | Rear bumper left seal | 52592-12220 |
| 58665D | Rear floor No. 5 muffler panel | 58665-12010 |
| 75392 | External protective strip fixings | 75392-35220 |
| 75895N | No. 1 protective strip tape | 75895-53010 |
| 89C48B | Ultrasonic sensor rear central fixing bracket | 89348-46060 · 89348-K0231 |
