Toyota COROLLA 前保险杠及附件 — Figure 5201

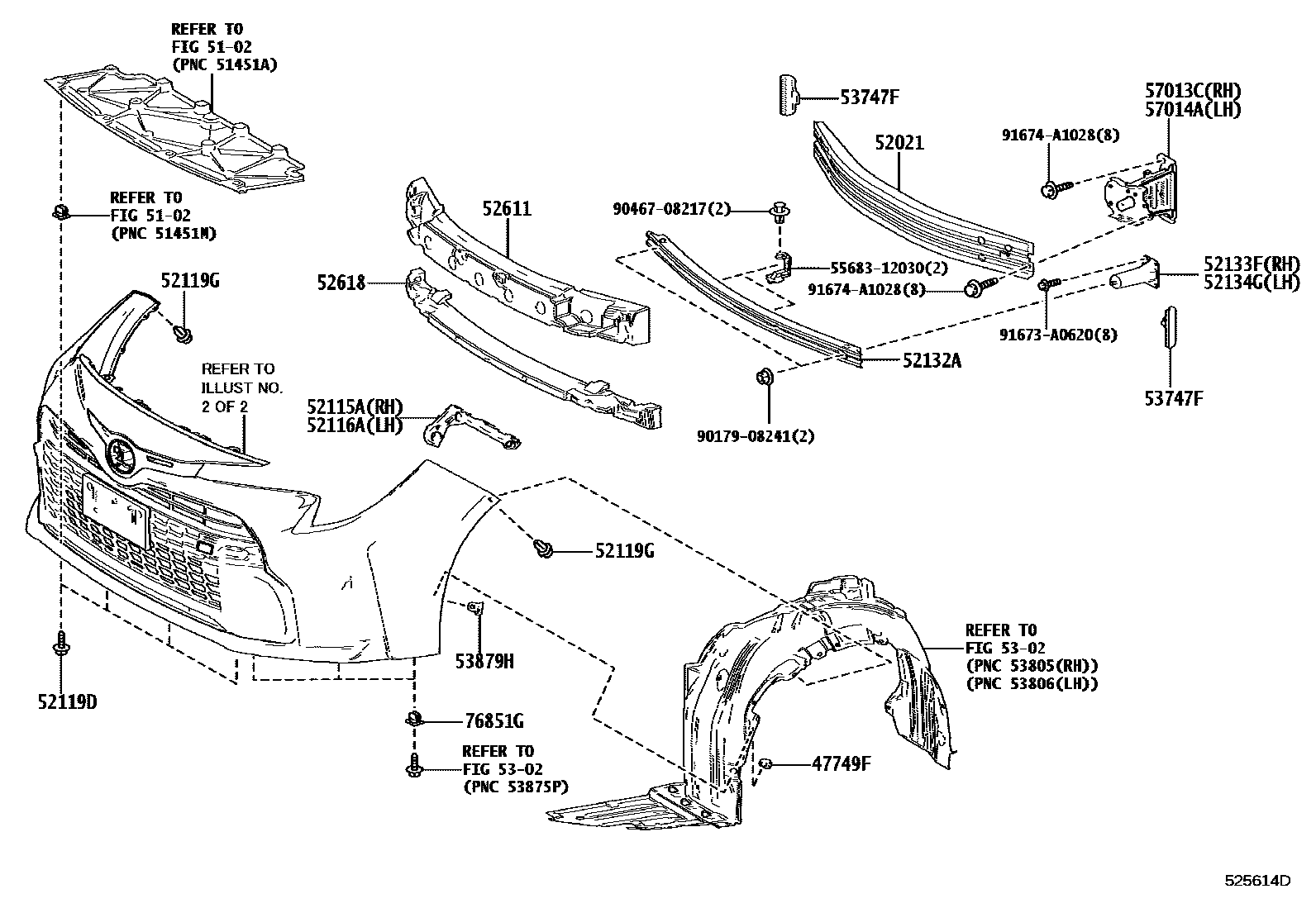

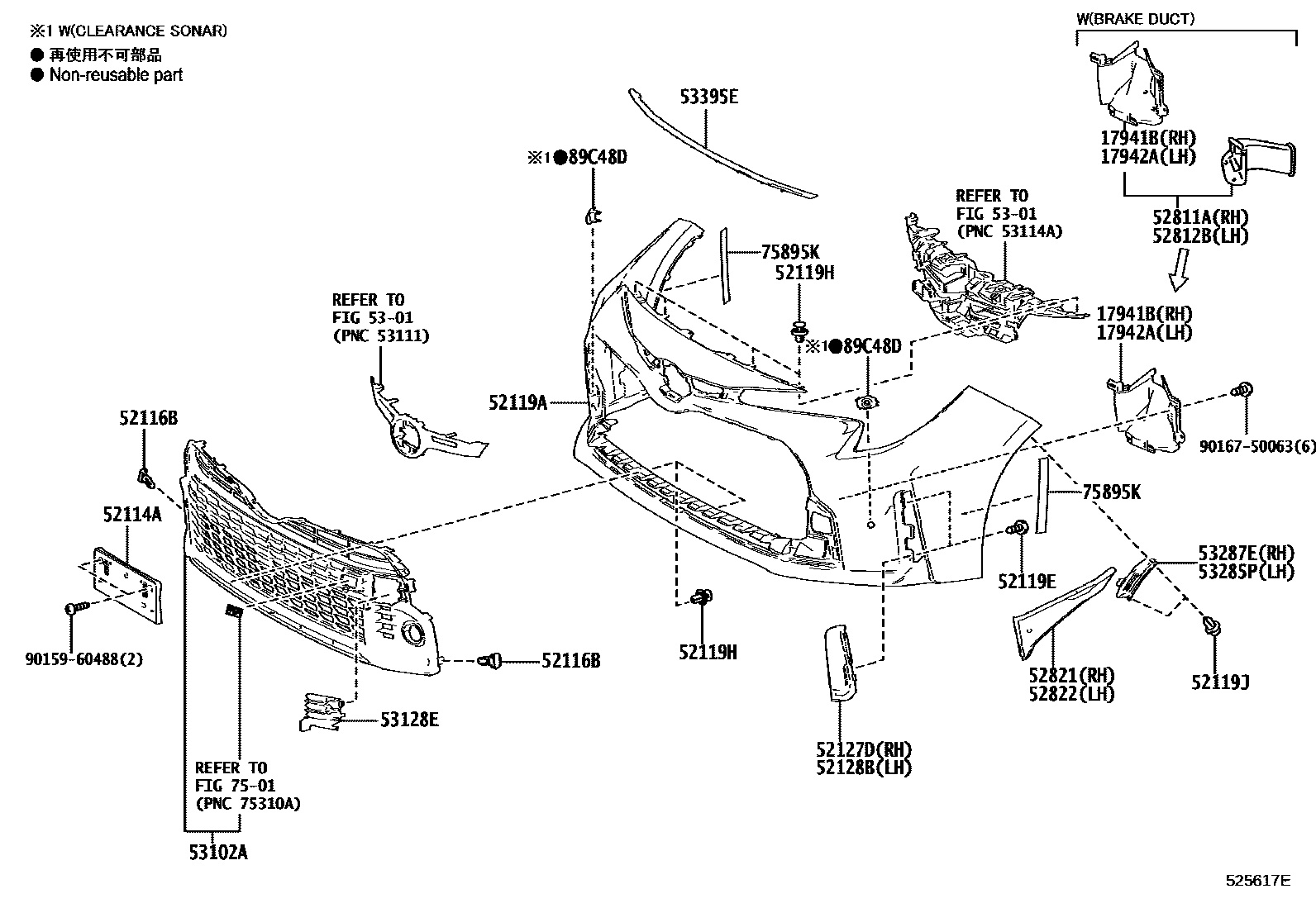

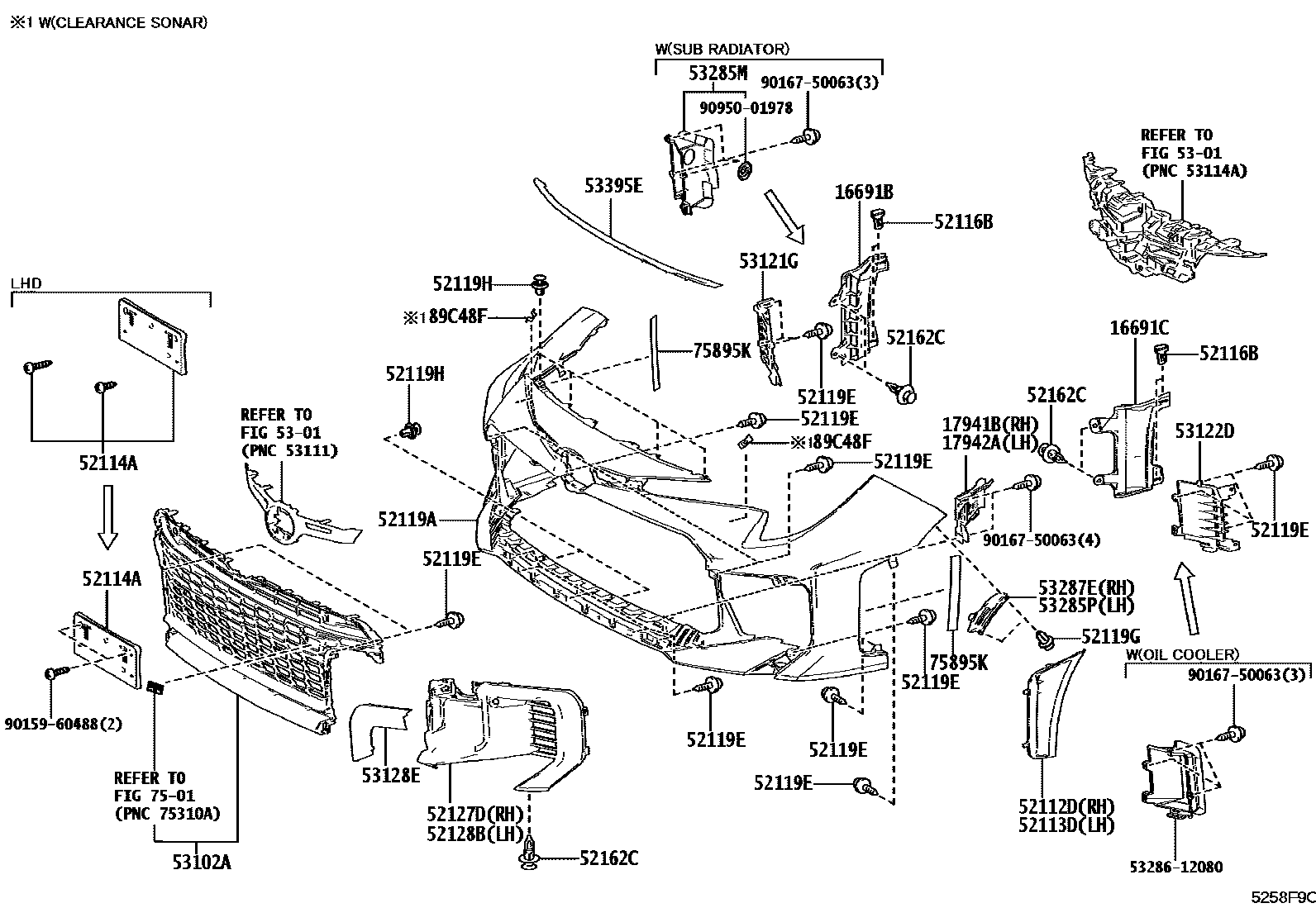

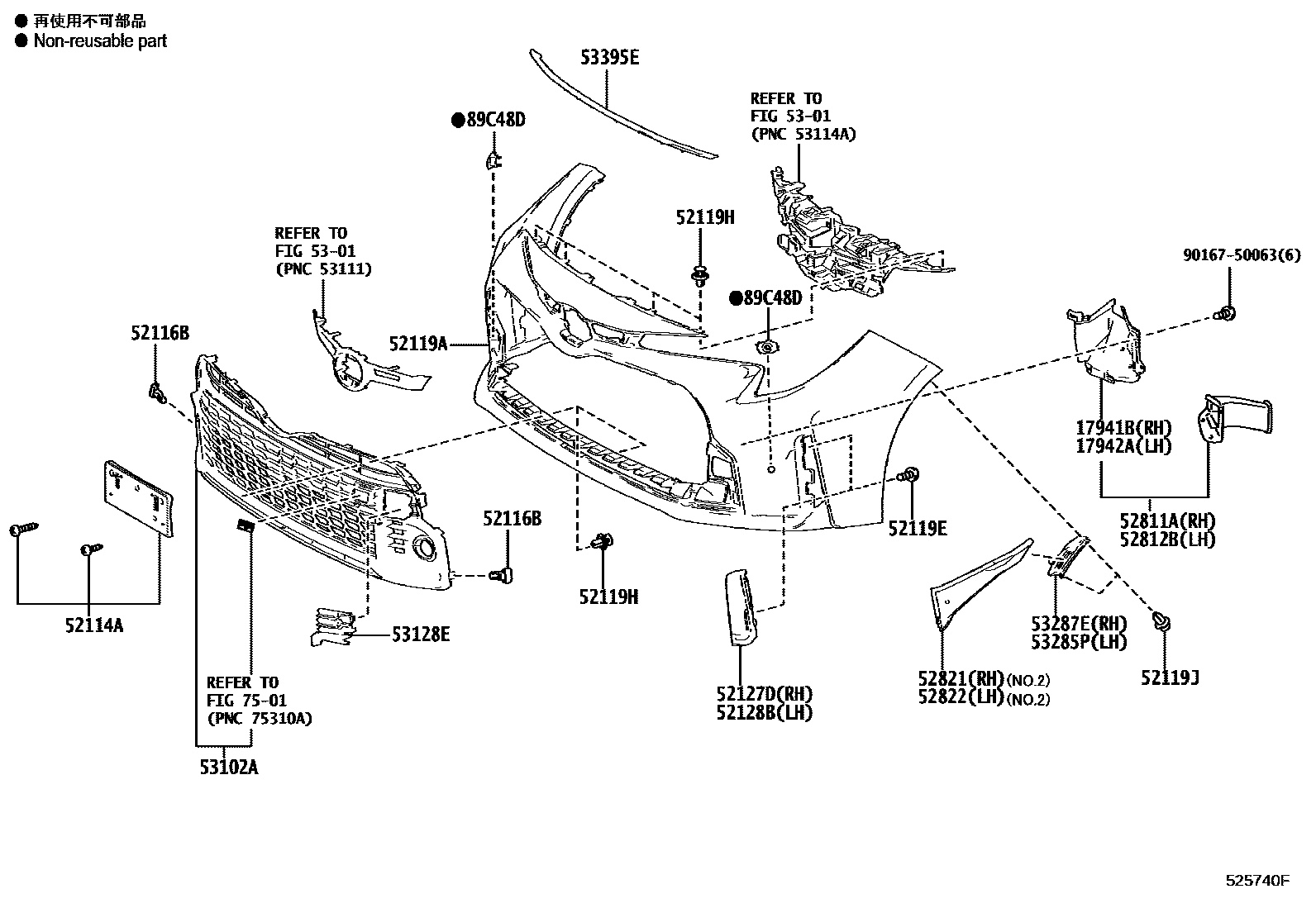

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 4 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16691B | Radiator right front side deflector | 53153-12070 |
| 16691C | Radiator front deflector | 53154-12070 |
| 17941B | GUIDE, INTERCOLLER, NO.1 | 17941-18010 · 17941-18020 · 17941-18040 |
| 17942A | GUIDE, INTERCOLLER, NO.2 | 17942-18010 · 17942-18020 · 17942-18040 |
| 47749F | pin fixing clip | 47749-30090 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-12400 |
| 52114A | Front bumper extension mounting bracket | 52114-12340 · 52114-12350 |
| 52115A | Front bumper right side bracket | 52115-12500 |
| 52116A | Front bumper left bracket | 52116-12480 |
| 52116B | front bumper fixings | 75392-35220 |
| 52119A | front bumper cover | 52119-1A923 · 52119-1A924 · 52119-1A970 |
| 52119D | Screw No. 1 | 90159-60477 |
| 52119E | No. 2 screw | 90167-50063 |
| 52119G | No. 1 clip | 90467-05170 |
| 52119J | No. 3 clip | 90467-05170 |
| 52127D | Front bumper right hole cover | 52127-12450 · 52127-12460 · 52127-12530 · 52127-12550 |
| 52128B | Front bumper left hole cover | 52128-12350 · 52128-12360 · 52128-12480 · 52128-12500 |
| 52132A | No. 2 front bumper reinforcement | 52132-12160 · 52132-12161 |
| 52133F | Front bumper right side bracket | 52133-12190 |
| 52134G | Front bumper left bracket | 52133-12190 |
| 52162C | front bumper insert | 52161-16010 |
| 52611 | front bumper energy absorber | 52611-12390 |
| 52618 | Front bumper lower shock absorber | 52618-12080 · 52618-12140 |
| 52811A | No. 1 cold air intake pipe | 53207-12050 |
| 52812B | No. 2 cold air intake pipe | 53209-12150 |
| 52821 | Right air intake pipe | 53861-12020 |
| 52822 | left air intake pipe | 53862-12020 |
| 53102A | Radiator lower grille sub-assembly | 53102-12170 · 53102-12171 · 53102-12180 · 53102-12181 · 53102-12290 · 53102-12291 · 53102-12300 · 53102-12301 · 53102-12400 · 53102-12401 · 53102-12500 · 53102-12540 · 53102-12560 |
| 53121G | Radiator grille right decorative panel | 53121-12270 |
| 53122D | Radiator grille left decorative panel | 53122-12230 |
| 53128E | Lower left radiator grille | 53128-12150 · 53128-12160 · 53128-12250 |
| 53285M | Radiator right air seal | 53285-12110 |
| 53285P | Left side cold air intake pipe | 53864-12010 · 53864-12011 |
| 53287E | Right cold air intake pipe | 53863-12010 · 53863-12011 |
| 53395E | Engine cover to front end plate seal | 53395-12140 |
| 53747F | PLAQUE, ETANCHE A L'AIR | 16691-37020 |
| 53879H | Front fender lining fixing parts | 53879-30090 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-12080 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-12080 |
| 75895K | No. 1 protective strip tape | 75895-53010 |
| 76851G | No. 1 screw seal | 90189-06237 |
| 89C48F | Front ultrasonic sensor holder | 89348-30A00 |
