Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

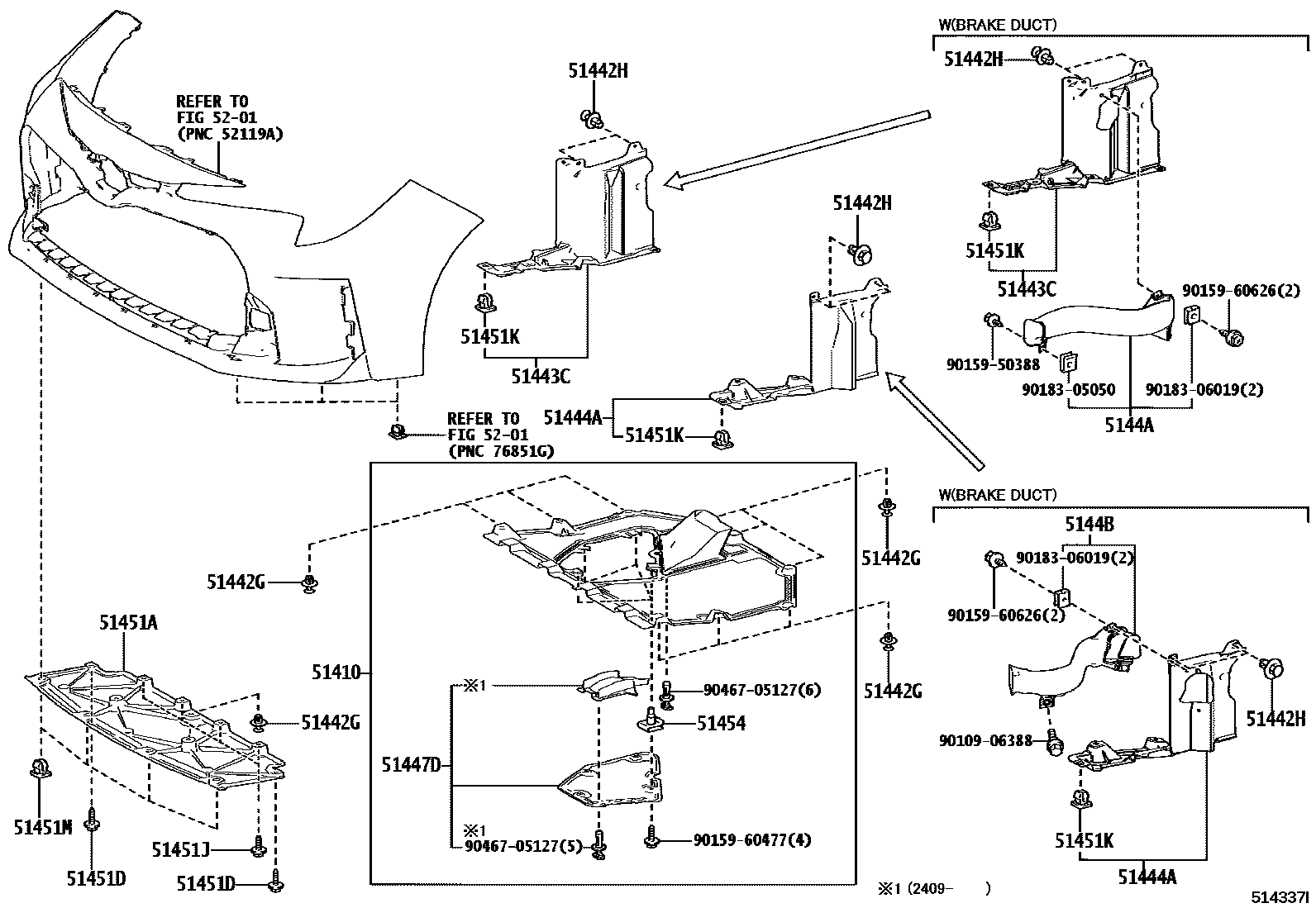

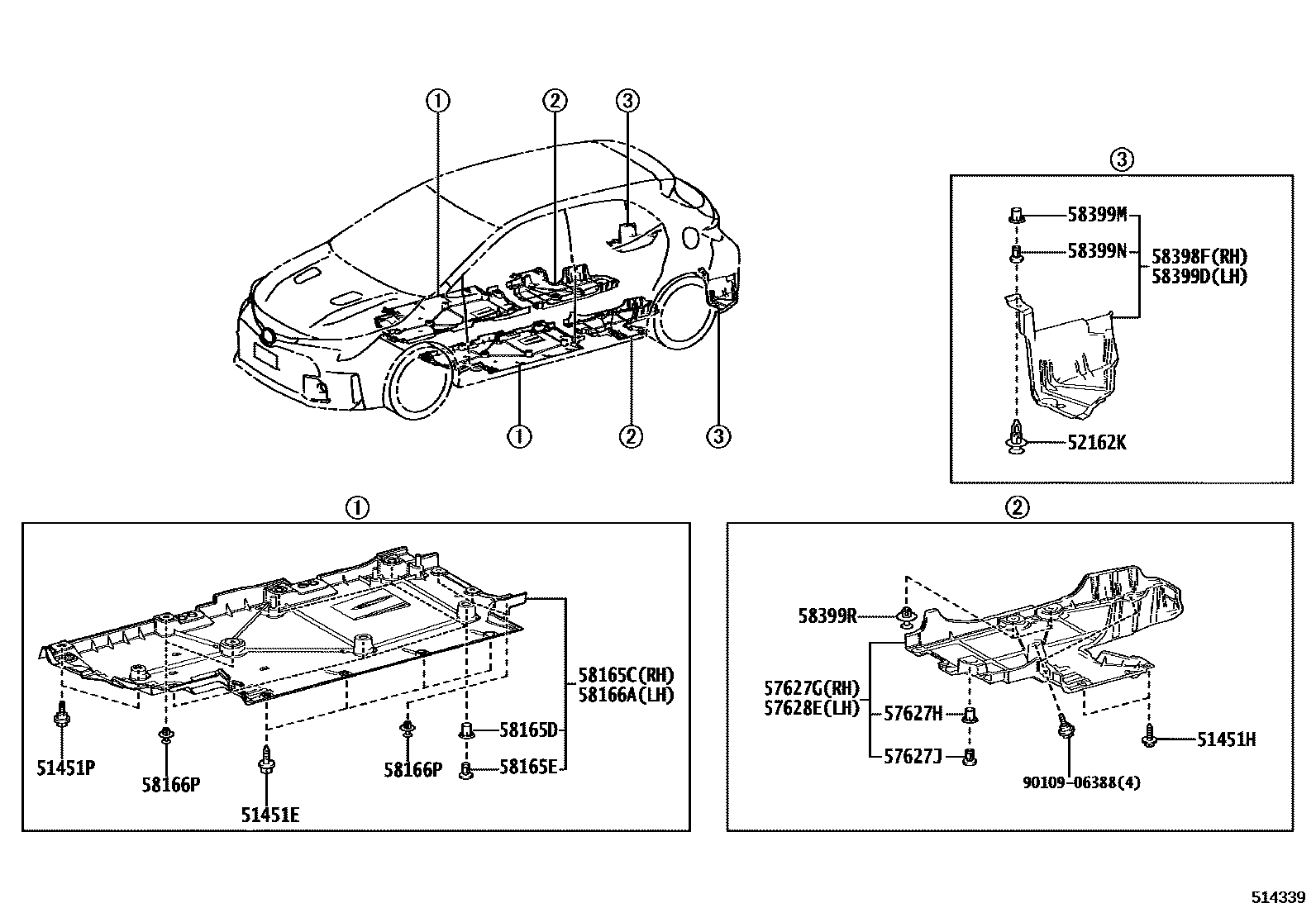

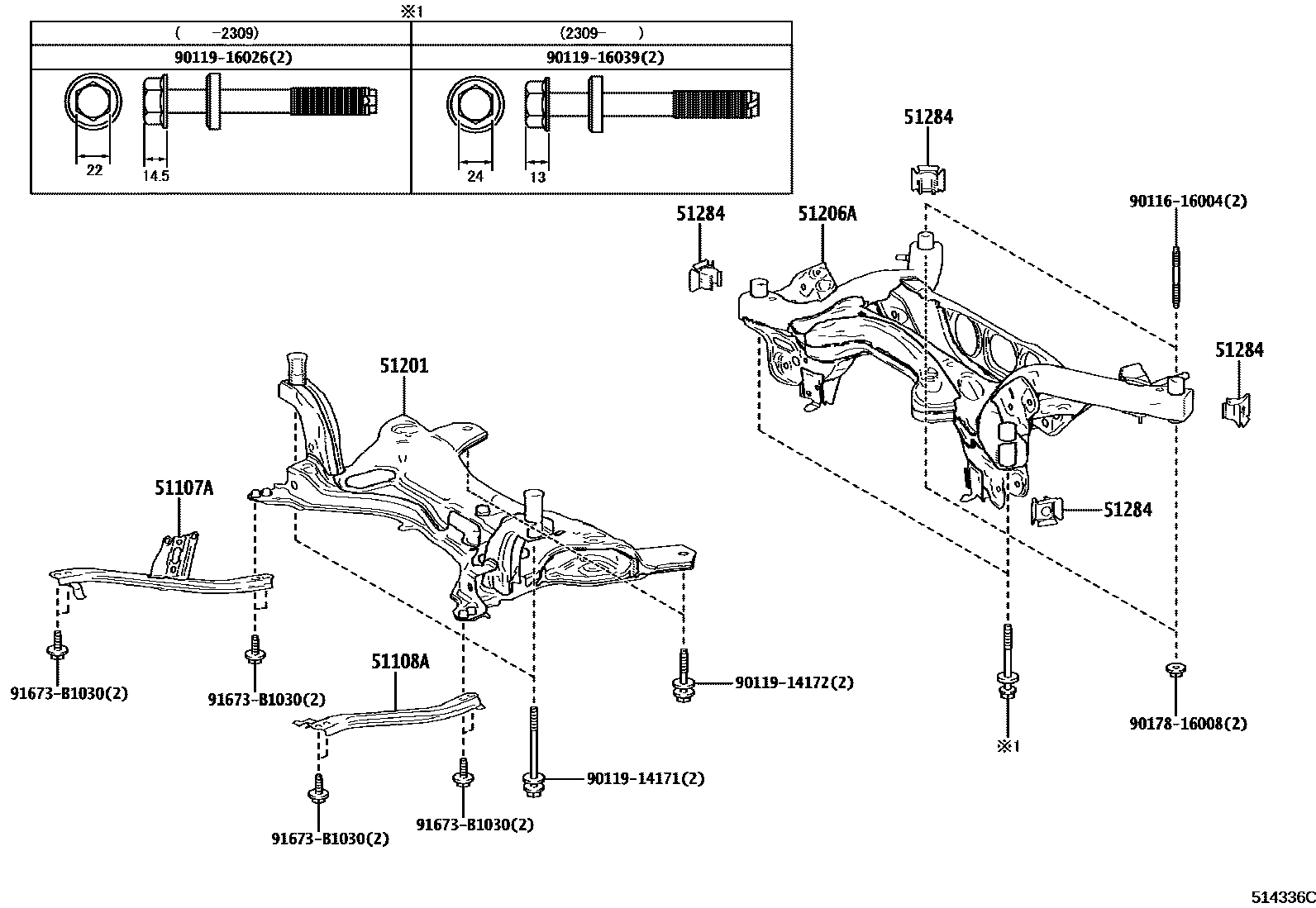

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51107A | Right rear longitudinal beam reinforcement sub-assembly | 51107-12030 · 51107-12050 |
| 51108A | Left rear longitudinal beam reinforcement sub-assembly | 51108-12030 · 51108-12040 |
| 51201 | Front suspension cross member sub-assembly | 51201-12480 |
| 51206A | Rear suspension cross member sub-assembly | 51206-12220 · 51206-12230 |
| 51284 | Rear suspension cross member hole cover | 51284-47010 |
| 51410 | Engine No. 1 bottom cover assembly | 51410-12140 · 51410-12200 |
| 51442G | No. 1 engine bottom cover clip | 90467-07215 |
| 51442H | No. 2 engine bottom cover clip | 90467-07220 |
| 51443C | Engine right rear bottom cover | 51443-12120 · 51443-12140 · 51443-12150 |
| 51444A | Engine left rear bottom cover | 51444-12100 · 51444-12110 · 51444-12130 |
| 51447D | No. 4 engine center bottom cover | 51405-12070 · 51447-12130 |
| 5144A | GUIDE, AIR PROTECTION SOUS MOTEUR, NO.2 | 5144A-12010 |
| 5144B | GUIDE, AIR PROTECTION SOUS MOTEUR, NO.3 | 5144B-12010 |
| 51451A | Engine center cover | 51451-12160 |
| 51451D | Screw No. 1 | 90159-60477 |
| 51451E | No. 2 screw | 90159-60477 |
| 51451H | No. 3 screw | 90159-60477 |
| 51451J | Bolt No. 1 | 90119-06A13 |
| 51451K | No. 1 screw seal | 90189-06237 |
| 51451M | No. 2 screw seal | 90189-06193 |
| 51451P | Bolt No. 2 | 90109-06388 |
| 51454 | clip | 90467-05176 |
| 52162K | Rear bumper insert | 52161-16010 |
| 57627G | Rear floor right longitudinal member cover | 57627-12120 |
| 57628E | Rear floor left longitudinal member cover | 57628-12170 |
| 58165C | Front floor right cover | 58165-12120 |
| 58166A | Front floor left cover | 58166-12080 |
| 58166P | Front floor cover clip | 90467-07220 |
| 58398F | No. 1 floor under cover | 58398-12100 |
| 58399D | Floor No. 2 lower cover | 58399-12100 |
| 58399R | Lower floor cover clip No. 3 | 90467-07220 |
