Toyota COROLLA 制动配管和卡箍 — Figure 4708

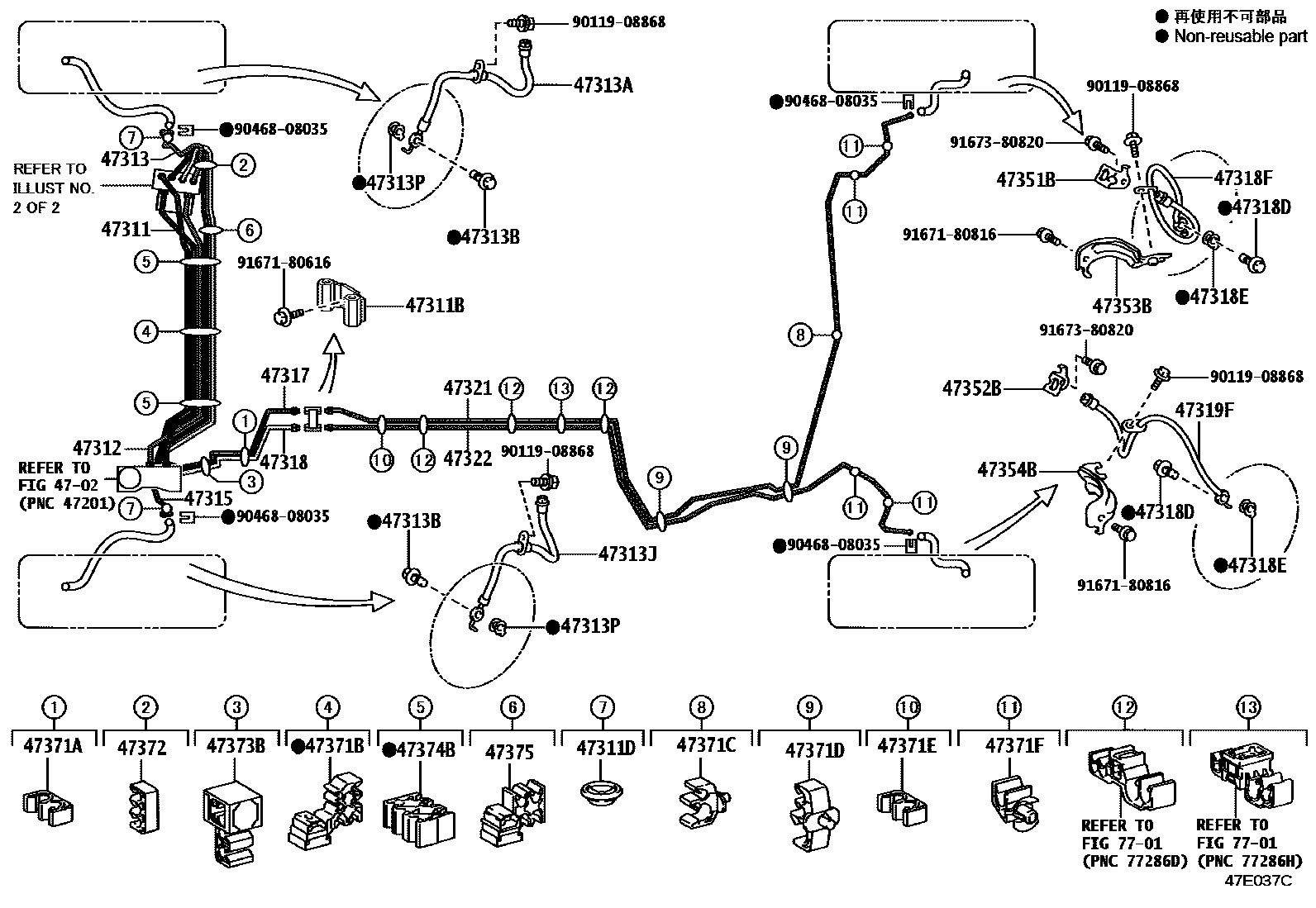

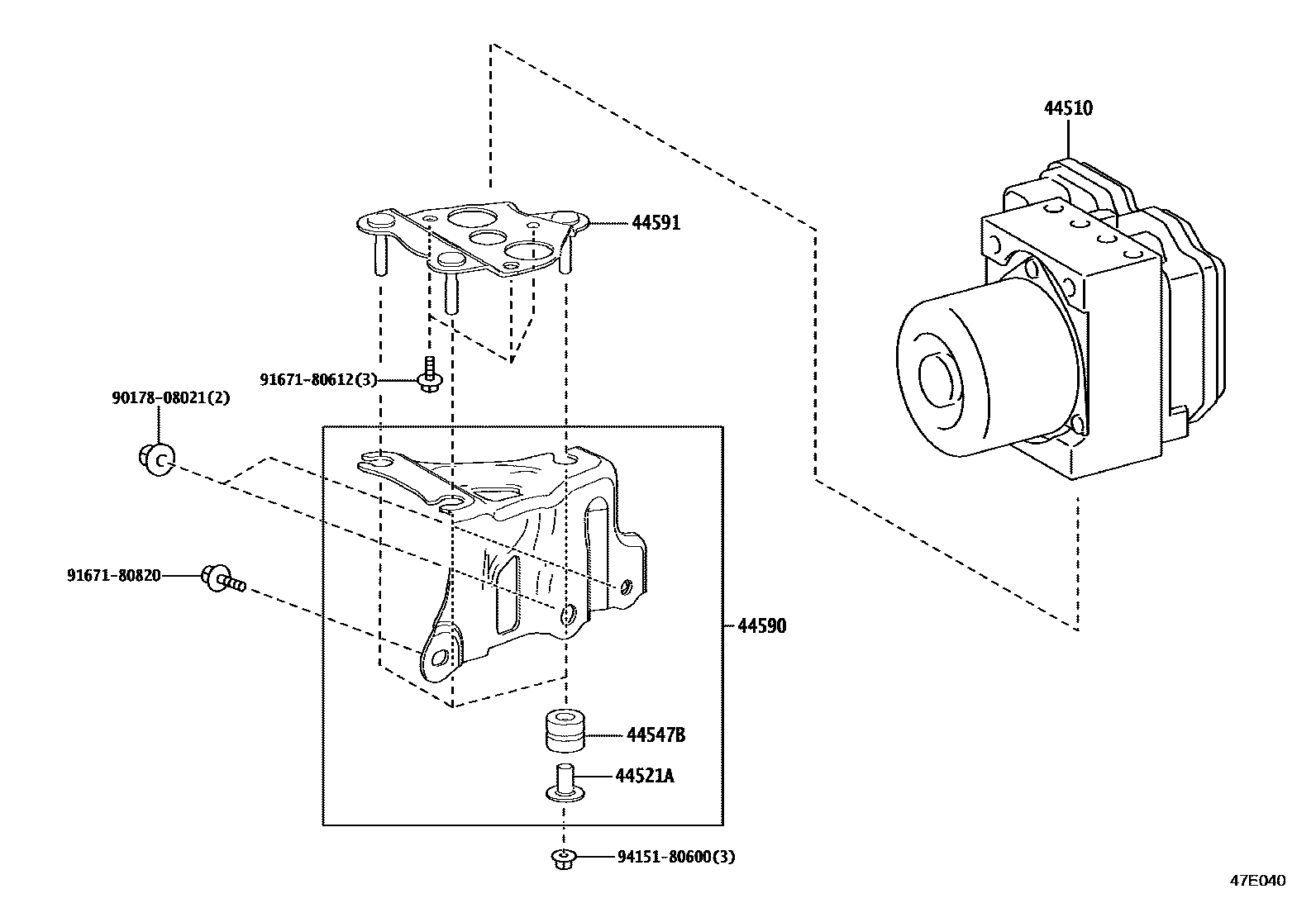

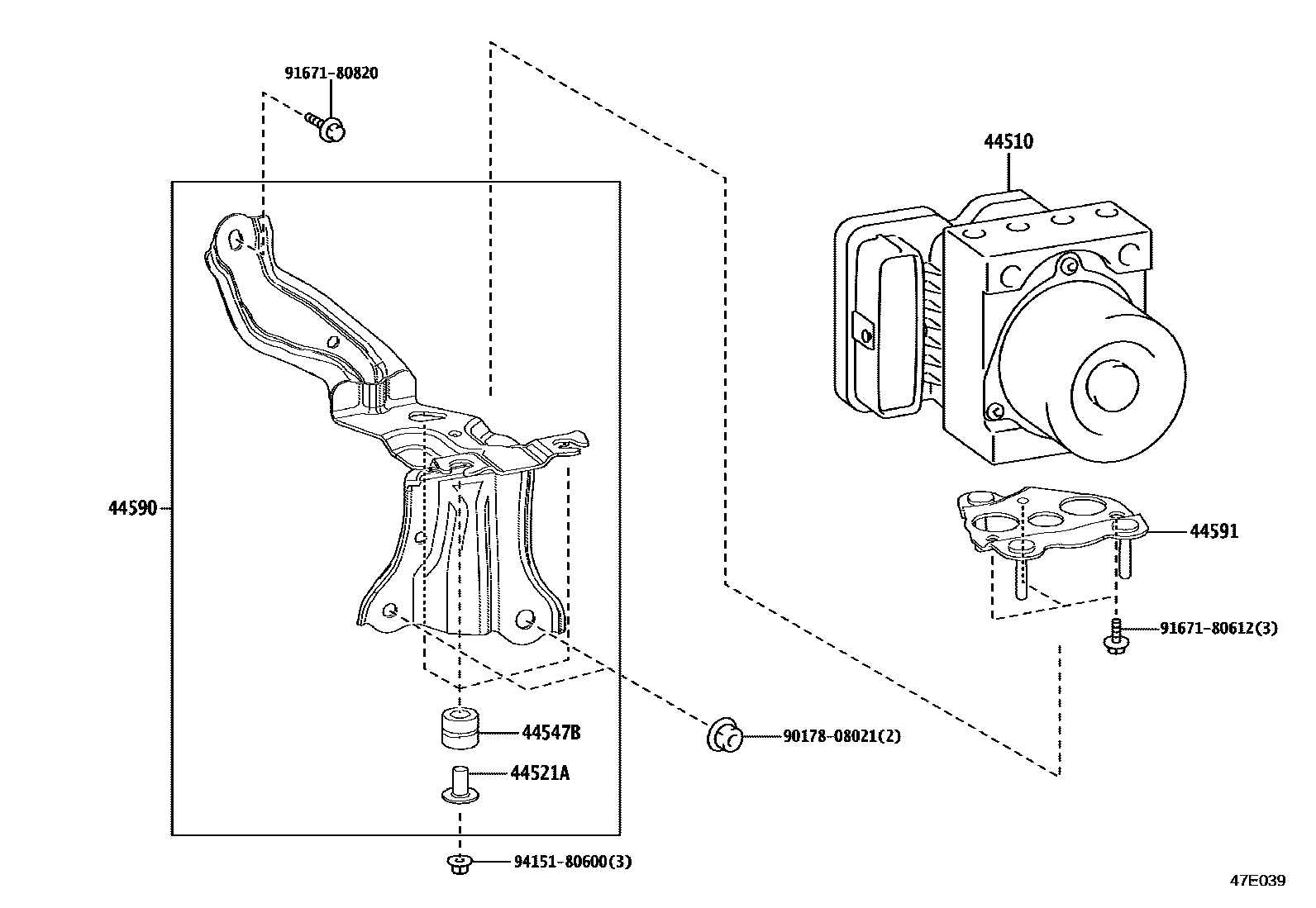

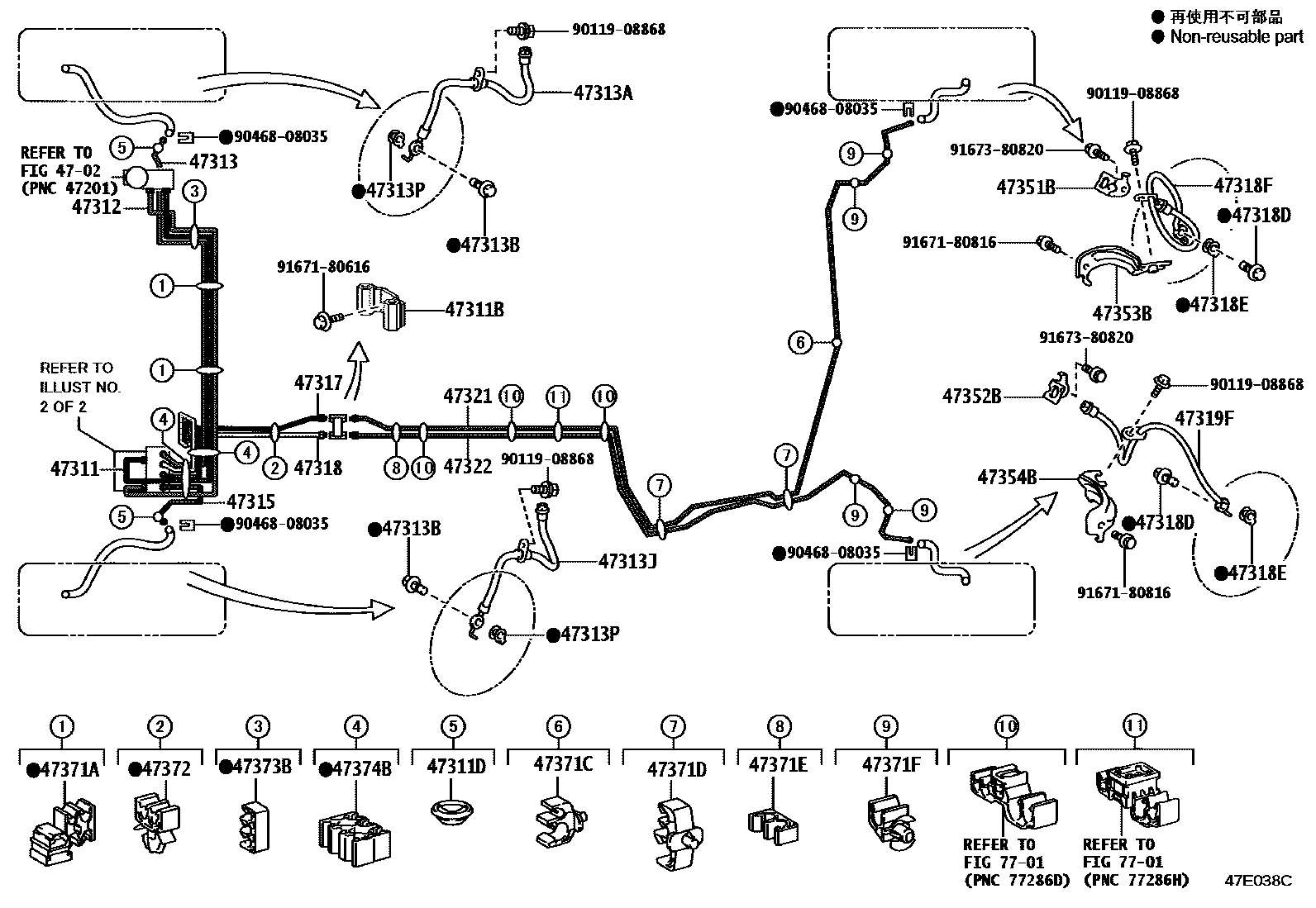

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 4 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-12J90 · 44050-12K00 · 44050-12K10 · 44050-12K40 · 44050-12K60 · 44050-12L50 · 44050-12L60 · 44050-12L80 · 44050-12M10 · 44050-12M30 · 44050-12M50 |
| 44521A | No. 1 brake actuator housing collar | 44521-12050 |
| 44547B | brake actuator bracket cushion | 44547-K0010 |
| 44590 | Brake actuator bracket assembly | 44590-12310 · 44590-12320 |
| 44591 | No. 1 brake actuator bracket | 44591-12330 |
| 47311 | No. 1 front brake pipe | 47311-12D10 · 47311-12D20 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-12840 · 47312-12850 |
| 47313 | No. 3 front brake pipe | 47313-12A40 · 47313-12A60 |
| 47313A | No. 1 front flexible hose | 90947-02K95 · 90947-02L73 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02K96 · 90947-02L74 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47315 | No. 5 front brake pipe | 47315-12650 · 47315-12680 |
| 47317 | No. 7 front brake pipe | 47317-12610 · 47317-12630 |
| 47318 | No. 8 front brake pipe | 47318-12750 · 47318-12760 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-02J62 |
| 47319F | Left rear flexible hose | 90947-02J62 |
| 47321 | No. 1 rear brake pipe | 47321-12420 |
| 47322 | No. 2 rear brake pipe | 47322-12580 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-47030 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-47030 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-47040 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-47040 |
| 47371A | No. 1 brake pipe clamp | 90949-01D91 · 90949-01E30 |
| 47371B | No. 6 brake pipe clamp | 90949-01E42 |
| 47371C | No. 7 brake pipe clamp | 77285-12170 |
| 47371D | No. 8 brake pipe clamp | 77286-47050 |
| 47371E | No. 9 brake pipe clamp | 90464-00904 |
| 47371F | No. 10 brake pipe clamp | 90949-01E10 |
| 47372 | No. 2 brake pipe clamp | 90949-01D92 · 90949-01E34 |
| 47373B | No. 3 brake pipe clamp | 90949-01E33 · 90949-01E43 |
| 47374B | No. 4 brake pipe clamp | 90949-01E44 |
| 47375 | No. 5 brake pipe clamp | 90949-01E51 |
