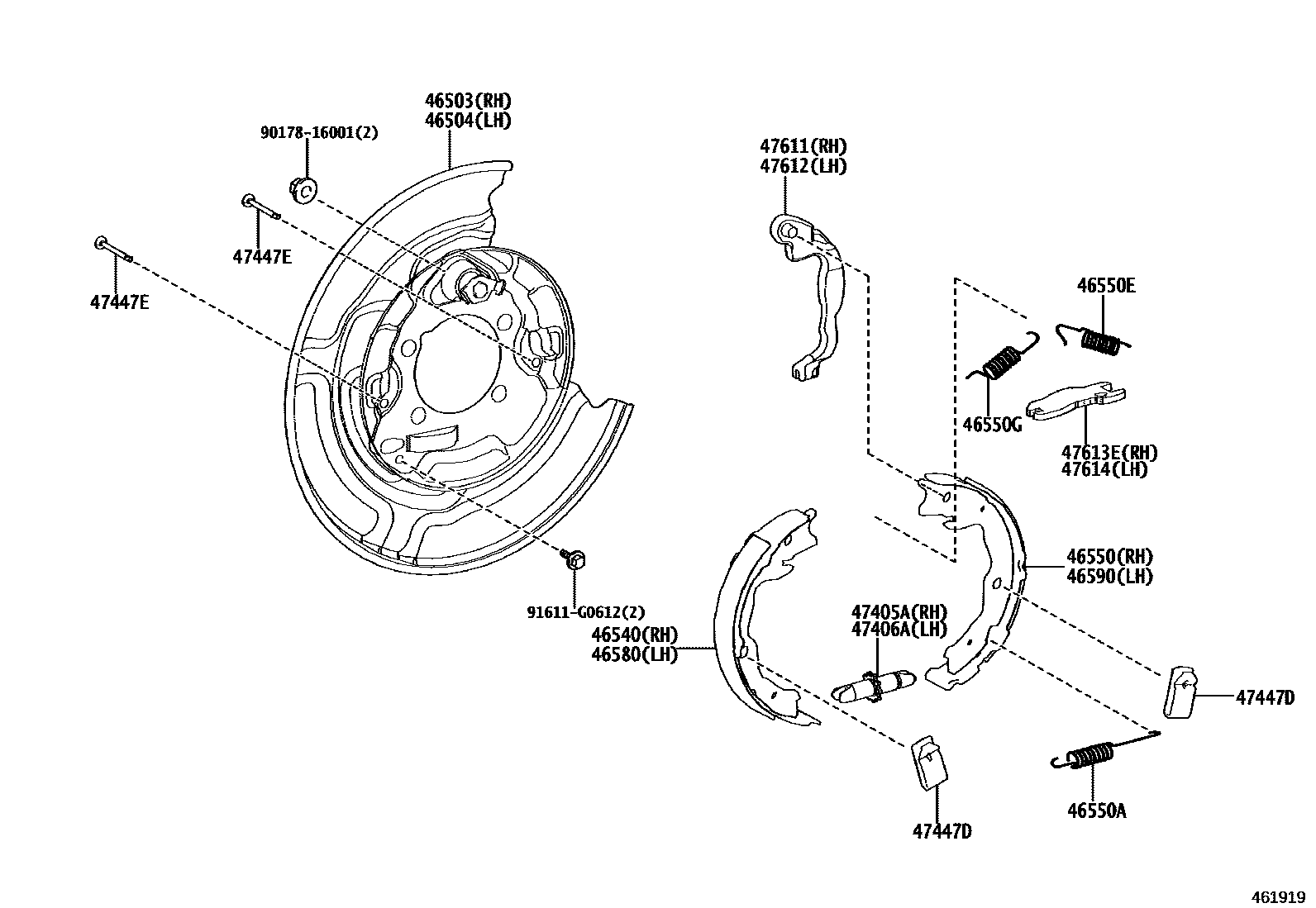

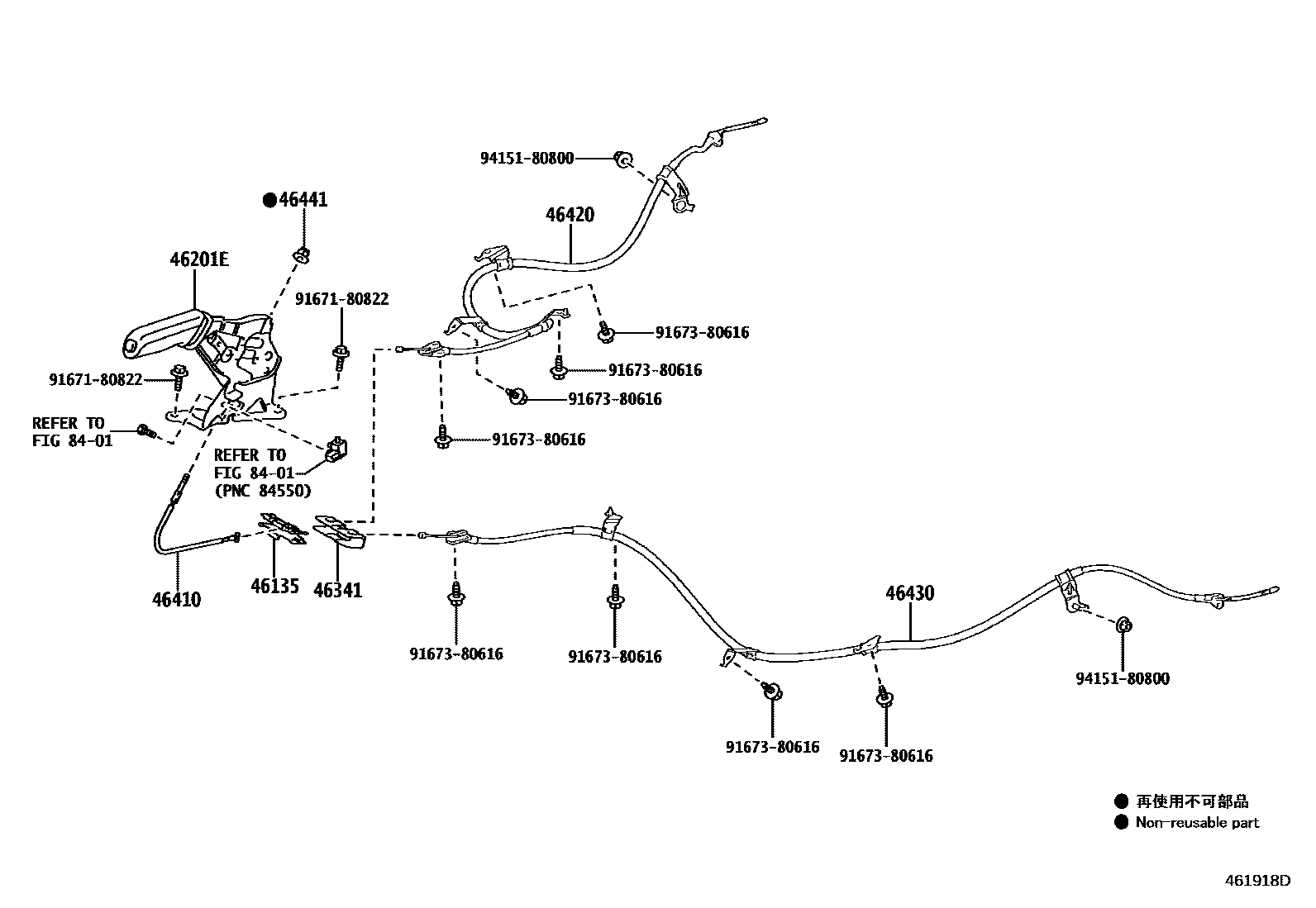

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46135 | Parking brake cable end stop | 46135-12010 |
| 46341 | Parking brake balancer | 46341-12040 |
| 46410 | Parking brake cable assembly No. 1 | 46410-12410 |
| 46420 | Parking brake No. 2 cable assembly | 46420-12840 |
| 46430 | Parking brake No. 3 cable assembly | 46430-12730 |
| 46441 | No. 1 cable adjustment nut | 90177-06003 |
| 46503 | Right parking brake pad sub-assembly | 46503-52080 |
| 46504 | Left parking brake pad sub-assembly | 46504-52070 |
| 46540 | No. 1 right or middle parking brake shoe assembly | 46540-42020 |
| 46550 | No. 2 right or middle parking brake shoe assembly | 46540-42020 |
| 46550A | No. 1 tension spring (used for parking brake shoe return) | 90905-06046 |
| 46550E | No. 2 tension spring (used for parking brake shoe return) | 90015-DY005 · 90015-DY006 |
| 46550G | No. 3 tension spring (used for parking brake shoe return) | 90905-06043 |
| 46580 | No. 1 left parking brake shoe assembly | 46540-42020 |
| 46590 | No. 2 left parking brake shoe assembly | 46540-42020 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 47405-32010 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 47406-32010 |
| 47447D | Compression spring (for parking brake shoe limit) | 47446-32010 |
| 47447E | No. 1 brake shoe limit spring pin (for parking brake) | 47447-11010 |
| 47611 | Right parking brake shoe lever | 46601-42040 |
| 47612 | Left parking brake shoe lever | 46602-42040 |
| 47613E | Right parking brake shoe push rod | 46612-42040 |
| 47614 | Left parking brake shoe push rod | 46622-42040 |
