Toyota COROLLA 车轮和车轮盖 — Figure 4103

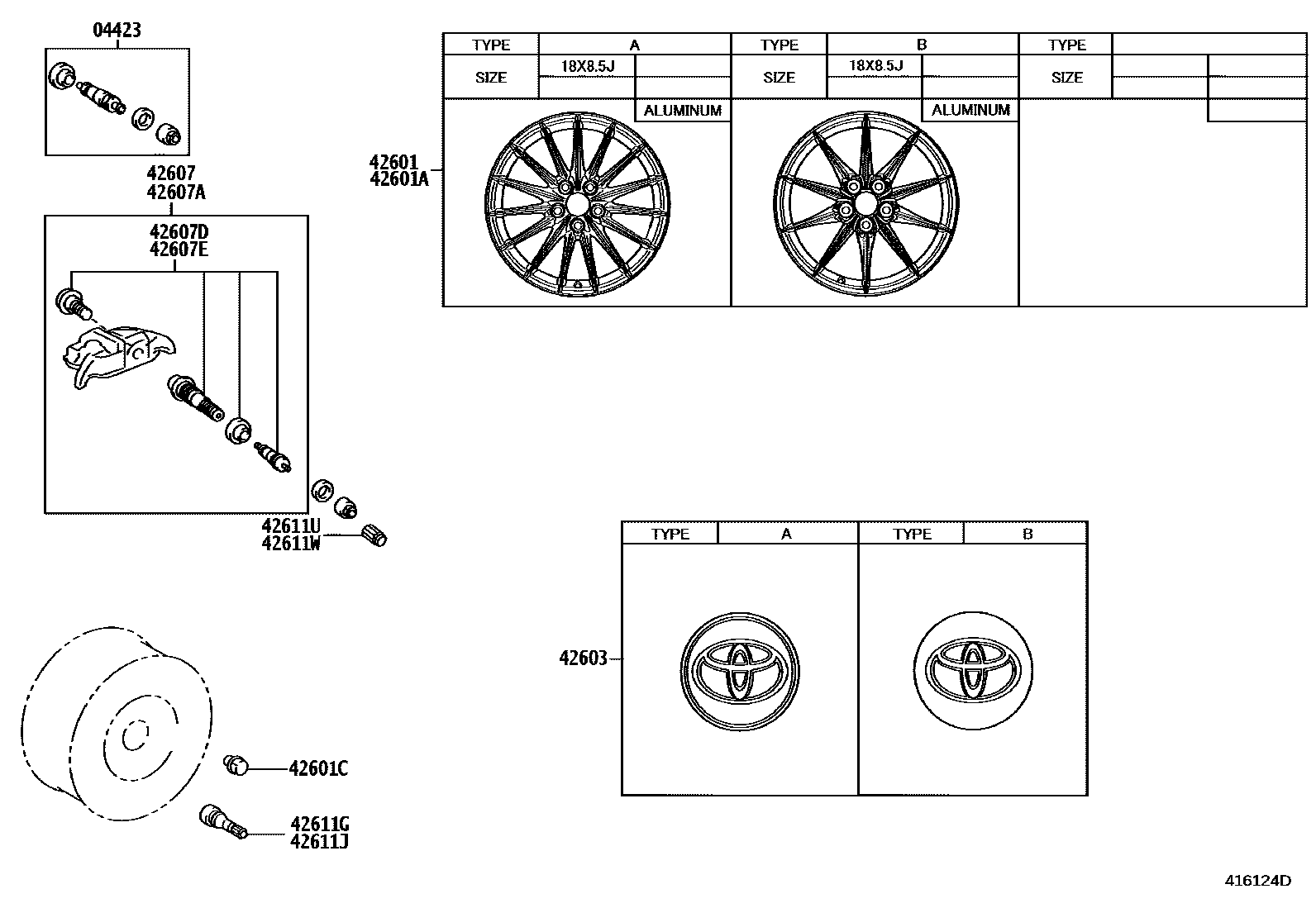

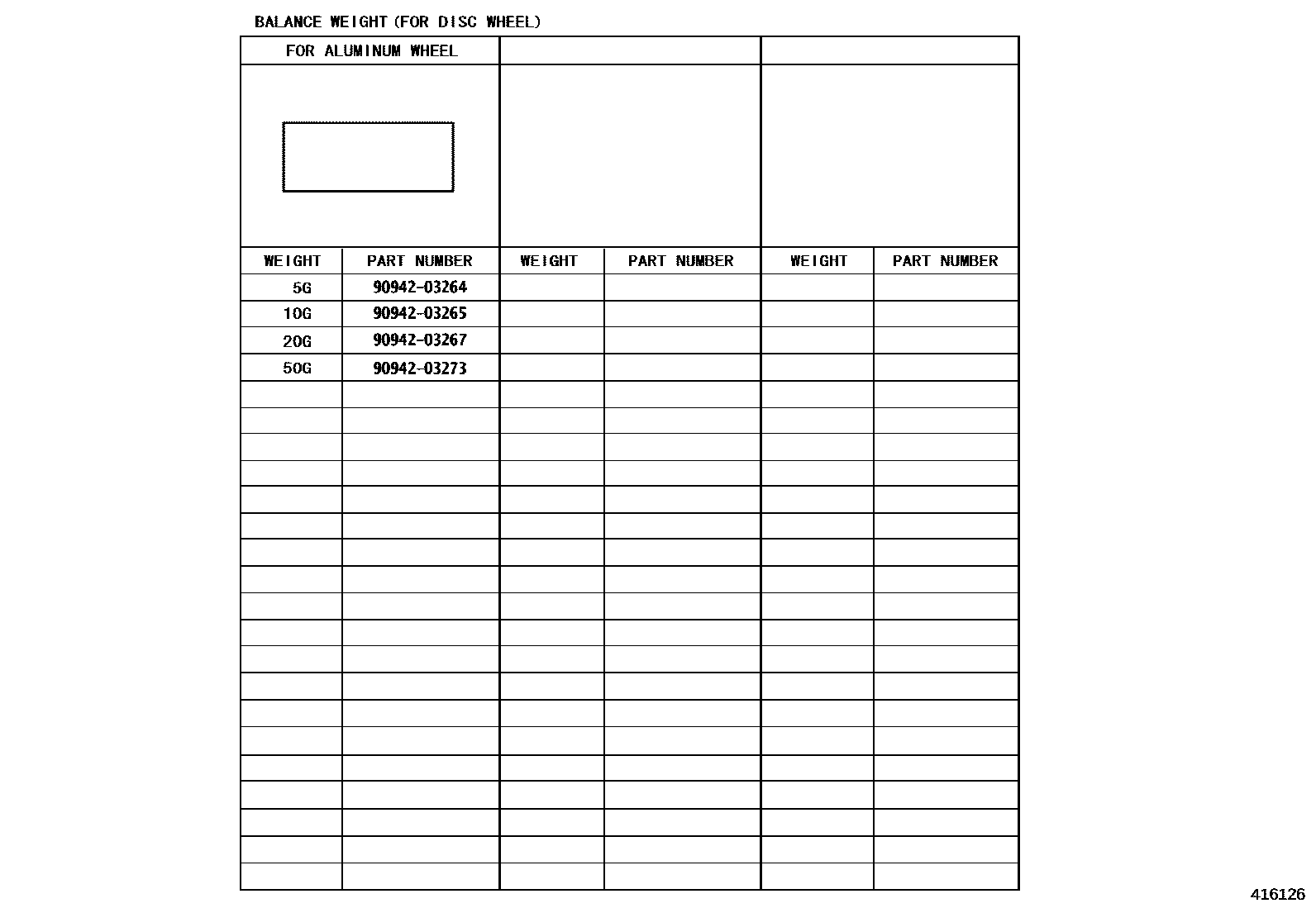

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-48010 |
| 42601 | spoke wheel | 42611-12F10 · 42611-12F30 · 42611-12F40 · 42611-12G80 · 42611-12J20 |
| 42601A | Spoke wheel (for spare tire) | 42611-12F30 · 42611-12F40 · 42611-12J20 |
| 42601C | Hub nut (for axle) | 90942-01033 · 90942-01115 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-42130 · 42603-48150 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-12030 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-12030 |
| 42607D | tire pressure monitoring valve | 90942-05050 |
| 42607E | Tire pressure monitoring valve (for septa) | 90942-05050 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05048 |
| 42611W | Tire valve cap (for spare tire) | 90942-05048 |
