Toyota COROLLA Propeller Shaft & Universal Joint — Figure 3701

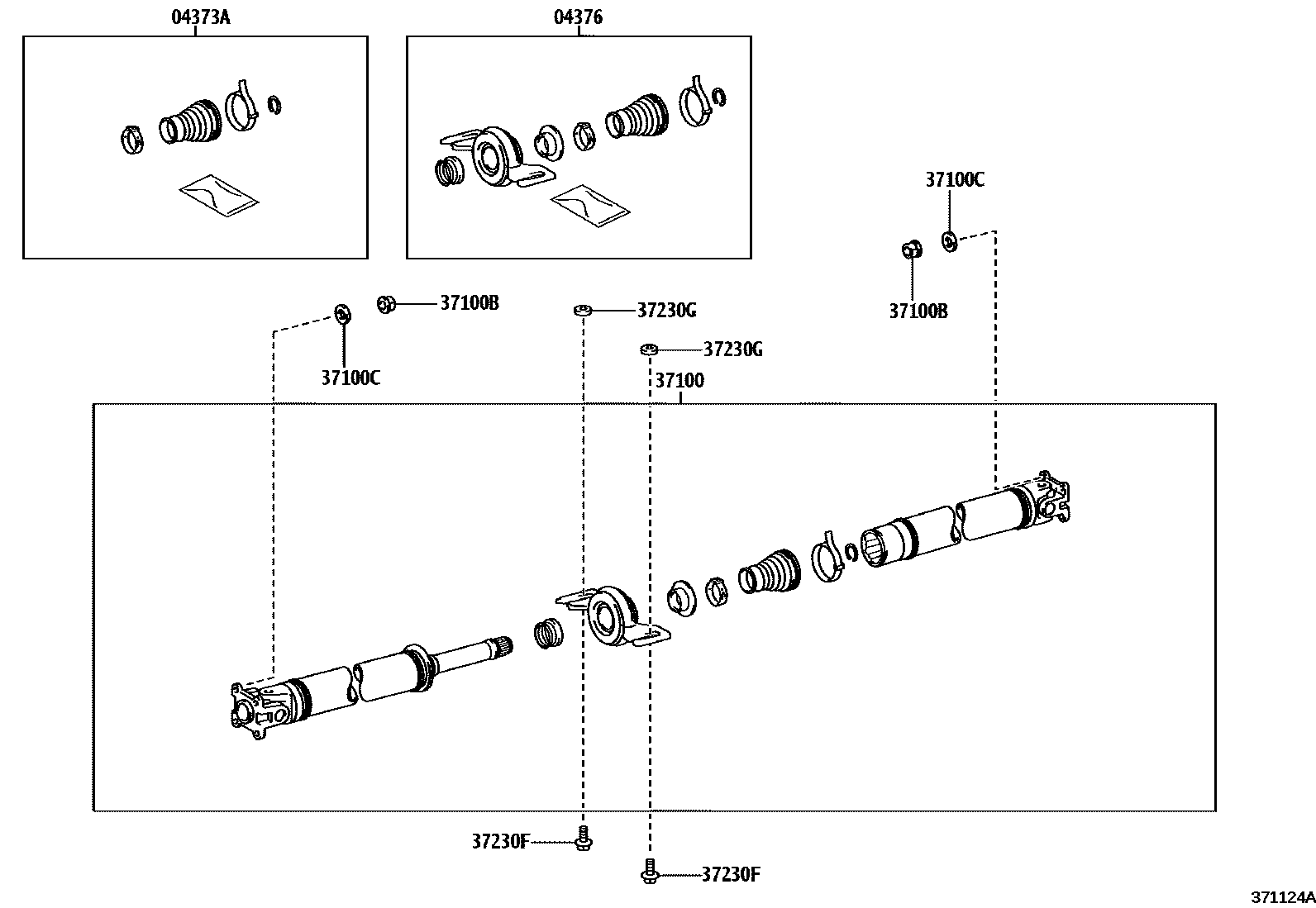

Toyota COROLLA EPC diagram 3701, Propeller Shaft & Universal Joint, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04373A | Universal joint dust boot assembly | 04373-48010 · 04373-48011 |
| 04376 | Intermediate support bearing assembly | 04376-48020 · 04376-48021 |
| 37100 | Drive shaft assembly with central bearing | 37100-12670 · 37100-12690 · 37100-12700 |
| 37100B | No. 1 nut (used to secure the drive shaft and differential) | 90178-10007 |
| 37100C | No. 1 washer (used to secure drive shaft and differential) | 90560-10102 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-10444 |
| 37230G | No. 2 washer (for intermediate support bearing) | 90201-10081 · 90201-10083 · 90201-10084 · 90201-10085 · 90201-10123 |
