Toyota COROLLA 变速器壳和油底壳(ATM) — Figure 3503

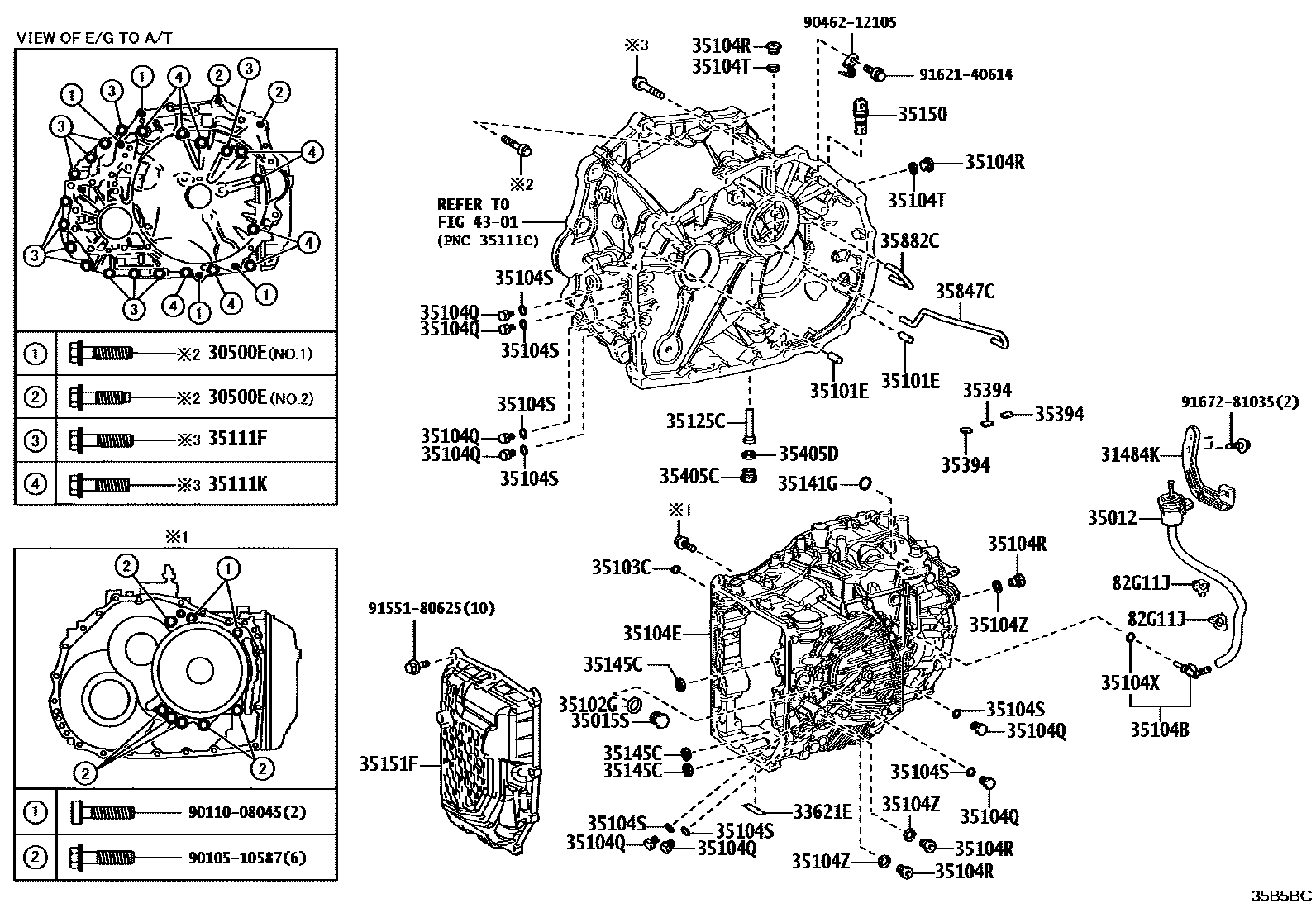

Toyota COROLLA EPC diagram 3503, 变速器壳和油底壳(ATM), with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30500E | Bolts (for securing transaxle and engine) | 90105-10591 · 91552-81250 |
| 31484K | SUPP, POMP FLEX | 31484-52140 |
| 33621E | Transaxle Oil Caution Label | 33621-28021 |
| 35012 | Transmission breather hose sub-assembly | 35012-52110 |
| 35015S | Straight thread plug (for transmission coupling) | 90341-18064 |
| 35101E | Direct sales (for automatic transmission) | 90250-10021 |
| 35102G | Gasket (for transaxle rear cover) | 90430-18008 |
| 35103C | O-ring | 90301-06021 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03230 |
| 35104E | Automatic transmission axle housing sub-assembly | 35104-52160 |
| 35104Q | No. 1 screw plug (for transmission axle housing) | 90341-08001 |
| 35104R | No. 2 screw plug (for transmission axle housing) | 90341-14015 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90301-06196 |
| 35104T | O-ring (for transmission axle housing plug No. 2) | 90430-14008 |
| 35104X | O-ring (for breather plug) | 90301-08015 |
| 35104Z | Gasket (for transaxle housing) | 90430-14008 |
| 35111F | Bolts (for securing transaxle housing and transaxle housing) | 91551-00835 |
| 35111K | Bolts (for securing transmission housing and case) | 91551-00840 |
| 35125C | No. 1 transmission oil pipe | 35125-48090 |
| 35141G | O-ring (for automatic transmission) | 90301-10018 |
| 35145C | Transmission axle housing gasket | 35145-33020 |
| 35150 | gearbox plug assembly | 35150-44010 |
| 35151F | gearbox side cover | 35151-33161 |
| 35394 | Oil filter magnet (for transmission) | 35394-48010 |
| 35405C | Headed straight thread plug sub-assembly | 90341-18023 |
| 35405D | O-ring (for straight thread plug) | 90430-18008 |
| 35847C | Transmission lubricant supply pipe | 35847-48030 |
| 35882C | Differential gear lubricant oil supply pipe | 35882-48030 |
| 82G11J | Wire harness clip | 82711-2D350 |
