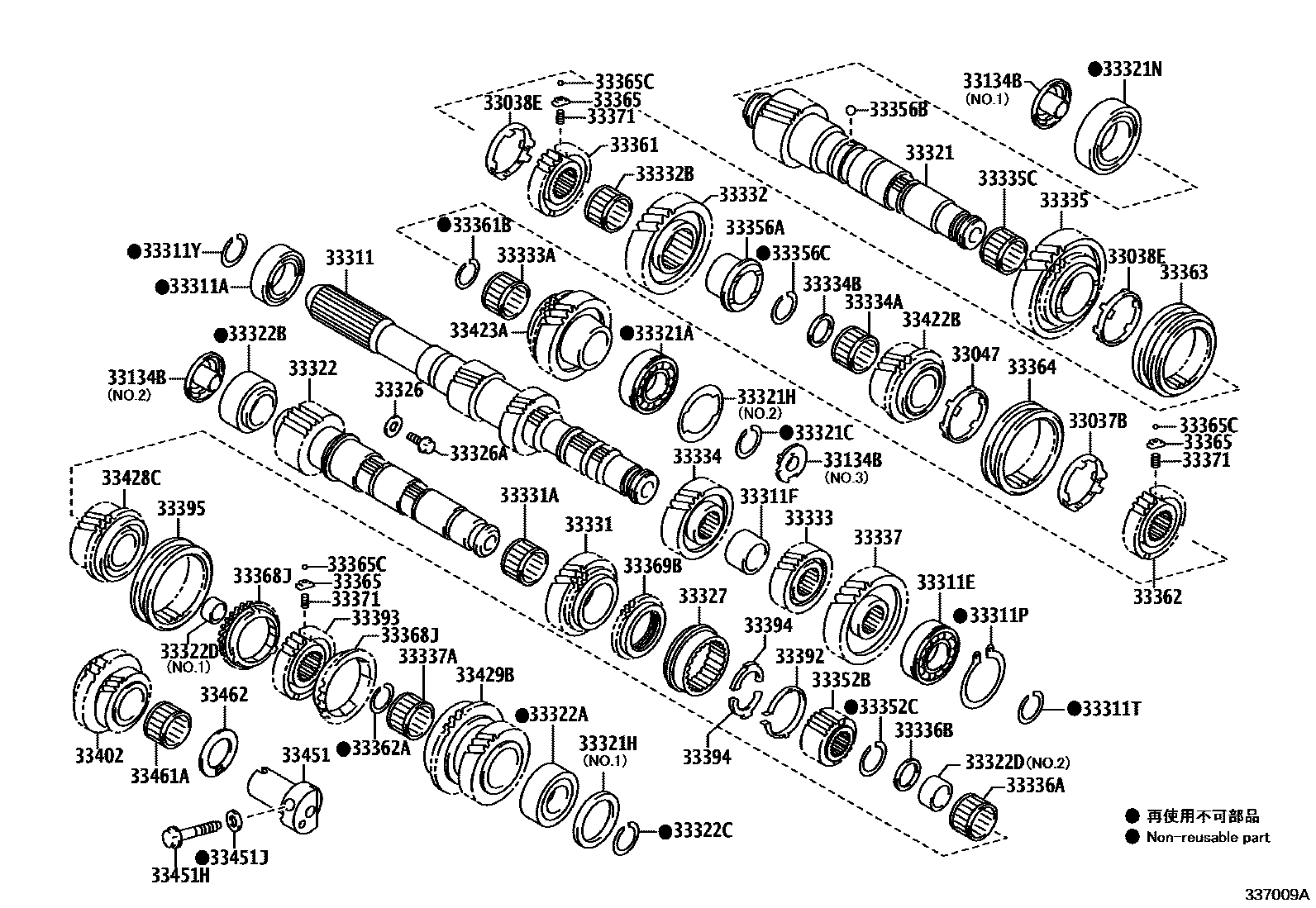

Toyota COROLLA 变速器齿轮(MTM) — Figure 3305
Toyota COROLLA EPC diagram 3305, 变速器齿轮(MTM), with 1 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33037B | No. 1 synchronizer lock ring assembly | 33037-64020 |
| 33038E | No. 2 synchronizer lock ring assembly | 33037-52040 |
| 33047 | No. 4 synchronizer lock ring assembly | 33047-20010 |
| 33134B | Output shaft cover (MTM) | 33134-52040 · 33134-52050 · 33134-52060 |
| 33311 | input shaft | 33311-52071 · 33311-52081 |
| 33311A | Bearing (for front input shaft) | 90365-30032 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-32053 |
| 33311F | Spacer (for input shaft) | 90560-37005 |
| 33311P | Shaft snap ring (for input shaft rear bearing) | 90520-72007 |
| 33311T | Shaft snap ring (for input shaft) | 90520-30034 · 90520-30035 · 90520-30036 · 90520-30037 · 90520-30038 · 90520-30039 · 90520-30040 · 90520-30041 · 90520-30214 · 90520-30215 · 90520-30216 · 90520-30217 · 90520-30218 · 90520-30219 · 90520-30239 |
| 33311Y | Shaft snap ring (for input shaft rear bearing) | 90520-27080 |
| 33321 | output shaft | 33321-12360 · 33321-52150 |
| 33321A | Bearings (for rear output shaft) | 90366-32041 |
| 33321C | Shaft snap ring (for output shaft bearing) | 90520-30035 · 90520-30036 · 90520-30037 · 90520-30038 · 90520-30214 · 90520-30215 · 90520-30216 |
| 33321H | Spacer (for output shaft rear bearing) | 90564-45196 · 90564-45197 · 90564-45198 · 90564-45199 · 90564-45200 · 90564-45201 · 90564-45202 · 90564-45203 · 90564-45204 · 90564-45205 · 90564-45206 · 90564-45207 · 90564-45208 · 90564-45209 · 90564-45210 · 90564-45211 · 90564-45212 · 90564-45213 · 90564-48100 · 90564-48101 · 90564-48102 · 90564-48103 · 90564-48104 · 90564-48105 · 90564-48106 · 90564-48107 · 90564-48108 · 90564-48109 · 90564-48110 · 90564-48111 · 90564-48112 · 90564-48113 · 90564-48114 · 90564-48115 · 90564-48116 · 90564-48117 |
| 33321N | Bearing (for front output shaft) | 90366-36019 |
| 33322 | No. 2 output shaft | 33322-12010 · 33322-52020 |
| 33322A | Bearing (for No. 2 rear output shaft) | 90366-32044 |
| 33322B | Bearing (for No. 2 front output shaft) | 90366-40152 |
| 33322C | Snap ring (for No. 2 output shaft bearing) | 90520-30035 · 90520-30036 · 90520-30037 · 90520-30038 · 90520-30214 · 90520-30215 · 90520-30216 |
| 33322D | Collar (for output shaft) | 90386-36001 · 90386-42001 |
| 33326 | Bearing locking plate | 33326-20020 |
| 33326A | Bolt (for bearing locking plate) | 91611-B0812 |
| 33327 | No. 4 transmission hub sleeve | 33327-52010 |
| 33331 | reverse gear | 33331-52050 |
| 33331A | Bearing (for reverse gear) | 90364-47012 |
| 33332 | Second gear | 33332-52040 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-50004 |
| 33333 | Third gear | 33333-52040 · 33333-52050 · 33333-52060 |
| 33333A | Needle roller bearing (for third gear) | 90364-36022 |
| 33334 | fourth gear | 33334-52080 · 33334-52090 · 33334-52100 |
| 33334A | Needle roller bearing (for fourth gear) | 90364-42007 |
| 33334B | Spacer (for fourth gear bearing) | 90560-42002 |
| 33335 | first gear | 33335-52080 · 33335-52090 |
| 33335C | Needle roller bearing (for first gear) | 90364-47009 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-42007 |
| 33336B | Spacer (for fifth gear bearing) | 90560-42002 |
| 33337 | Sixth speed gear sub-assembly | 33337-52010 |
| 33337A | Needle roller bearing (for sixth gear) | 90364-36023 |
| 33352B | No. 4 transmission clutch hub | 33352-20010 |
| 33352C | Shaft snap ring | 90520-39038 · 90520-39039 · 90520-39040 · 90520-39041 · 90520-39042 · 90520-39043 · 90520-39044 · 90520-39045 |
| 33356A | Second gear gear bearing inner race | 33356-20040 |
| 33356B | Second gear gear bearing inner race locking steel ball | 90360-06004 |
| 33356C | Snap ring (for second gear bearing inner race) | 90520-39046 · 90520-39047 · 90520-39048 · 90520-39049 · 90520-39050 · 90520-39051 · 90520-39052 · 90520-39053 |
| 33361 | No. 1 transmission clutch hub | 33361-52040 |
| 33361B | Shaft snap ring (for clutch hub No. 1) | 90520-33030 · 90520-33031 · 90520-33032 · 90520-33034 · 90520-33035 · 90520-33036 |
| 33362 | No. 2 transmission clutch hub | 33362-20030 · 33362-52020 |
| 33362A | Shaft snap ring (used to secure the No. 2 clutch hub) | 90520-33030 · 90520-33031 · 90520-33032 · 90520-33034 · 90520-33035 · 90520-33036 |
| 33363 | No. 1 transmission hub sleeve | 33363-52010 |
| 33364 | No. 2 transmission hub sleeve | 33364-20061 |
| 33365 | No. 1 synchromesh shift key | 33365-53010 |
| 33365C | Steel ball (for synchromesh shift key) | 90360-05010 |
| 33368J | Synchronizer ring (for fifth gear) | 33385-20020 |
| 33369B | No. 4 synchronizer lock ring | 33381-20010 |
| 33371 | No. 1 synchromesh shift key spring | 33371-20030 · 33371-53010 · 33371-53020 |
| 33392 | No. 3 synchromesh shift key spring | 33392-35010 |
| 33393 | No. 3 transmission clutch hub | 33393-20030 · 33393-52020 |
| 33394 | No. 3 synchromesh shift key | 33394-20030 |
| 33395 | No. 3 transmission hub sleeve | 33395-20050 |
| 33402 | Reverse idler gear sub-assembly | 33402-52040 · 33402-52050 |
| 33422B | Fourth gear driven gear | 33035-52090 · 33035-52100 · 33035-52110 |
| 33423A | Third gear driven gear | 33034-52050 · 33034-52060 · 33034-52070 |
| 33428C | fifth speed driven gear | 33036-52040 · 33036-52050 · 33036-52080 |
| 33429B | Sixth speed driven gear | 33037-52050 |
| 33451 | Reverse gear idler shaft | 33451-52020 |
| 33451H | Bolt (for reverse idler shaft) | 90105-12403 |
| 33451J | Gasket (for reverse idler shaft) | 90430-13004 |
| 33461A | Reverse idler bearing | 90364-37014 |
| 33462 | Reverse idler thrust washer | 33462-20060 |
