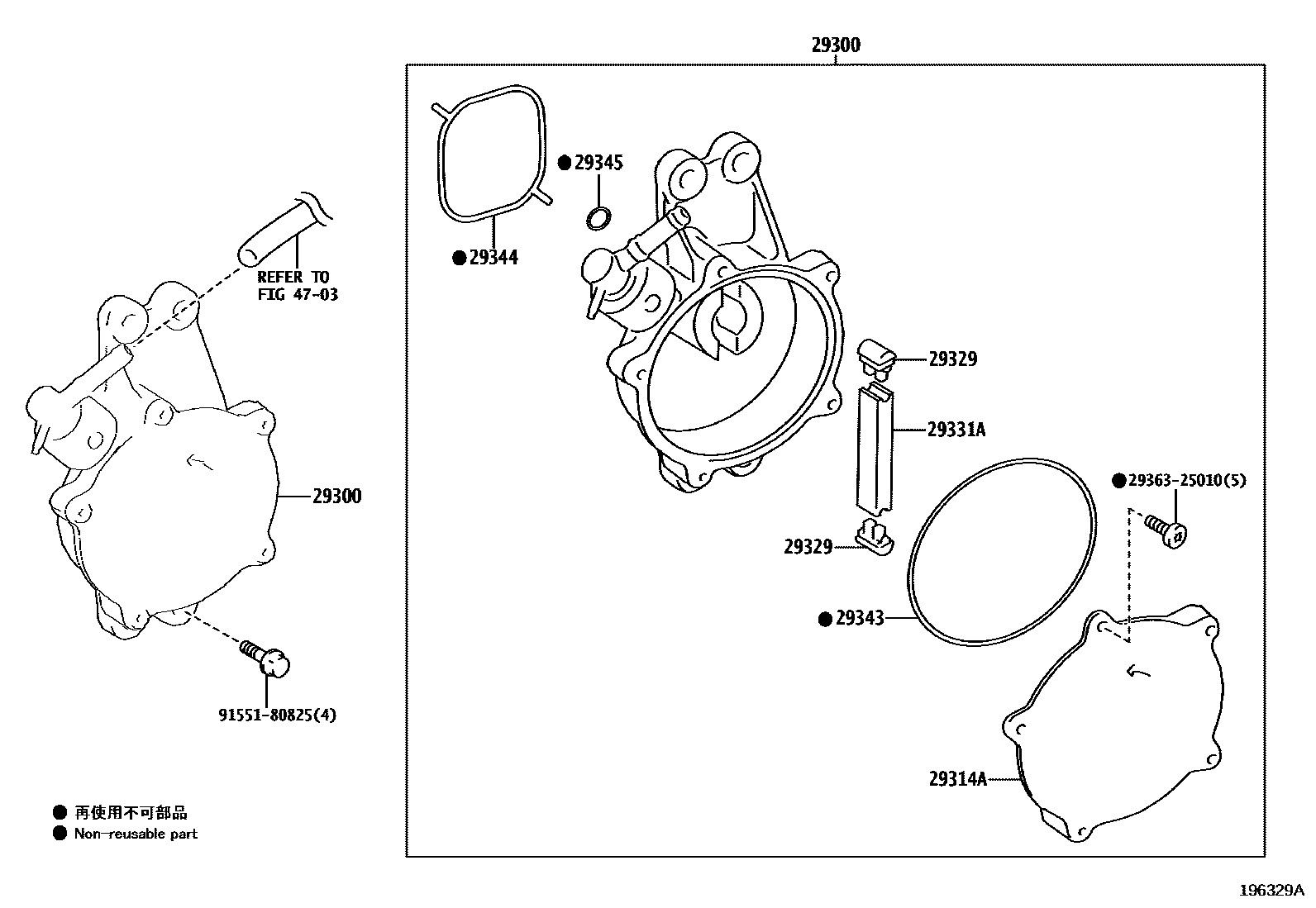

Toyota COROLLA 真空泵 — Figure 1905
Toyota COROLLA EPC diagram 1905, 真空泵, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 29300 | Vacuum pump assembly | 29300-18010 |
| 29314A | end cap | 29314-36010 |
| 29329 | Vane vacuum pump cover | 29329-37010 |
| 29331A | vacuum pump blades | 29331-36011 |
| 29343 | Vacuum pump No. 1 O-ring | 29343-36010 |
| 29344 | Vacuum pump No. 2 O-ring | 29344-36010 |
| 29345 | Vacuum pump No. 3 O-ring | 29345-22011 |
