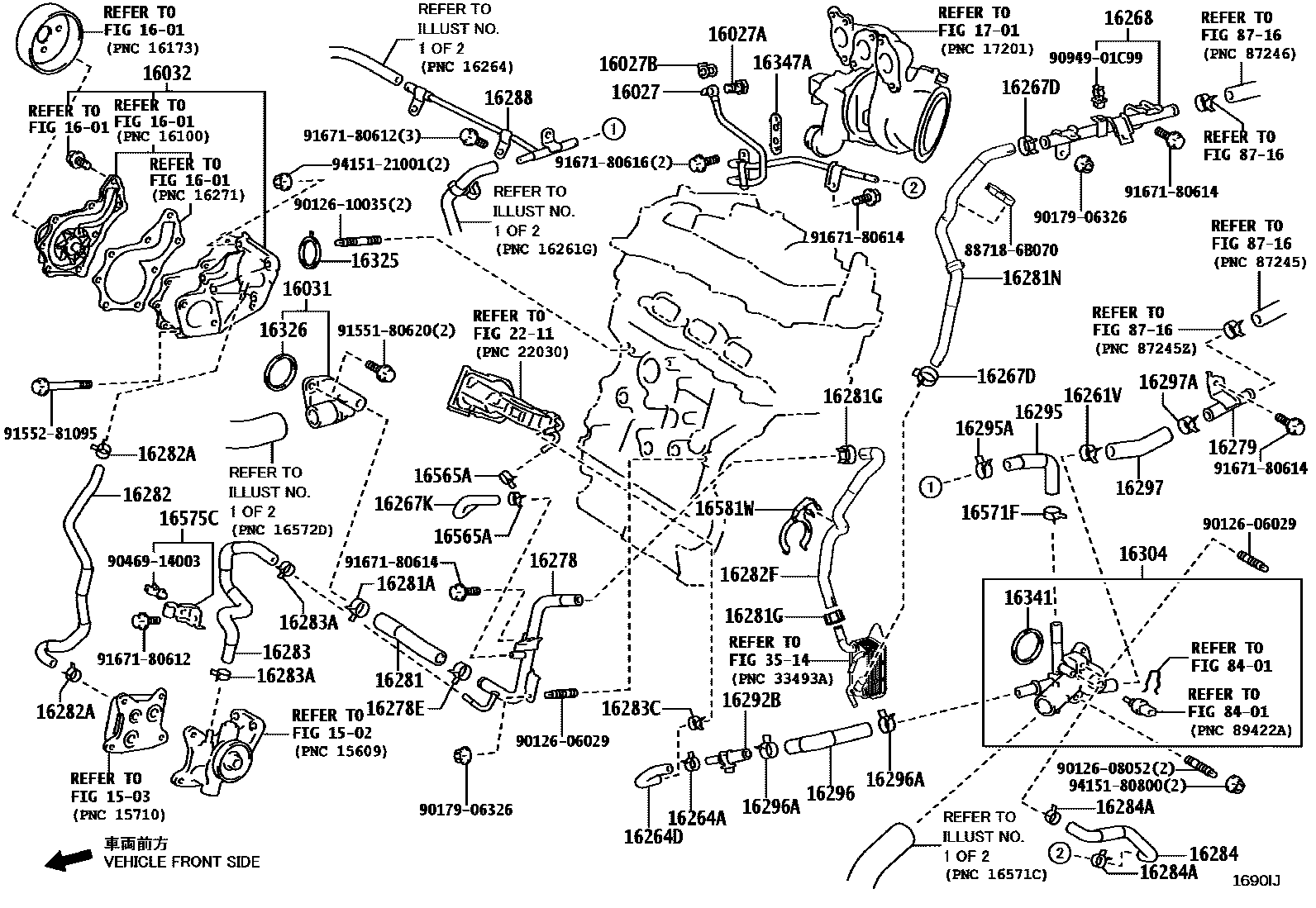

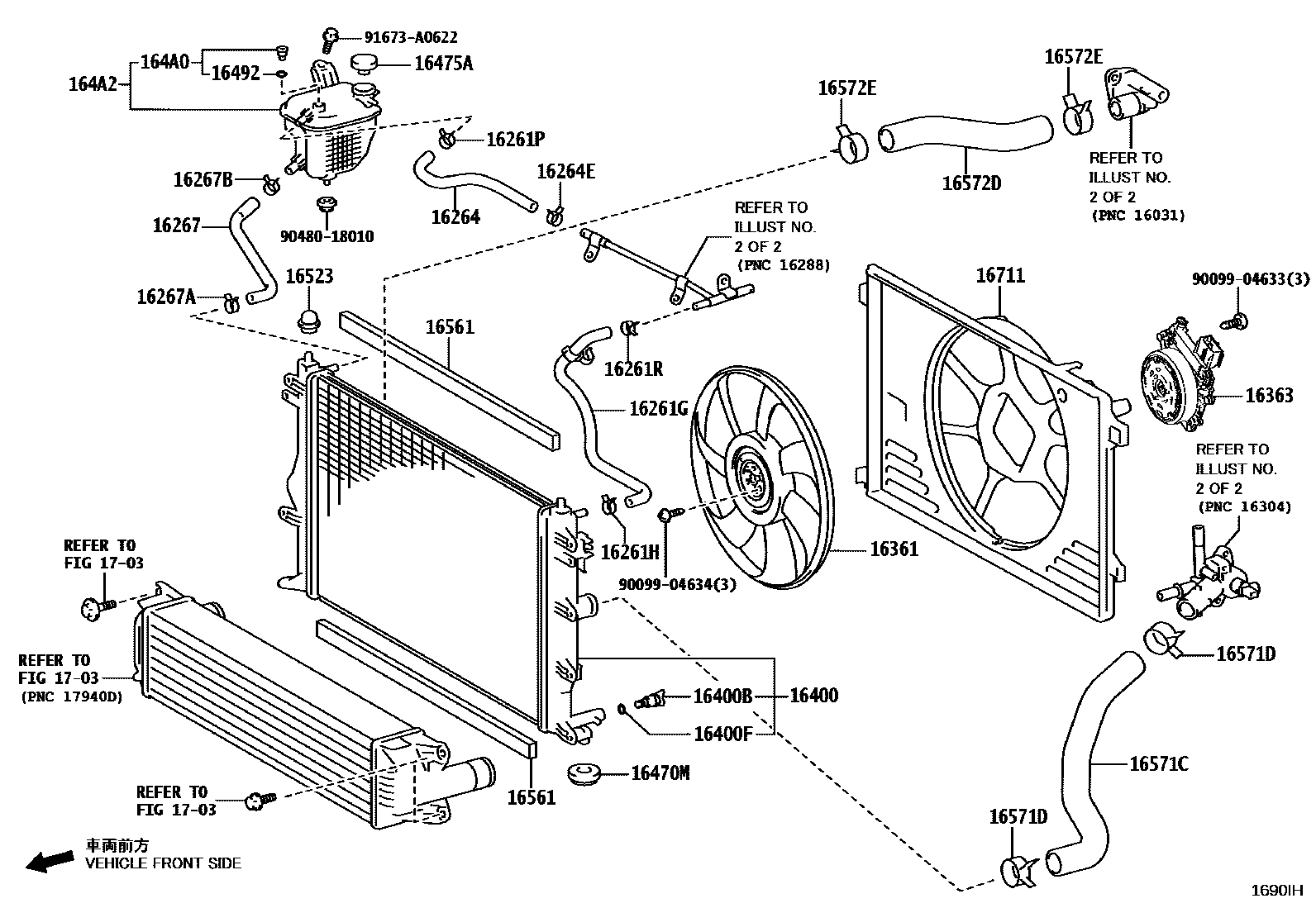

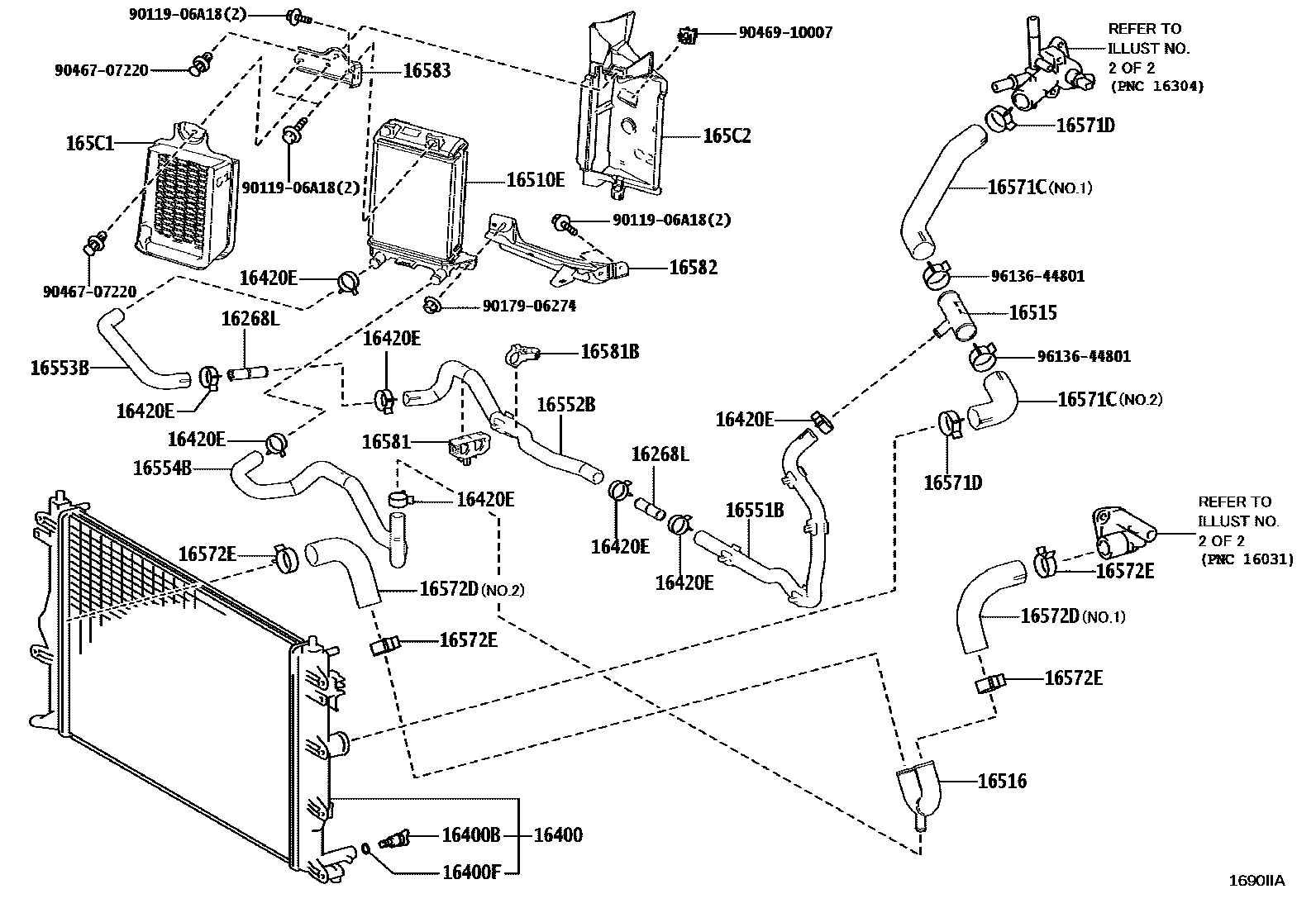

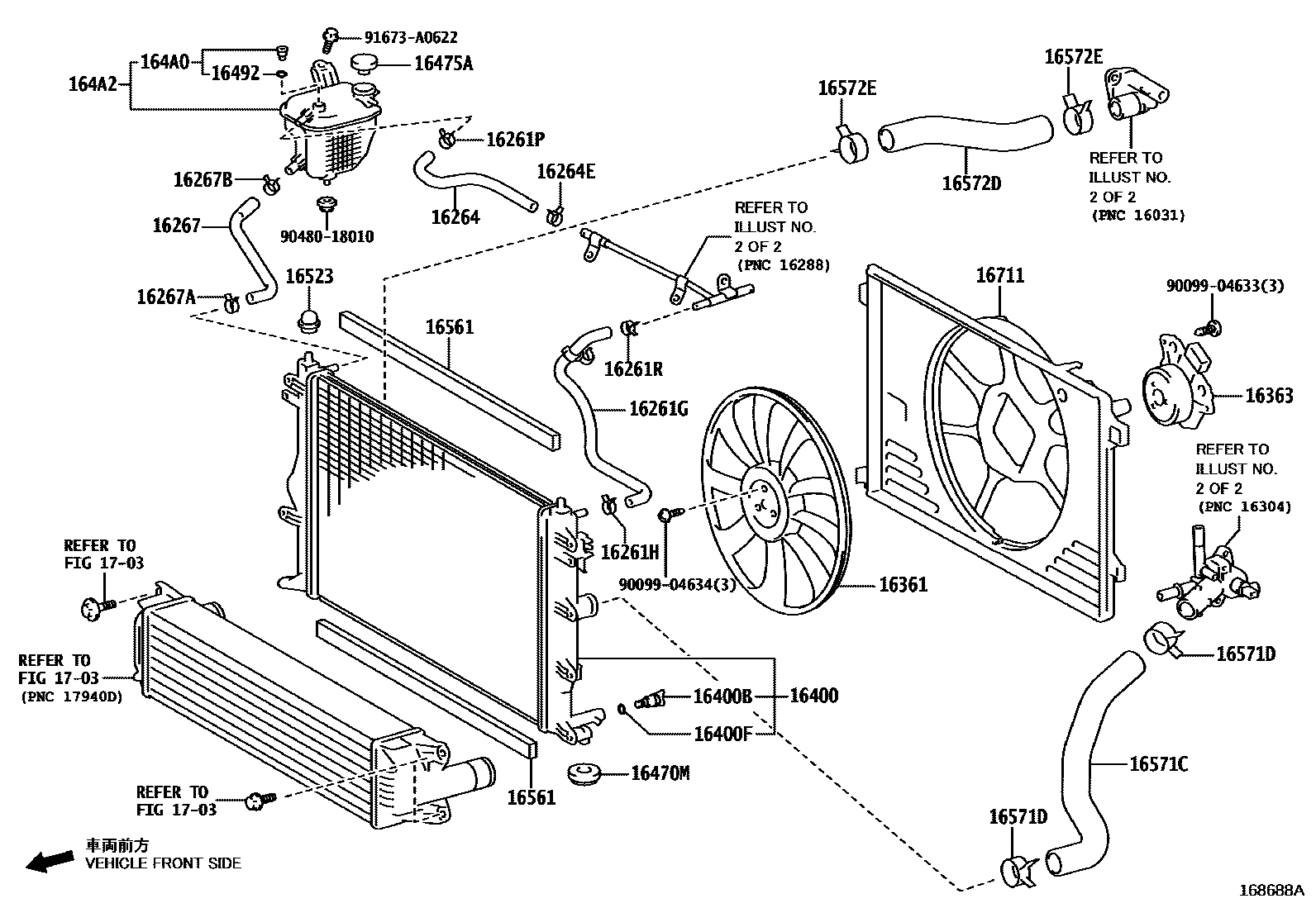

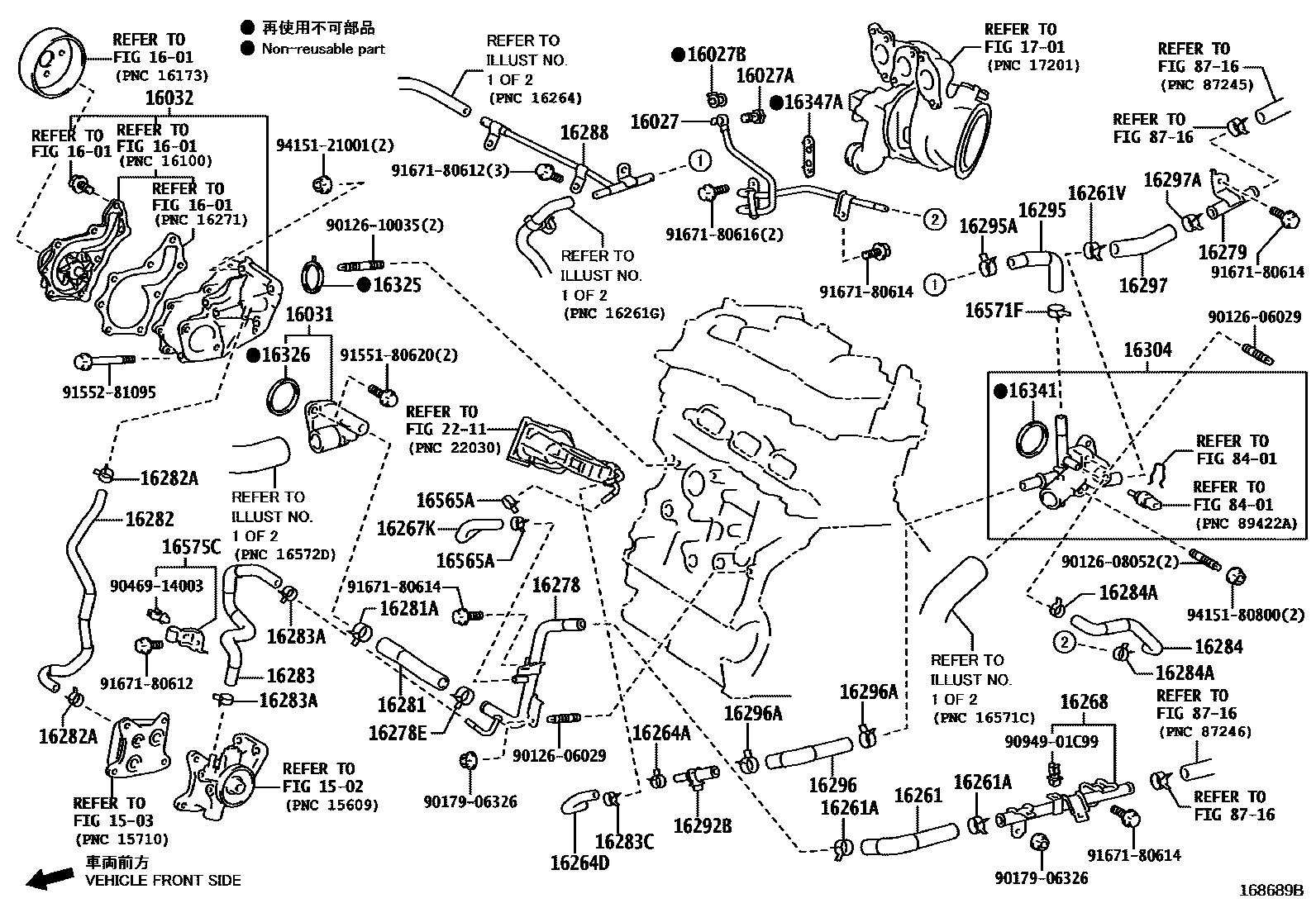

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 5 images and 86 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16027 | No. 1 turbocharger water pipe sub-assembly | 16027-18010 |
| 16027A | Connector bolt (for turbocharger water pipe) | 90401-12097 |
| 16027B | Gasket (for turbocharger water pipe) | 90904-30004 |
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-18010 |
| 16032 | Water inlet housing sub-assembly with water pump | 16032-18010 |
| 16261 | HOSE, WATER BY-PASS | 16261-18010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96138-42501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-18030 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 96136-41901 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 96136-42101 |
| 16261R | Clip or clip (for water bypass hose) | 96138-41701 · 96138-51701 |
| 16261V | CLAMP OR CLIP, WATER BY-PASS HOSE | 96138-42701 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-18030 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96137-51701 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-18010 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 96136-41901 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-18040 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96136-42201 |
| 16267B | Clip (for water bypass hose) | 96136-42501 |
| 16267D | CLIP, WATER BY-PASS HOSE NO.4 | 96138-42501 |
| 16267K | HOSE, WATER BY-PASS, NO.3 | 16267-18010 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-18010 |
| 16268L | PIPE, WATER BY-PASS | 16268-47040 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-18010 |
| 16278E | Clip (for water bypass hose) | 96138-42501 |
| 16279 | No. 3 water bypass pipe | 16279-18010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-18010 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96138-42701 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 96138-42501 |
| 16281N | HOSE, WATER BY-PASS, NO.4 | 16281-18020 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-18010 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96137-51701 |
| 16282F | HOSE, WATER BY-PASS, NO.5 | 16282-18020 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-18011 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96138-41501 |
| 16283C | Clip or clip (for water bypass hose) | 96138-41501 |
| 16284 | No. 1 turbocharger water hose | 16284-18010 |
| 16284A | Clamp (for No. 1 turbocharger water hose) | 96137-51701 |
| 16288 | No. 4 water bypass pipe | 16288-18010 |
| 16292B | Water bypass hose connector | 16292-18010 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-18010 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 96137-41901 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-18010 · 16296-18011 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 96136-52101 |
| 16297 | No. 9 water bypass hose | 16297-18010 |
| 16297A | Clamp (for No. 9 water bypass hose) | 96138-42501 |
| 16304 | Water outlet sub-assembly | 16304-18010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-25010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-47020 |
| 16341 | GASKET, WATER OUTLET | 16341-47030 |
| 16347A | Gasket (for turbocharger water pipe) | 16347-18010 |
| 16361 | Fan | 16361-21150 · 16361-24140 |
| 16363 | cooling fan motor | 16363-25020 · 16363-31500 · 16363-31510 |
| 16400 | Radiator assembly | 16400-18060 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16420E | Secondary radiator hose clamp or clip | 96138-42501 |
| 16470M | gasket | 90480-40021 |
| 16475A | Reservoir tank cover | 16475-28140 |
| 16492 | O-ring (for radiator reservoir switch) | 16492-21050 |
| 164A0 | Liquid storage tank switch assembly | 164A0-37010 |
| 164A2 | Closed reservoir water tank without lid | 164A2-37012 |
| 16510E | Sub-radiator assembly | 16510-18010 |
| 16515 | No. 1 auxiliary radiator pipe | 16515-18010 |
| 16516 | No. 2 auxiliary radiator pipe | 16516-18010 |
| 16523 | Secondary radiator bracket buffer pad | 16523-37010 |
| 16551B | No. 1 auxiliary radiator hose | 16551-18010 |
| 16552B | No. 2 auxiliary radiator hose | 16552-18030 |
| 16553B | No. 3 auxiliary radiator hose | 16553-18030 |
| 16554B | No. 4 auxiliary radiator hose | 16554-18010 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-18040 |
| 16565A | clip | 96138-41501 |
| 16571C | Radiator hose No. 1 | 16571-18050 · 16571-18060 · 16571-18070 |
| 16571D | No. 1 radiator hose clip | 96136-44301 |
| 16571F | Clamps or clips (for water hoses) | 96138-42001 |
| 16572D | Radiator hose No. 2 | 16572-18010 · 16572-18020 · 16572-18030 |
| 16572E | No. 2 radiator hose clip | 96136-44301 |
| 16575C | No. 1 water hose clamp bracket | 16575-18011 |
| 16581 | Hose clamp (for water hose) | 16581-25240 |
| 16581B | Hose clamp (for radiator hose) | 16581-31180 |
| 16581W | Hose clamp (for water hose) | 16581-18010 |
| 16582 | Radiator bracket No. 1 | 16582-18030 |
| 16583 | Radiator bracket No. 2 | 16583-18030 |
| 165C1 | Secondary radiator pipe No. 1 | 165C1-18030 |
| 165C2 | Secondary radiator pipe No. 2 | 165C2-18030 |
| 16711 | fan cover | 16711-18020 · 16711-18030 |
