Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 1 images and 3 PNC and OE references.

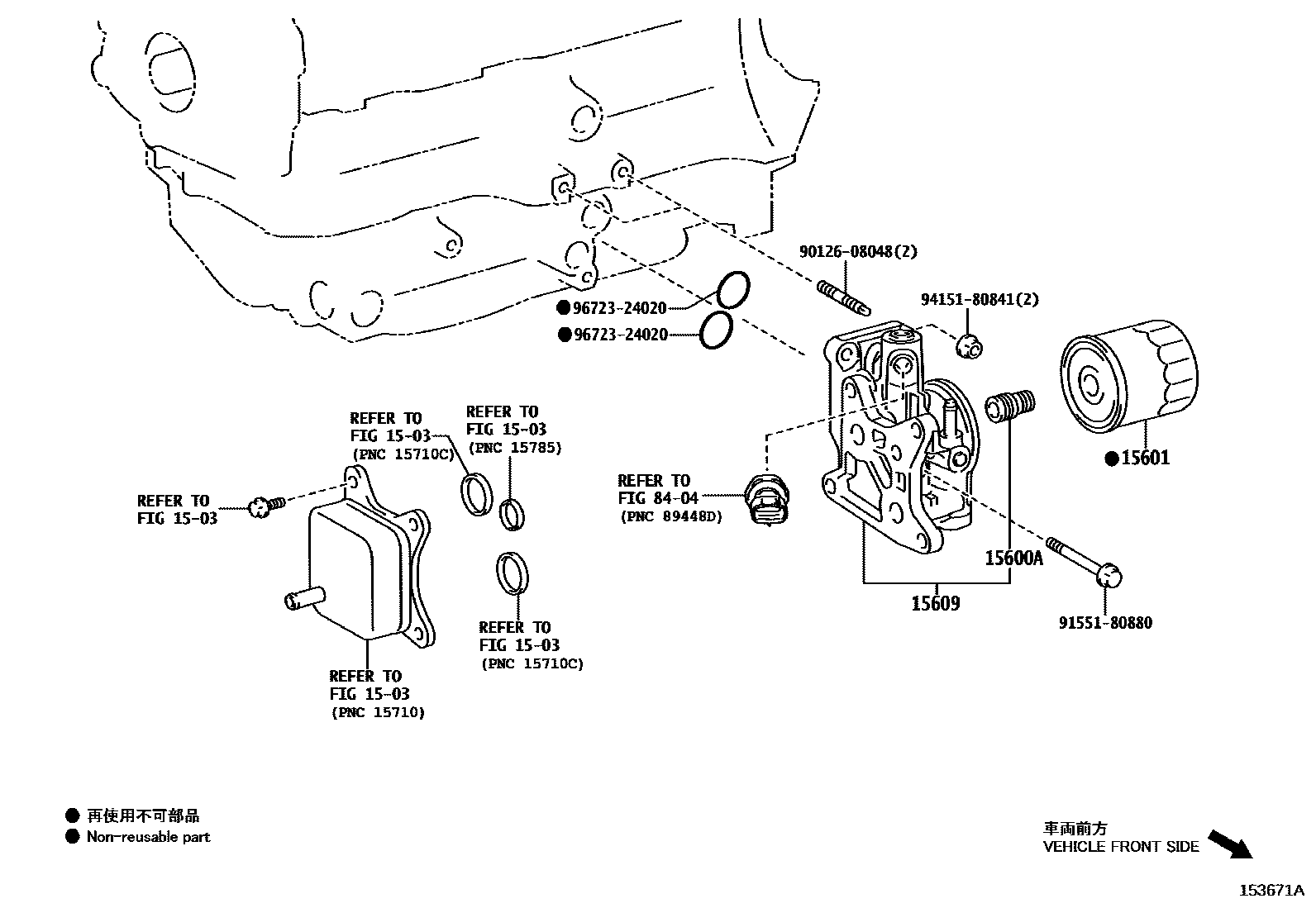

Toyota COROLLA Oil Filter EPC diagram — 153671A
Oil Filter — 153671A (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90904-04006
15601Oil filter sub-assembly90915-10009
15609Oil filter bracket sub-assembly15609-18011
