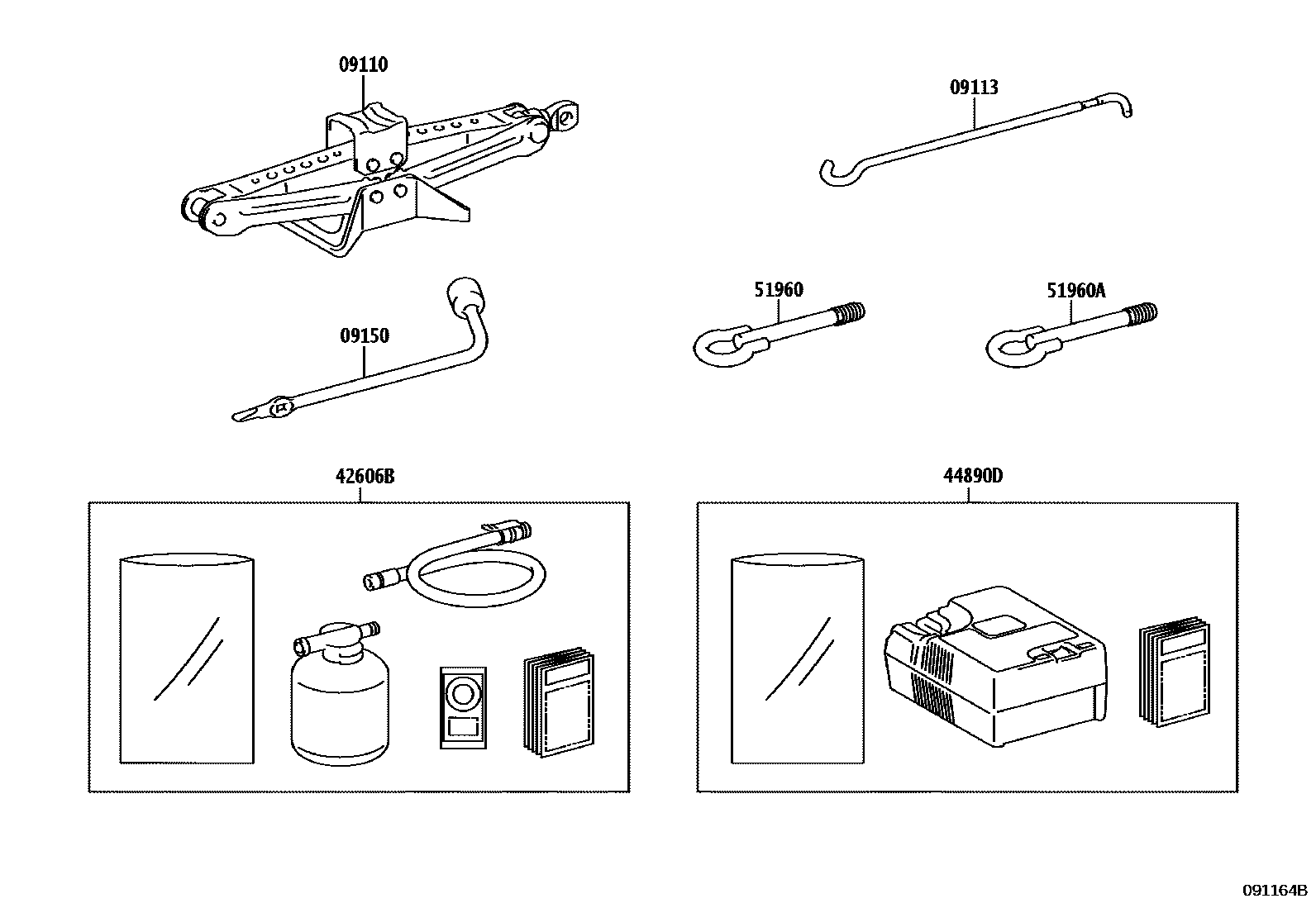

Toyota COROLLA Standard Tools — Figure 0901
Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09110-12120 · 09111-47051 |
| 09113 | Jack Handle | 09113-42030 |
| 09150 | Wheel Nut Wrench Case | 09150-42010 |
| 42606B | Tubeless tire repair components | 42606-42080 |
| 44890D | Air Compressor Assembly | 44890-42050 |
| 51960 | Front Towing Hook Assembly | 51960-12110 · 51961-33010 |
| 51960A | Rear Towing Hook Assembly | 51961-33010 |
