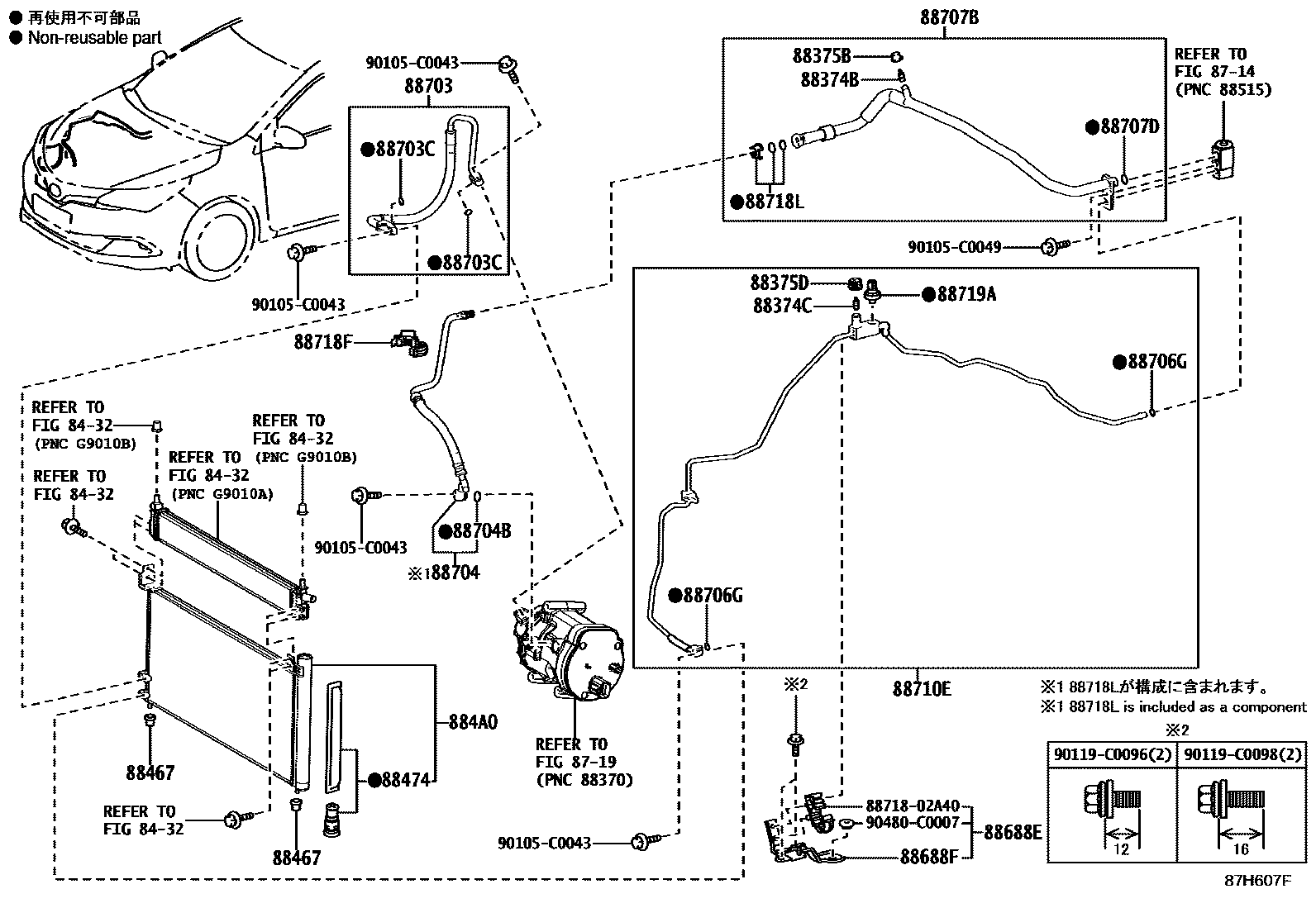

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-0D010 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-02120 |
| 88474 | cooler dryer | 88474-12020 |
| 884A0 | Air conditioning condenser assembly | 884A0-02260 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-02D80 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-02F60 |
| 88703 | Discharge hose sub-assembly | 88703-02D70 |
| 88703C | O-ring (for drain hose) | 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-02D90 |
| 88704B | O-ring (for suction hose) | 90099-14121 |
| 88706G | O-ring (for liquid pipe) | 90099-14119 |
| 88707B | Suction pipe B sub-assembly | 88707-02680 |
| 88707D | O-ring (for suction pipe) | 90099-14121 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-02F70 |
| 88718F | Clamp No. 1 (for cooler refrigerant hose) | 88718-02680 |
| 88718L | Pipe clamp | 88718-52280 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
