Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715

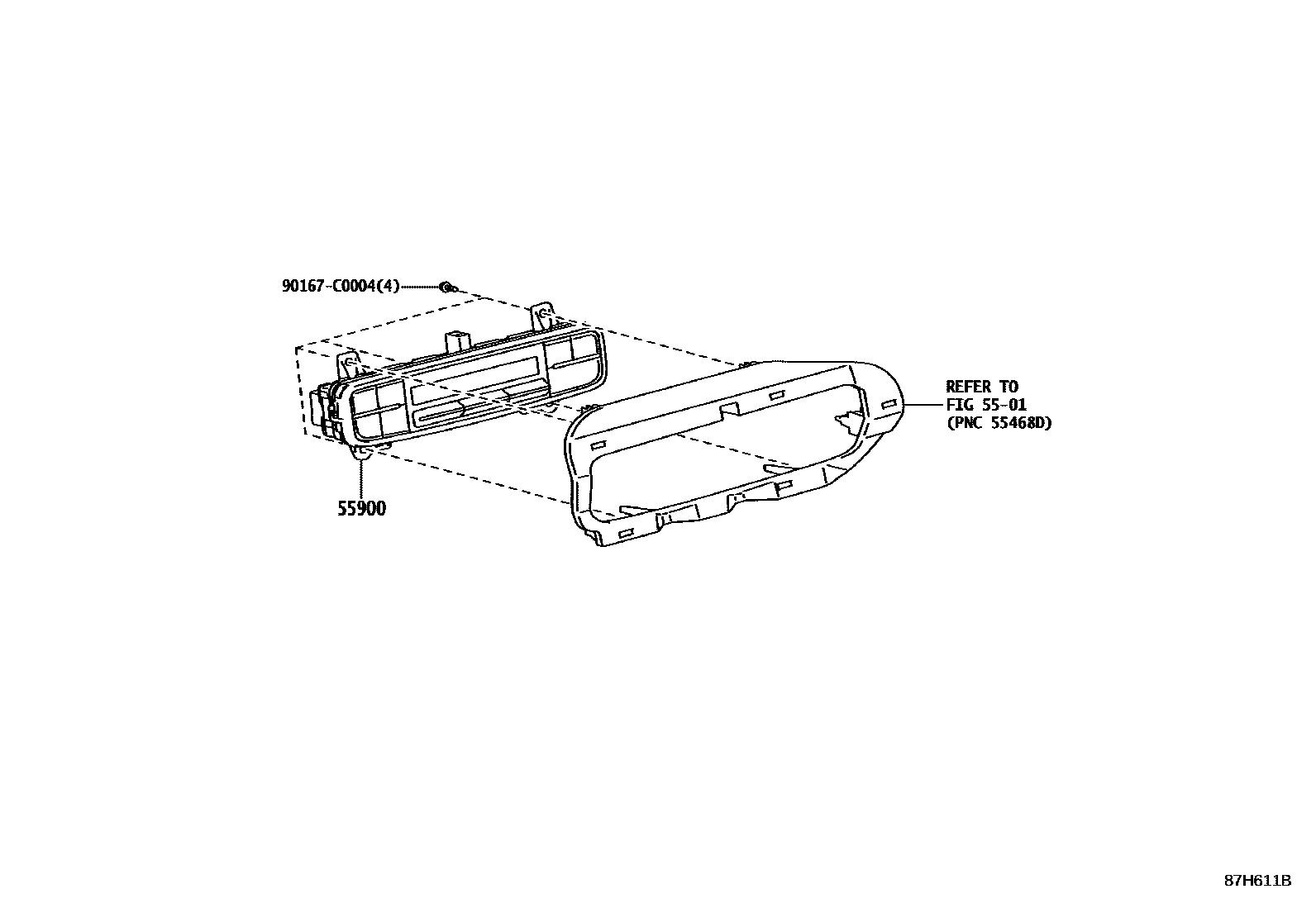

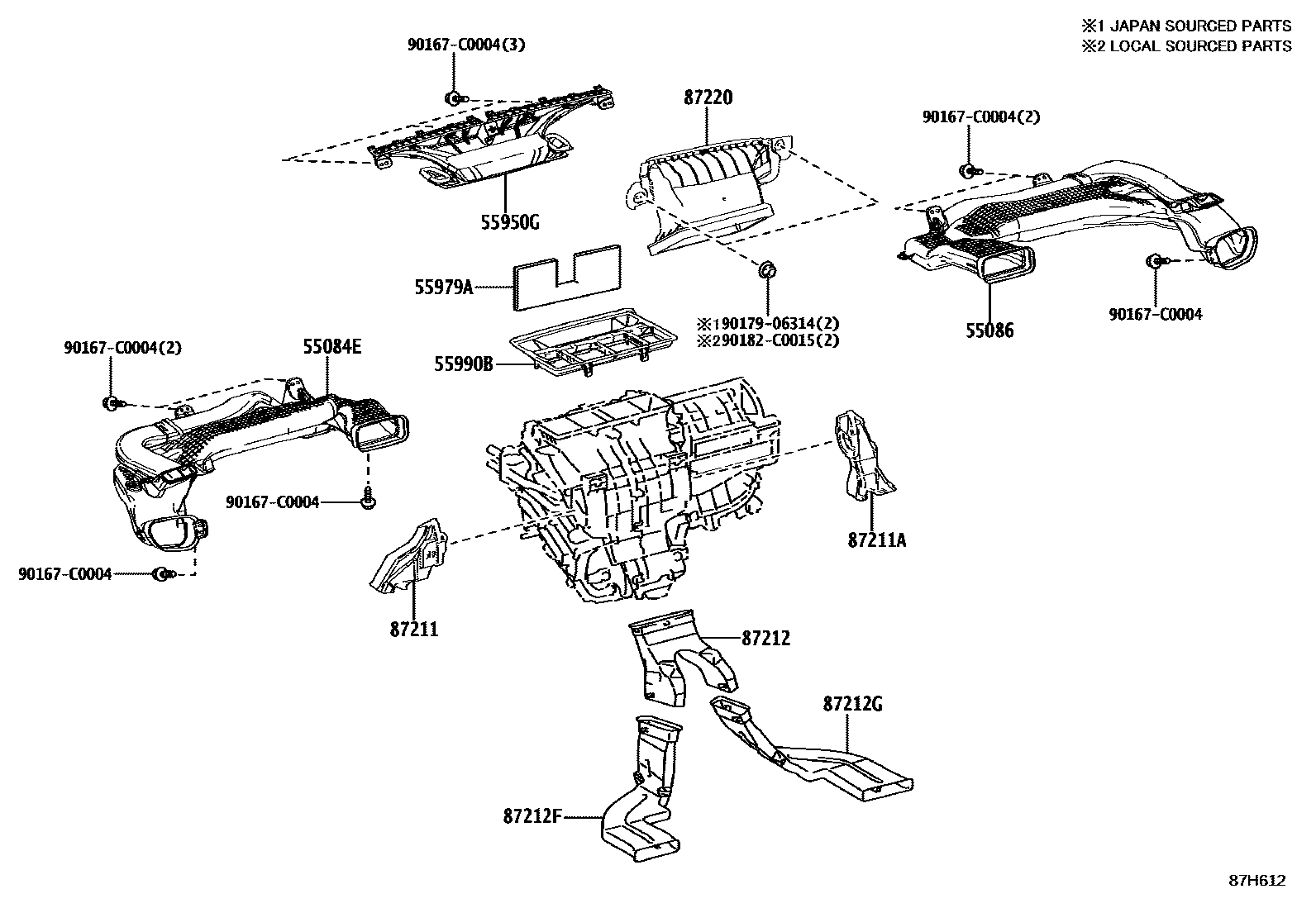

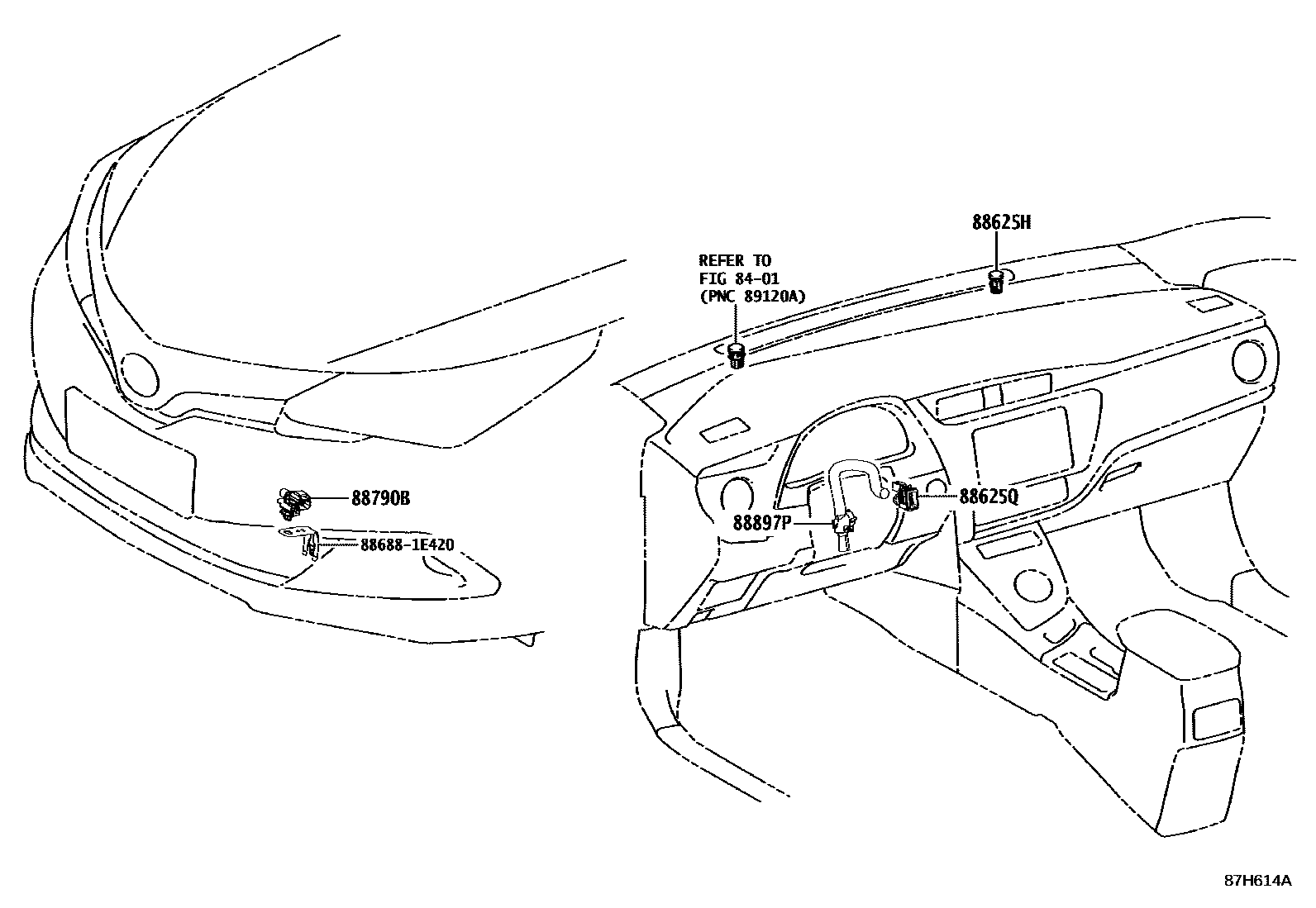

Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-02540 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55086-02490 |
| 55900 | Air conditioning control assembly | 55900-02B80 |
| 55950G | Defroster nozzle assembly | 55950-02360 |
| 55979A | Defroster nozzle cushion | 55979-02090 |
| 55990B | Lower defroster nozzle assembly | 55990-02360 |
| 87211 | No. 1 air duct | 87211-02710 |
| 87211A | Duct No. 2 | 87211-02720 |
| 87212 | No. 1 rear air duct | 87215-02080 |
| 87212F | No. 2 rear air duct | 87213-02100 |
| 87212G | No. 3 rear air duct | 87212-02100 |
| 87220 | Air duct assembly | 87220-02280 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-07050 · 88625-47021 |
| 88790B | Thermistor assembly | 88790-0D020 |
| 88897P | aspirator | 88505-02050 |
