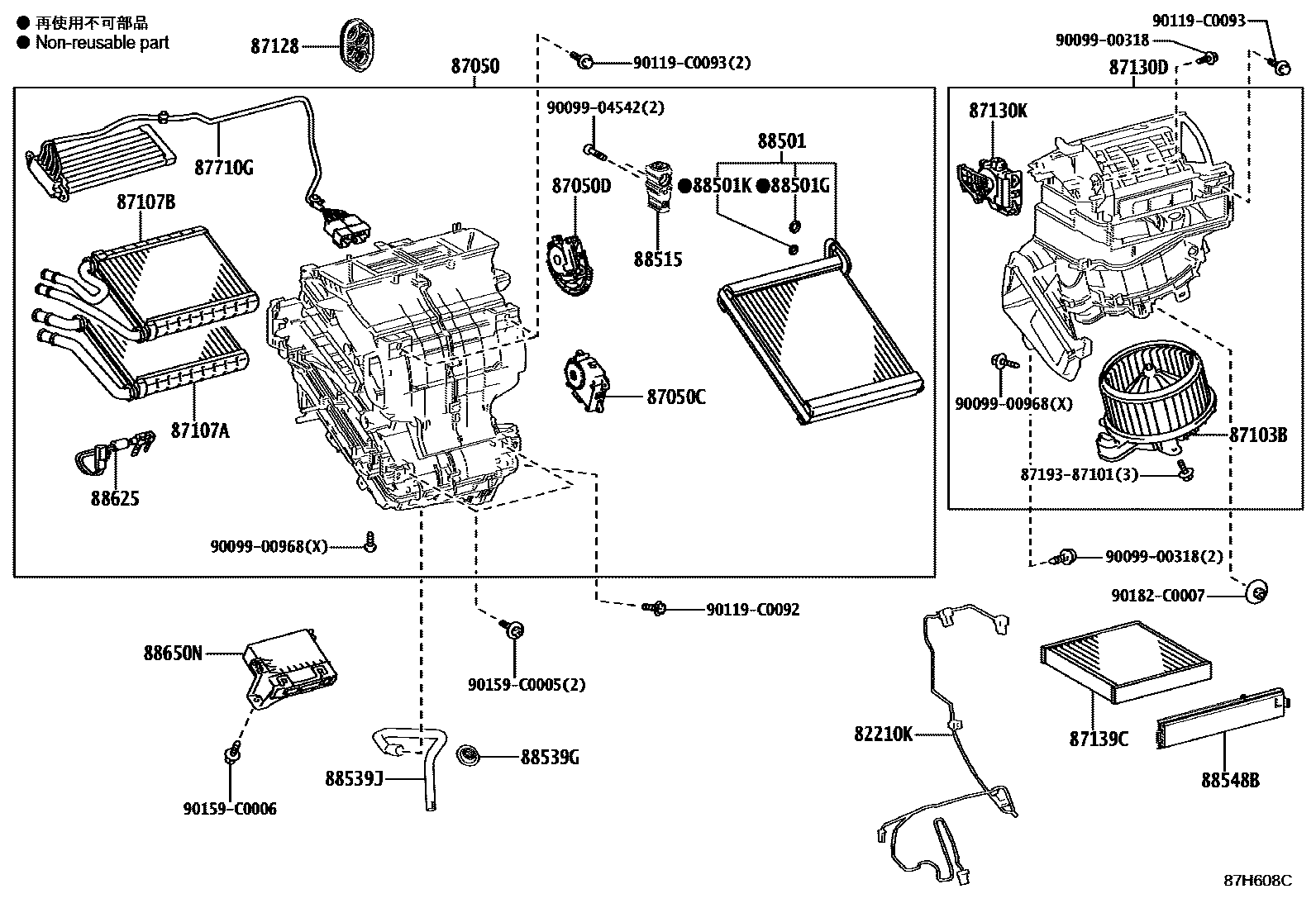

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-02170 |
| 87050 | Air conditioning radiator assembly | 87050-0ZG80 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-02310 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-02320 |
| 87103B | Blower motor sub-assembly with fan | 87103-02600 |
| 87107A | Heater radiator device sub-assembly | 87107-02380 |
| 87107B | Heater radiator device sub-assembly | 87107-02390 |
| 87128 | heater seal | 87128-02160 |
| 87130D | Blower assembly | 87130-02B90 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-02340 |
| 87139C | air purification filter | 87139-0R020 · 87139-50100 |
| 87710G | Rapid heater assembly | 87710-02120 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02340 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90099-14121 |
| 88501K | No. 1 cooler evaporator O-ring (liquid) | 90099-14120 |
| 88515 | Cooler expansion valve | 88515-02810 |
| 88539G | Seal (for cooler unit drain hose) | 90480-26030 |
| 88539J | Cooler drain hose | 88539-02390 |
| 88548B | air filter housing | 88548-02100 |
| 88625 | Cooler No. 1 Thermistor | 88625-0D100 |
| 88650N | Air conditioning amplifier assembly | 88650-02L90 |
