Toyota COROLLA 后视镜 — Figure 8701

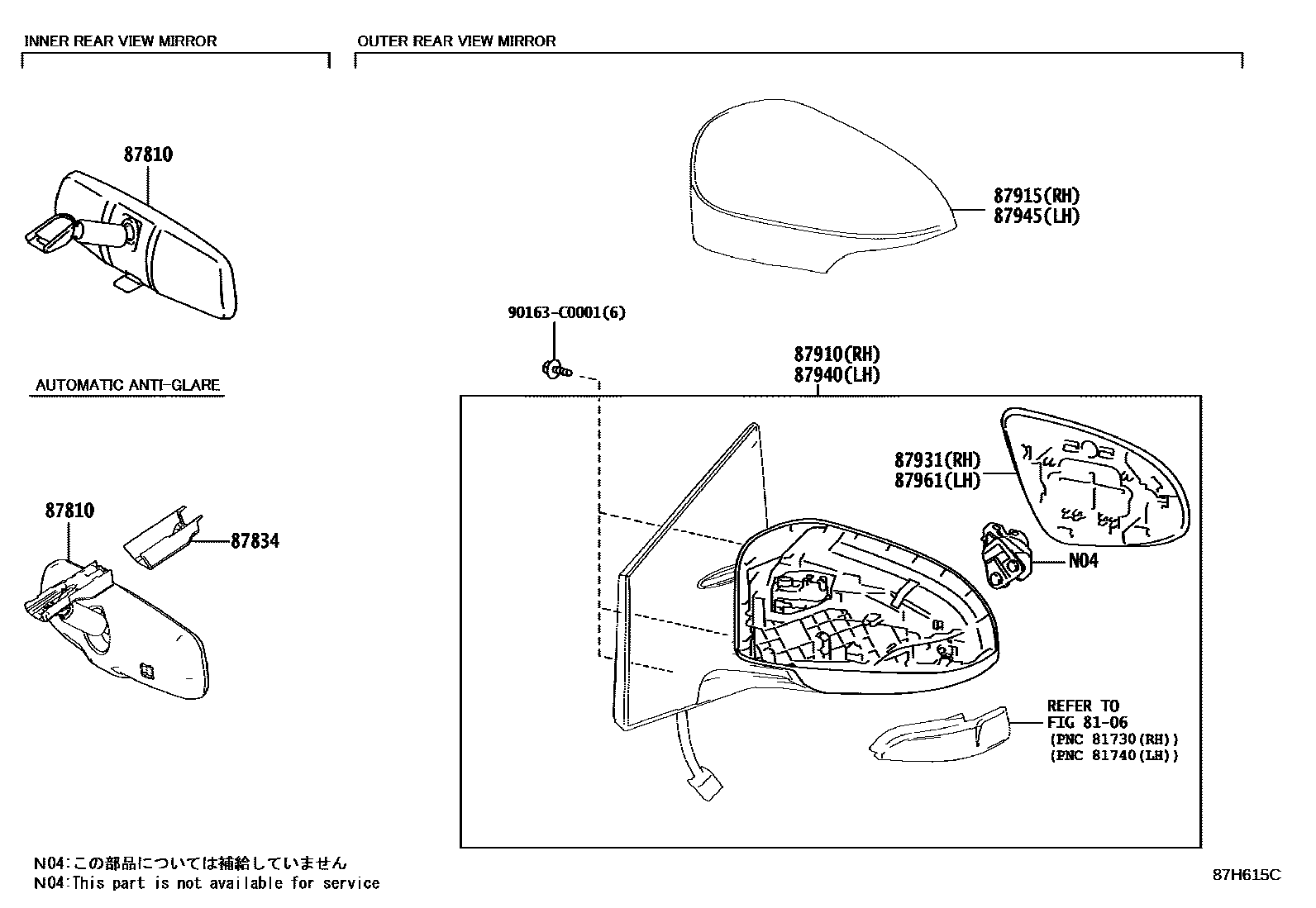

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06061 · 87810-0R050 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-0W070 |
| 87910 | Right exterior rearview mirror assembly | 87910-02D70 |
| 87915 | Right exterior rearview mirror cover | 87915-02930 |
| 87931 | Right exterior rearview mirror | 87931-02E40 |
| 87940 | Left exterior rearview mirror assembly | 87940-02E00 |
| 87945 | Left exterior rearview mirror cap | 87945-02930 |
| 87961 | Left exterior rearview mirror | 87961-02J90 |
