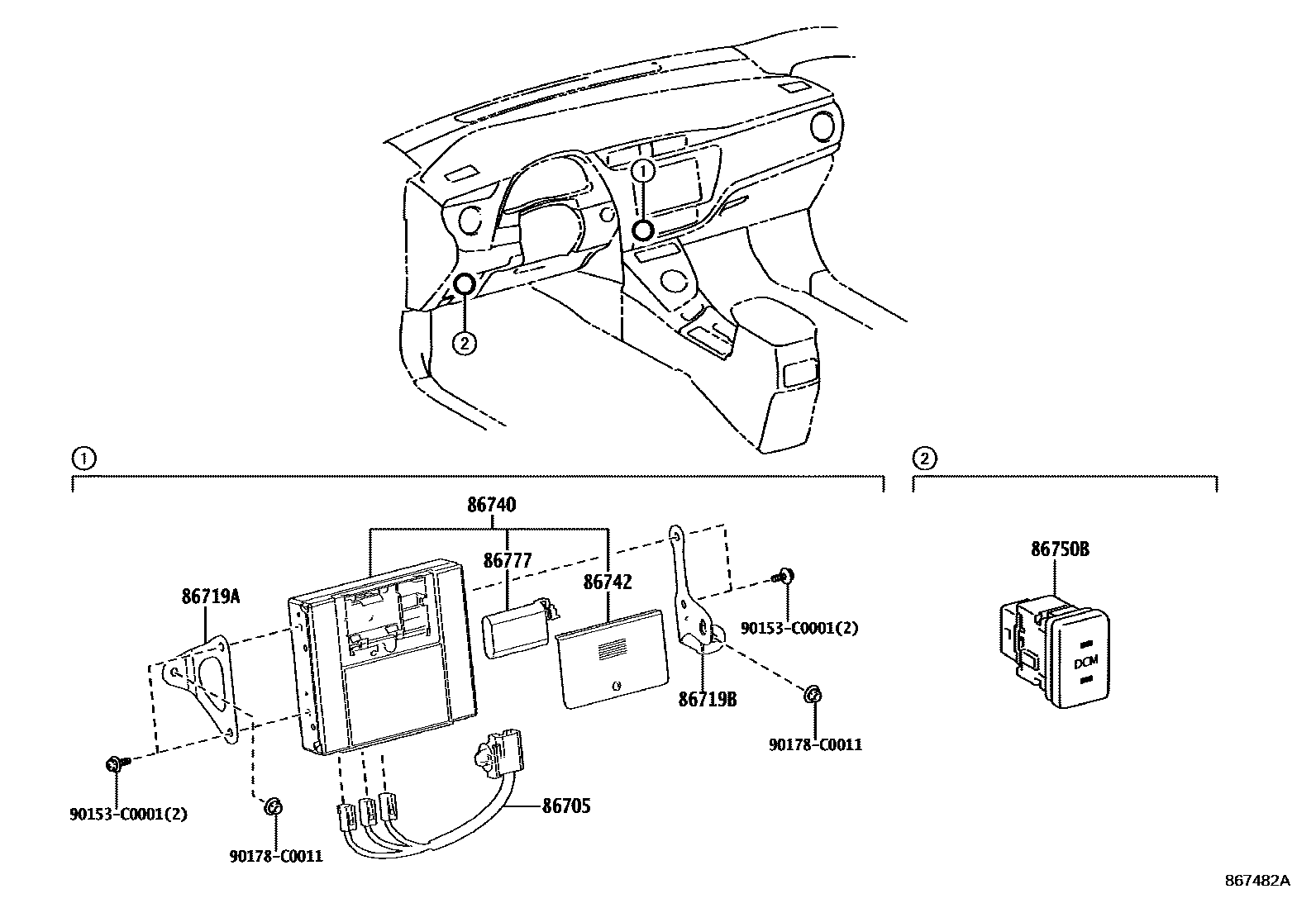

Toyota COROLLA 车载电话和呼救装置 — Figure 8615
Toyota COROLLA EPC diagram 8615, 车载电话和呼救装置, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86705 | Telephone antenna wire sub-assembly | 86705-02040 |
| 86719A | Phone holder No. 1 | 86719-02060 |
| 86719B | Phone holder No. 2 | 86719-02070 |
| 86740 | Telephone transceiver assembly | 86740-02101 |
| 86742 | transceiver cover | 86742-02030 |
| 86750B | Electrical information indicator light assembly | 86750-02020 |
| 86777 | Distress signal battery | 86777-02020 |
