Toyota COROLLA 喇叭 — Figure 8611

Toyota COROLLA EPC diagram 8611, 喇叭, with 2 images and 5 PNC and OE references.

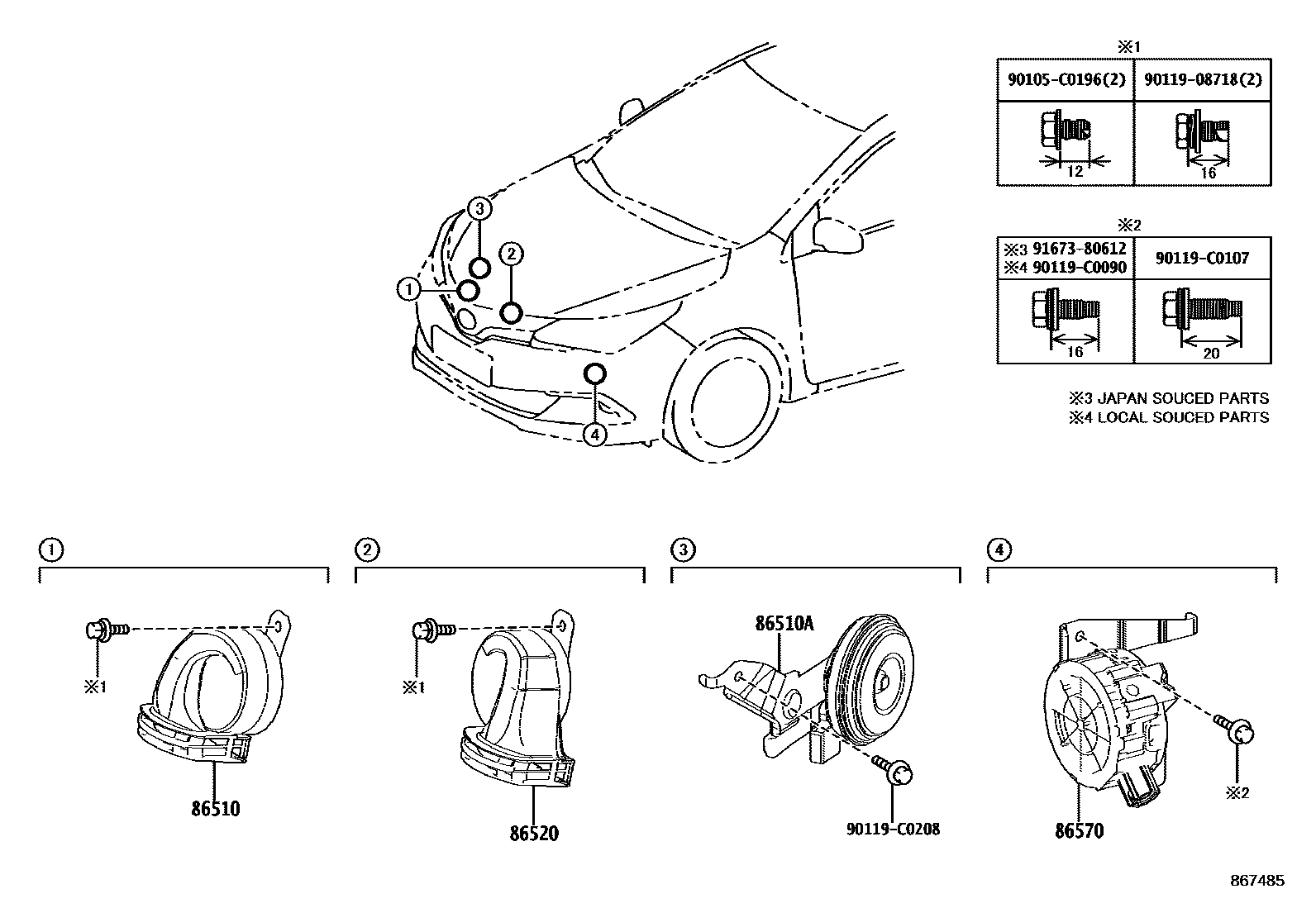

Toyota COROLLA 喇叭 EPC diagram — 867485
喇叭 — 867485 (201903 – 201911)

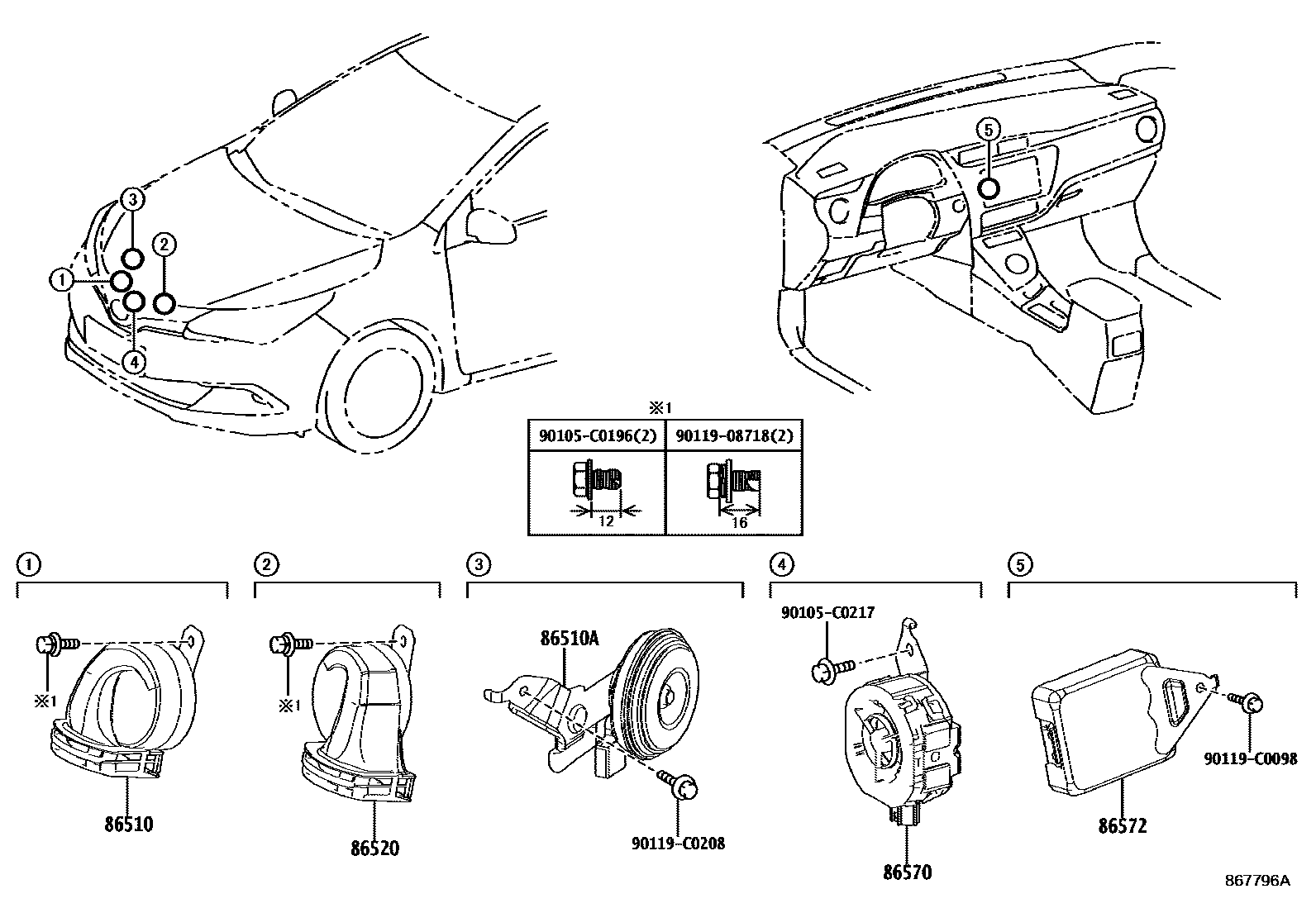

Toyota COROLLA 喇叭 EPC diagram — 867796A
喇叭 — 867796A (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510tweeter assembly86510-12620
86510AAlarm horn assembly86560-02200
86520Subwoofer assembly86520-12740
86570Vehicle intrusion speaker assembly86570-02020 · 86570-12040 · 86570-12060
86572vehicle hacking speaker controller86572-02030 · 86572-12100
