Toyota COROLLA antenna — Figure 8604

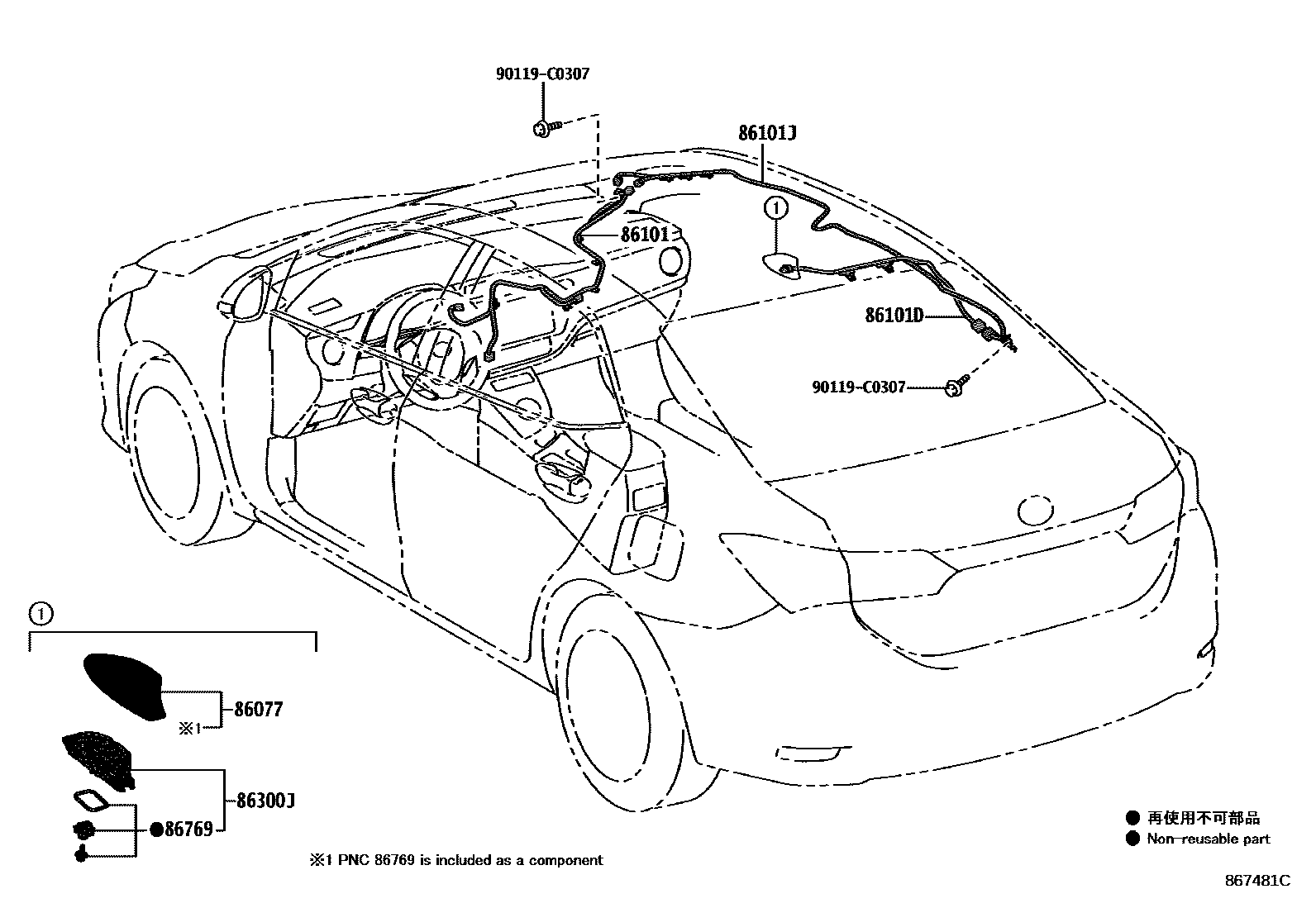

Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-02G30 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-02G40 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-02G20 |
| 86300J | Roof antenna assembly | 86760-02070 |
| 86769 | roof radome | 86769-12010 |
