Toyota COROLLA DC/DC转换器 &充电器(BEV 或 FCEV) — Figure 8442

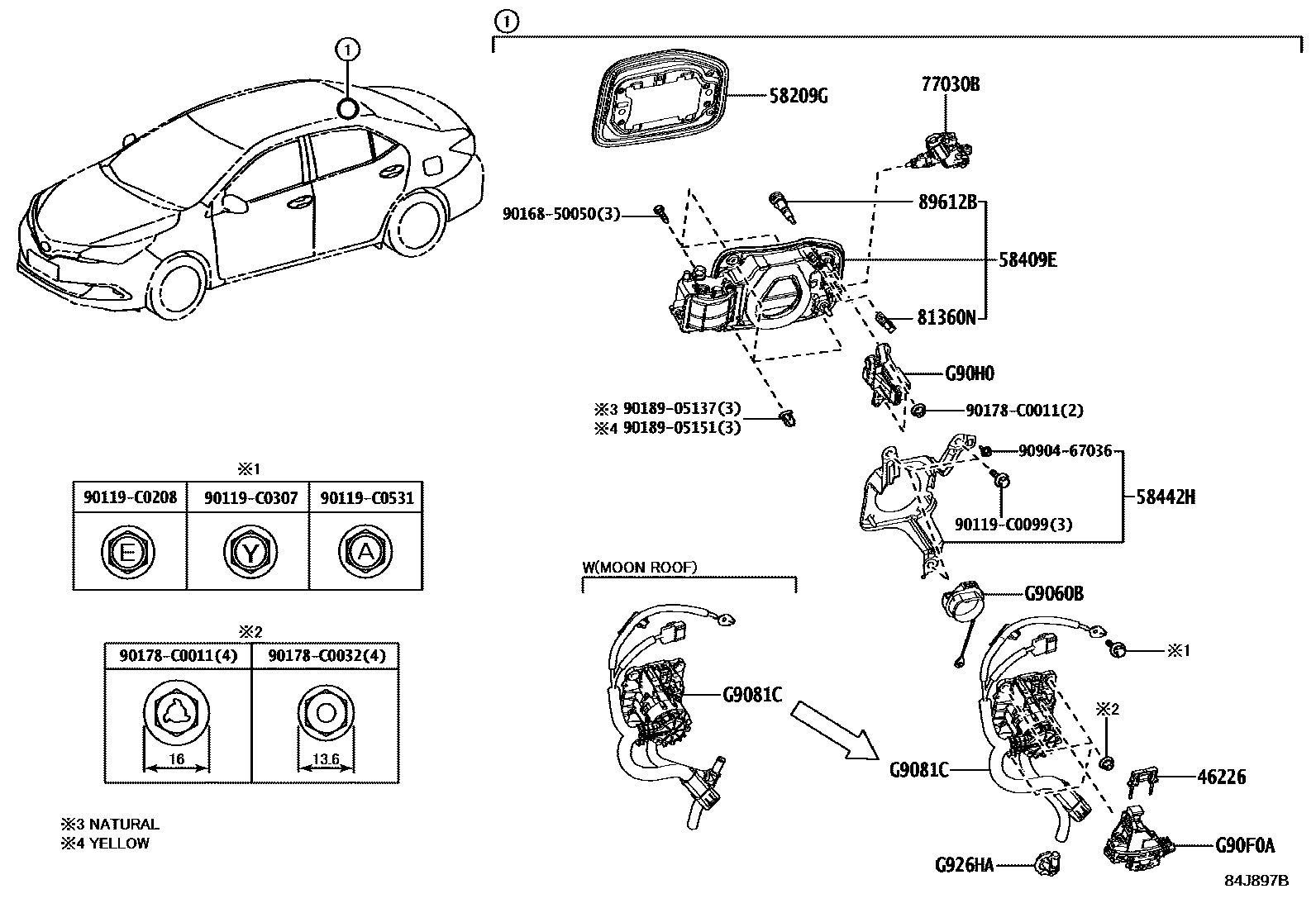

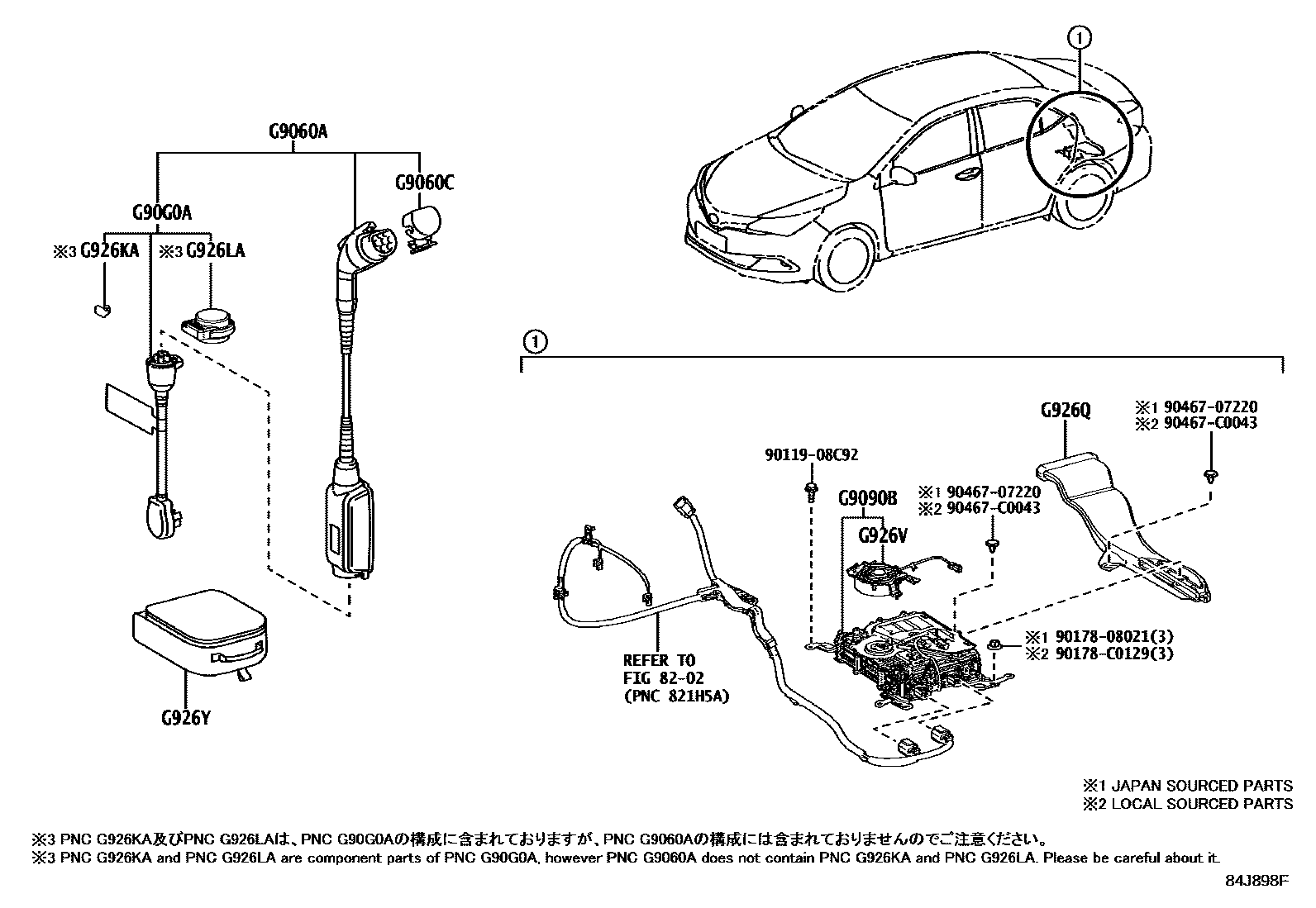

Toyota COROLLA EPC diagram 8442, DC/DC转换器 &充电器(BEV 或 FCEV), with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46226 | connector pin | 46226-47010 |
| 58209G | Battery box cover sub-assembly | 58209-12060 |
| 58409E | Battery charger connector opening cover sub-assembly | 58409-12030 |
| 58442H | Battery access hole cover reinforcement | 58442-02010 · 58442-02011 |
| 77030B | Charger cover lock sub-assembly with motor | 77030-02030 |
| 81360N | Spotlight assembly | 81360-47010 |
| 89612B | push tappet | 89612-12010 |
| G9060A | Electric vehicle charger cable assembly | G9060-12020 · G9060-F4010 |
| G9060B | Connector cover | 82821-02280 |
| G9060C | Connector cover No. 2 | 82821-12730 · 82821-F4040 |
| G9081C | AC charger port cable | G9081-02010 · G9081-02020 |
| G9090B | Electric vehicle charger assembly | G9090-02010 |
| G90F0A | EV charger cable lock assembly | G90F0-02010 |
| G90G0A | EV charger cable plug assembly | G90G0-12010 |
| G90H0 | EV charger cover indicator light assembly | G90H0-12010 · G90H0-12011 |
| G926HA | EV charger gasket | G926H-47010 |
| G926KA | EV charger plug cable key | G926K-47020 |
| G926LA | EV charger plug cable cover | G926L-47020 |
| G926Q | EV charger tube | G926Q-02010 |
| G926V | Boost cooling blower | G926V-02010 |
| G926Y | EV charger cable bag | G926Y-02010 · G926Y-12010 |
