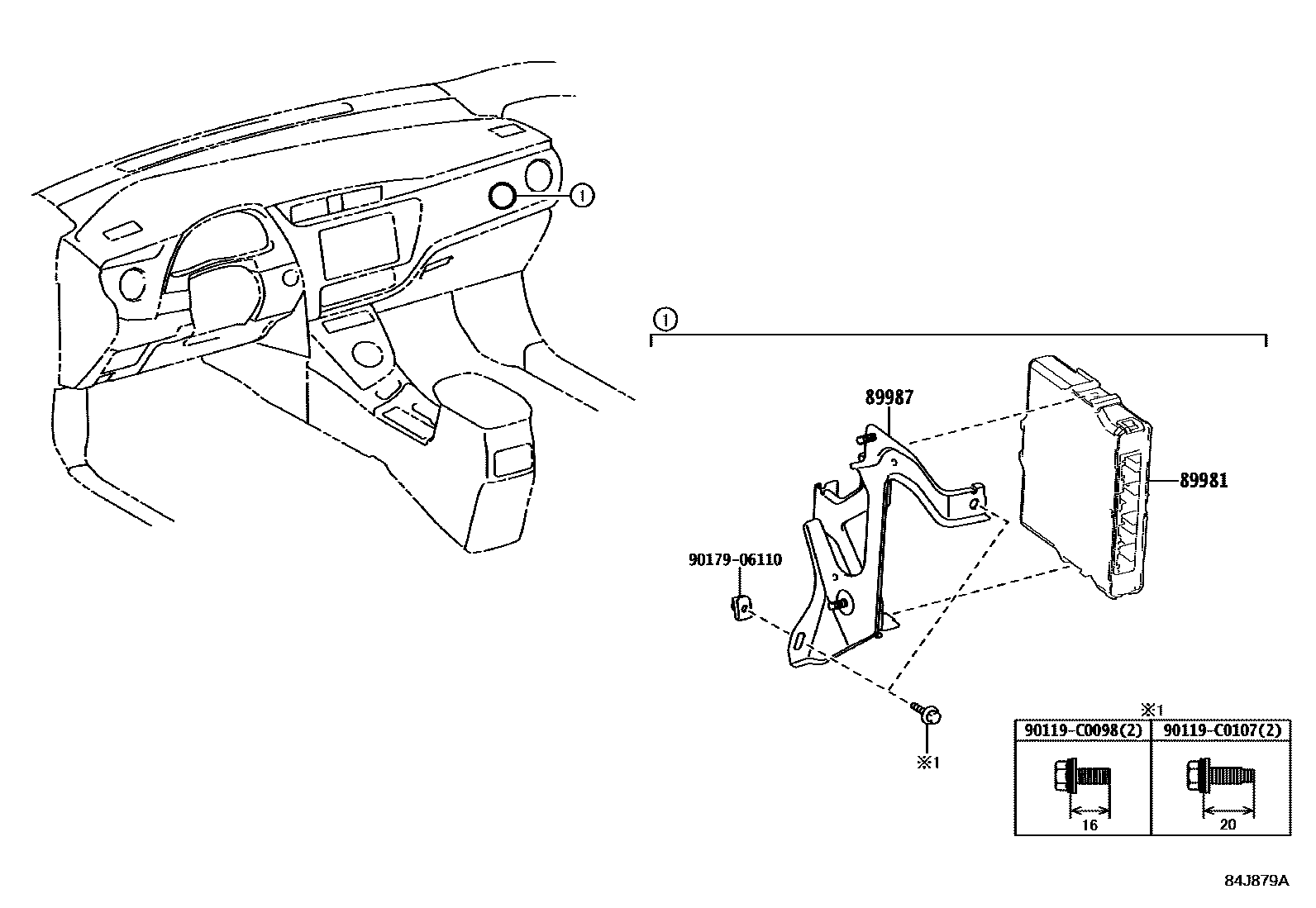

Toyota COROLLA HEV 控制ECU — Figure 8433
Toyota COROLLA EPC diagram 8433, HEV 控制ECU, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89981 | Hybrid vehicle control ECU | 89981-02170 · 89981-02171 · 89981-02250 |
| 89987 | No.1 ECU bracket | 89987-02050 |
