Toyota COROLLA HEV 逆变器 — Figure 8431

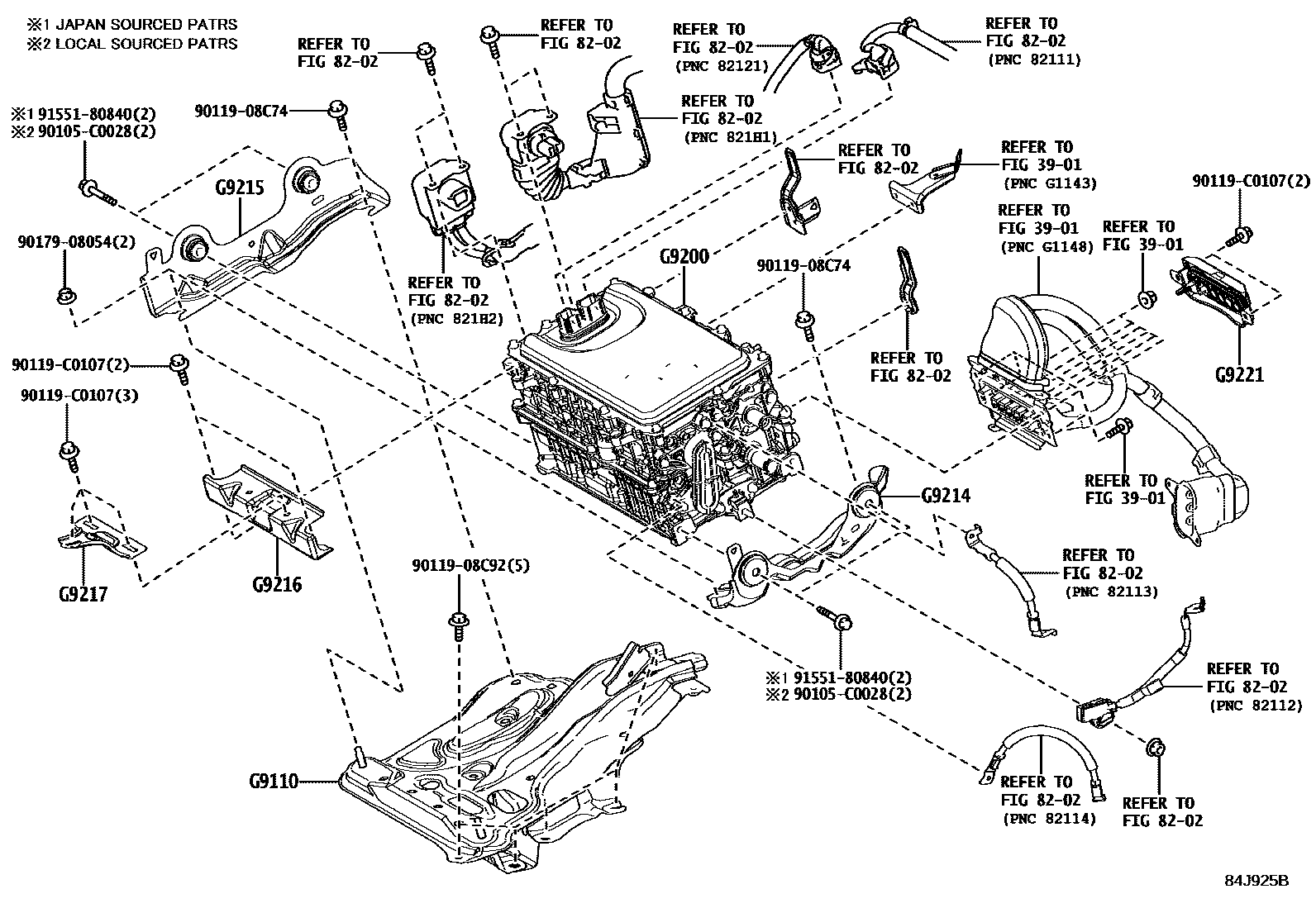

Toyota COROLLA EPC diagram 8431, HEV 逆变器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| G9110 | Inverter bracket assembly | G9110-02010 |
| G9200 | Inverter assembly with converter | G92A0-02020 |
| G9214 | No. 1 inverter bracket | G9214-02040 |
| G9215 | No. 2 inverter bracket | G9215-02030 |
| G9216 | No. 3 inverter bracket | G9216-02030 |
| G9217 | No. 4 inverter bracket | G9217-02031 |
| G9221 | Inverter cover | G9022-02010 |
