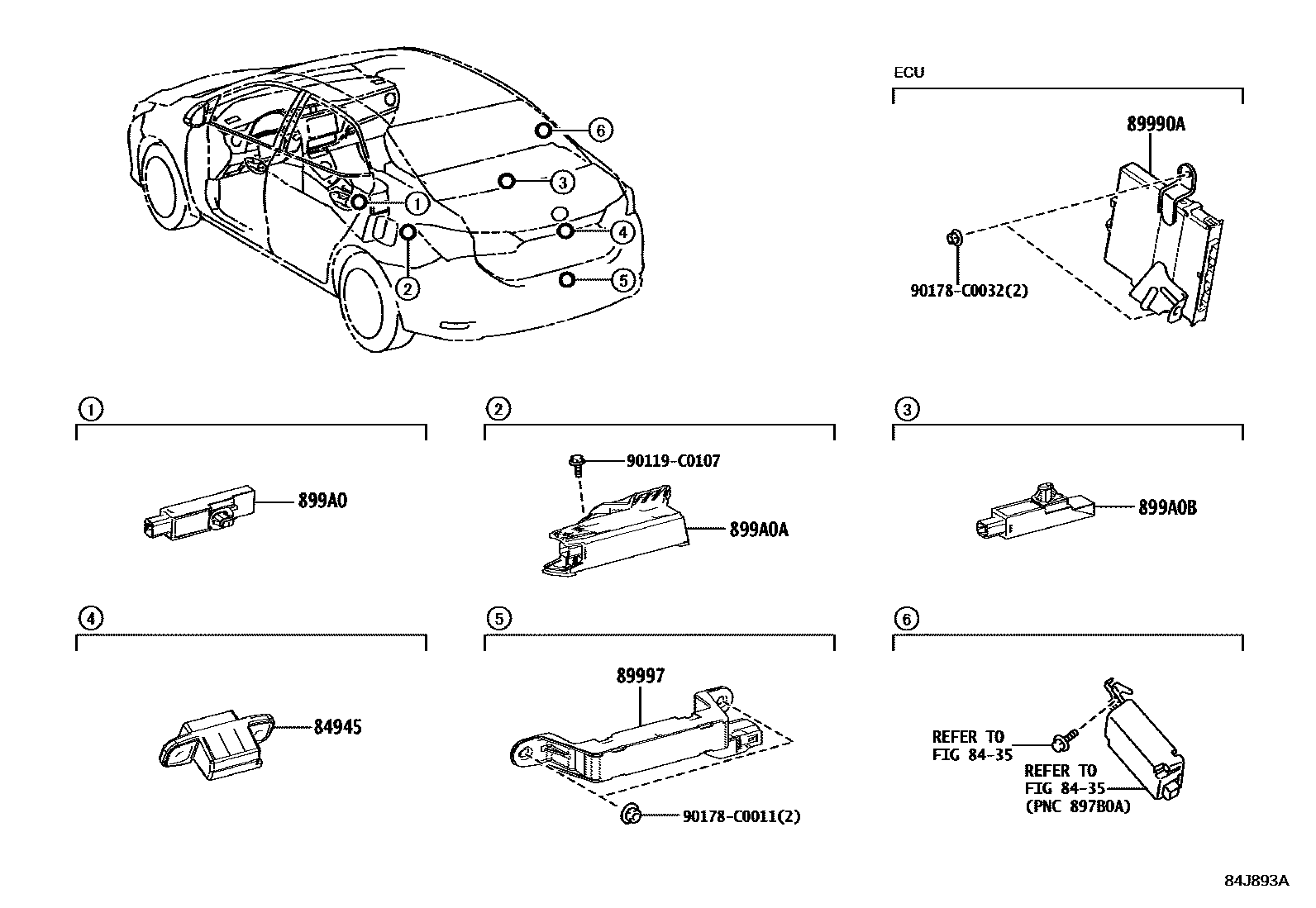

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84945 | Luggage electronic key switch | 84945-02040 |
| 89990A | Smart key ECU assembly | 89990-02650 · 89990-02660 |
| 89997 | electronic key antenna | 89997-02060 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-0D070 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-02130 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-0D070 |
