Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 7 images and 95 PNC and OE references.
PNC and OE references

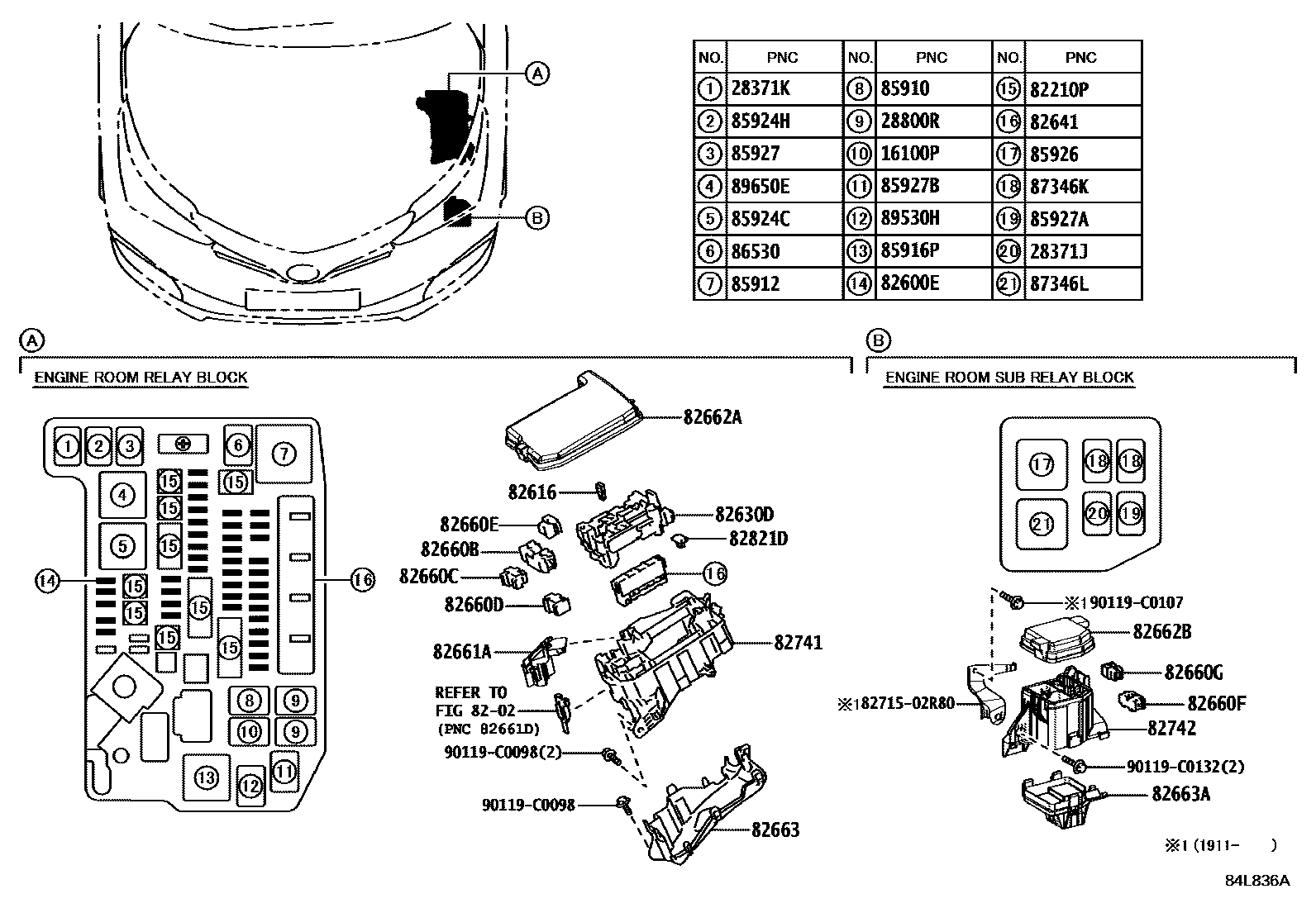

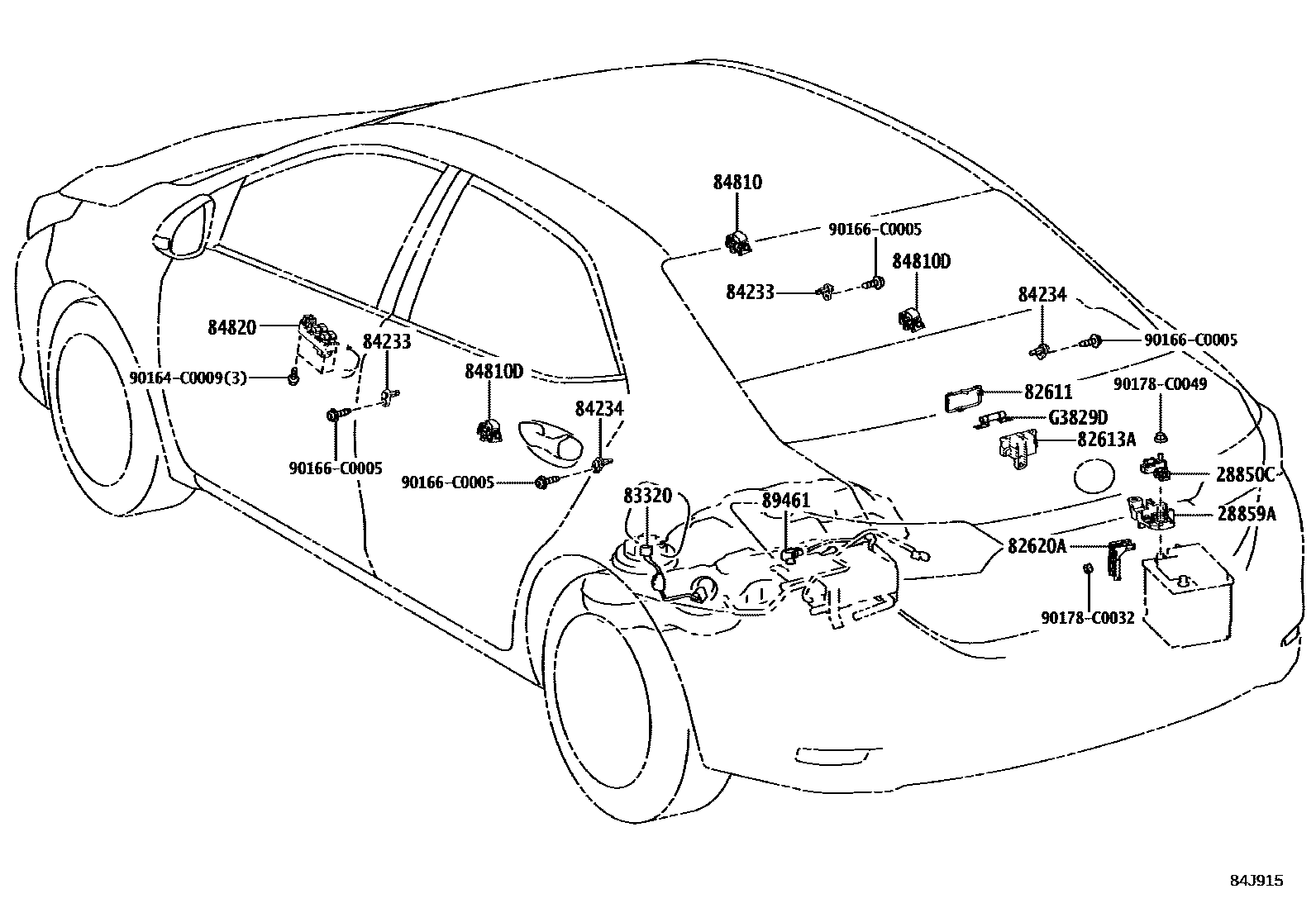

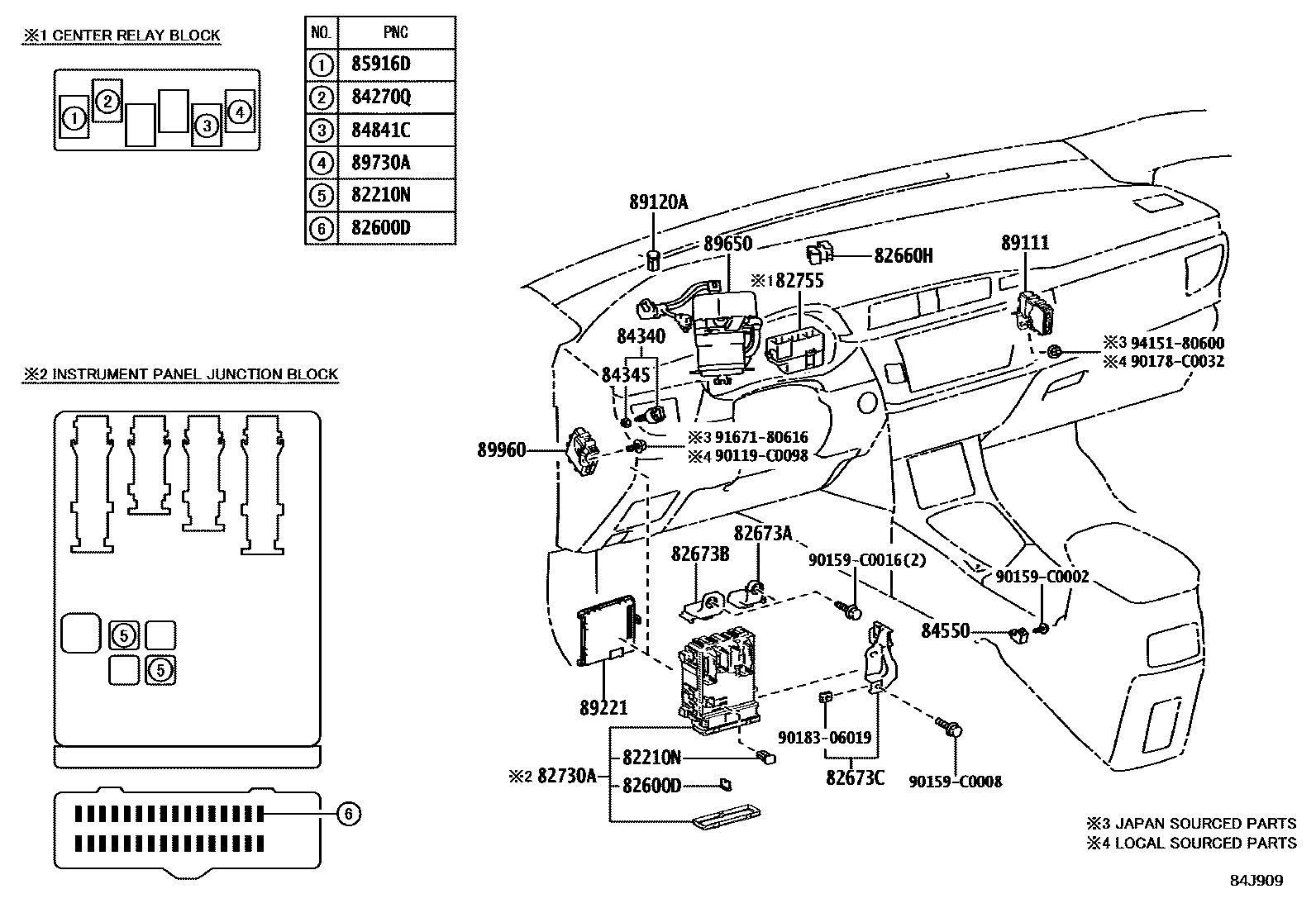

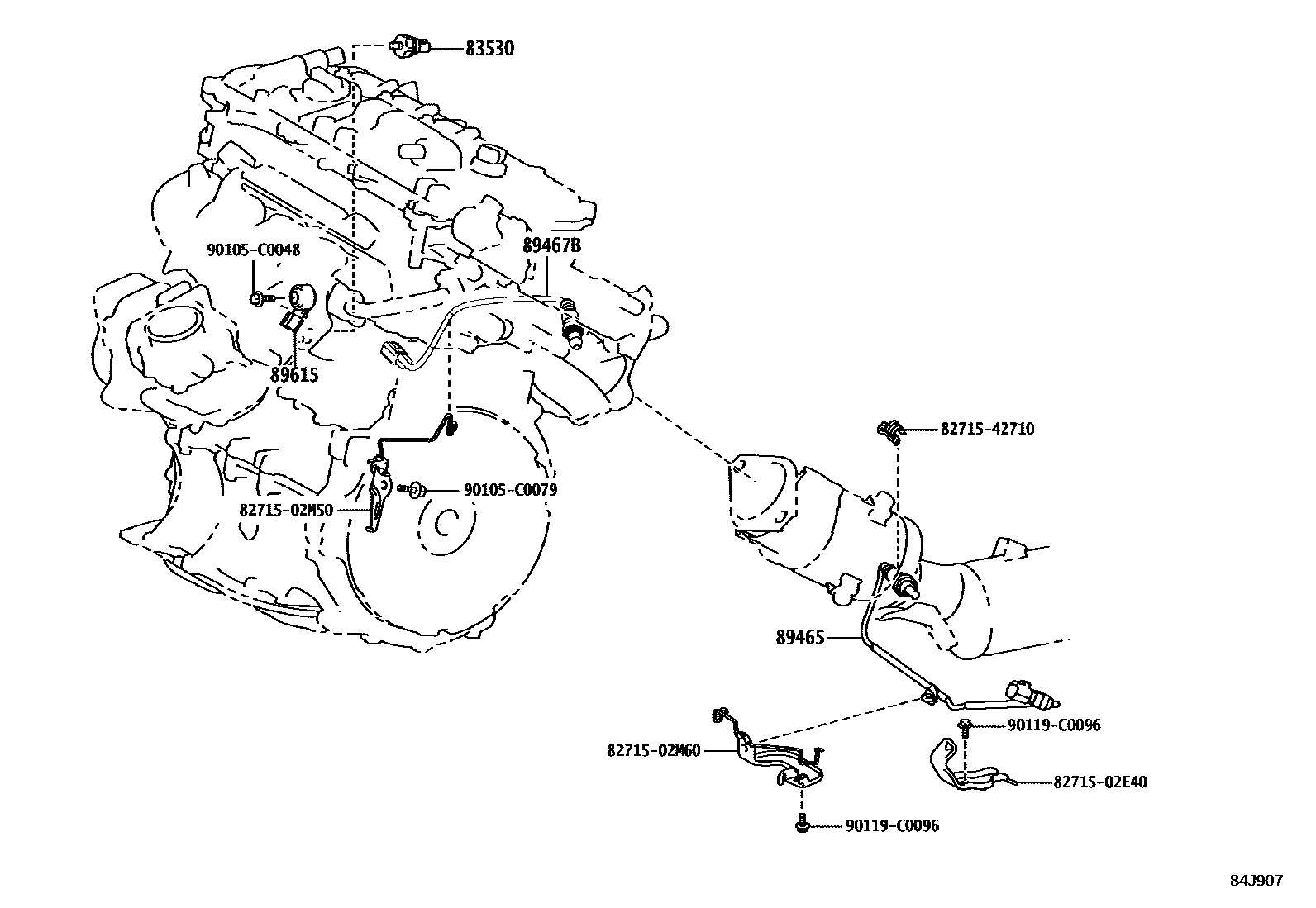

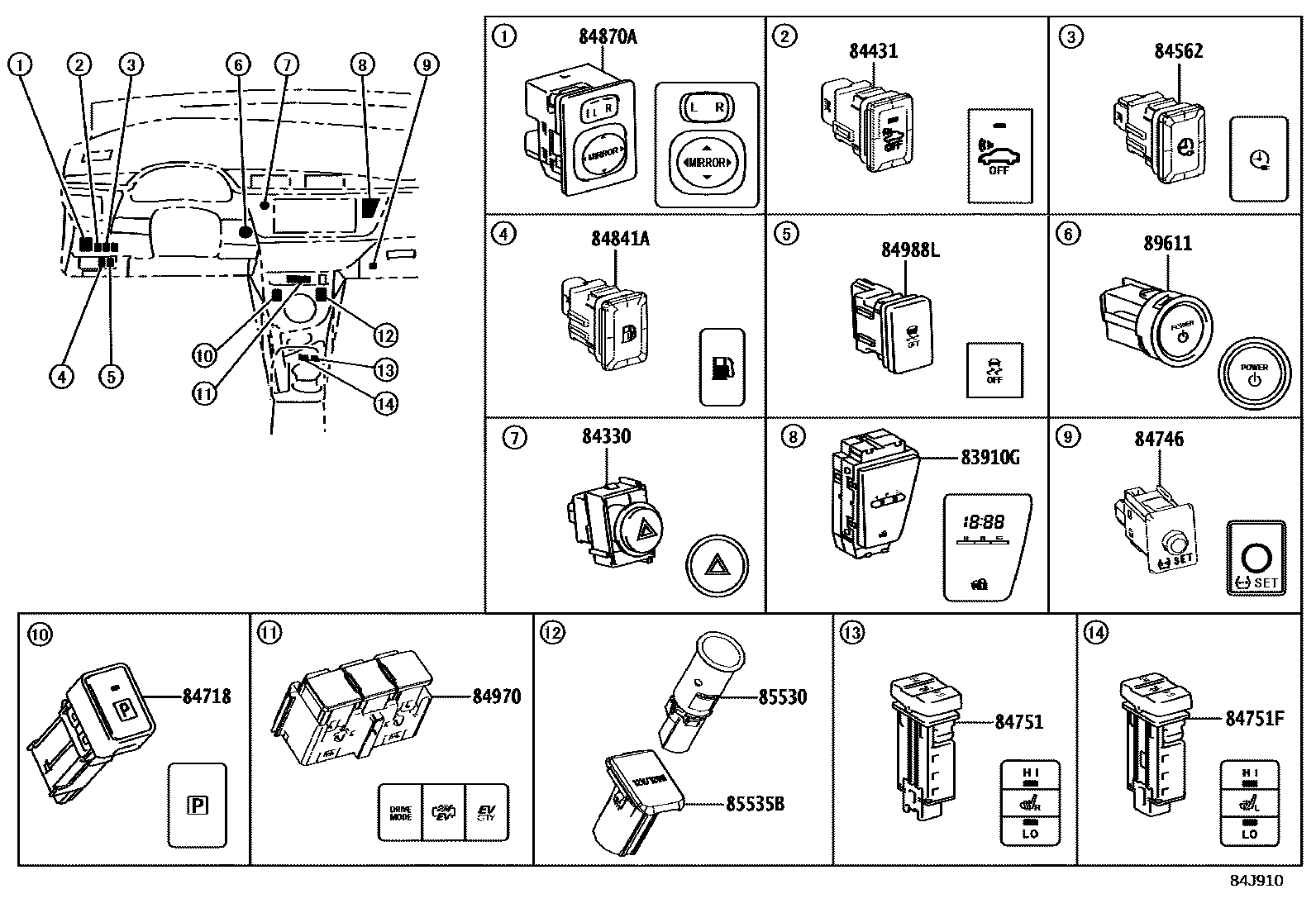

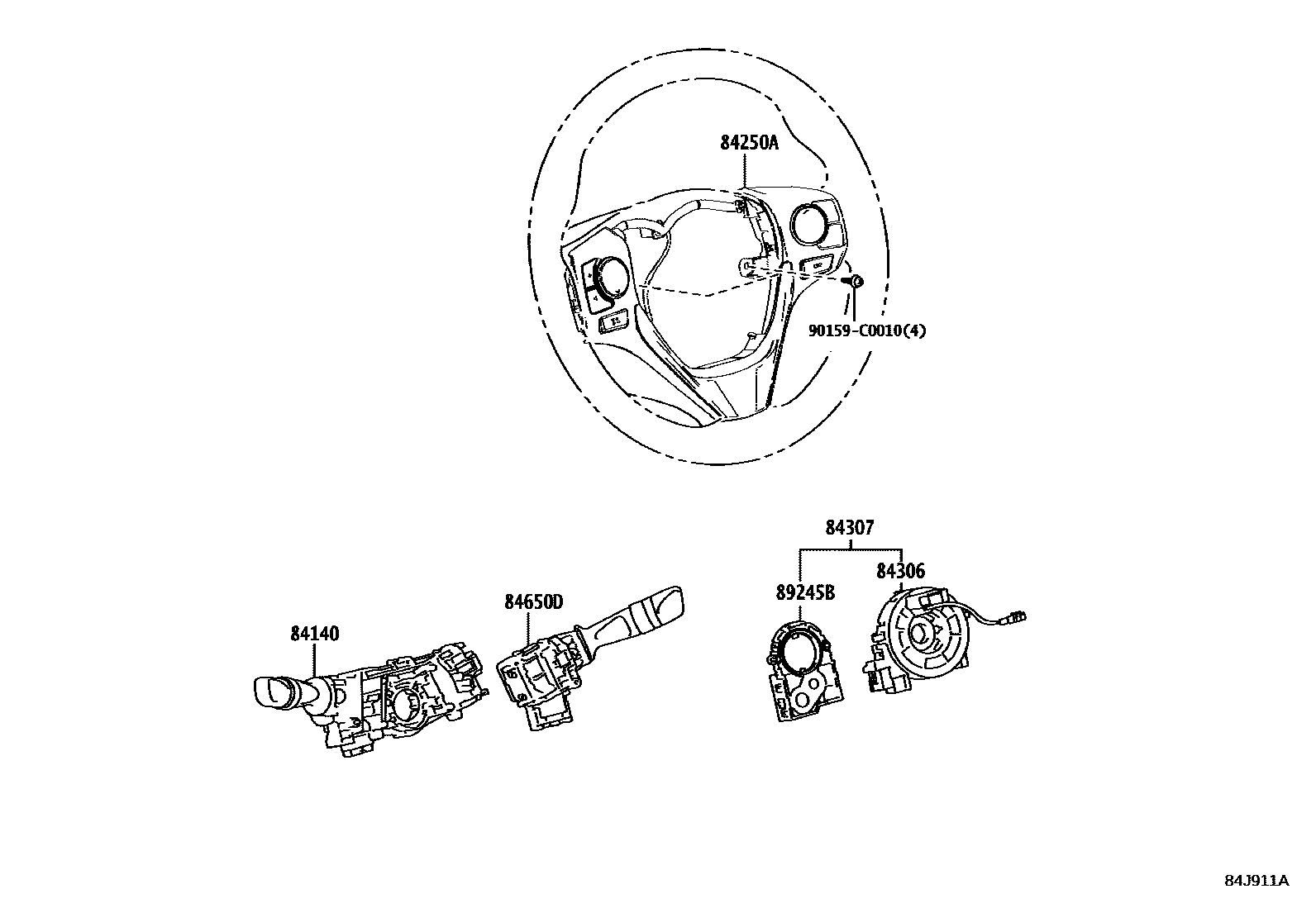

| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90987-02027 · 90987-T2005 |
| 28371J | IGB relay | 90987-02027 · 90987-T2005 |
| 28371K | PC relay | 90987-04004 · 90987-T4001 |
| 28800R | Battery fan relay | 90987-02027 · 90987-T2005 |
| 28850C | Battery status sensor assembly | 28850-F0030 |
| 28859A | Battery current sensor mount | 28859-0T030 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08295 · 90982-08296 · 90982-08297 · 90982-08300 · 90982-08305 · 90982-08308 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82611 | fuse box cover | 82611-02040 |
| 82613A | fuse box base | 82613-02010 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-47070 |
| 82630D | fuse holder | 82631-02110 |
| 82641 | Integrated relay No. 1 | 82641-47020 |
| 82660B | Relay assembly | 82660-08010 |
| 82660C | Relay assembly | 82660-0H070 |
| 82660D | Relay assembly | 82660-26270 |
| 82660E | Relay assembly | 82660-42030 |
| 82660F | Relay assembly | 82660-60120 |
| 82660G | Relay assembly | 82660-75010 |
| 82660H | Relay assembly | 82660-52010 |
| 82661A | No. 2 relay box cover | 82661-02080 |
| 82662A | No. 1 relay box upper cover | 82662-02E00 |
| 82662B | No. 2 relay box upper cover | 82662-02E10 |
| 82663 | Relay box lower cover | 82663-02080 |
| 82663A | No. 2 relay box lower cover | 82663-02110 |
| 82673A | Junction box bracket | 82673-02170 |
| 82673B | Junction box bracket | 82673-02180 |
| 82673C | Junction box bracket | 82673-02190 |
| 82730A | Driver's side junction box assembly | 82730-0Z100 |
| 82741 | Engine room relay box | 82741-02080 |
| 82742 | Engine room No. 2 relay box | 82741-02110 |
| 82755 | central relay box | 82755-02060 |
| 82821D | Connector cover | 82821-47090 |
| 83320 | Fuel gauge sensor assembly | 83320-02330 · 83320-02331 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-12060 |
| 83910G | clock assembly | 83910-02300 |
| 84140 | Headlight dimmer switch assembly | 84140-02C50 · 84140-F4230 |
| 84233 | Door control light switch assembly (for front door) | 84231-0R010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-0R010 |
| 84270Q | headlight relay | 90987-T2005 |
| 84306 | Spiral cable sub-assembly | 84308-02020 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-02300 |
| 84330 | Hazard warning signal switch assembly | 84332-02380 |
| 84340 | brake light switch assembly | 84340-09240 |
| 84345 | Brake light switch base adjuster | 84345-0R010 |
| 84431 | vehicle intrusion speaker switch | 84431-02010 |
| 84550 | Parking brake switch assembly | 84550-02050 · 84550-33010 |
| 84562 | fuel control switch | 84562-02010 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-02860 |
| 84718 | Transmission shift master switch | 84718-02040 |
| 84746 | tire pressure warning switch | 84746-0N010 |
| 84751 | Seat heater switch | 84751-0R042 |
| 84751F | Seat heater switch | 84751-0R052 |
| 84810 | Electric window lift switch assembly | 84810-0D080 |
| 84810D | Rear electric window lift switch assembly | 84810-0D080 |
| 84820 | Electric window lift main switch assembly | 84820-0R050 |
| 84841A | Fuel filler cap opener switch | 84841-02030 |
| 84841C | Fuel filler cap opener relay | 90987-02027 · 90987-T2005 |
| 84870A | Exterior rearview mirror switch assembly | 84870-02220 |

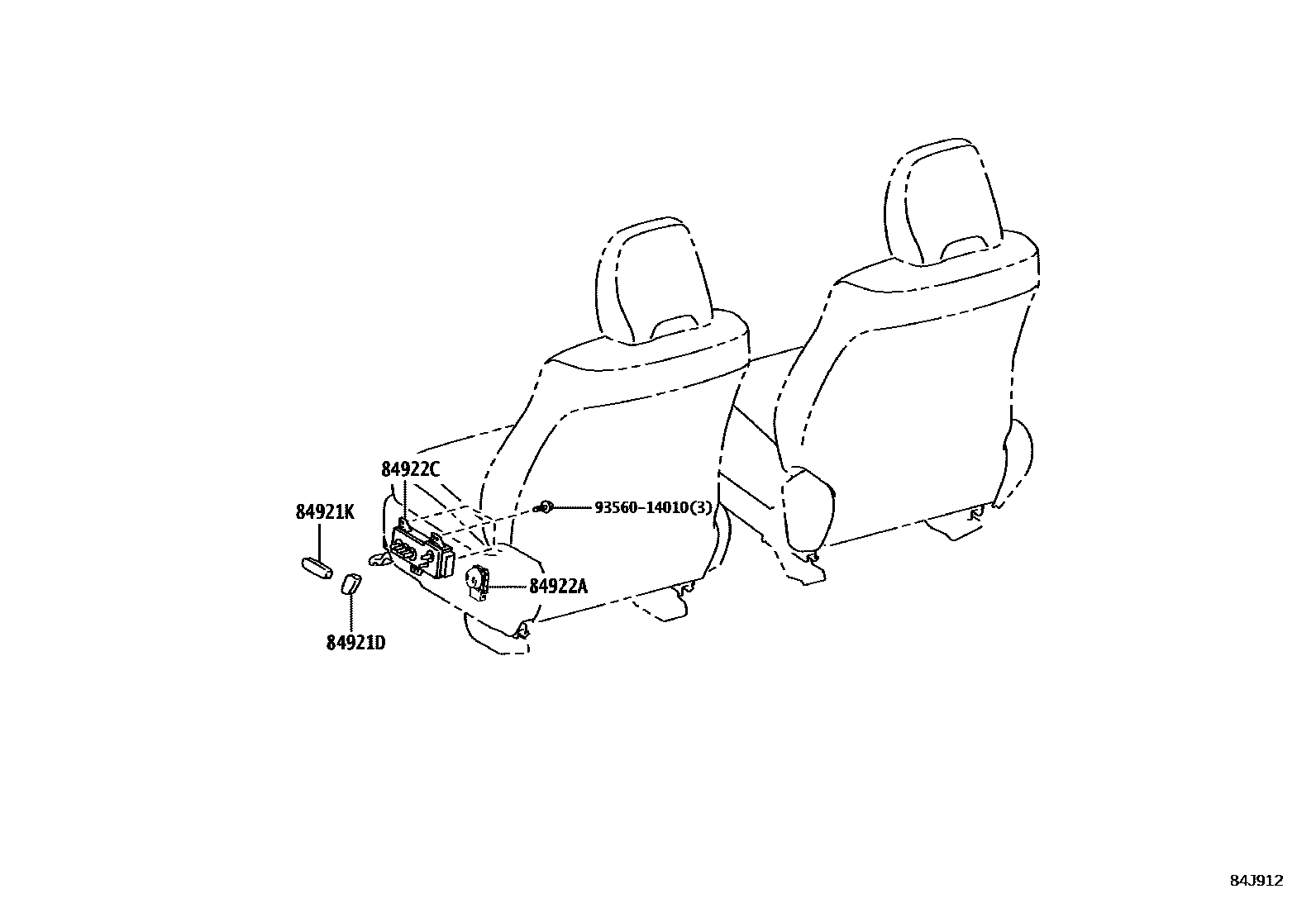

| 84922C | Front left electric seat switch | 84922-02070 |
| 84970 | Combination switch assembly | 84970-02270 |
| 84988L | VSC off switch | 84988-0R091 |
| 85530 | No. 1 power socket assembly | 85530-07020 · 85530-0N010 |
| 85535B | No. 1 power outlet cover | 85535-02060 · 85535-02100 |
| 85910 | Circuit breaking relay assembly | 90987-02027 · 90987-T2005 |
| 85912 | defogger relay | 90987-T4002 |
| 85916D | fog light relay | 90987-T2005 |
| 85916P | headlight relay | 90987-T2004 |
| 85924C | IGCT relay | 90987-02025 · 90987-T2004 |
| 85924H | IGCT-SCENE relay | 90987-02027 · 90987-T2005 |
| 85926 | Headlight dimmer relay | 90987-T2004 |
| 85927 | cooling fan relay | 90987-T4001 |
| 85927A | Cooling fan relay No. 2 | 90987-T4001 |
| 85927B | Cooling fan relay No. 3 | 90987-T2005 |
| 86530 | Speaker relay assembly | 90987-T2005 |
| 87346K | PTC heater relay | 90987-T2005 |
| 87346L | PTC heater relay | 90987-T2004 |
| 89111 | Network gateway ECU | 89100-02100 · 89100-02101 · 89100-02102 · 89100-02103 |
| 89120A | Automatic light control sensor | 89121-0F030 |
| 89221 | Multi-channel network body ECU | 89220-02M80 · 89220-02M90 |
| 89245B | steering sensor | 8924B-0N010 |
| 89461 | steam pressure sensor | 89461-48020 |
| 89465 | oxygen sensor | 89465-02440 |
| 89467B | air fuel ratio sensor | 89467-0R070 |
| 89530H | Transaxle parking lock control relay | 90987-02027 · 90987-T2005 |
| 89611 | One-button start switch | 89611-02152 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-12G50 |
| 89650E | electric steering relay | 90987-T2004 |
| 89730A | Relay (for safety warnings) | 90987-T2005 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-12770 |
| G3829D | Electric vehicle fuse | G3829-48010 |
