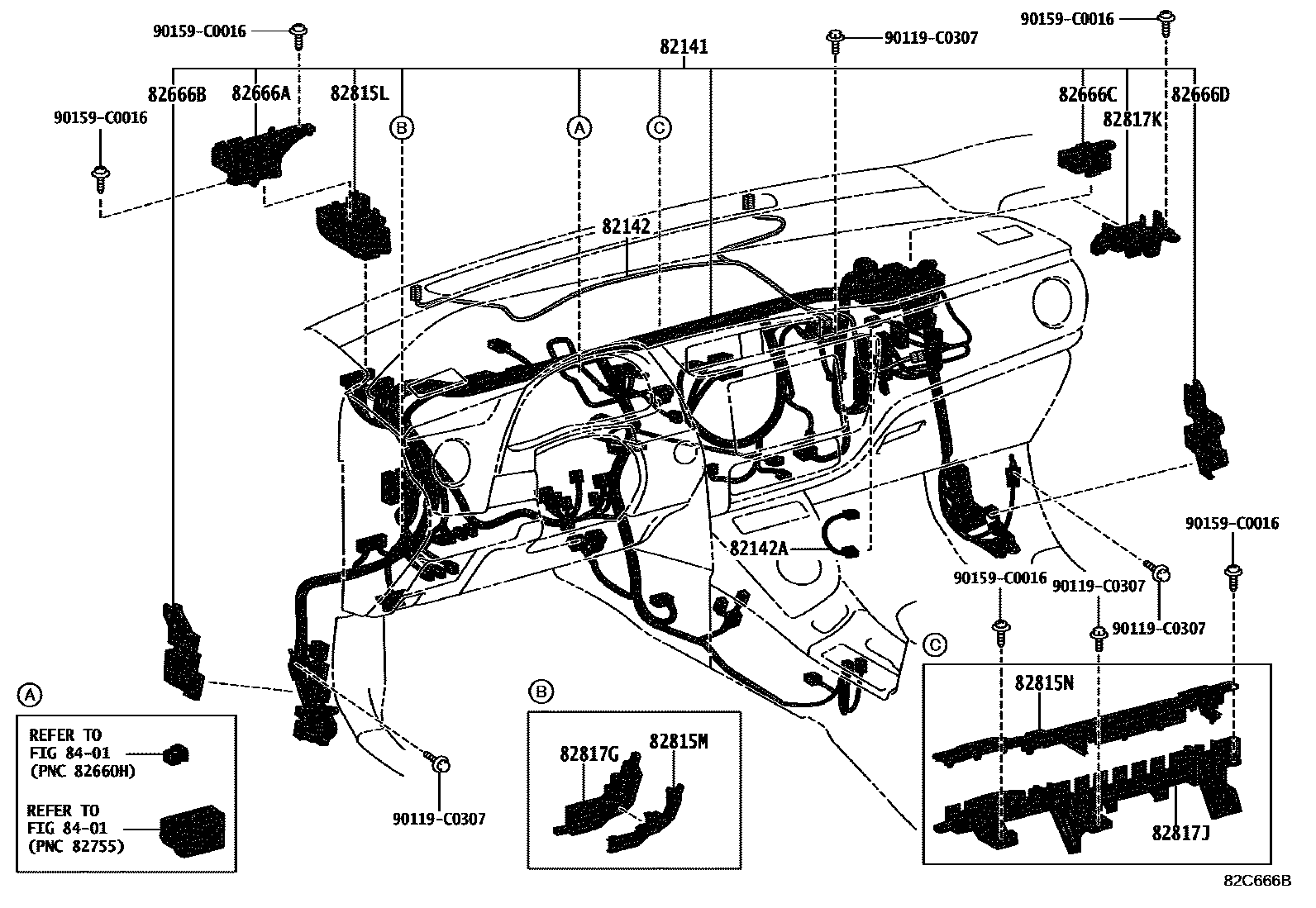

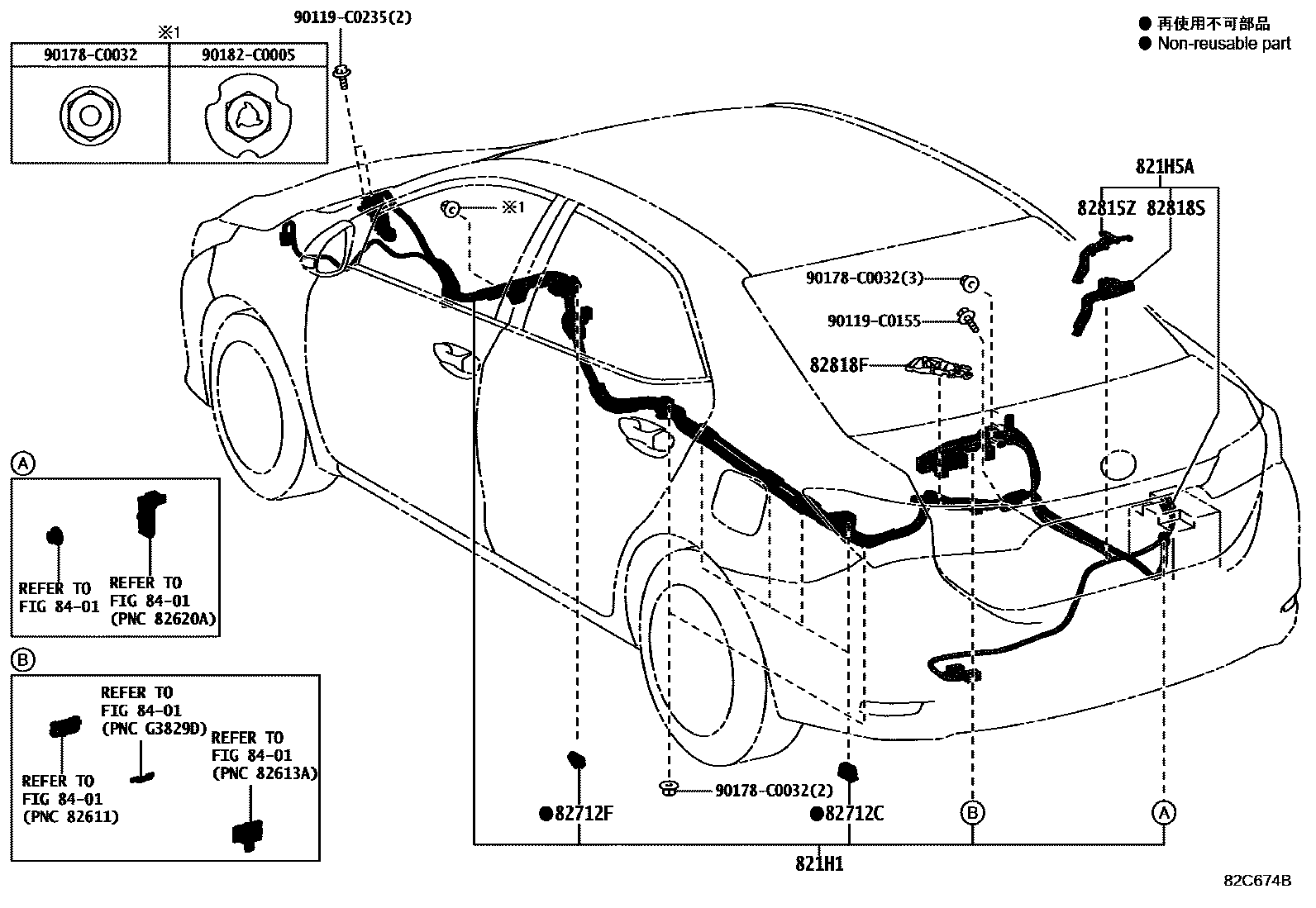

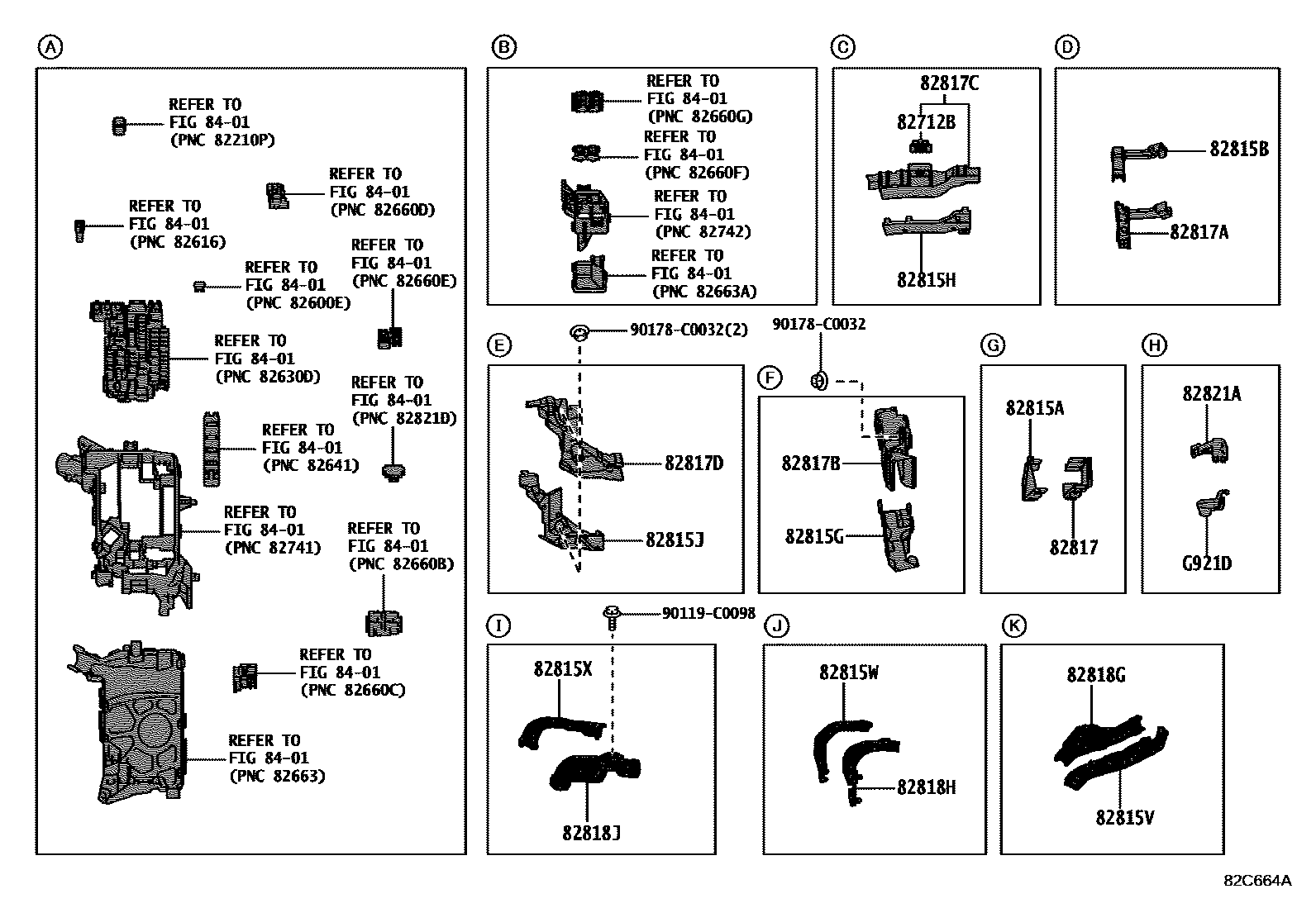

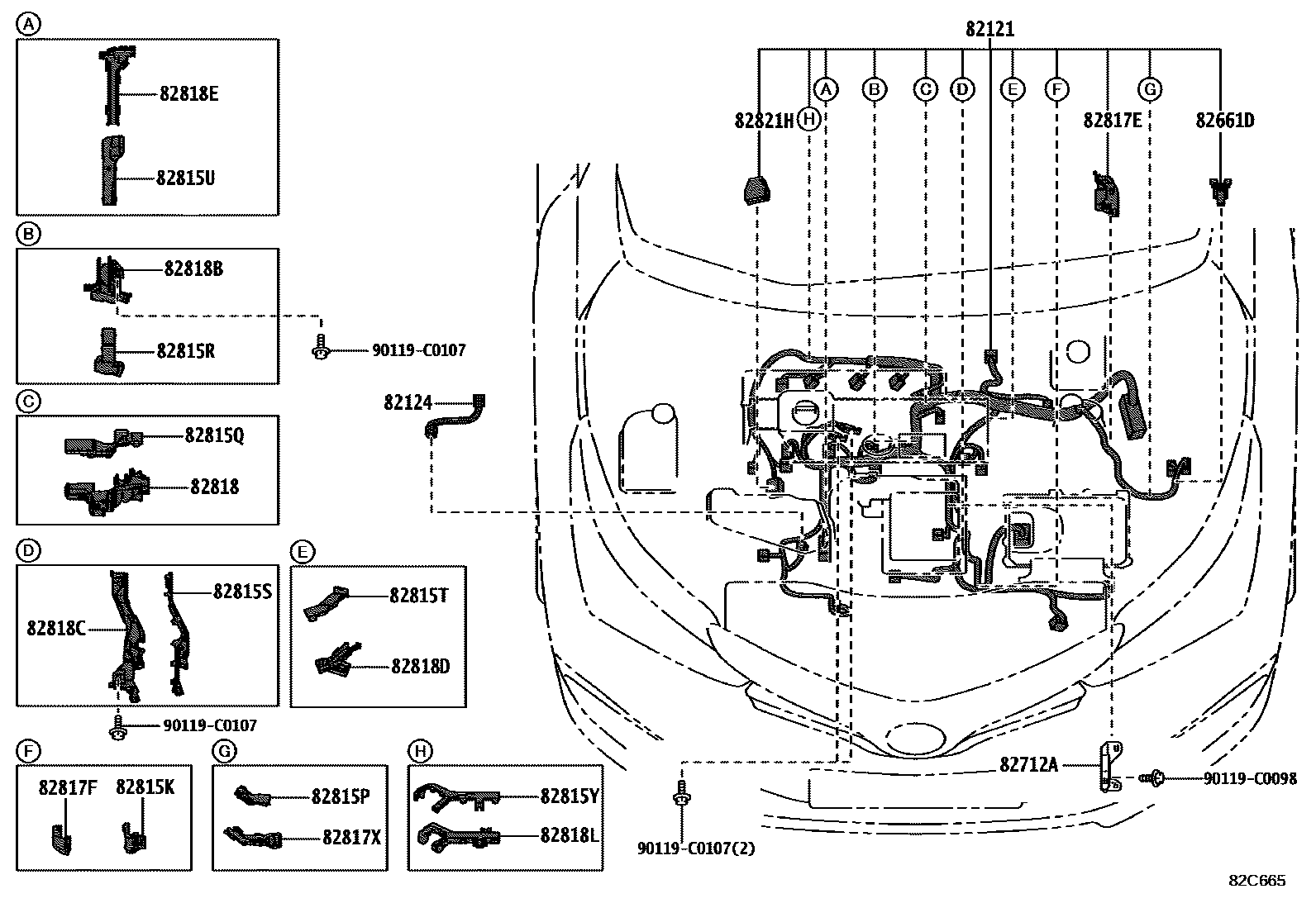

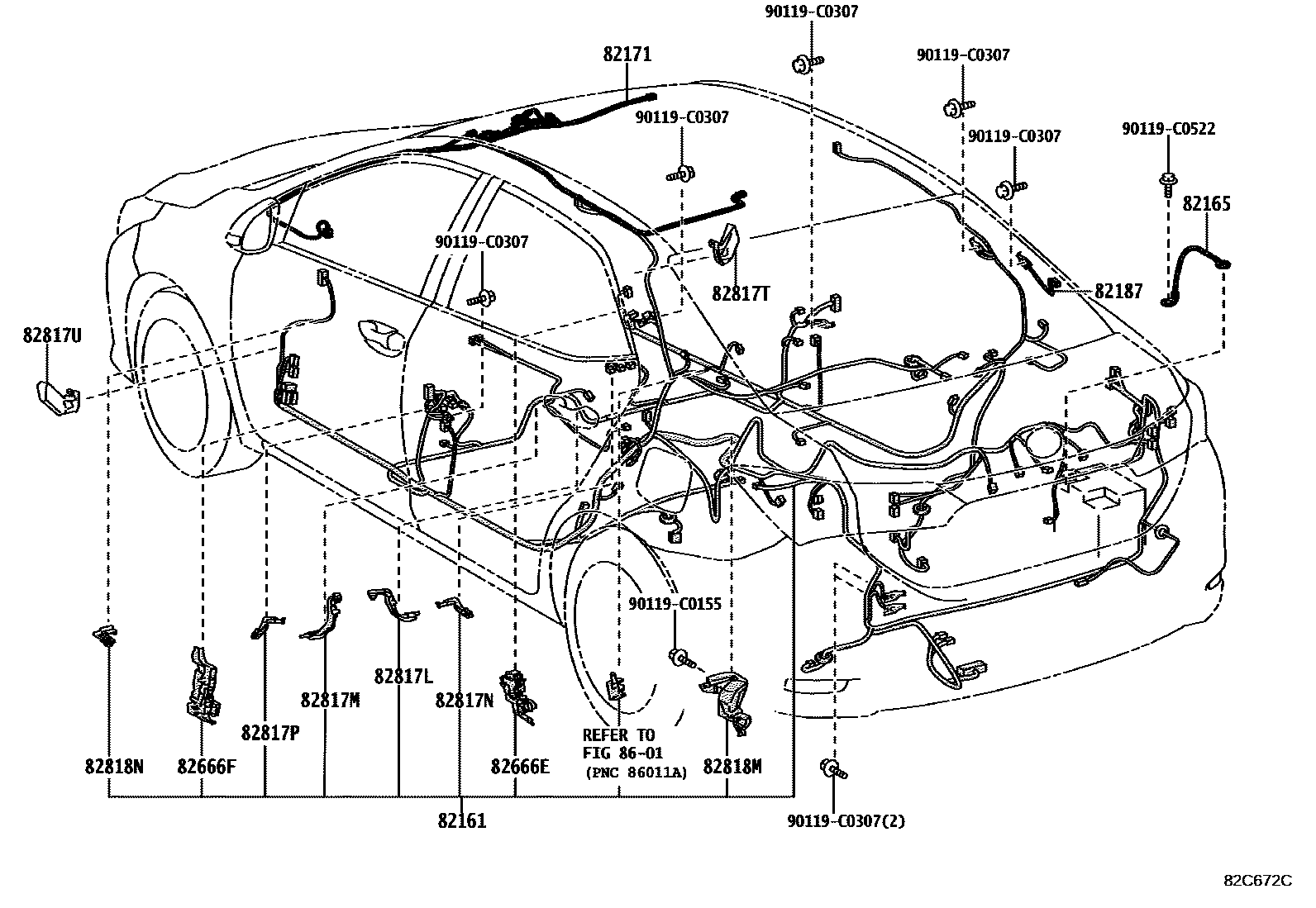

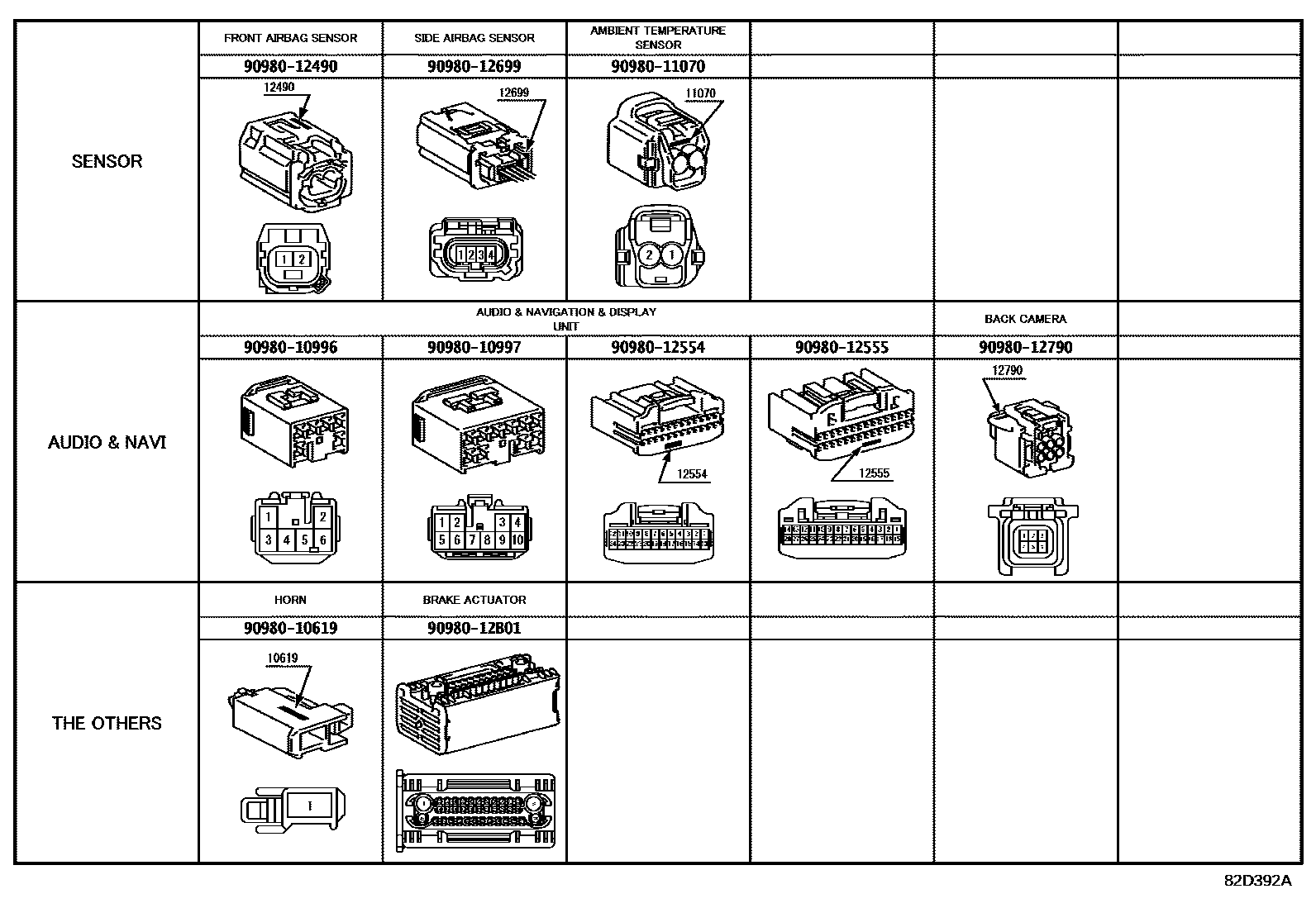

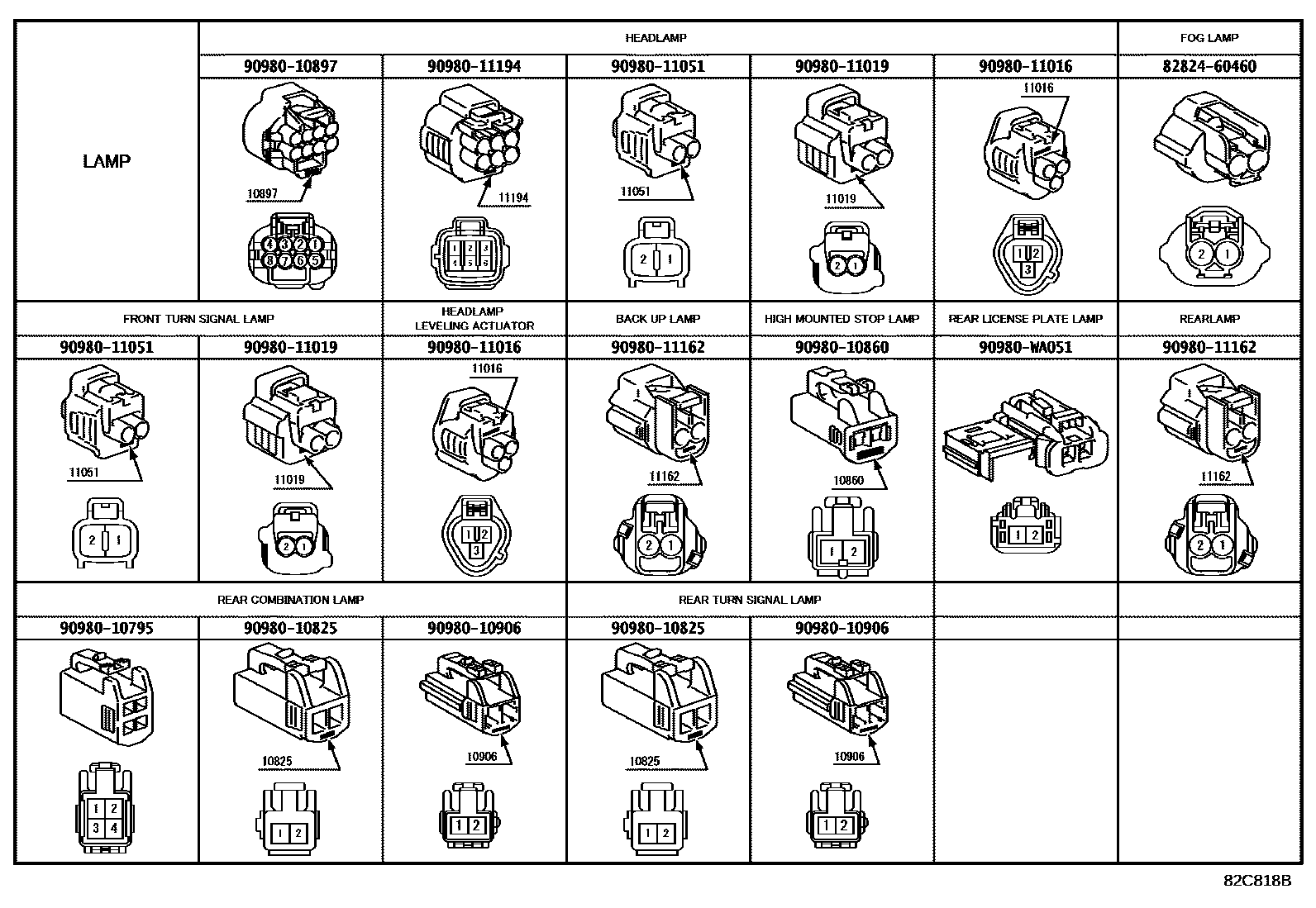

Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 11 images and 91 PNC and OE references.
PNC and OE references

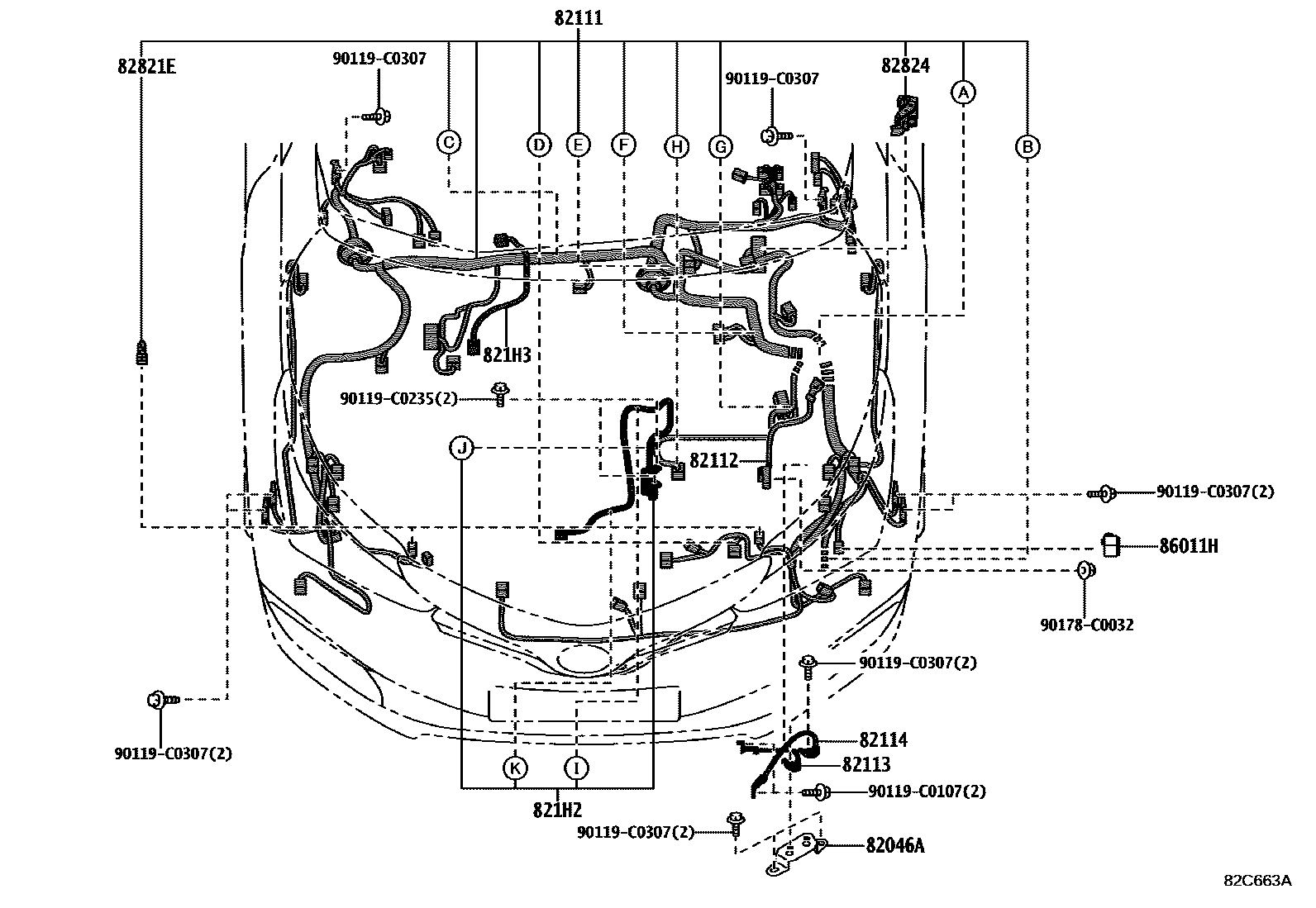

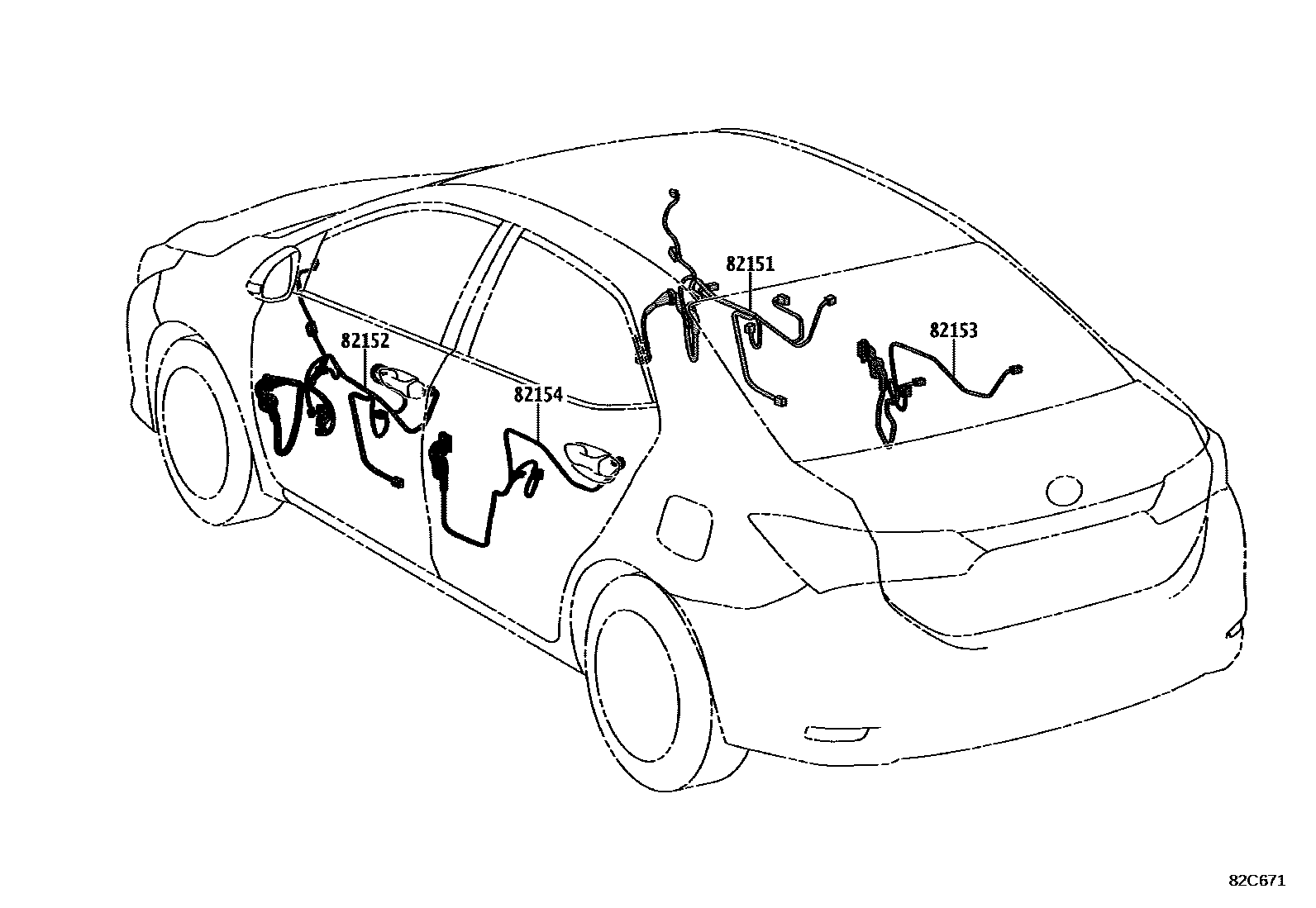

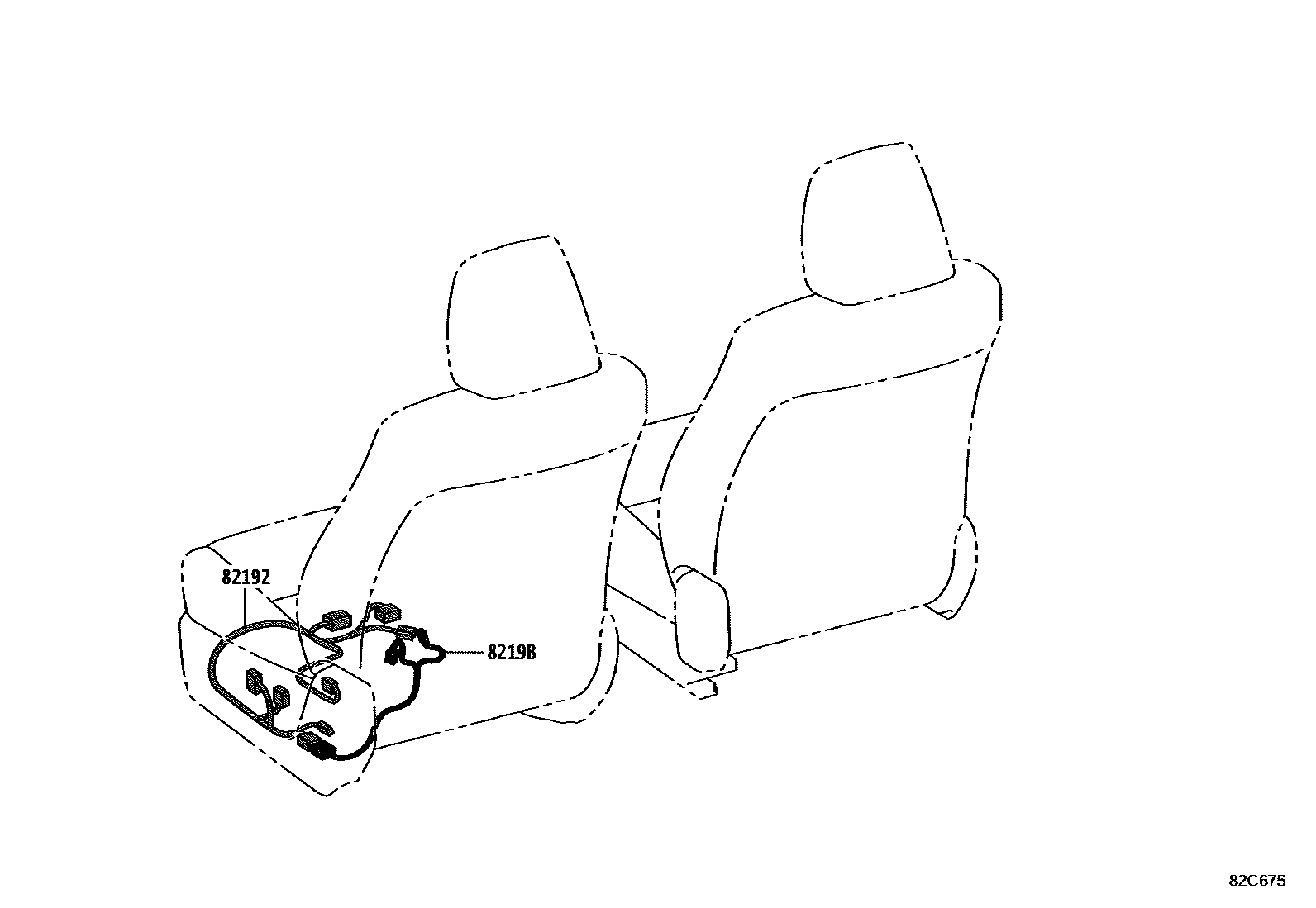

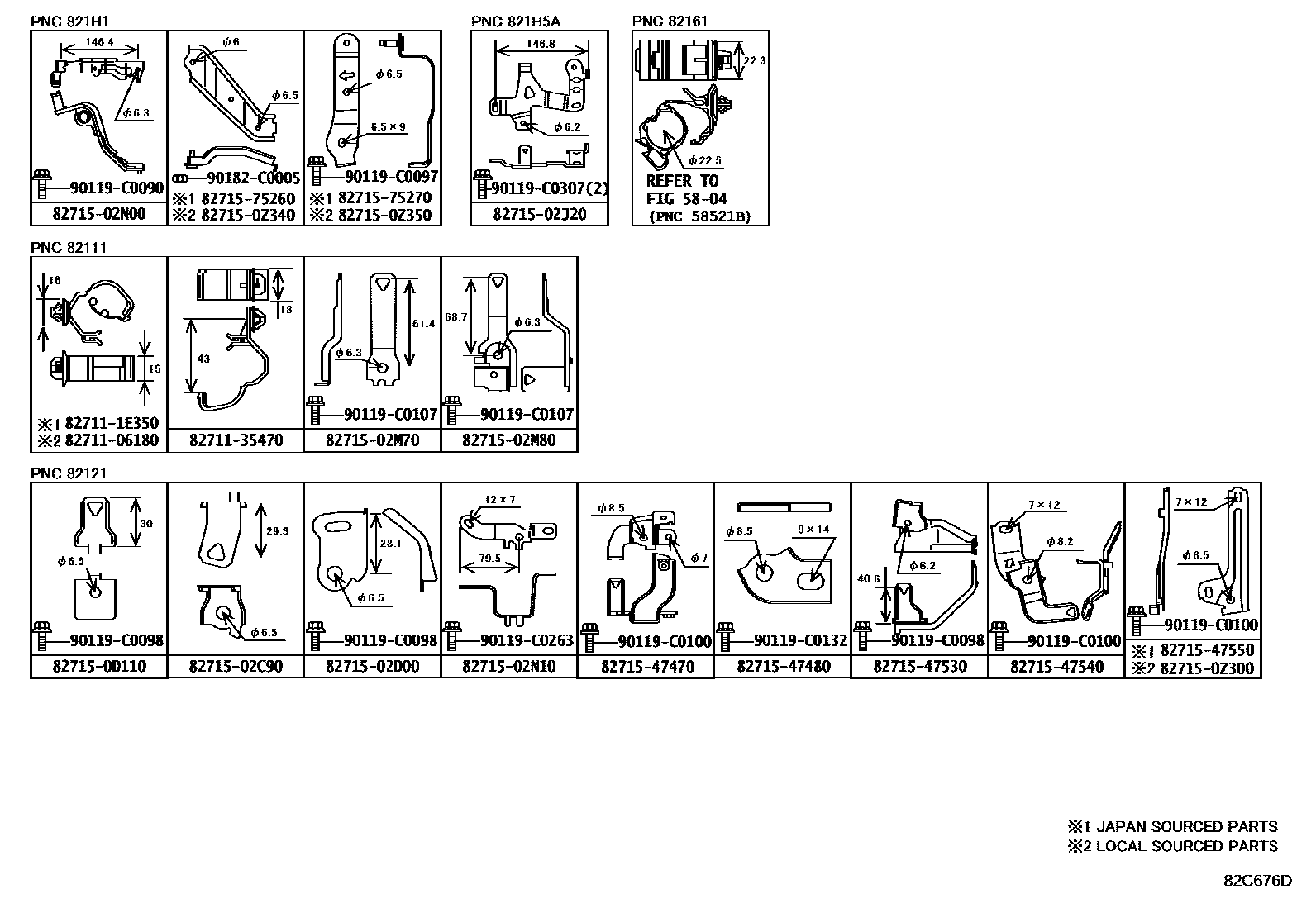

| PNC | Part name | OE numbers |
|---|---|---|
| 82046A | Body No. 1 ground wire sub-assembly | 82046-02010 |
| 82111 | Engine room main wiring harness | 82115-F2080 · 82115-F2081 · 82115-F2090 · 82115-F2091 |
| 82112 | Engine room wiring harness No. 2 | 82112-02050 |
| 82113 | Engine room wiring harness No. 3 | 82113-02040 |
| 82114 | Engine room wiring harness No. 4 | 82114-02030 |
| 82121 | Engine wiring harness | 82121-0ZQ90 |
| 82124 | Engine No. 4 wiring harness | 82124-02100 |
| 82141 | Dashboard wiring harness | 82145-F2050 · 82145-F2051 · 82145-F2060 · 82145-F2061 · 82145-F2070 · 82145-F2071 · 82145-F2080 · 82145-F2081 · 82145-F2B70 · 82145-F2B71 · 82145-F2P80 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-02E00 · 82142-02E10 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-02480 |
| 82151 | Right front door wiring harness | 82151-02Z20 · 82151-0ZD90 · 82197-02530 |
| 82152 | Left front door wiring harness | 82152-02Y40 · 82152-0ZC90 · 82198-02300 |
| 82153 | Rear door wiring harness No. 1 | 82153-02C90 |
| 82154 | Rear door wiring harness No. 2 | 82154-02B20 |
| 82161 | floor wiring harness | 82161-F2S00 · 82161-F2S10 · 82161-F2S20 · 82161-F2S30 |
| 82165 | No. 2 frame wiring harness | 82165-02130 |
| 82171 | Roof No. 1 wiring harness | 82171-02T80 · 82171-0Z860 · 82171-0Z870 |
| 82187 | Rear window wiring harness No. 2 | 82187-02270 |
| 82192 | Front left seat wiring harness | 82192-02090 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-02030 |
| 821H1 | Underfloor wiring harness | 821H1-02110 |
| 821H2 | HV air conditioner wiring harness | 821H2-02110 |
| 821H3 | HV battery pack wiring harness | 821H3-02030 |
| 821H5A | HV battery charger wiring harness | 821H5-02010 |
| 82661D | No. 1 relay box side cover | 82661-02060 |
| 82666A | Connector holder No. 2 | 82666-02570 |
| 82666B | No. 3 connector holder | 82666-02580 |
| 82666C | No. 4 connector holder | 82666-02590 |
| 82666D | No. 5 connector holder | 82666-02600 |
| 82666E | No. 6 connector holder | 82666-02610 |
| 82666F | No. 7 connector holder | 82666-02620 |
| 82712A | Wire harness bracket | 82712-47340 |
| 82712B | Wire harness bracket | 82712-47270 |
| 82712C | No. 1 wiring harness bracket | 82712-47270 |
| 82712F | Wire harness bracket | 82712-33190 |
| 82815A | Wiring harness protector cover | 82815-47390 |
| 82815B | Wiring harness protector cover | 82815-47560 |
| 82815G | No. 5 wire harness protector cover | 82815-47600 |
| 82815H | No. 6 wire harness protector cover | 82815-47620 |
| 82815J | No. 7 wire harness protector cover | 82815-75050 |
| 82815K | No. 8 wire harness protector cover | 82815-02610 |
| 82815L | No. 9 wire harness protector cover | 82815-02550 |
| 82815M | No. 10 wire harness protector cover | 82815-02560 |
| 82815N | No. 11 wire harness protector cover | 82815-02570 |
| 82815P | No. 12 wire harness protector cover | 82815-02620 |
| 82815Q | No. 13 wire harness protector cover | 82815-47480 |
| 82815R | No. 14 wire harness protector cover | 82815-47490 |
| 82815S | No. 15 wire harness protector cover | 82815-47510 |
| 82815T | No. 16 wire harness protector cover | 82815-47520 |
| 82815U | No. 17 wire harness protector cover | 82815-47541 |
| 82815V | No. 1 wire harness protector cover | 82815-02410 |
| 82815W | No. 2 wire harness protector cover | 82815-02630 |
| 82815X | No. 3 wire harness protector cover | 82815-47470 |
| 82815Y | No. 4 wire harness protector cover | 82815-02B50 |
| 82815Z | No. 18 wire harness protector cover | 82815-02J80 |
| 82817 | No. 1 wire harness protection device | 82817-47620 |
| 82817A | No. 2 wire harness protection device | 82817-47800 |
| 82817B | No. 3 wire harness protection device | 82817-47850 |
| 82817C | No. 4 wire harness protection device | 82817-47870 |
| 82817D | No. 5 wire harness protection device | 82817-75140 |
| 82817E | No. 6 wire harness protection device | 82817-02K30 |
| 82817F | No. 7 wire harness protection device | 82817-02K40 |
| 82817G | No. 8 wire harness protection device | 82817-02G20 |
| 82817J | No. 9 wire harness protection device | 82817-02G30 |
| 82817K | No. 10 wire harness protection device | 82817-02G40 |
| 82817L | No. 11 wire harness protection device | 82817-02G70 |
| 82817M | No. 12 wire harness protection device | 82817-02G80 |
| 82817N | No. 13 wire harness protection device | 82817-02J40 |
| 82817P | No. 14 wire harness protection device | 82817-02J20 |
| 82817T | No. 15 wire harness protection device | 82817-02F30 |
| 82817U | No. 16 wire harness protection device | 82817-02F40 |
| 82817X | No. 17 wire harness protection device | 82817-02K50 |
| 82818 | No. 2 wire harness protection device | 82817-47720 |
| 82818B | No. 3 wire harness protection device | 82817-47730 |
| 82818C | No. 4 wire harness protection device | 82817-47750 |
| 82818D | No. 5 wire harness protection device | 82817-47760 |
| 82818E | No. 6 wire harness protection device | 82817-47781 |
| 82818F | No. 7 wire harness protection device | 82817-02P30 |
| 82818G | No. 8 wire harness protection device | 82817-02D40 |
| 82818H | No. 9 wire harness protection device | 82817-02K60 |
| 82818J | No. 10 wire harness protection device | 82817-47700 |
| 82818L | No. 12 wire harness protection device | 82817-02Q10 |
| 82818M | No. 13 wire harness protection device | 82817-02P40 |
| 82818N | No. 14 wire harness protection device | 82817-02T90 |
| 82818S | No. 15 wire harness protection device | 82817-02U10 |
| 82821A | Connector cover | 82821-47430 |
| 82821E | Connector cover | 82821-42040 |
| 82821H | Connector cover | 82821-20410 |
| 82824 | Harness connector | 90980-12E30 |
| 86011H | Noise filter | 90980-05383 |
| G921D | Inverter Connector Cover Protector | G921D-47010 |
