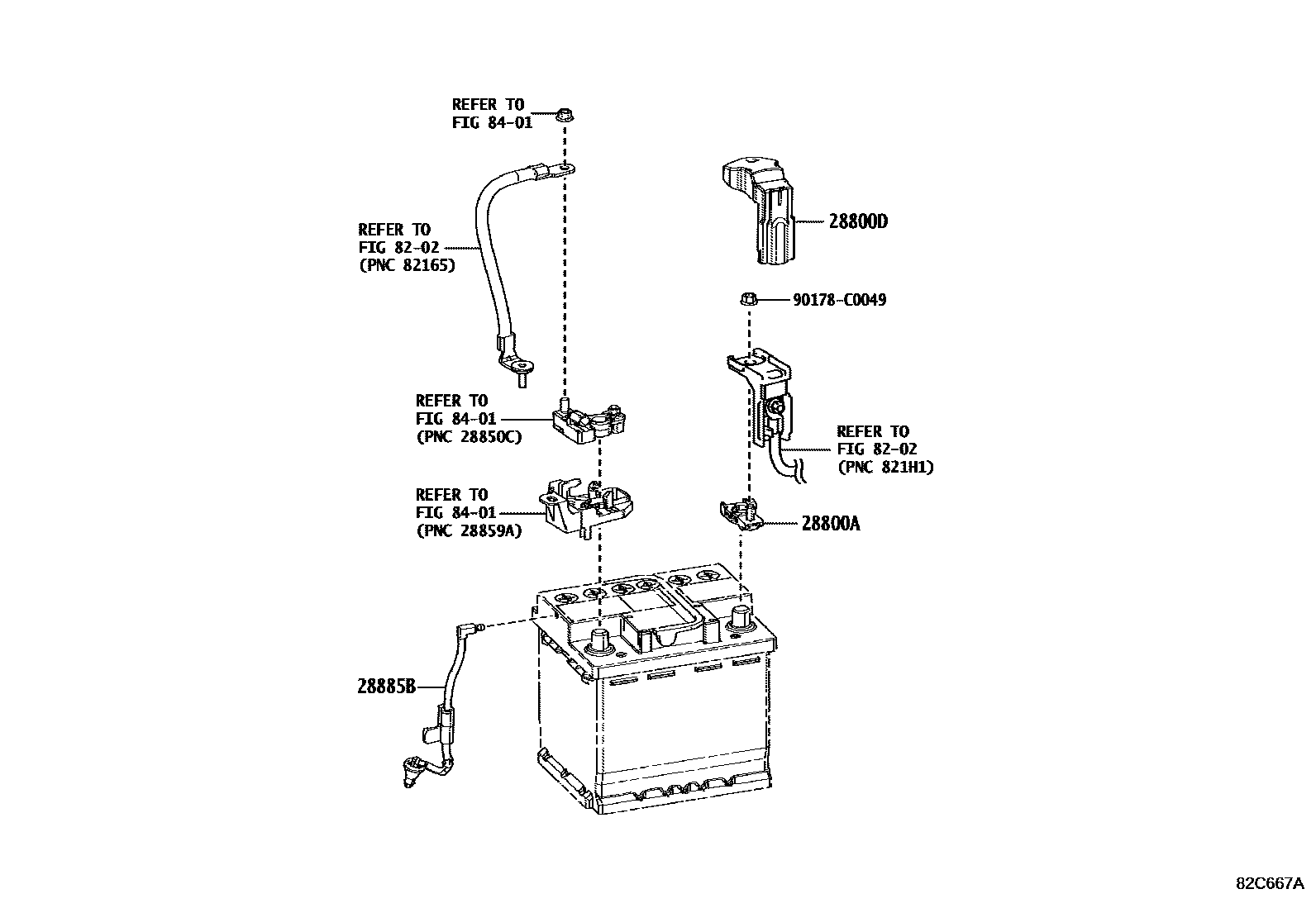

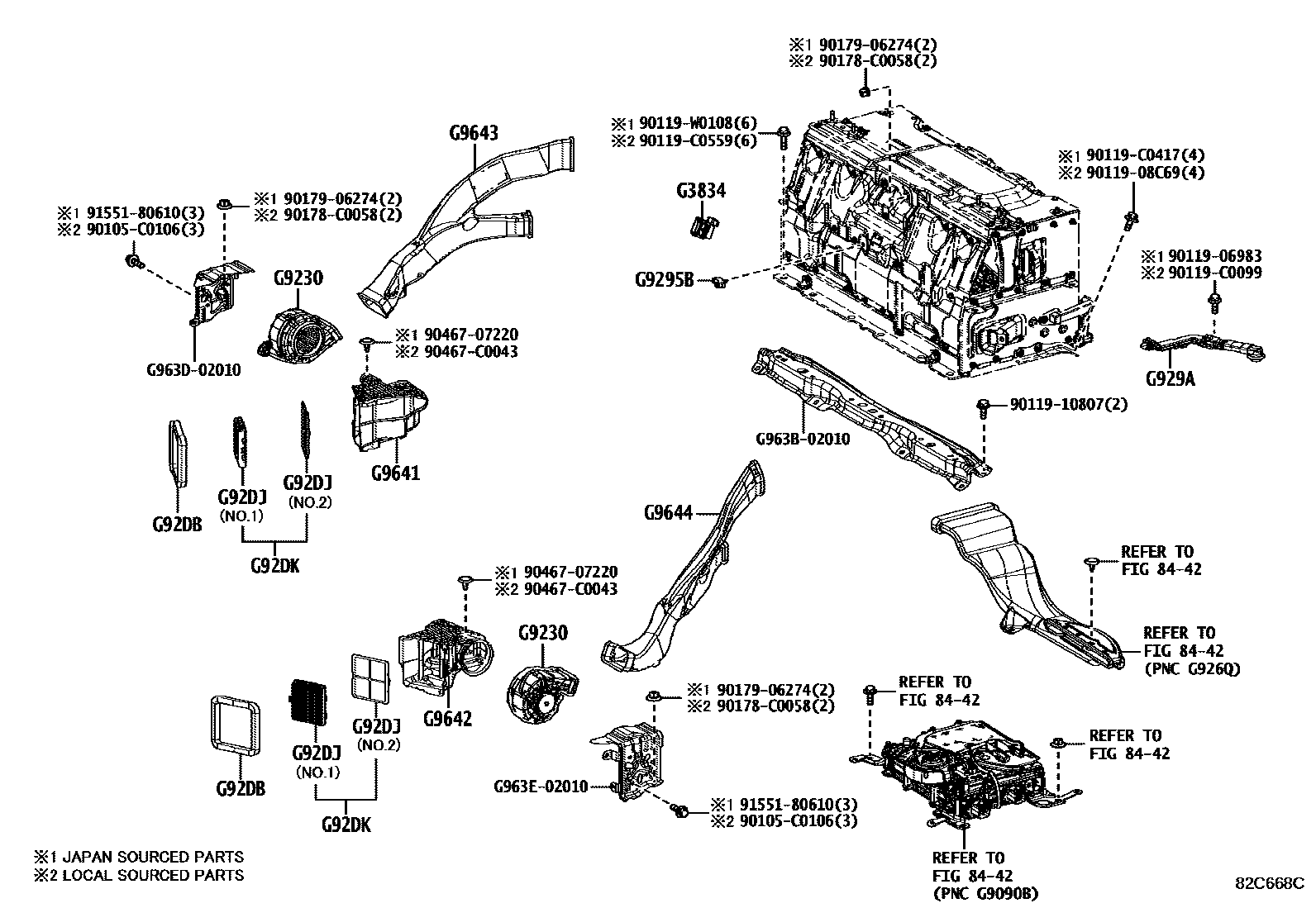

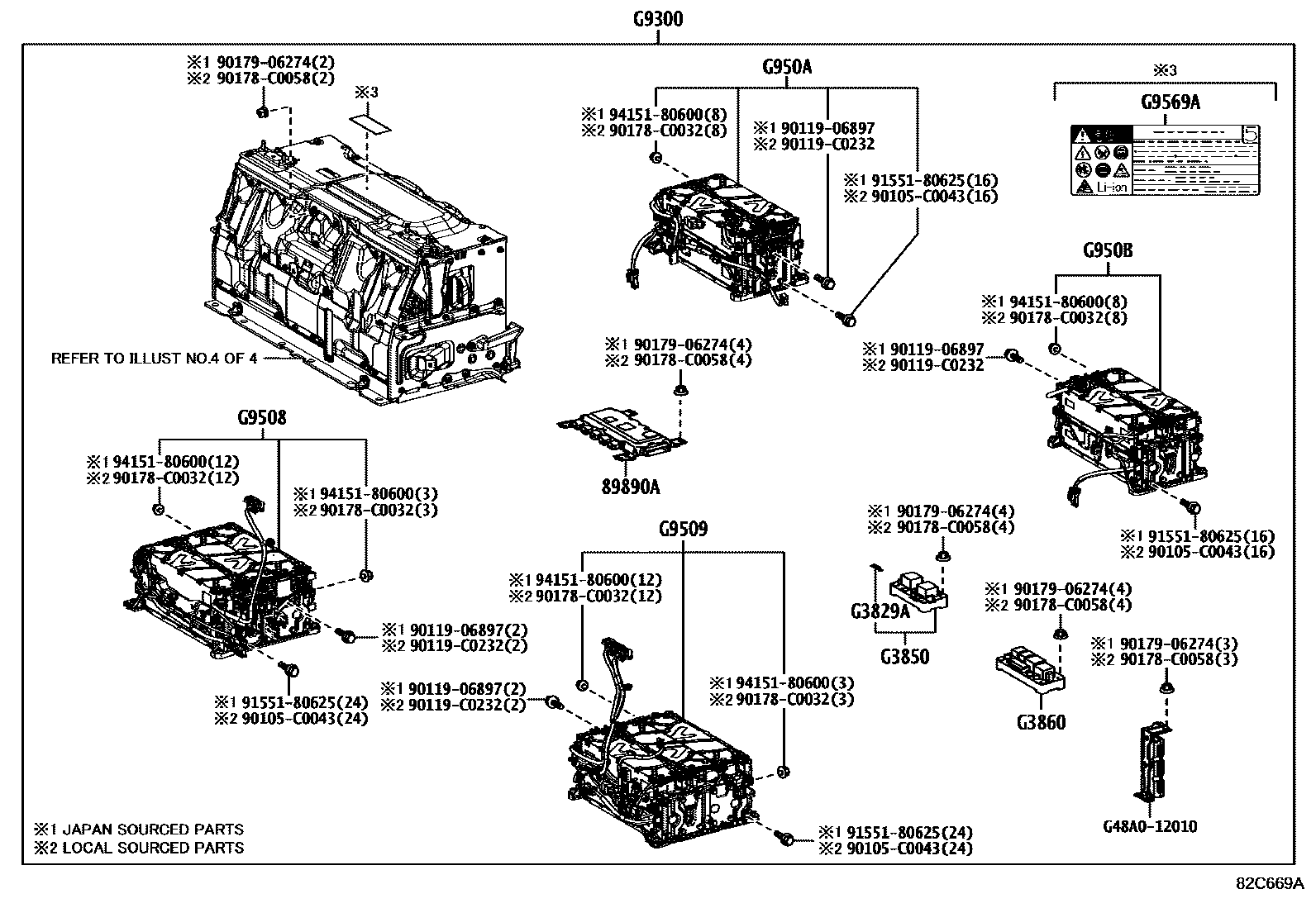

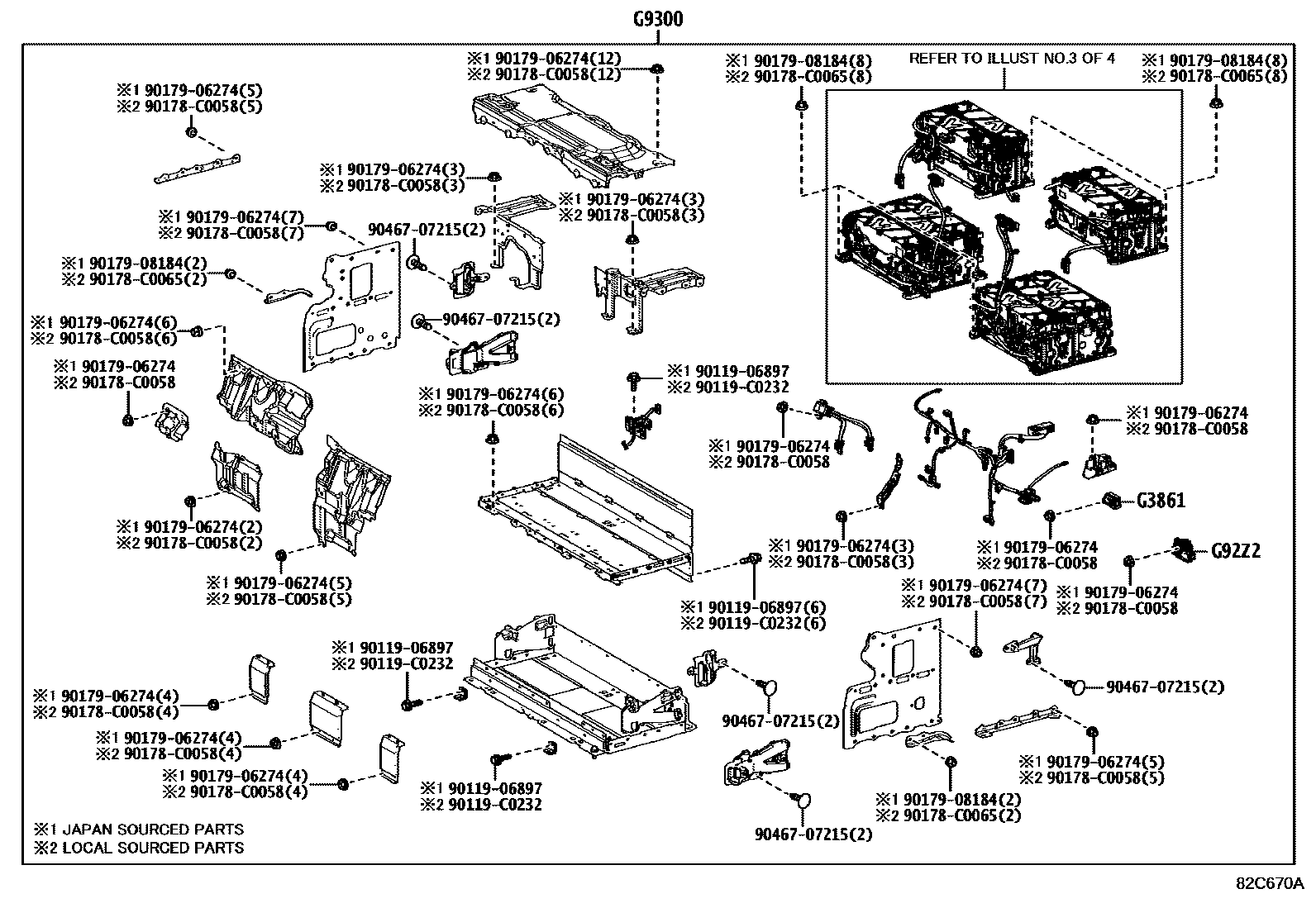

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82821-47110 |
| 28885B | battery hose | 28885-0T020 |
| 89890A | Battery ECU assembly | 89890-12010 · 89890-12011 · 89890-12012 |
| G3829A | Electric vehicle fuse | G3829-48010 |
| G3834 | Service plug handle | G3834-02010 |
| G3850 | Power battery No. 1 device box assembly | G3850-02020 |
| G3860 | Power battery No. 2 device box assembly | G3860-02020 |
| G3861 | HV battery heater relay | G96J1-12010 |
| G9230 | Battery cooling blower assembly | G9230-06010 · G9230-33050 |
| G9295B | Battery cover lock | G9295-02010 |
| G929A | HV battery hose No. 1 | G9651-02010 |
| G92DB | No. 1 HV battery seal | G92DB-02050 |
| G92DJ | No. 2 HV battery air intake filter | G92DJ-02040 · G92DJ-02050 |
| G92DK | HV battery No. 3 imported filter | G92DK-02010 |
| G92Z2 | HV battery terminal box | G92Z2-12010 |
| G9300 | Power supply battery assembly | G9300-02010 · G9300-02011 |
| G9508 | No. 1 HV power supply battery assembly | G9301-02010 · G9301-02011 |
| G9509 | No. 2 HV power supply battery assembly | G9302-02010 · G9302-02011 |
| G950A | No. 3 HV power supply battery assembly | G9303-02010 · G9303-02011 |
| G950B | No. 4 HV power supply battery assembly | G9304-02010 · G9304-02011 |
| G9569A | Lithium Ion Battery Warning Labels | G9569-0E010 · G9569-11010 · G9569-11011 |
| G9641 | Power battery No. 1 insulation tube | G9641-02010 |
| G9642 | Power battery No. 2 insulation tube | G9642-02010 |
| G9643 | Power battery No. 3 insulation tube | G9643-02010 |
| G9644 | Power battery No. 4 insulation tube | G9644-02010 |
