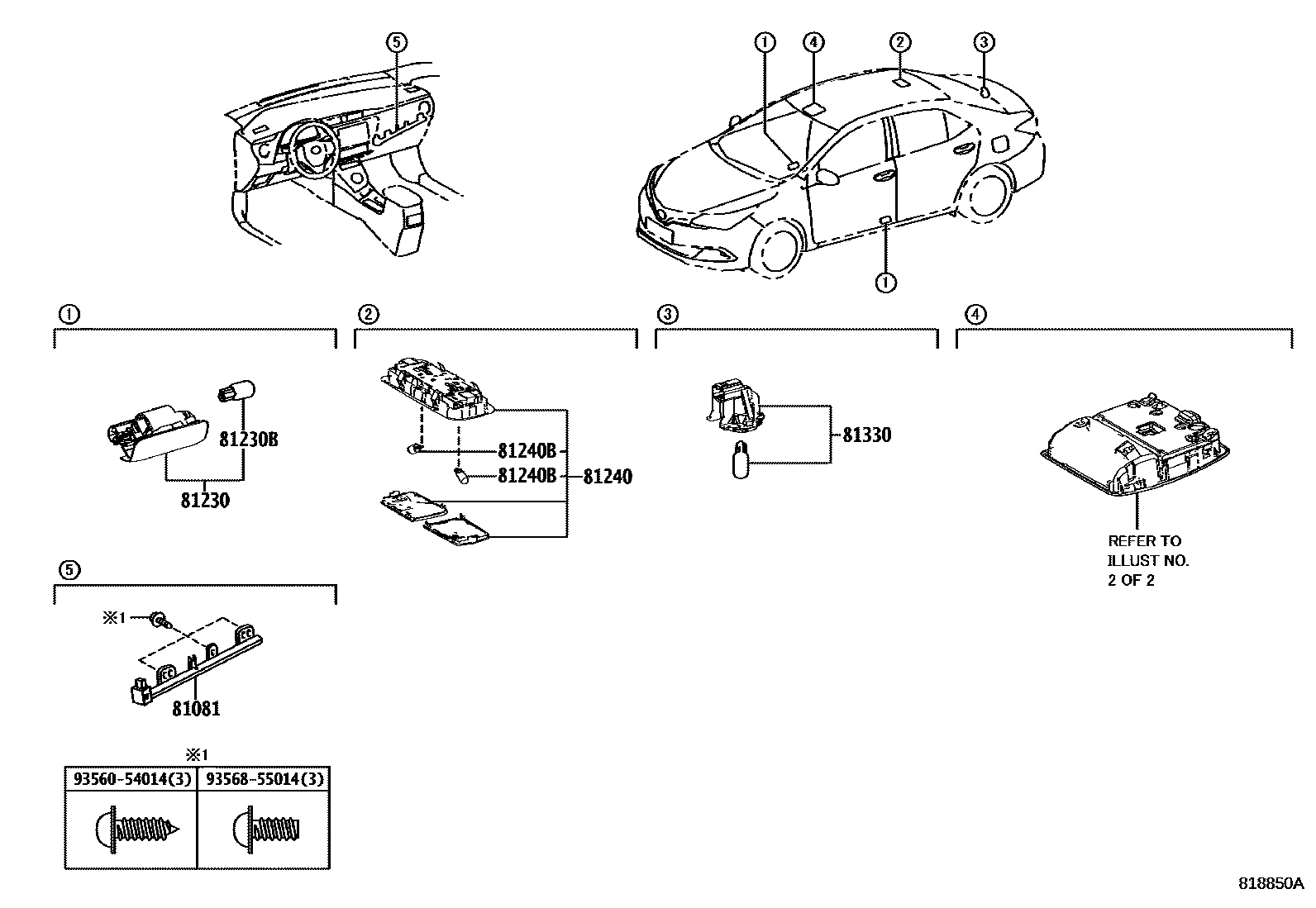

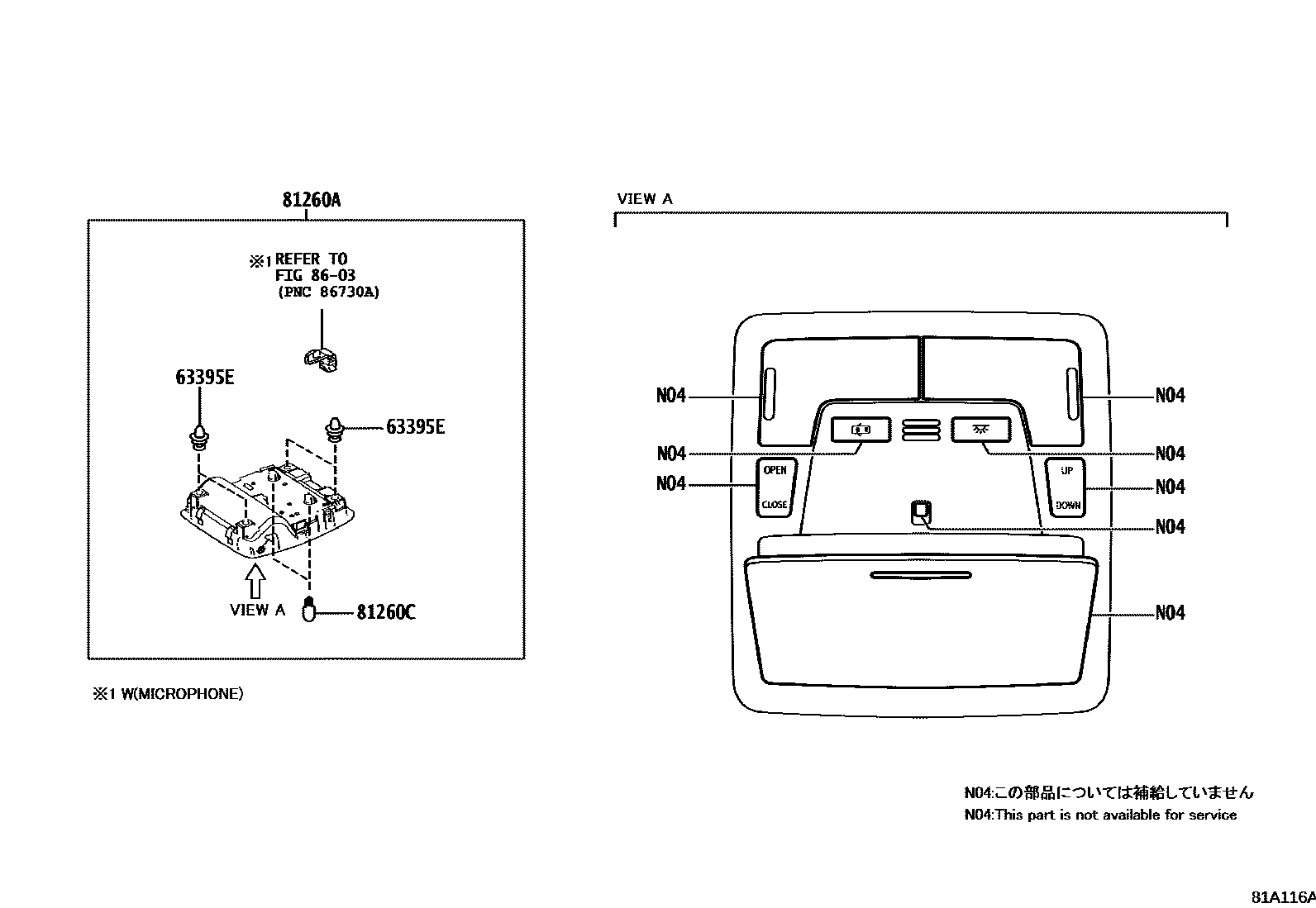

Toyota COROLLA 车内灯 — Figure 8121
Toyota COROLLA EPC diagram 8121, 车内灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63395E | Clip (for reading lamp) | 90467-A0033 |
| 81081 | Interior lighting sub-assembly | 81081-02030 |
| 81230 | Door control light assembly | 81230-30200 |
| 81230B | Bulb (for gated lights) | 90981-12010 |
| 81240B | Interior light bulb No. 1 | 90981-11062 |
| 81260C | Light bulb (for reading lamp) | 99132-12050 |
| 81330 | No. 1 trunk light assembly | 81330-0D040 |
