Toyota COROLLA 后组合灯 — Figure 8111

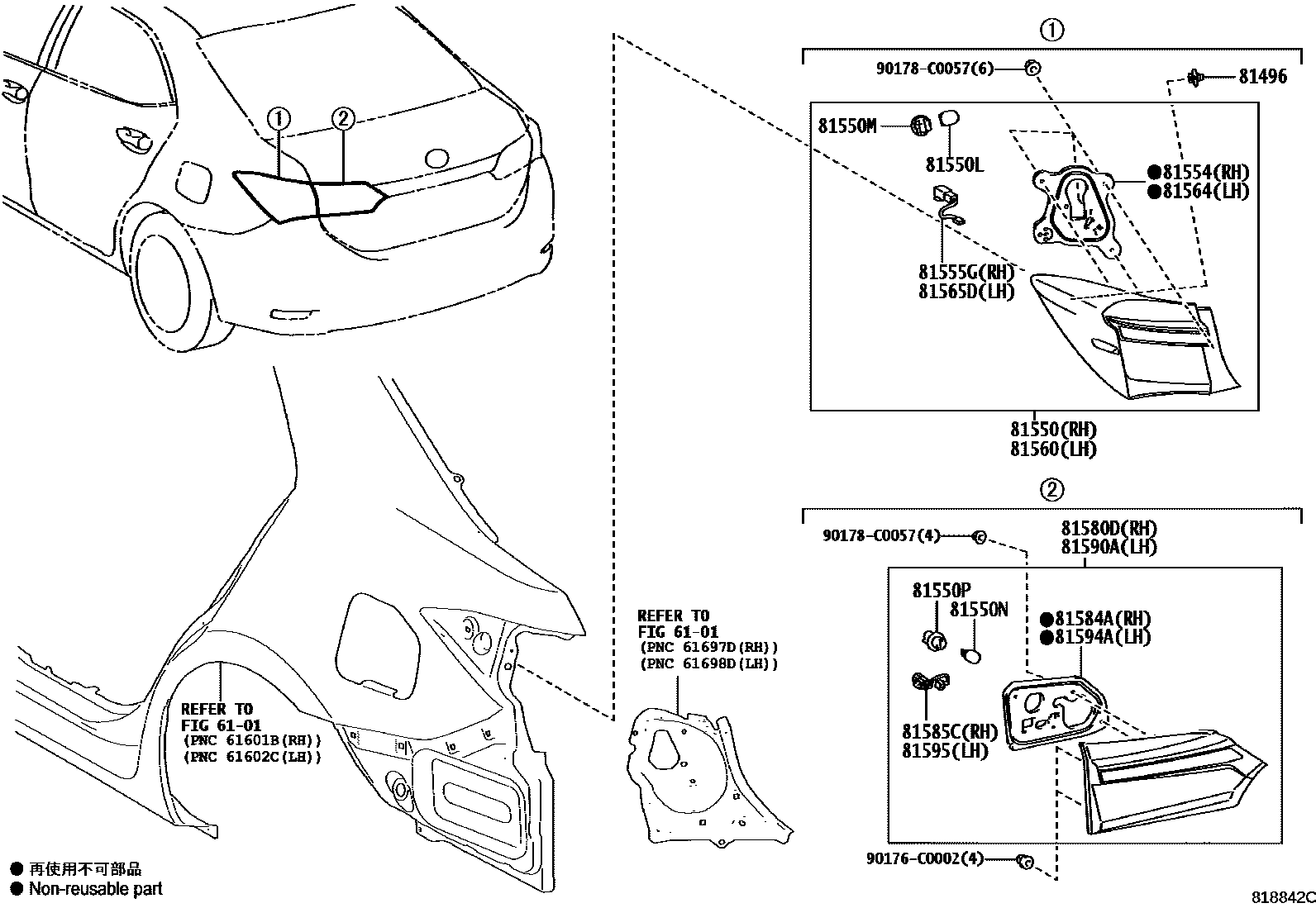

Toyota COROLLA EPC diagram 8111, 后组合灯, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 90467-C0019 |
| 81550 | Right rear combination light assembly | 81550-YK030 |
| 81550L | Rear turn signal light bulb | 90981-CB004 |
| 81550M | Rear turn signal lamp holder | 90069-81098 |
| 81550N | reversing light bulb | 90981-CB002 |
| 81550P | Reversing light lamp holder | 90069-81101 |
| 81554 | Right rear combination lamp body gasket | 81552-02870 |
| 81555G | Right rear combination lamp wire | 81555-02870 |
| 81560 | Left rear combination light assembly | 81560-YK030 |
| 81564 | Left rear combination lamp body gasket | 81552-02870 |
| 81565D | Left rear combination lamp wire | 81565-02870 |
| 81580D | Right rear light assembly | 81580-YK030 |
| 81584A | Right rear light gasket | 81584-02431 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-02430 |
| 81590A | Left rear light assembly | 81590-YK030 |
| 81594A | Left rear light gasket | 81584-02431 |
| 81595 | Left rear light lamp holder and wiring harness | 81565-02870 |
