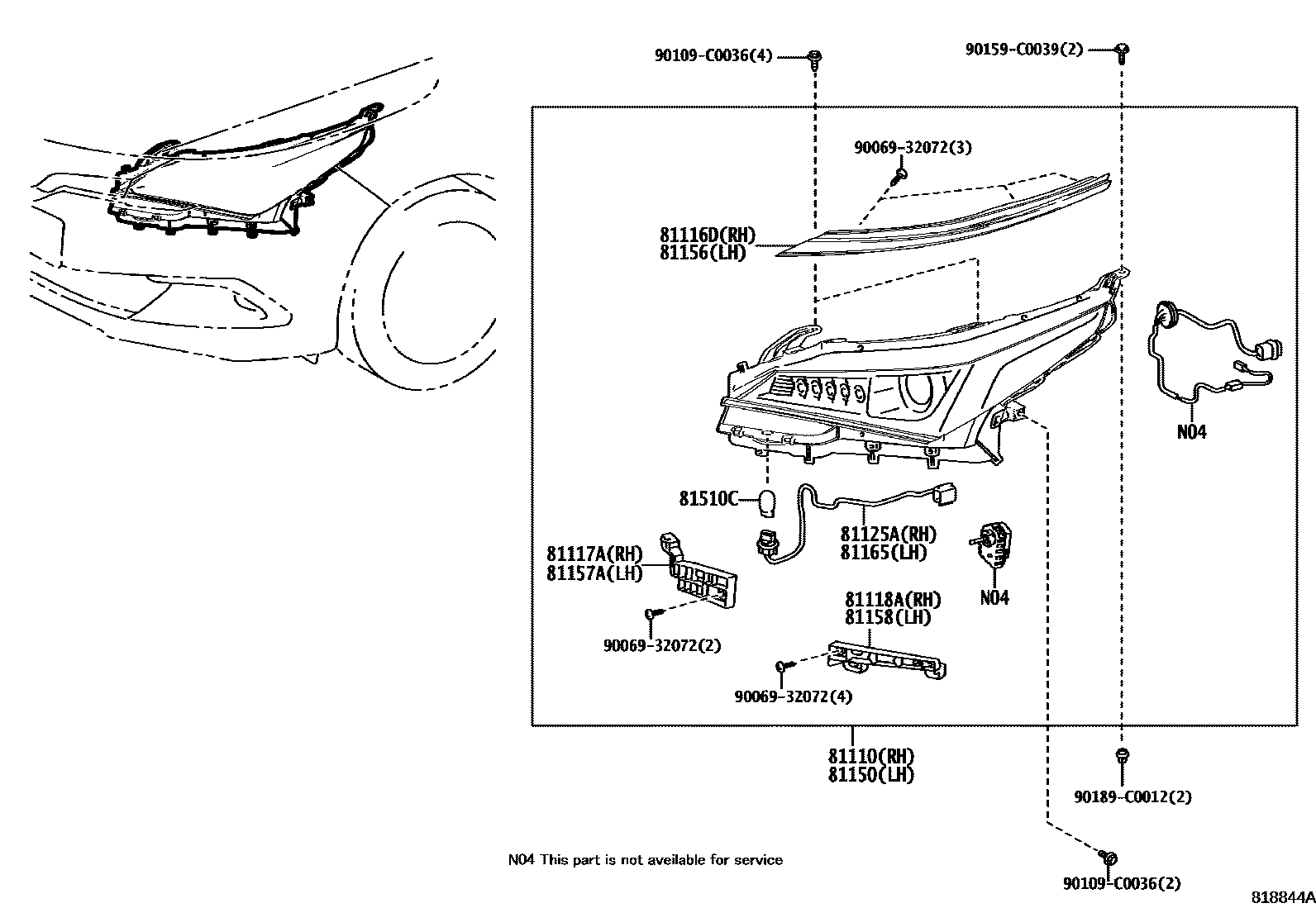

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-YK030 · 81110-YK060 |
| 81116D | Right headlight frame | 81116-02K00 |
| 81117A | Right headlight bracket | 81117-02K00 |
| 81118A | Right headlight bracket | 81118-02K00 |
| 81125A | Right headlight wire | 81125-02K00 |
| 81150 | Left headlight assembly | 81150-YK050 · 81150-YK060 |
| 81156 | Left headlight frame | 81156-02K00 |
| 81157A | Left headlight bracket | 81157-02K00 |
| 81158 | Left headlight bracket | 81158-02K00 |
| 81165 | Left headlight wire | 81125-02K00 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
