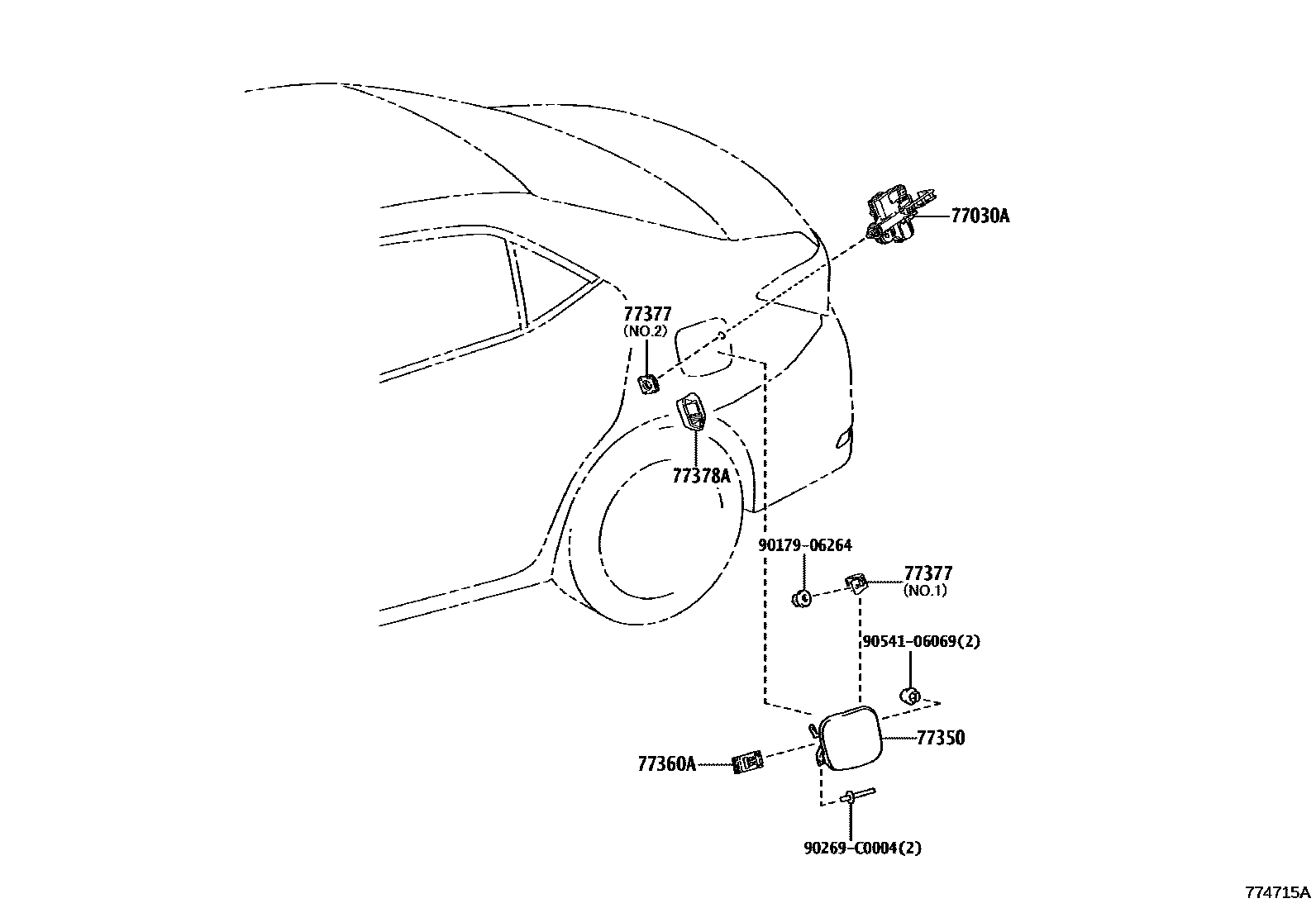

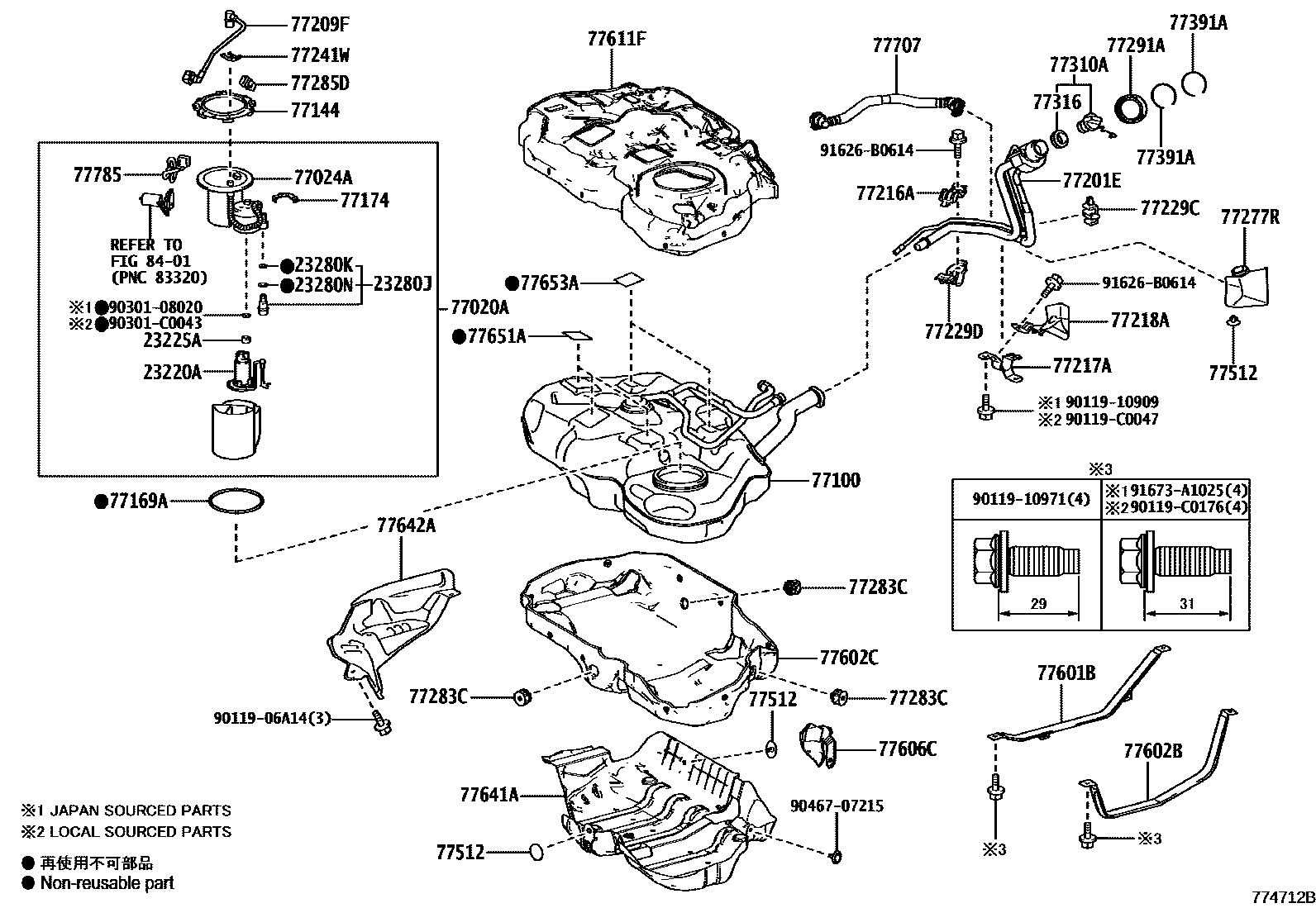

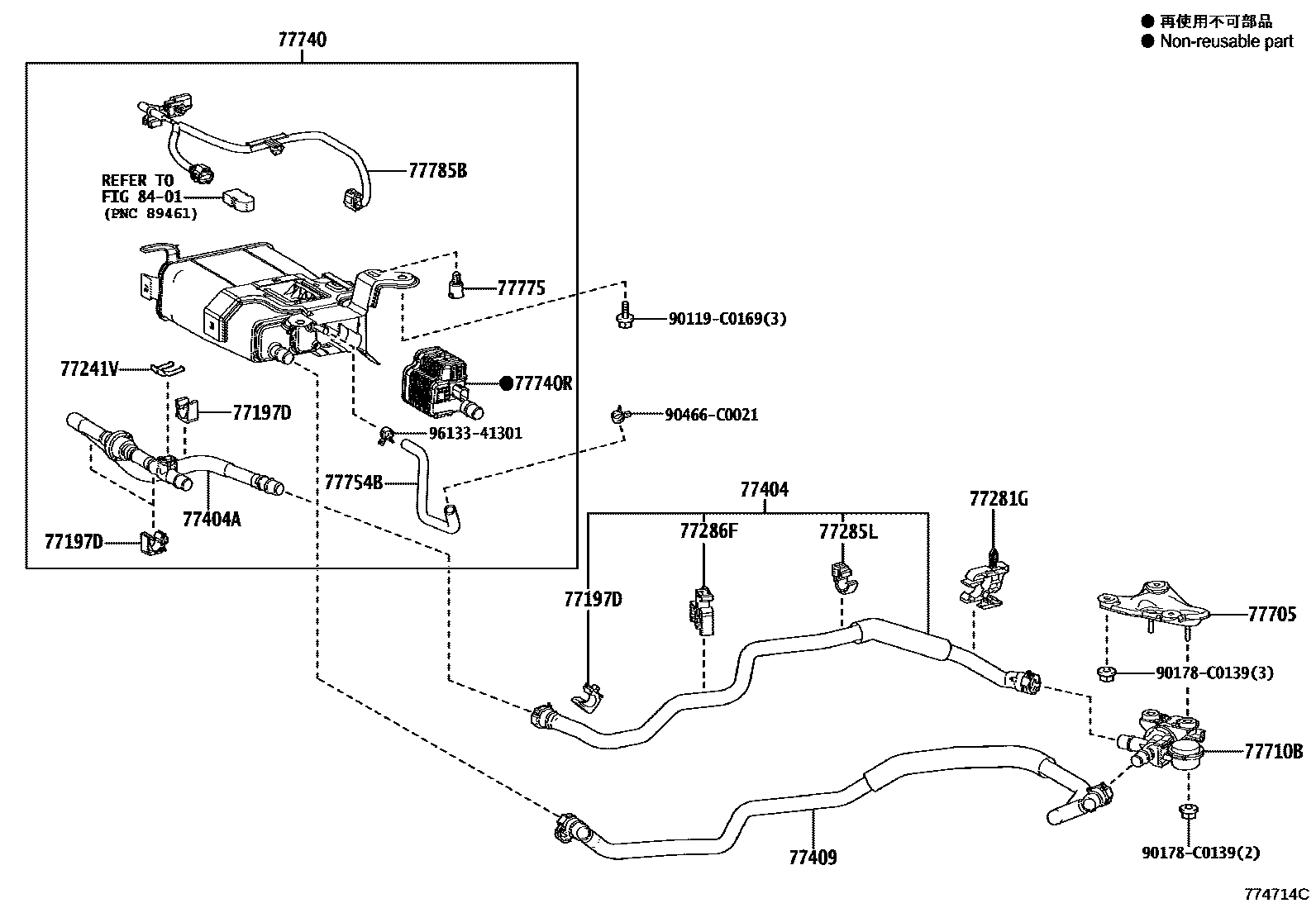

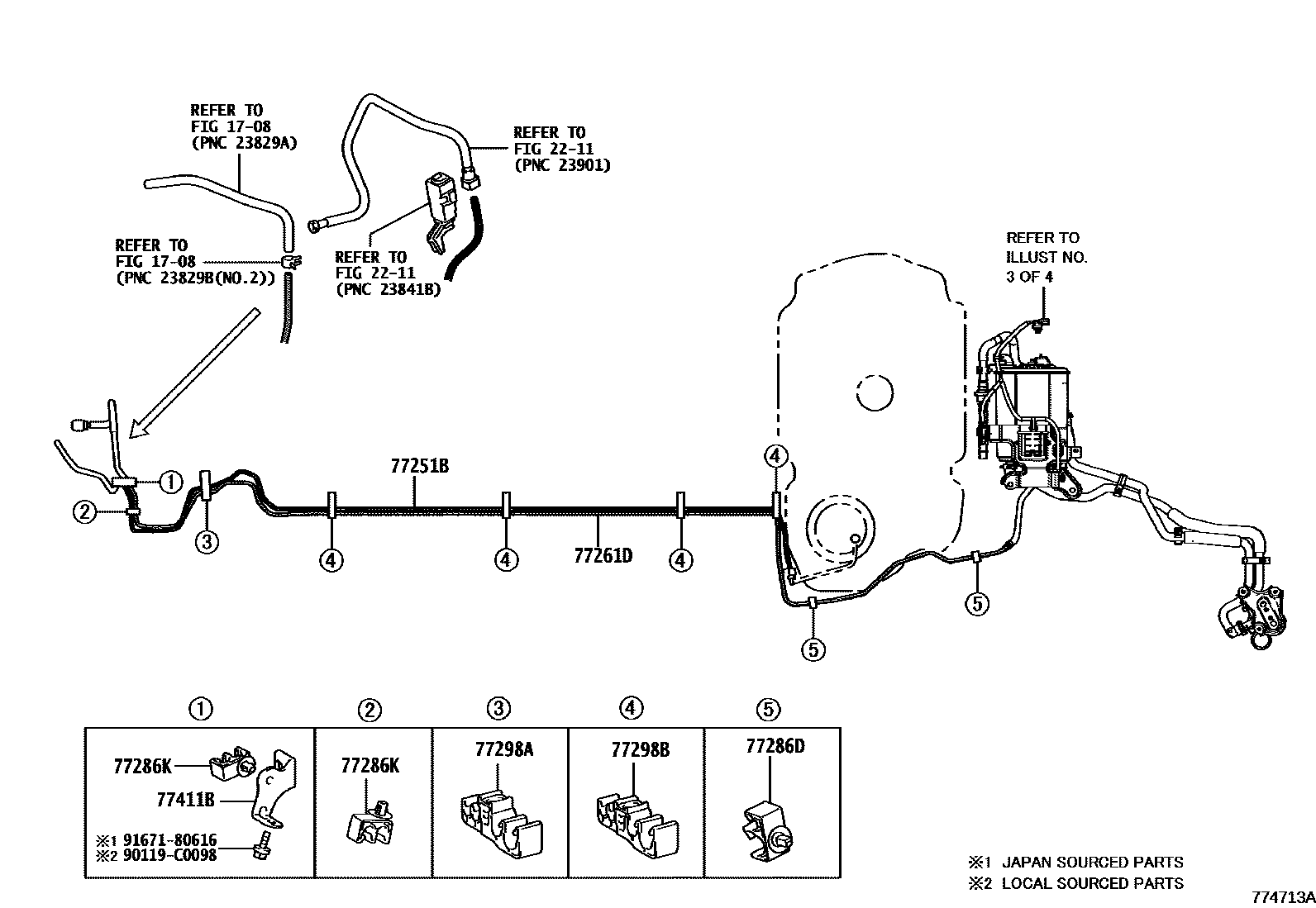

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 4 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23220A | Fuel pump assembly with filter | 23220-0M051 |
| 23225A | fuel pump septum | 23225-0H020 · 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 |
| 23280N | No. 2 O-ring (for fuel pressure regulator) | 90301-15024 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02661 · 77020-02662 |
| 77024A | Fuel absorber sub-assembly | 77024-02391 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-02040 · 77030-02041 |
| 77100 | fuel tank assembly | 77001-02B10 |
| 77144 | Fuel pump instrument fixture | 77144-F4010 · 77144-F4020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0K030 · 77169-47030 · 77169-F4050 |
| 77174 | No. 1 oil suction pipe bracket | 77174-0F010 · 77174-75010 |
| 77197D | No. 2 evaporation vent pipe clamp | 77197-42020 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-02440 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-02360 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-02190 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-02170 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-02040 |
| 77229C | Snorkel clamp | 77229-02060 |
| 77229D | No. 4 fuel tank filler pipe bracket | 77229-02050 |
| 77241V | Pipe joint clip | 77241-33011 |
| 77241W | Pipe joint clip | 77241-02020 · 77241-33011 |
| 77251B | main fuel pipe | 77251-0Q010 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02700 |
| 77277R | Fuel tank filler pipe protection device | 77277-47050 |
| 77281G | fuel hose clamp | 77281-02200 |
| 77283C | Fuel tank protective shell bracket | 77283-47010 |
| 77285D | No. 1 fuel pipe clamp | 77285-47090 |
| 77285L | No. 1 fuel pipe clamp | 77285-30310 |
| 77286D | No. 2 fuel pipe clamp | 77286-75020 |
| 77286F | No. 2 fuel pipe clamp | 77286-47040 |
| 77286K | No. 2 fuel pipe clamp | 77286-75010 |
| 77291A | Fuel tank filler pipe cover | 77291-02220 |
| 77298A | No. 4 fuel pipe clamp | 77298-75010 |
| 77298B | No. 4 fuel pipe clamp | 77298-12150 |
| 77310A | Fuel tank cap assembly | 77300-06110 · 77300-11010 |
| 77316 | fuel tank cap gasket | 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-02270 |
| 77360A | Fuel filler cap spring assembly | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-02120 · 77377-02190 |
| 77378A | Fuel filler cap lock cover | 77378-02010 |
| 77391A | fuel inlet ring | 77391-0R030 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-02210 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-12180 |
| 77409 | No. 3 fuel hose sub-assembly | 77409-02020 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-47010 |
| 77512 | fuel tank rear bracket | 77512-35140 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-02130 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-02160 |
| 77602C | Fuel tank lower cover sub-assembly | 77602-47080 |
| 77606C | No. 2 fuel tank protective shell | 77642-47040 |
| 77611F | Fuel tank upper cover | 77611-47060 |
| 77641A | No. 1 fuel tank protective shell | 77641-47050 |
| 77642A | No. 2 fuel tank protective shell | 77641-02240 |
| 77651A | No. 1 fuel tank liner | 77651-12070 |
| 77653A | No. 3 fuel tank liner | 77653-02020 · 77653-36010 |
| 77705 | Carbon canister bracket sub-assembly | 77705-02070 |
| 77707 | Carbon canister outlet hose sub-assembly | 77707-02030 |
| 77710B | Fuel tank solenoid valve main valve assembly | 77710-47020 |
| 77740 | Carbon canister assembly | 77740-12810 |
| 77740R | Leak detection pump sub-assembly | 90910-14008 |
| 77754B | Carbon canister outlet hose | 77754-12240 |
| 77775 | Carbon canister outlet duct | 77775-47010 |
| 77785 | fuel pump wiring harness | 77785-0F031 · 77785-12010 |
| 77785B | No. 2 fuel pump wiring harness | 77785-47040 |
